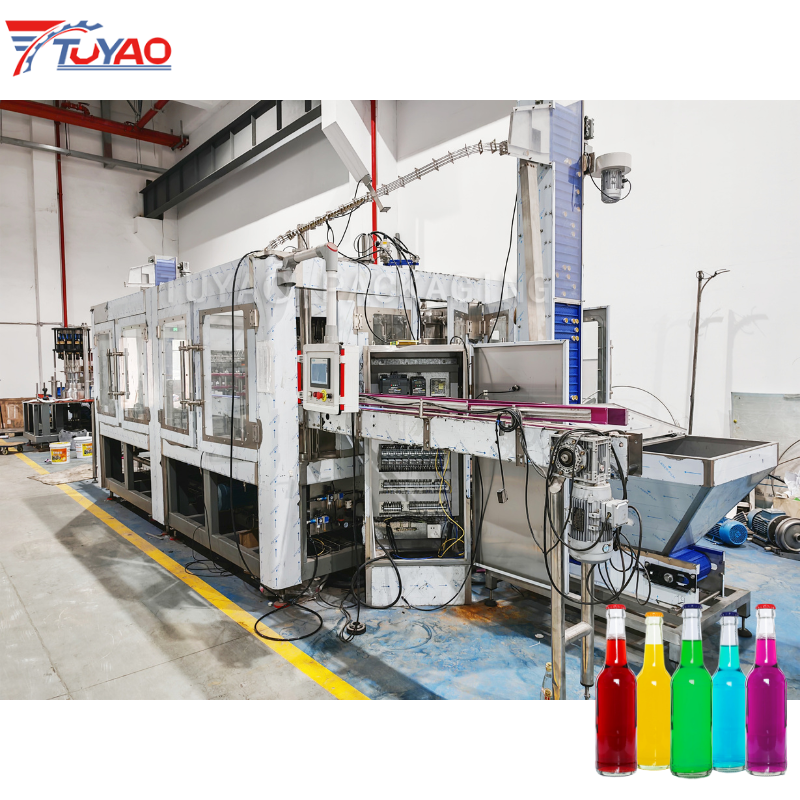

Automatic Glass Bottle Carbonated Soft Drink Filling Machine

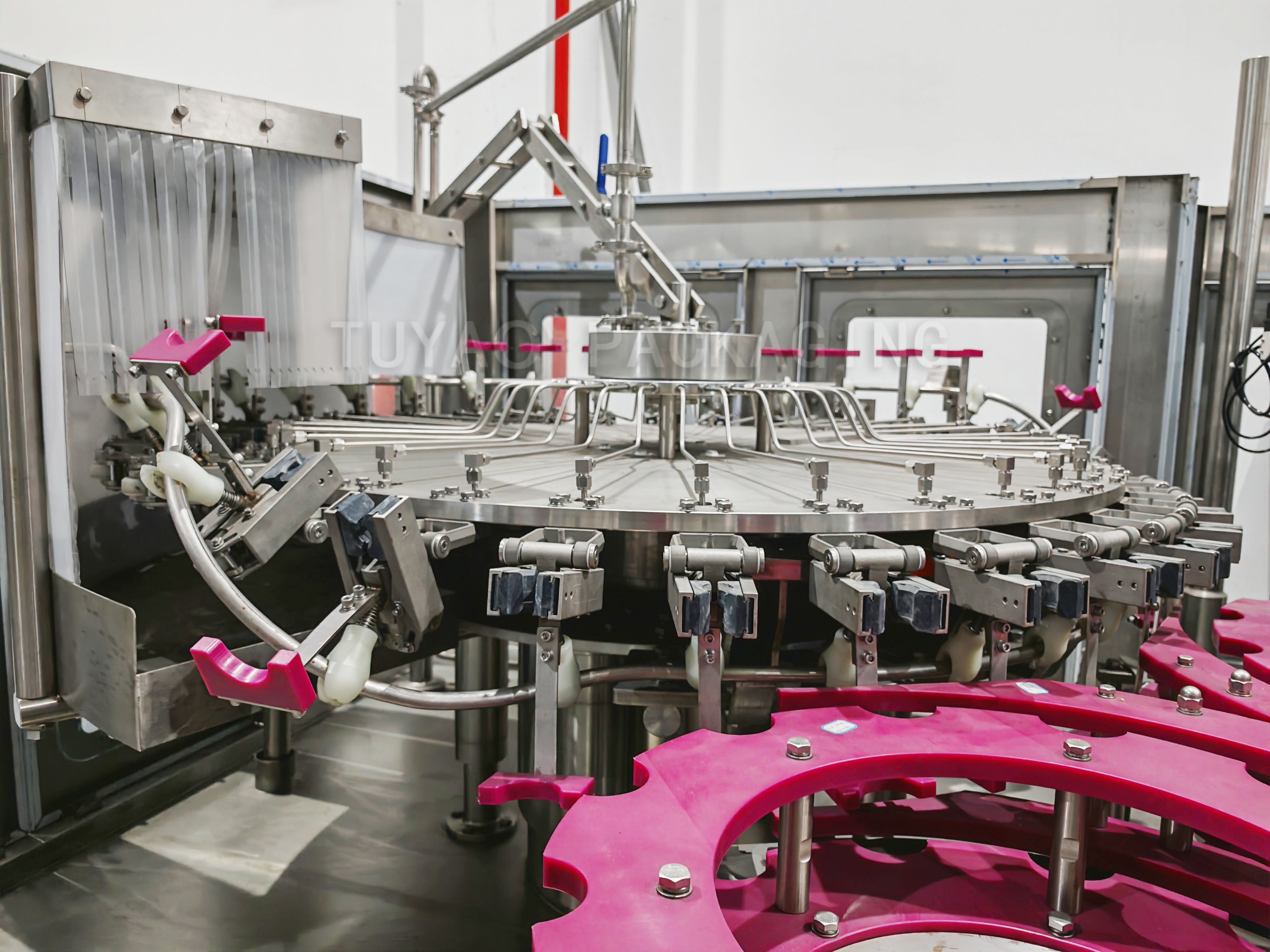

Rinsing Part

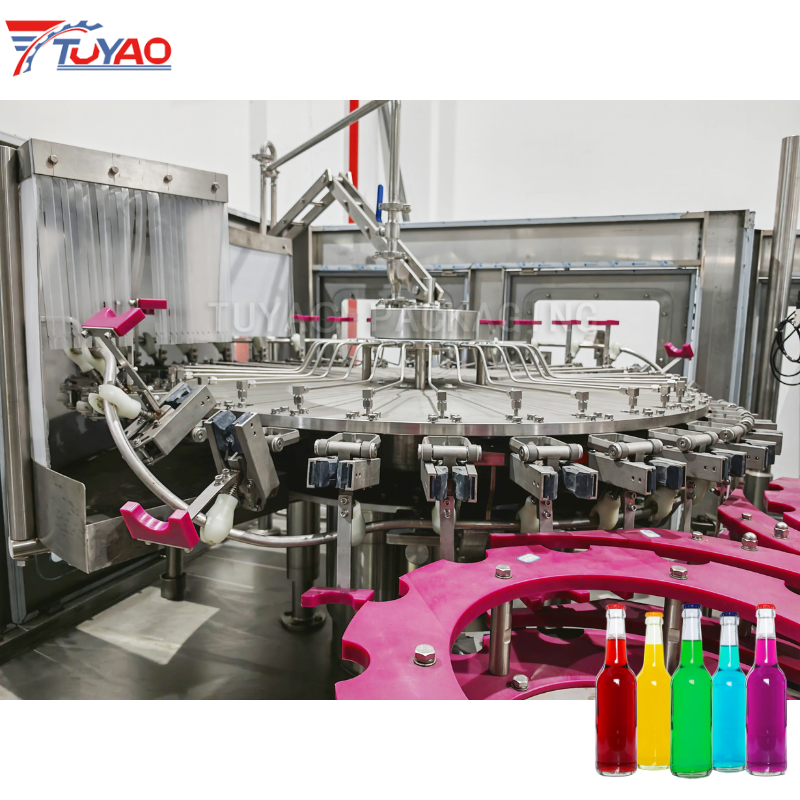

● After entering the main monoblock unit, empty bottles are fed into the rotary bottle rinser via bottom-supporting conveying drags. Specialized neck-gripping bottle clamps firmly hold the bottle necks and rotate the bottles 180° upward along the rinsing guide rails, orienting bottle mouths downward to enable full inner-wall washing.

● Within the designated rinsing zone controlled by the integrated water distribution plate, rinsing water is pumped into the distribution plate by a dedicated rinsing water pump, then evenly distributed through internal pipelines to all rinsing clamps. High-efficiency nozzles installed on each clamp spray purified rinsing water at an optimized angle to thoroughly flush the entire inner bottle wall, eliminating dust, fine particles and potential contaminants.

● Following rinsing, the clamped bottles pass through a dedicated draining section to fully discharge residual water. The bottle clamps then travel downward along the guide rails and rotate the bottles an additional 180° to return them to an upright position with bottle mouths facing upward. Fully sanitized and drained bottles are transported out of the rinsing station via bottom-supporting drags — using food-grade pure water for the entire rinsing process — and delivered directly to the filling station for subsequent production.

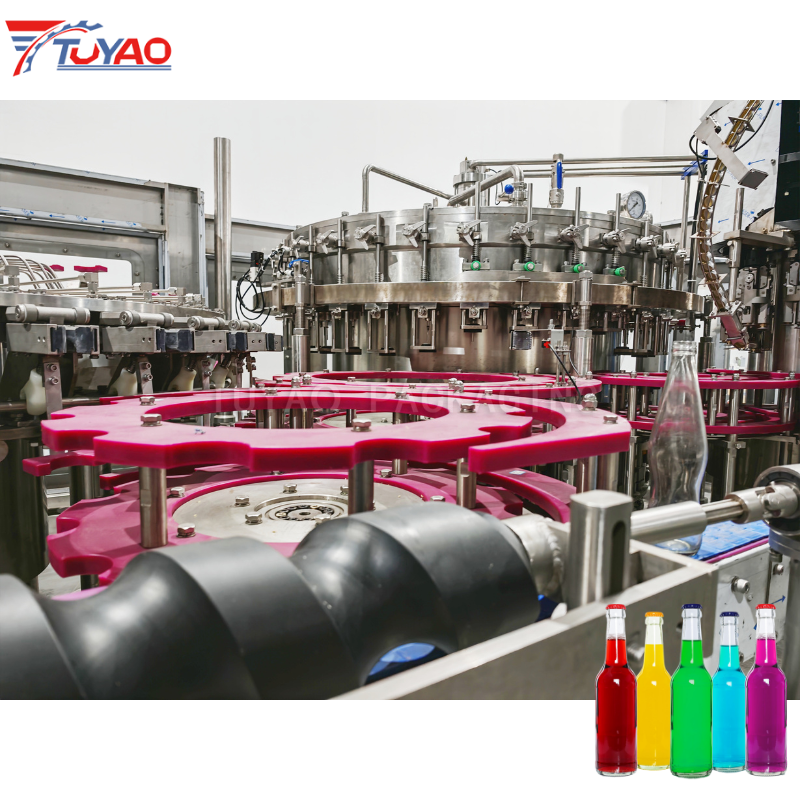

Filling Part

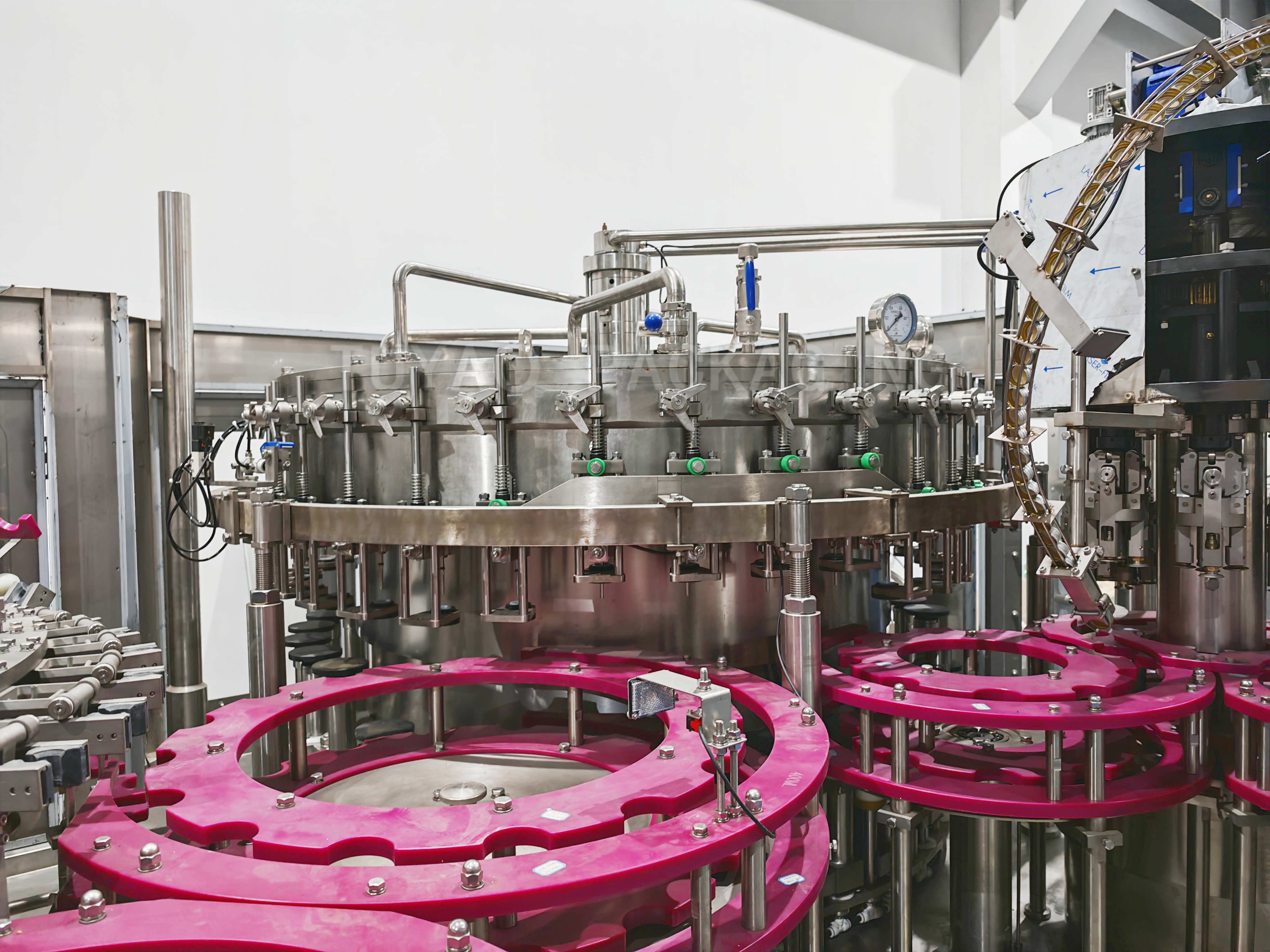

High-Precision High-Speed Filling Valves with Accurate Level Control: This bottling machine features high-precision, high-speed filling valves that deliver consistent liquid level accuracy with zero drip loss for premium filling quality. A no-bottle no-fill function keeps valves automatically closed when bottles are absent, eliminating unnecessary material waste and sustaining reliable filling performance. Fabricated from high-grade stainless steel, the valves adopt conical surface sealing for effortless cleaning and scale-free operation. The valve activates immediately upon contact with the bottle mouth to complete the filling cycle, and an integrated flow control mechanism allows adjustable flow rates within a specified range to adapt to varying production requirements.

Chemical-Resistant EPDM Sealing Gaskets: All filling sealing gaskets are made of EPDM material, which offers exceptional resistance to acids, alkalis and ozone. This durable sealing solution maintains long-term tightness and compatibility with diverse beverage formulas, reducing routine replacement costs.

Smooth Filling-to-Capping Transfer for Consistent Finished Quality: The connecting transmission between the filling system and capping system operates with stable, low-vibration motion, effectively preventing liquid splashing during bottle transfer. This seamless transition ensures the liquid level in every bottle remains within the standard filling tolerance after capping, guaranteeing uniform product specifications across batch production.

Enclosed Gear Transmission & Heavy-Duty Flat Toothed Bearings: Power for the filling machine is transmitted via gears through a transmission system mounted inside the machine frame, delivering efficient, reliable power delivery with minimal maintenance. Large flat toothed bearings are fitted to the rotary assembly to enable steadier equipment operation, reduce operational vibration and support uninterrupted high-volume production.

Bottom-Supported Bottle Conveying Across All Key Stations: Bottles are conveyed by bottom support throughout the filling station, the transfer starwheel between filling and capping, and the capping position. This stable bottom-support design ensures precise bottle positioning, prevents tipping and shaking, and supports reliable, high-speed bottling operations.

Capping Part

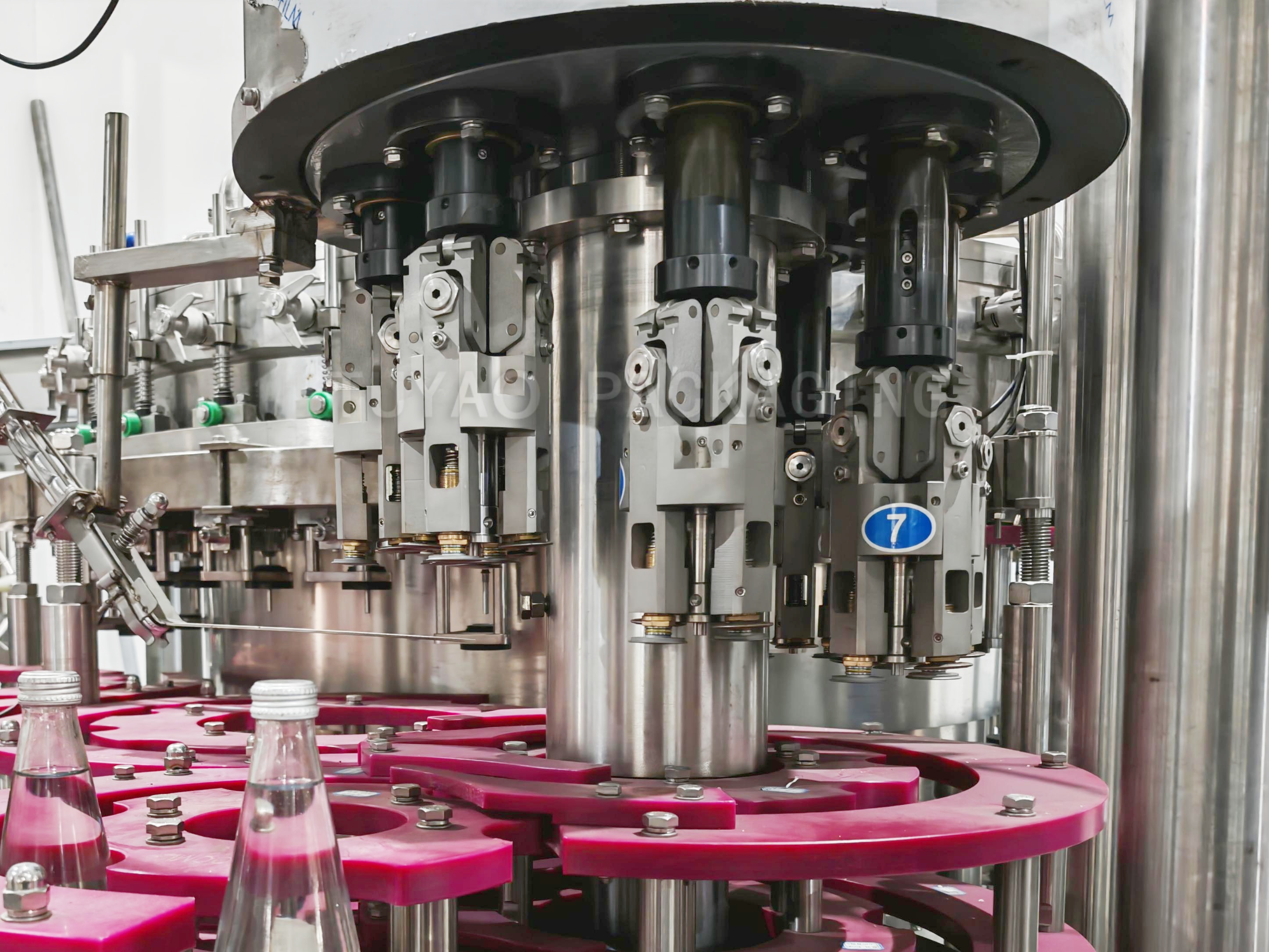

● Upon completion of the filling process, bottles are conveyed into the rotary capping machine through a bottom-supporting transfer starwheel. Within the capping station, an inner positioning dial and outer guard ring work in tandem to stabilize each bottle, keeping it perfectly upright and preventing rotational movement during the sealing operation.

● Driven by the capper’s central main shaft, each capping head revolves around the shaft axis while spinning independently on its own axis. Guided by a precision-engineered cam mechanism, the capping heads execute the full sealing cycle — including screw tightening and cap release — to deliver consistent, leak-proof capping results. As the capping head ascends after tightening, a built-in cap ejector rod pushes the secured cap free from the capping die, readying the head for the next production cycle.

● Power is transmitted to the capping turret from the capping head assembly via a pin gear drive system, which guarantees the turret’s motion remains fully synchronized with the rotary capping unit. This synchronized design ensures smooth, jolt-free bottle transfer between stations, preserving stable liquid levels and maintaining filling accuracy throughout the entire bottling process.

Water Treatment System

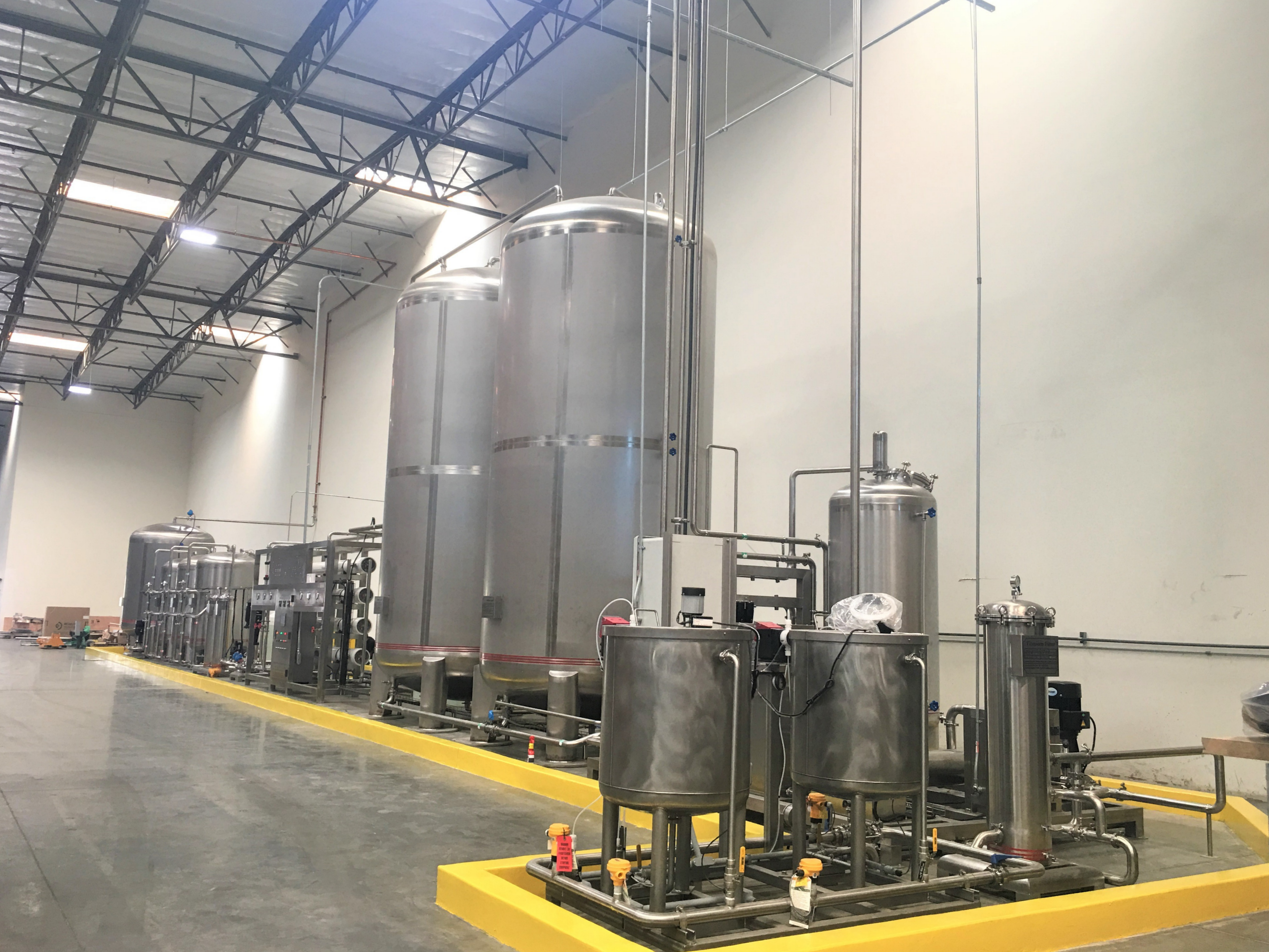

Our water treatment systems are fully custom-engineered to your raw water conditions. After reviewing your water analysis report, we design a tailored solution combining pre-filtration, reverse osmosis (RO), ultrafiltration (UF) and ozone/UV sterilization for deep purification — effectively removing contaminants, reducing hardness and ensuring compliance with drinking water standards.

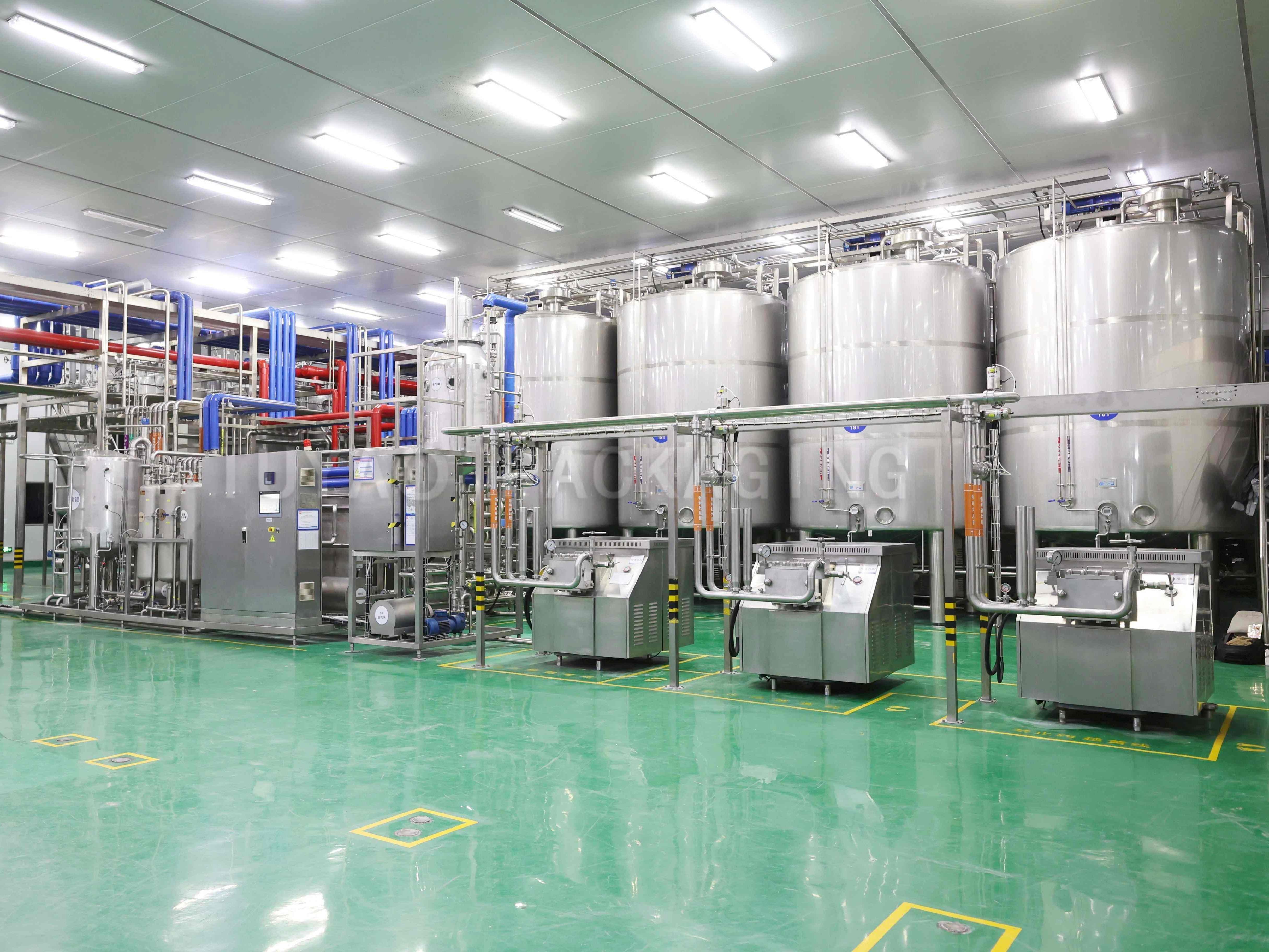

Carbonated Beverage Processing System

Our CSD mixing systems are custom-engineered around your unique beverage formulas, providing a complete pre-filling preparation solution for carbonated soft drinks. The full system comprises syrup melting tanks, blending tanks, heating & cooling units, sterilizers and supporting modules. All wetted parts use high-grade 304/316 stainless steel with precision welding and polishing, paired with optimized process design and fully automated control. Every configuration can be tailored to your specific production requirements.

Process Flow: Syrup Melter → Syrup Transfer Pump → Syrup Filter → Primary Blending Tank → Beverage Transfer Pump → Dual-stage Filter → Secondary Blending Tank → Dual-stage Filter → UHT Sterilizer → Homogenizer → CIP System

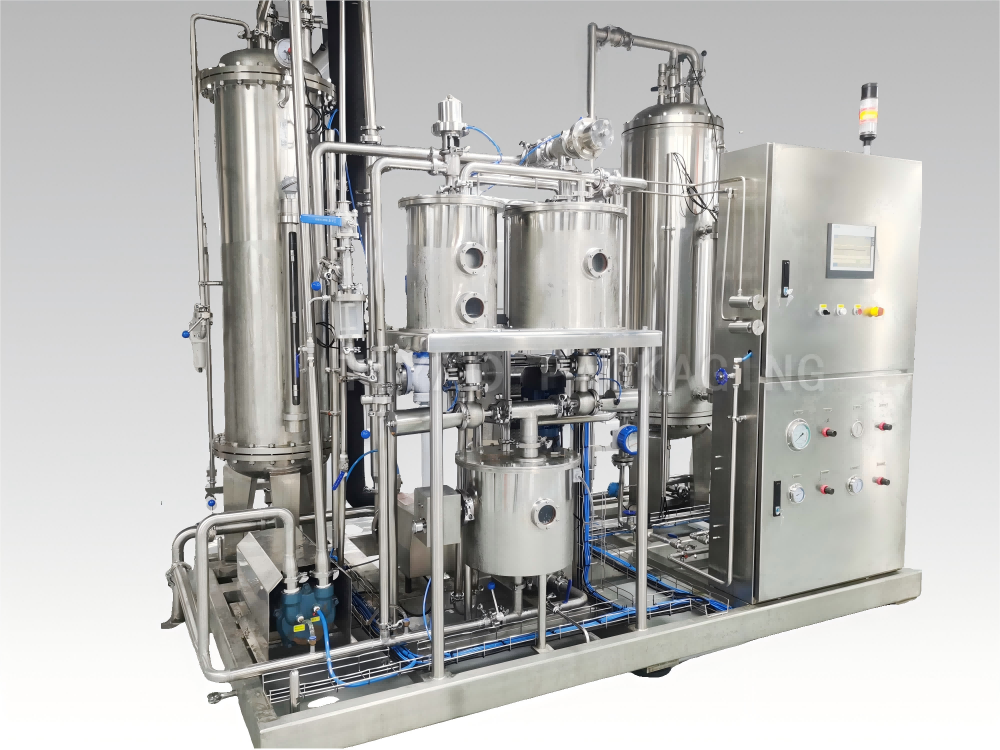

Carbonated Drink CO2 Mixer

Our carbonating mixer is the core processing unit for carbonated soft drink production, engineered to precisely blend syrup, treated water and carbon dioxide for consistent taste and stable carbonation retention.

Syrup is prepared in sugar melting and blending tanks, filtered and pumped into the mixer. Meanwhile, process water goes through vacuum degassing to improve CO₂ absorption. The system proportions water and syrup to your exact formula, cools the blend via a plate heat exchanger, then dissolves CO₂ under controlled pressure to achieve optimal, long-lasting carbonation.

Labeling Machine

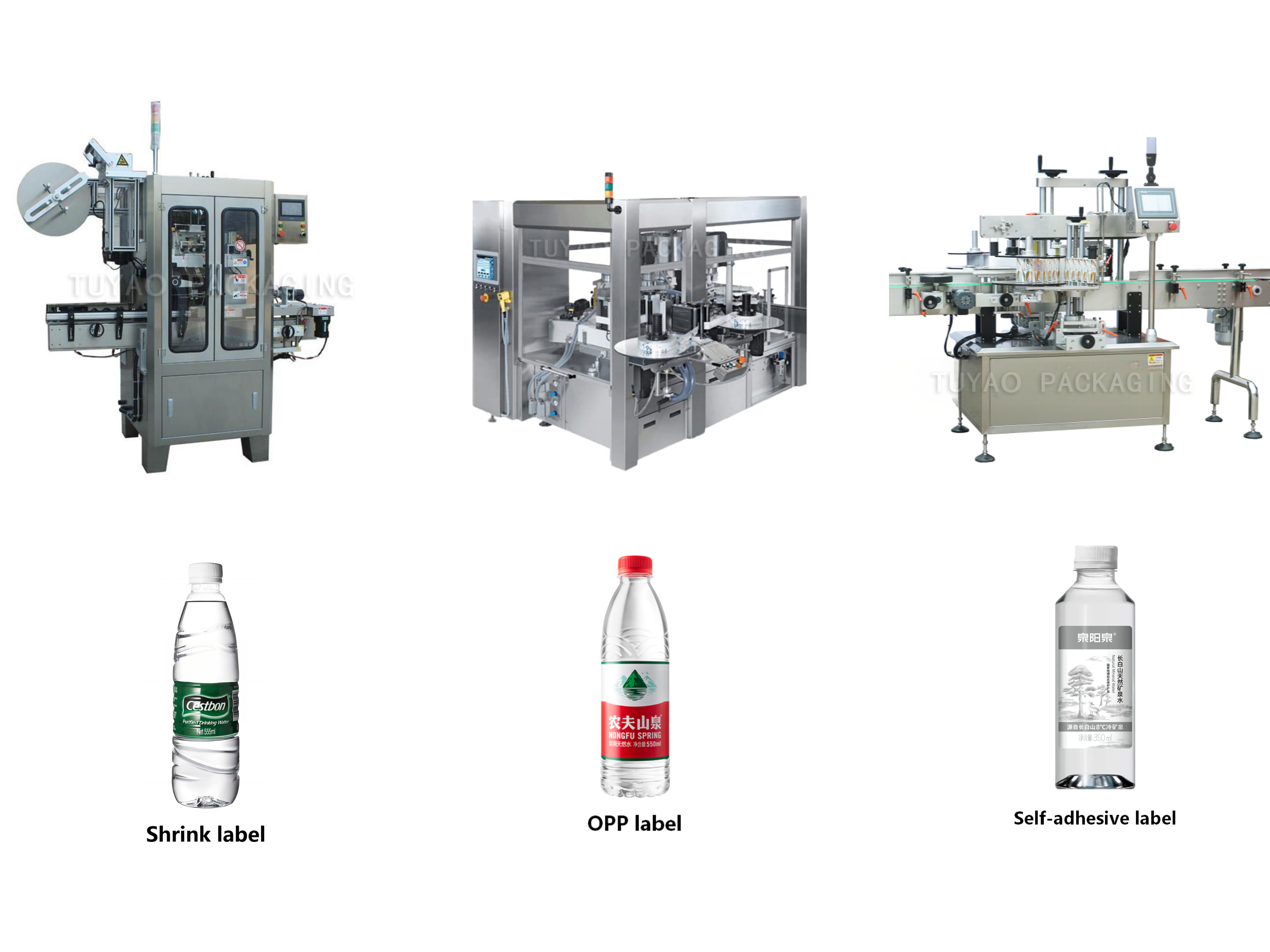

We deliver customized final packaging solutions aligned with your needs and market demand, with three mainstream label options for bottle — PVC shrink sleeve, OPP hot-melt glue and self-adhesive labels — each paired with dedicated labeling equipment. As refined label design effectively boosts brand recognition and market appeal, we recommend referencing local mainstream products when making your selection.

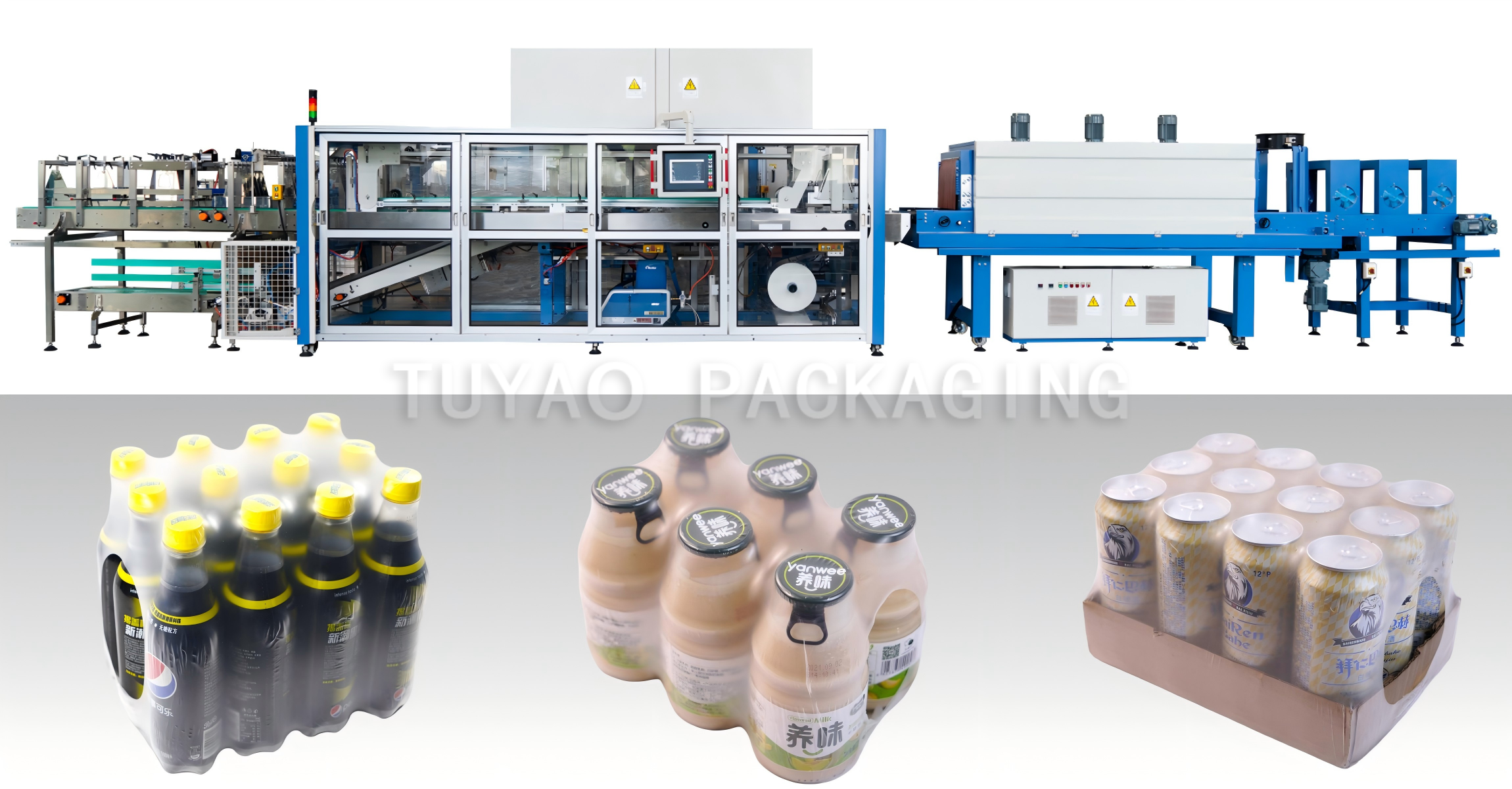

Bottle Packging System

Individual bottled water requires secondary packaging to withstand long-distance transportation and storage. We provide a range of end-of-line packaging solutions, including PE shrink wrapping, carton packing and film-with-tray packaging, each paired with purpose-built equipment.

PE shrink film packaging is the most common choice for bottled water plants due to its low material cost, while carton packaging is typically selected for premium bottled water or glass bottle lines.

Q1: Are you a trading company or a direct manufacturer?

A: We are a dedicated manufacturer with over 22 years of industry experience in beverage filling and packaging. Based in Zhangjiagang (only 2 hours from Shanghai), our factory is equipped with advanced technology to provide high-quality equipment at factory-direct prices. We warmly welcome you to visit our facility to see our machines in action.

Q2: What types of glass bottles and caps are compatible?

A: It supports 200ml–1L round glass bottles with a diameter of Φ50–Φ90mm and height of 180–330mm. The capping unit is compatible with both standard metal crown caps and screw caps via quick-change capping heads, adapting to different packaging positioning.

Q3: Why is isobaric filling used for carbonated soft drinks?

A: Isobaric filling means filling is performed when the pressure inside the bottle equals the pressure in the liquid cylinder. This prevents CO₂ from escaping during the filling process, maintains stable gas content in the beverage and avoids violent foaming and overflow. It is the industry-standard filling method for all carbonated soft drinks, sparkling water and beer.

Q4: Do you provide overseas installation and training service?

A: Yes. We send experienced technical engineers to your factory for on-site installation, commissioning and operator training to ensure your production line starts up smoothly and on schedule.

Q5: What is the warranty period?

A: We offer a 12-month whole-machine warranty starting from the commissioning date, plus lifetime technical support and spare parts supply.
