Turnkey oil bottling solutions for olive oil, sunflower oil, palm oil, peanut oil and blended edible oils — from bottle feeding, precision filling and capping to labeling and final packaging.
Clean, Precise, and Flexible Oil Packaging
Edible oil production faces strict food safety requirements: dripping causes product waste and hygiene risks, temperature changes affect filling accuracy.
TUYAO delivers specialized turnkey solutions for all edible oils, including olive oil, sunflower oil, palm oil, peanut oil and blended oil. Our lines integrate precision filling technology, vacuum anti-drip nozzles and full food-grade construction to ensure mess-free operation, consistent accuracy and maximum product freshness.
Key Technologies for Accurate Oil Filling
Anti-Drip Filling Heads: Specialized nozzles help prevent oil dripping after filling. This keeps the bottle surface, conveyor and filling area clean.
Piston, Flow-Meter or Load-Cell Filling: TUYAO selects the best filling method based on your oil viscosity, bottle size and accuracy requirement. Piston filling is suitable for thicker oils, while flow-meter and load-cell filling offer higher precision for premium products.
Hygienic Stainless-Steel Construction: Food-contact parts are made of SUS304 or SUS316L stainless steel. Smooth surfaces and easy-clean design reduce residue and support daily sanitation.
Flexible Changeover: The line can be designed for multiple bottle shapes and sizes, with adjustable guides, filling heads and capping systems for fast changeover.
Complete Oil Bottling Process from Feeding to Final Packaging

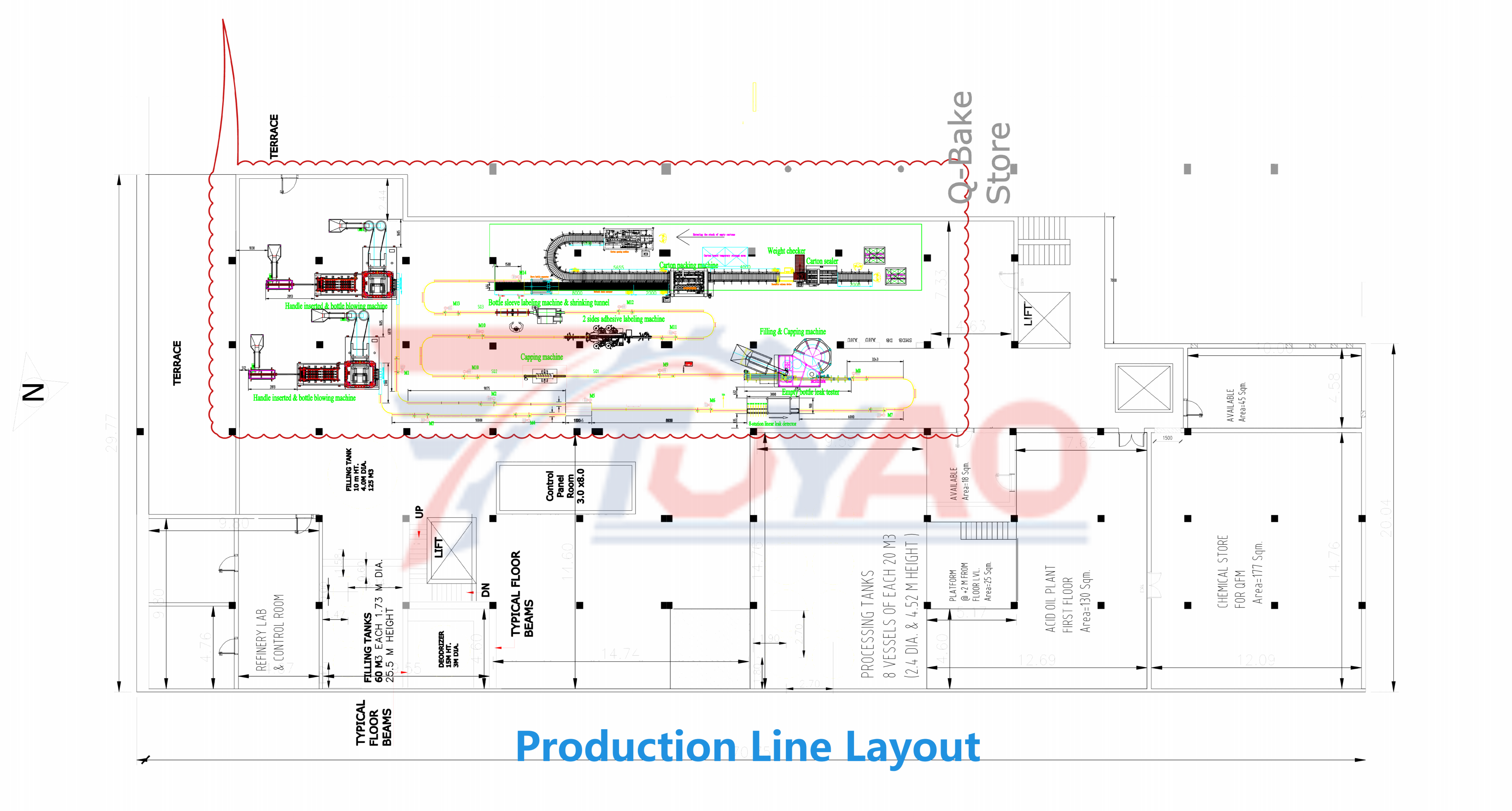

A well-designed oil filling line should reduce manual handling and keep the production flow smooth. TUYAO provides complete process planning from empty bottle feeding to final case packing. Based on your workshop size, bottle format and target capacity, our engineers prepare a customized CAD layout before production.
Scalable Output for Small to Large Oil Bottlers
Choose from 1,000 to 24,000 bottles per hour. Our oil filling line design fits startup oil brands and industrial-scale edible oil producers.
| Model | Capacity(for 500ml) | Bottle mouth inner diameter | Bottle volume | Bottle diameter | |
| Rotary weighing type | TY-RWF16 | 5500BPH |
less than 2.5L≥27mm; 10L≥45mm; 20L≥55mm. (Different bottle mouth specifications demand different valve nozzles yielding varied outputs.) |
500ml~20L | 45～120mm |
| TY-RWF18 | 7000BPH | ||||
| TY-RWF20 | 8500BPH | ||||
| TY-RWF24 | 11500BPH | ||||
| TY-RWF26 | 13500BPH | ||||
| TY-RWF30 | 16000BPH | ||||
| TY-RWF32 | 17500BPH | ||||
| TY-RWF40 | 23000BPH | ||||
| Linear weighing type | TY-LWF10 | 1700BPH | 500ml~20L | 45～120mm | |
| TY-LWF12 | 2100BPH | ||||
| TY-LWF16 | 2500BPH | ||||
| Linear flowmeter type | TY-LVF6 | 1800BPH | 500ml~20L | 45～120mm | |
| TY-LVF8 | 2100BPH | ||||
| TY-LVF10 | 2400BPH | ||||
| TY-LVF12 | 2900BPH | ||||
Core Equipment in a Complete Oil Filling Line

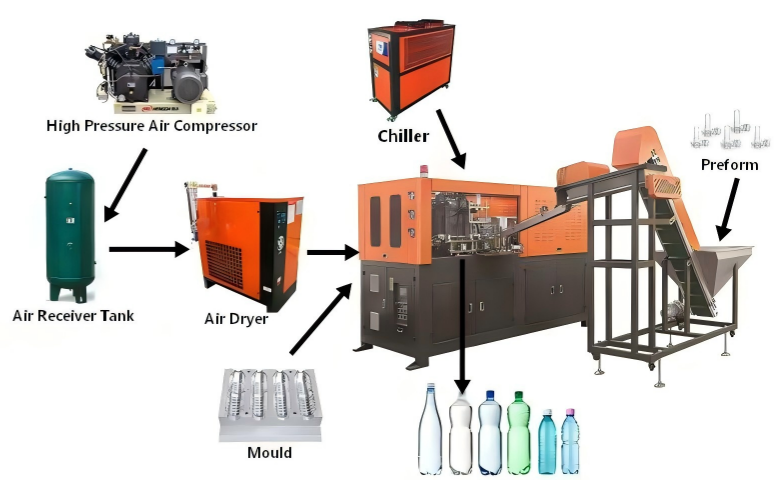

Bottle Blowing System
Our PET bottle blow molding machines support fully custom bottle shapes and serve a wide range of beverage applications. We offer two configurations to fit different production scales:
Semi-automatic blow molder: Manual operation with low upfront investment, ideal for small-batch production and startup plants.
Automatic blow molder: High-level automation for medium to high-speed production lines, ensuring stable output with reduced labor demand.
Automatic models produce PET bottles from 100ml to 2,000ml, commonly used for water, soda and cola bottles. All bottle profiles can be customized to your exact design requirements.

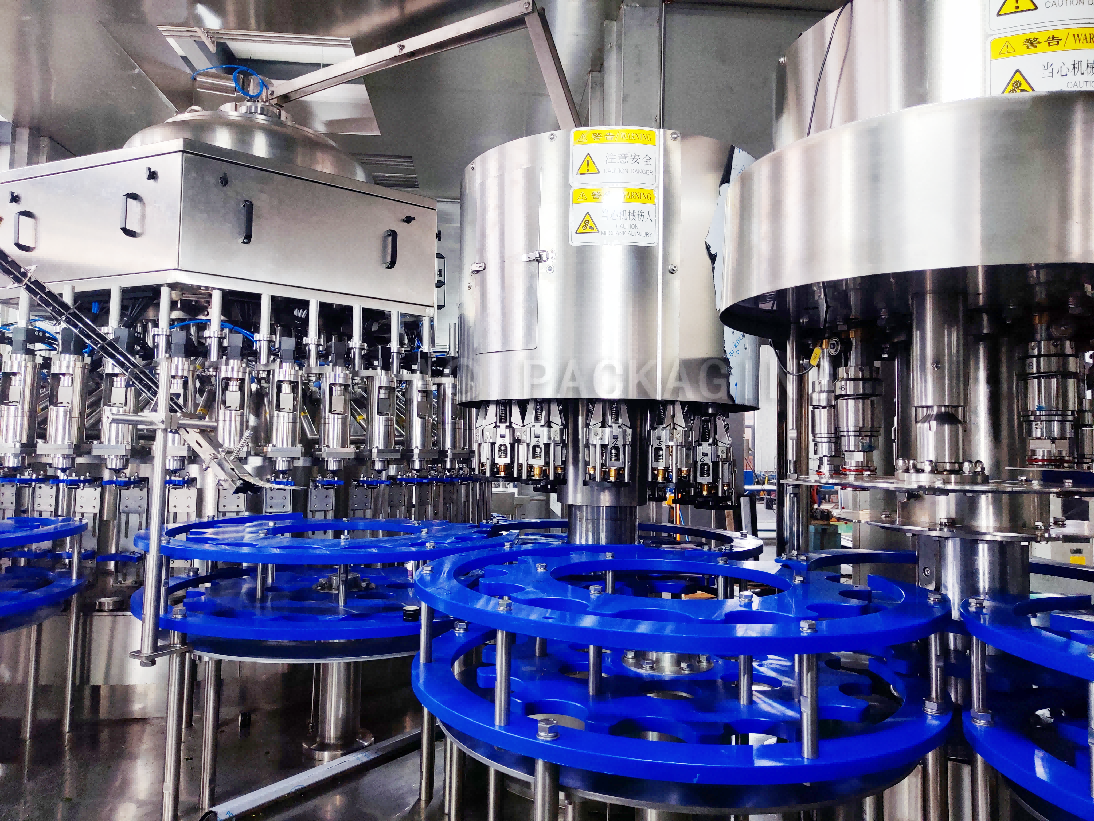

Oil Filling Machine
The TUYAO automatic edible oil filling machine features intelligent, low-labor operation for smooth, efficient production. Accommodating a wide range of bottle shapes and specifications, it adopts a high-precision weighing-based filling system with ±1‰ fill accuracy. Immune to oil volume shifts, temperature fluctuations and entrained gas, the system delivers consistent quality with minimal maintenance. Supporting net weight filling mode, it achieves far higher precision than conventional filling methods, making it an ideal solution for all edible oil filling needs.
Labeling Machine
We deliver customized final packaging solutions aligned with your needs and market demand, with three mainstream label options for bottle — PVC shrink sleeve, OPP hot-melt glue and self-adhesive labels — each paired with dedicated labeling equipment. As refined label design effectively boosts brand recognition and market appeal, we recommend referencing local mainstream products when making your selection.

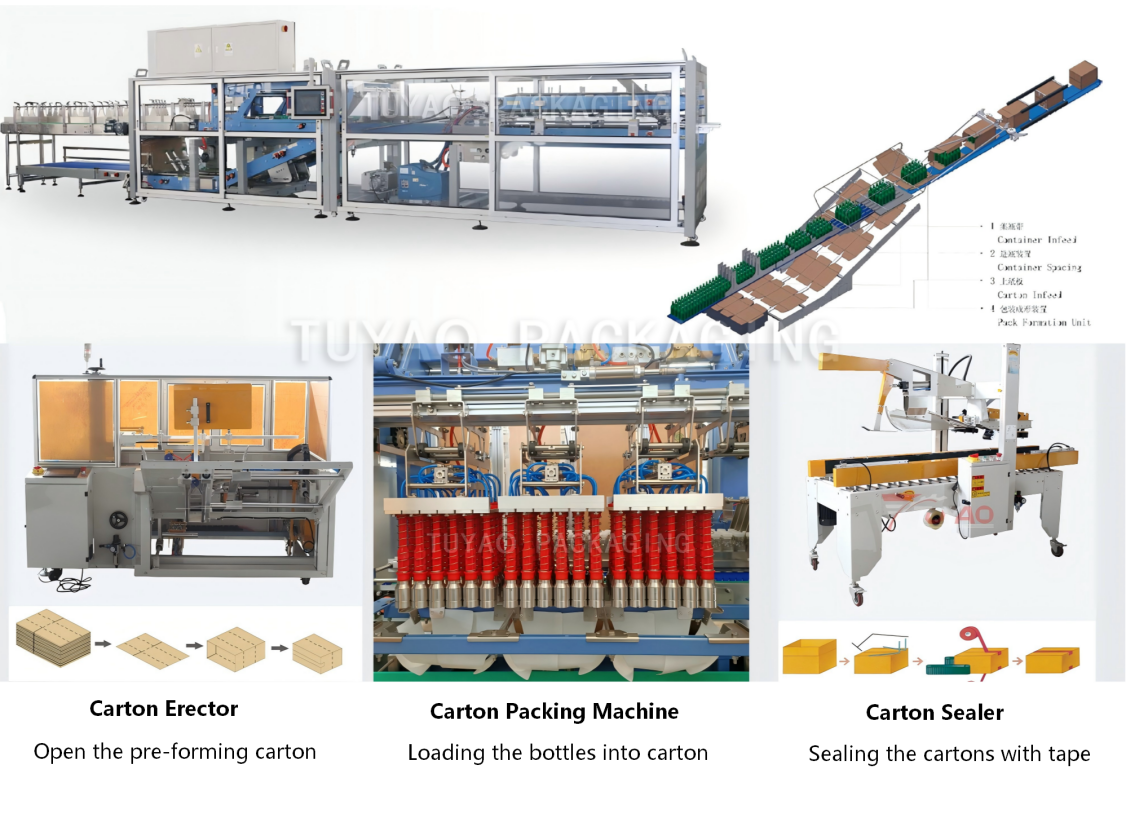

Bottle Packging System
This carton packing machine is widely compatible with bottled water, juice, carbonated soft drinks, edible oil, dairy and other products, delivering 10–80 packs per minute to fit varying production scales, with both one-piece and pre-formed carton configurations available. It features a side bottle feeding design for a compact footprint and simplified conveying system to effectively reduce overall line investment, and adopts an advanced rocker-arm mechanism for smooth, stable operation with low energy consumption; its multi-stage decompression feeding prevents bottle tipping and ensures precise gripper alignment for high reliability, while strict compliance with national safety standards is backed by integrated fault alarms and automatic shutdown protection.
Frequently Asked Questions About Oil Filling Lines
1. What types of oil can TUYAO oil filling lines handle?
TUYAO oil filling lines can be used for olive oil, sunflower oil, palm oil, peanut oil, soybean oil, corn oil, blended cooking oil. The filling method and machine configuration are selected according to viscosity, bottle size, accuracy requirement, and hygiene standard.
2. What is the best filling method for edible oil?
The optimal filling method varies based on your production needs. TUYAO will recommend the right technology for you after evaluating your specific requirements.We provide piston, flow-meter and load-cell filling options to match different oil viscosities, bottle sizes and accuracy standards. Contact our team to get your personalized suggestion.
3. How does TUYAO prevent oil dripping during filling?
TUYAO uses anti-drip filling heads. These nozzles help stop oil flow cleanly after each filling cycle, keeping the bottle neck, bottle surface, conveyor, and filling area cleaner.
4. What is the capacity range of TUYAO edible oil filling lines?
TUYAO edible oil filling lines can be customized from around 1,000 BPH to 24,000 BPH depending on bottle size, oil viscosity, filling technology, and automation level. Linear lines are suitable for flexible production, while rotary systems are better for high-speed industrial production.
5. What equipment is included in a complete oil bottling line?
A complete oil bottling line can include blow molding machine, bottle unscrambler, oil filling machine, cap feeding and capping machine, leak detection or weight check, labeling machine, coding system, carton packing or shrink wrapping system, and conveyors.
6. How do I choose between a linear and rotary oil filling line?
A linear oil filling line is suitable for smaller or medium-capacity production, frequent bottle changes, and flexible SKU requirements. A rotary oil filling line is recommended for higher-speed production and more stable bottle formats. TUYAO can recommend the most practical design based on your capacity, bottle size, viscosity, and budget.
