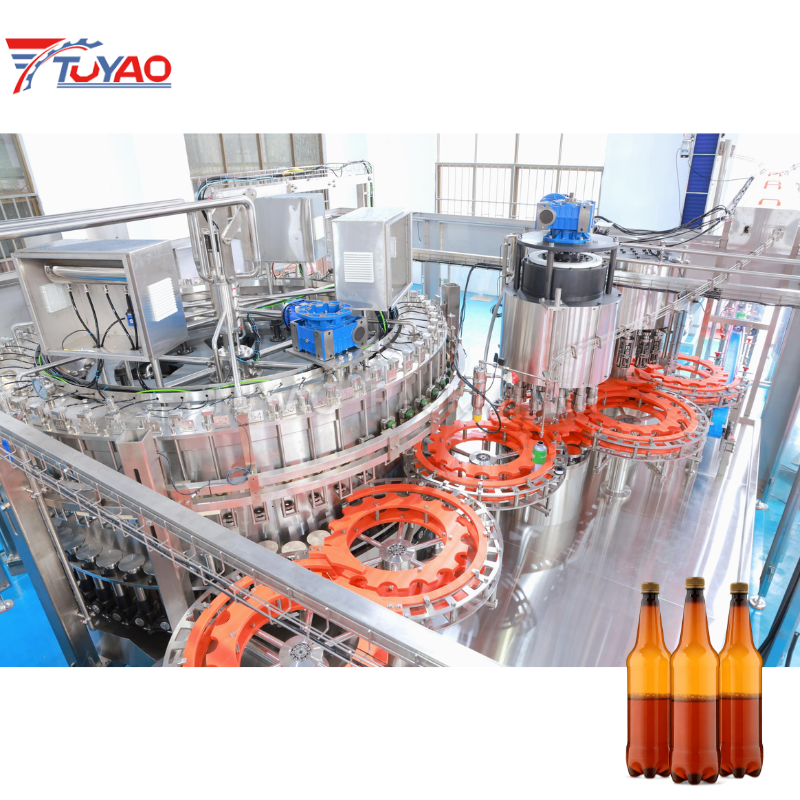

PET Bottle Beer Filling Machine

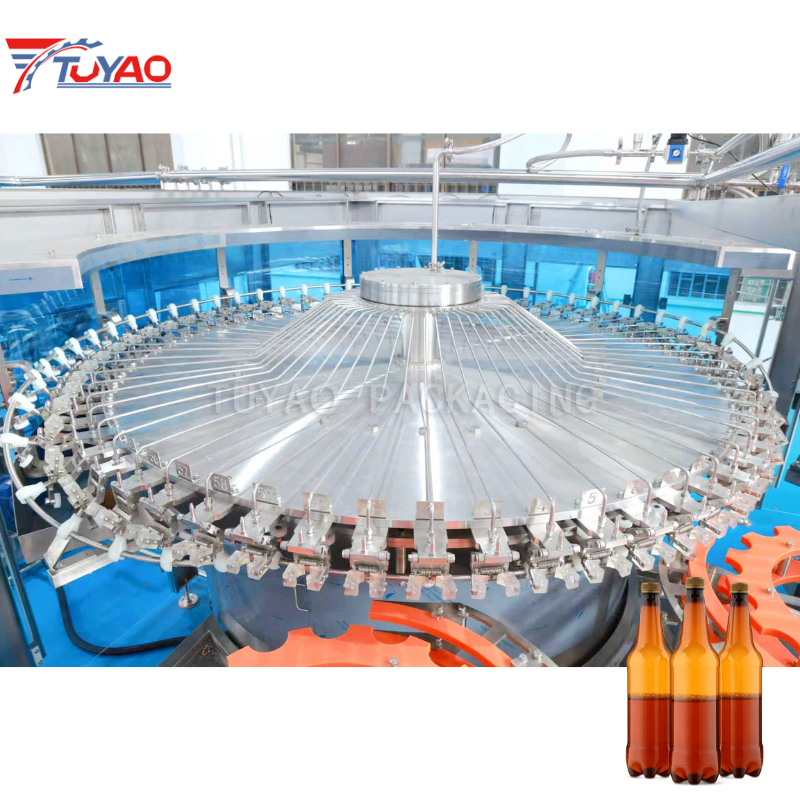

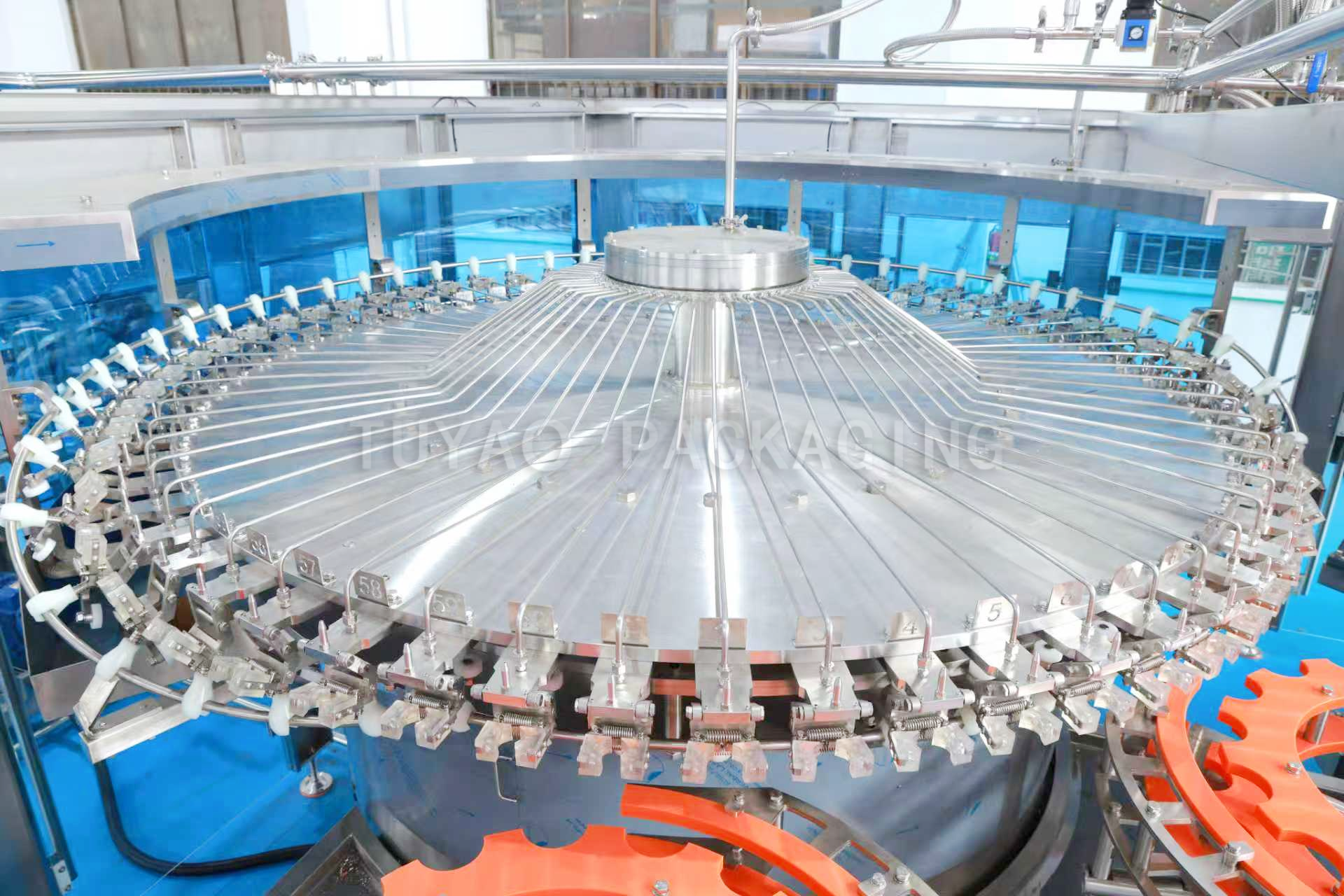

Rinsing Part

Stable Operation & Low Maintenance: The rotary system adopts large plane bearings and genuine German Igus maintenance-free bearings for smooth, reliable operation and reduced routine maintenance costs. High-grade EPDM seals and wear-resistant UMPE plastic parts extend service life, while motor-driven gear transmission ensures steady, vibration-free production.

Water-Saving High-Efficiency Rinsing: The bottle washing system uses high-performance nozzles for thorough inner-wall cleaning with lower water consumption. A dedicated splash shield prevents water spillage, and an adjustable recovery tank with recycling pipelines improves water utilization and cuts operating costs.

Quick Bottle Format Changeover: Bottle type conversion is fast and simple — only the infeed and outfeed star wheels need replacement. The rotary assembly height is flexibly adjustable to fit different bottle heights, greatly improving production flexibility for multi-SKU beverage manufacturing.

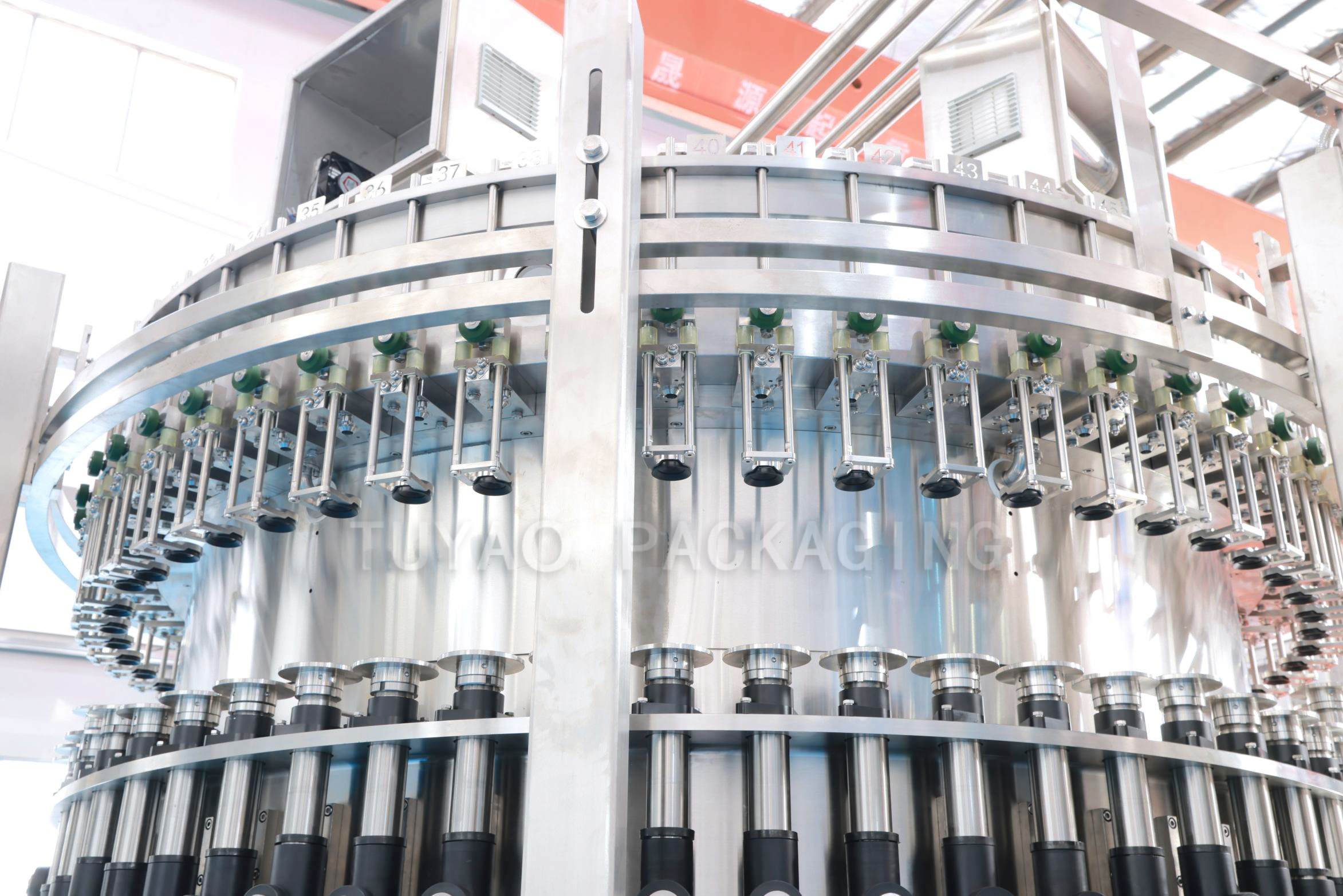

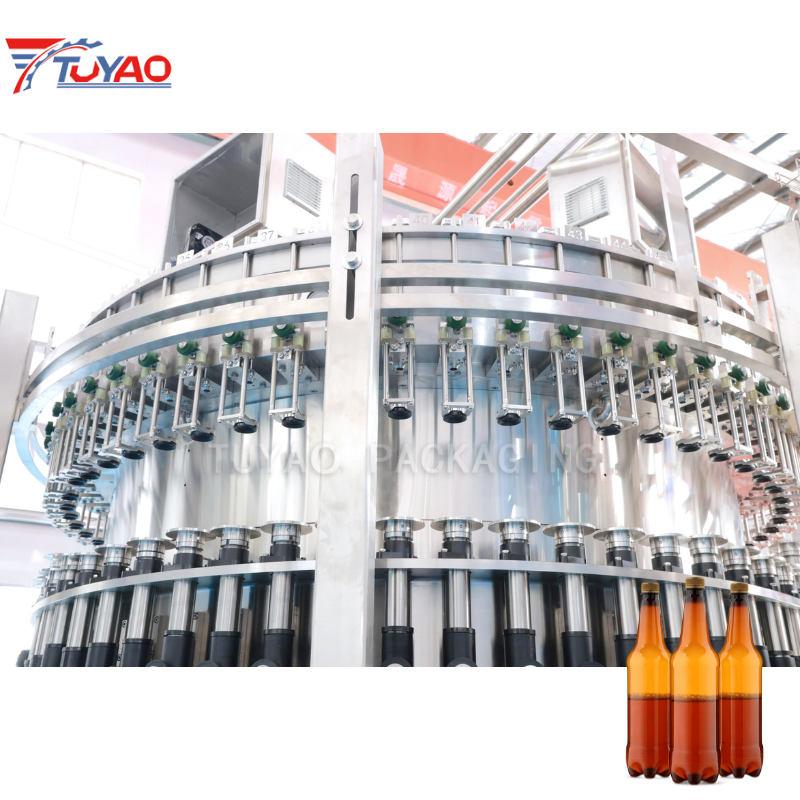

Filling Part

Isobaric Filling Principle: The filling and capping units are built as one integrated system, operating on isobaric filling technology to preserve carbonation and fresh taste in PET-bottled beer.

Sealing & CO₂ Purging: Bottles are positioned on the rotating table via the infeed star wheel. The filling valve descends to form a pressure-tight seal, with sealing force from the centering cover weight plus adjustable cylinder pressure (0–0.4 MPa, tunable via the control panel to match different bottle materials and wall thicknesses).

CO₂ from the filling cylinder flushes through the bottle to displace residual air. This process minimizes oxygen pickup during filling and prevents negative pressure from building inside thin-walled PET bottles that would otherwise cause deformation.

Filling Cycle: Once pressure equalizes between the bottle and filling cylinder, the liquid valve opens. Product flows smoothly down the inner bottle wall through three inlets, while pre-charged gas inside the bottle flows back into the filling cylinder.

Filling stops automatically when the liquid level reaches the air return pipe. A slight overpressure forms in the bottle headspace to halt further liquid flow, ensuring consistent fill levels across every bottle.

Pressure Release & Transfer to Capping: The air and liquid valves close, and an exhaust valve gradually equalizes the bottle’s internal pressure with atmosphere. The exhaust channel sits away from the liquid surface to avoid pulling product out during depressurization. Residual liquid in the return pipe flows back into the bottle, leaving the line clear.

The centering cover then lifts under cam action, and bottles transfer smoothly from the filling turntable to the capping conveyor chain.

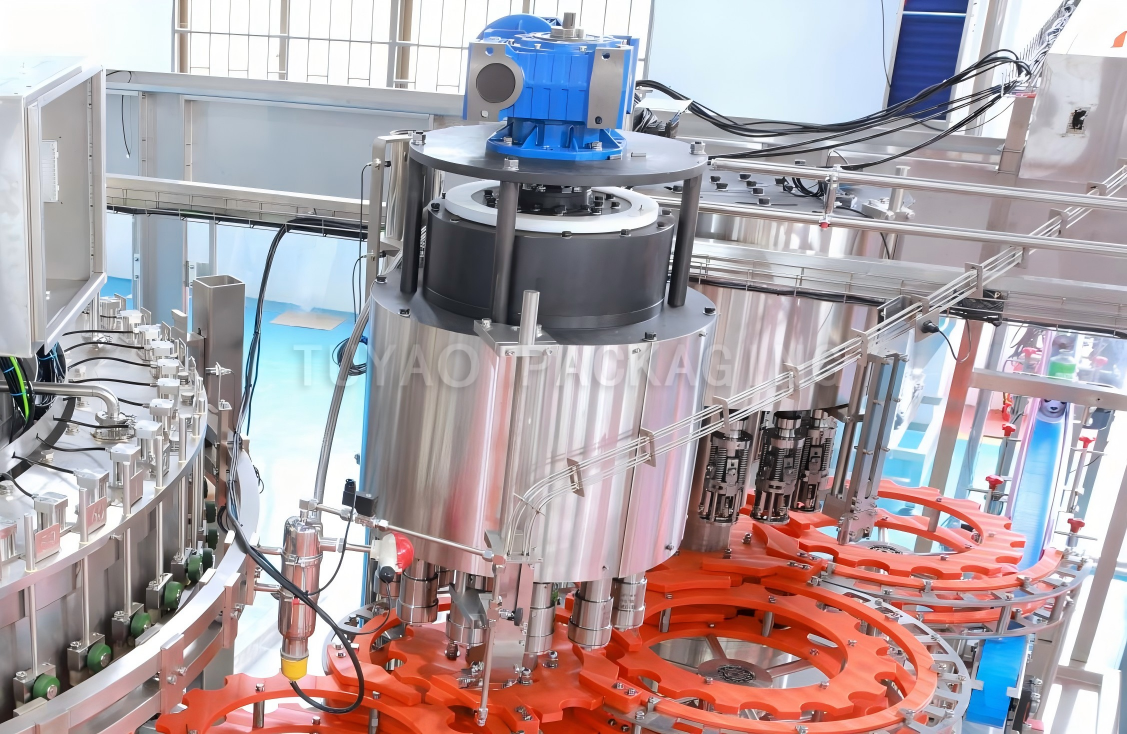

Capping Part

Precision Machining & Stable Transmission: Core capping components are precision-machined by CNC centers with full heat treatment. Motor-driven gear transmission ensures high durability and smooth, consistent operation.

Intelligent Cap Feeding: Bottle detection switches automatically pause cap supply when no bottles are present. A cap-locking cylinder at the guide rail interface reinforces this function, cutting cap waste and material costs.

Stable Constant-Torque Capping: The magnetic constant-torque capping head delivers reliable, uniform capping results. Adjustable torque accommodates different cap specifications and guarantees consistent packaging quality.

Missing Cap Auto-Shutdown Protection: Photoelectric switches trigger automatic machine shutdown when caps are absent. This eliminates cap-less finished bottles and effectively improves product qualification rate.

Adjustable Height for Broad Compatibility: The height of the capping head rotary assembly is adjustable to fit varying bottle heights, boosting equipment versatility for multi-format production.

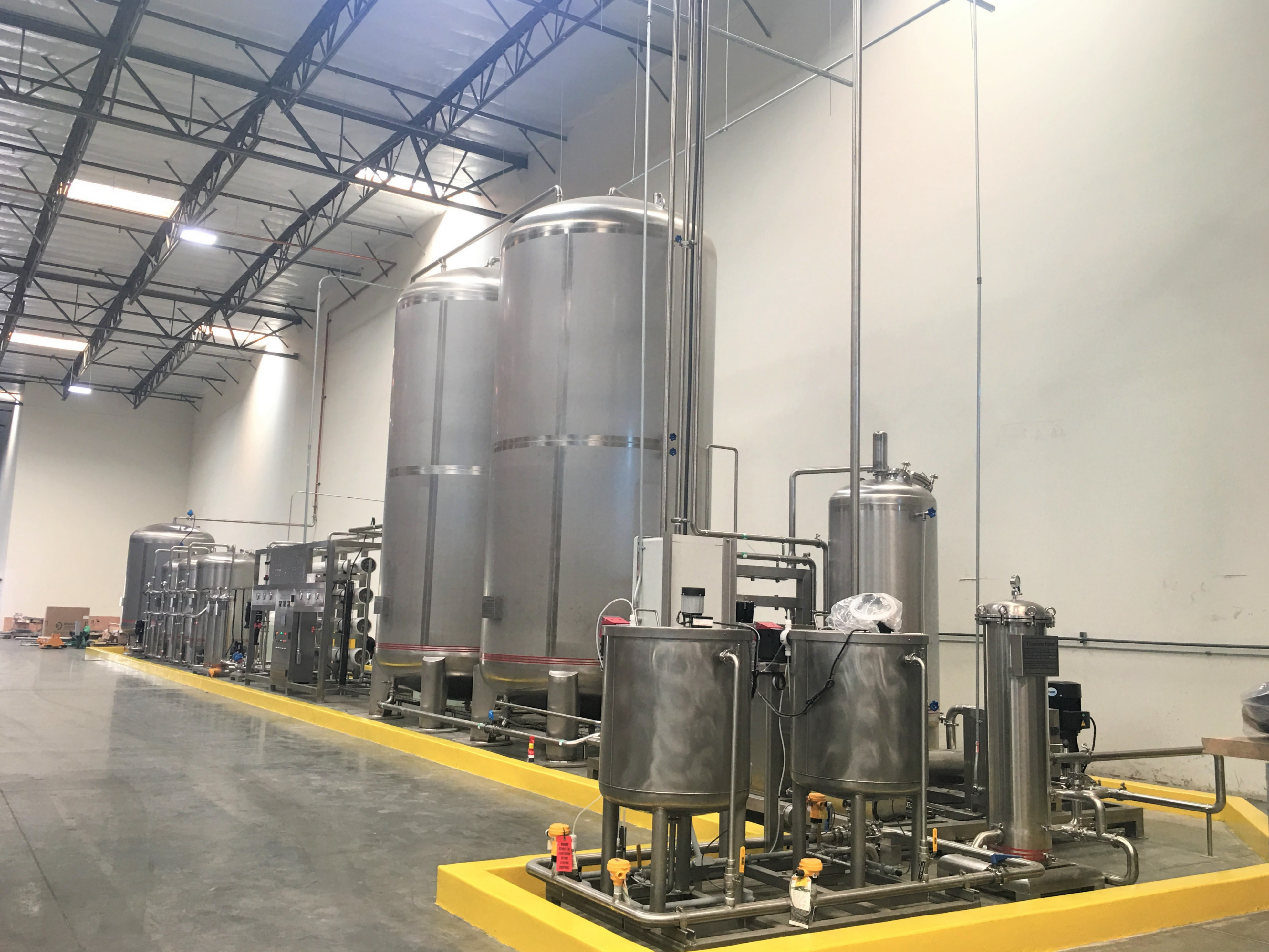

Water Treatment System

Our water treatment systems are fully custom-engineered to your raw water conditions. After reviewing your water analysis report, we design a tailored solution combining pre-filtration, reverse osmosis (RO), ultrafiltration (UF) and ozone/UV sterilization for deep purification — effectively removing contaminants, reducing hardness and ensuring compliance with drinking water standards.

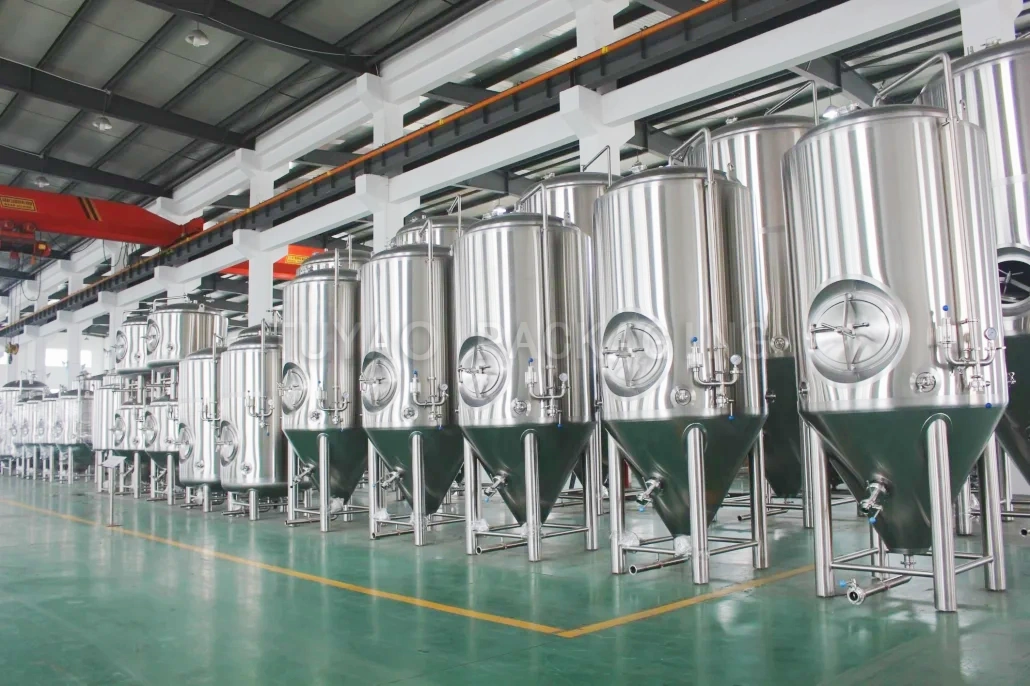

Brewery System

Custom-engineered premium brewing systems and complete turnkey auxiliary equipment, built specifically to address the full range of operational and technical requirements across the brewing industry.

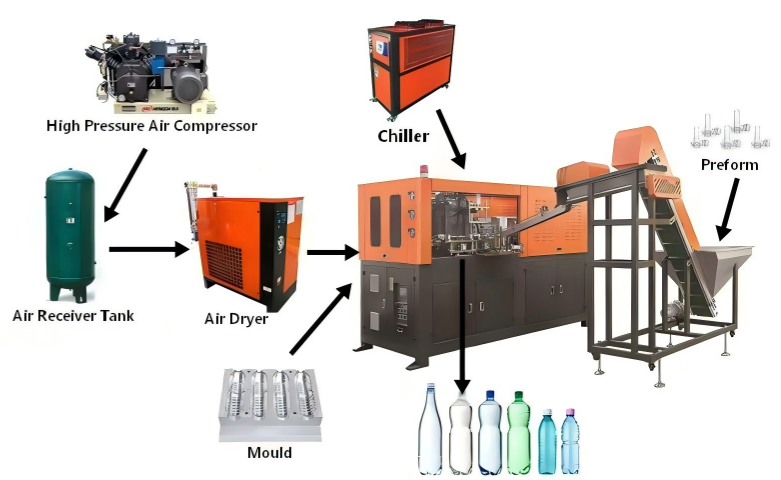

Bottle Blowing System

Our PET bottle blow molding machines support fully custom bottle shapes and serve a wide range of beverage applications. We offer two configurations to fit different production scales:

Semi-automatic blow molder: Manual operation with low upfront investment, ideal for small-batch production and startup plants.

Automatic blow molder: High-level automation for medium to high-speed production lines, ensuring stable output with reduced labor demand.

Automatic models produce PET bottles from 100ml to 2,000ml, commonly used for water, soda and cola bottles. All bottle profiles can be customized to your exact design requirements.

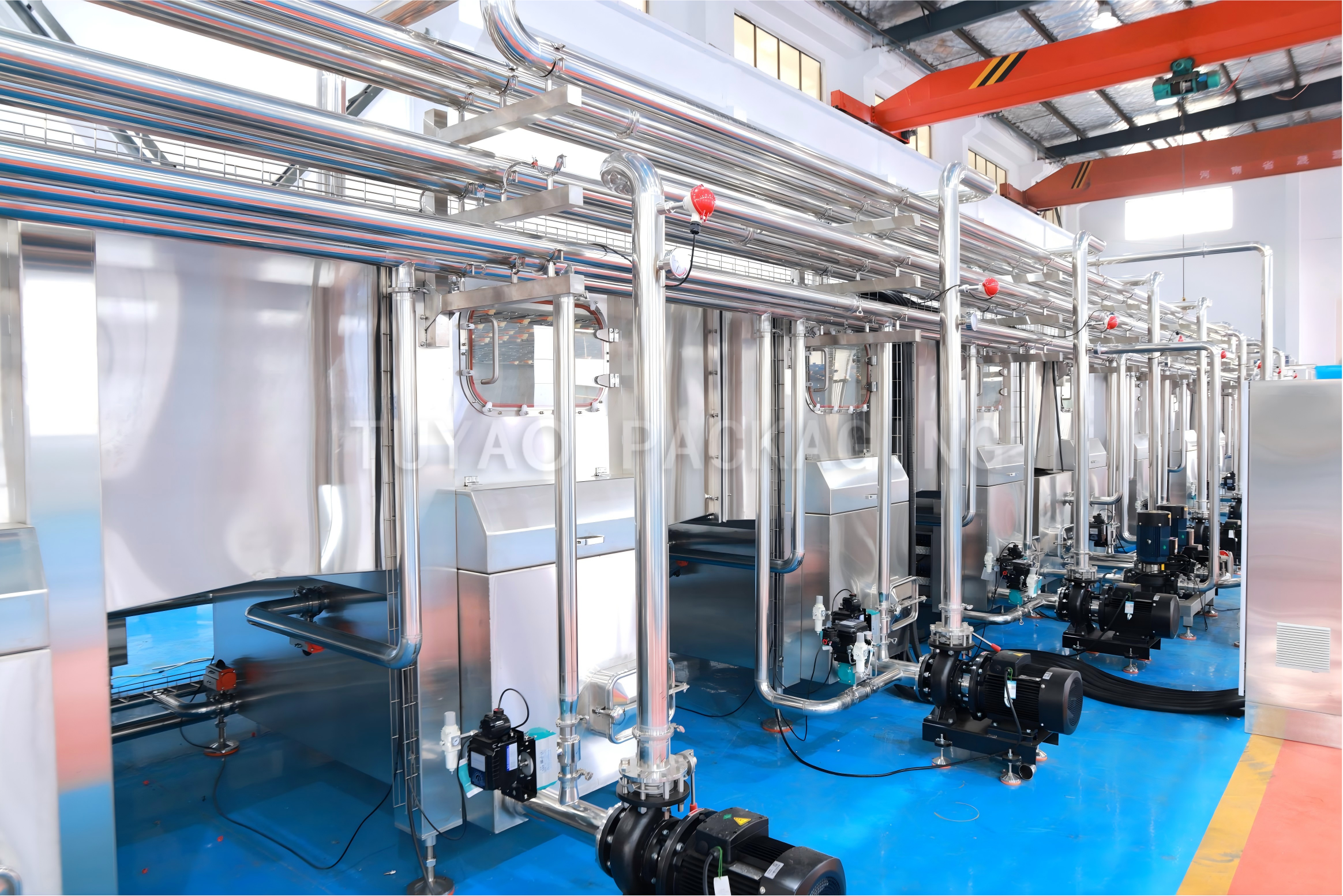

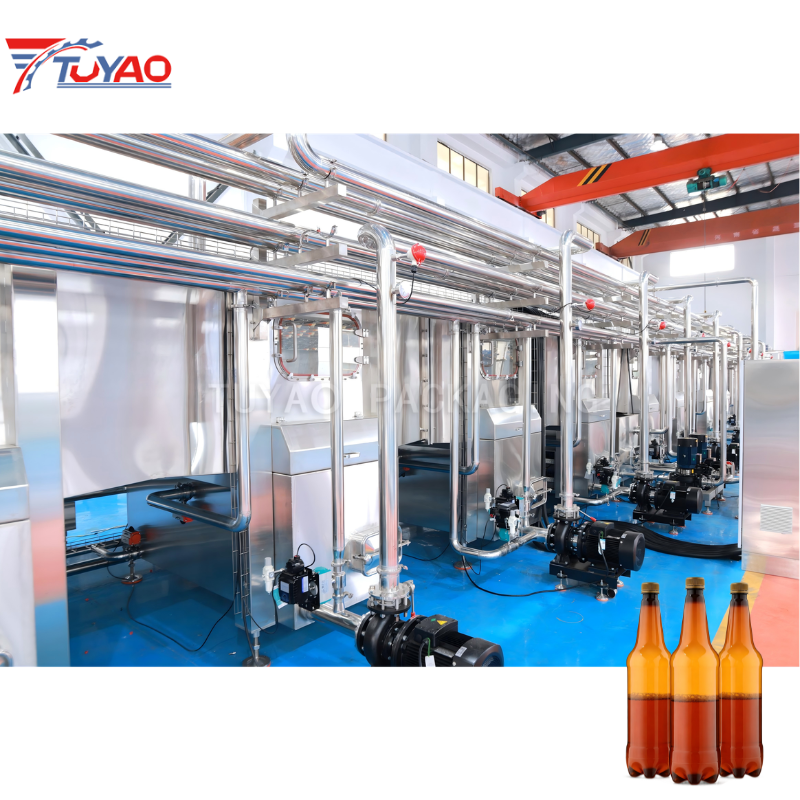

Tunnel Type Spray Sterilizer

Extended shelf stability: Precision spray pasteurization extends PET bottled beer shelf life to 6–12 months.

Flavor & bottle protection: Gradient temperature control preserves beer flavor and avoids thin-wall PET deformation.

In-line continuous production: Runs synchronously with filling lines, matching 2,000–24,000 BPH output.

Dry bottle for downstream processing: Built-in air knife drying ensures reliable labeling and coding quality.

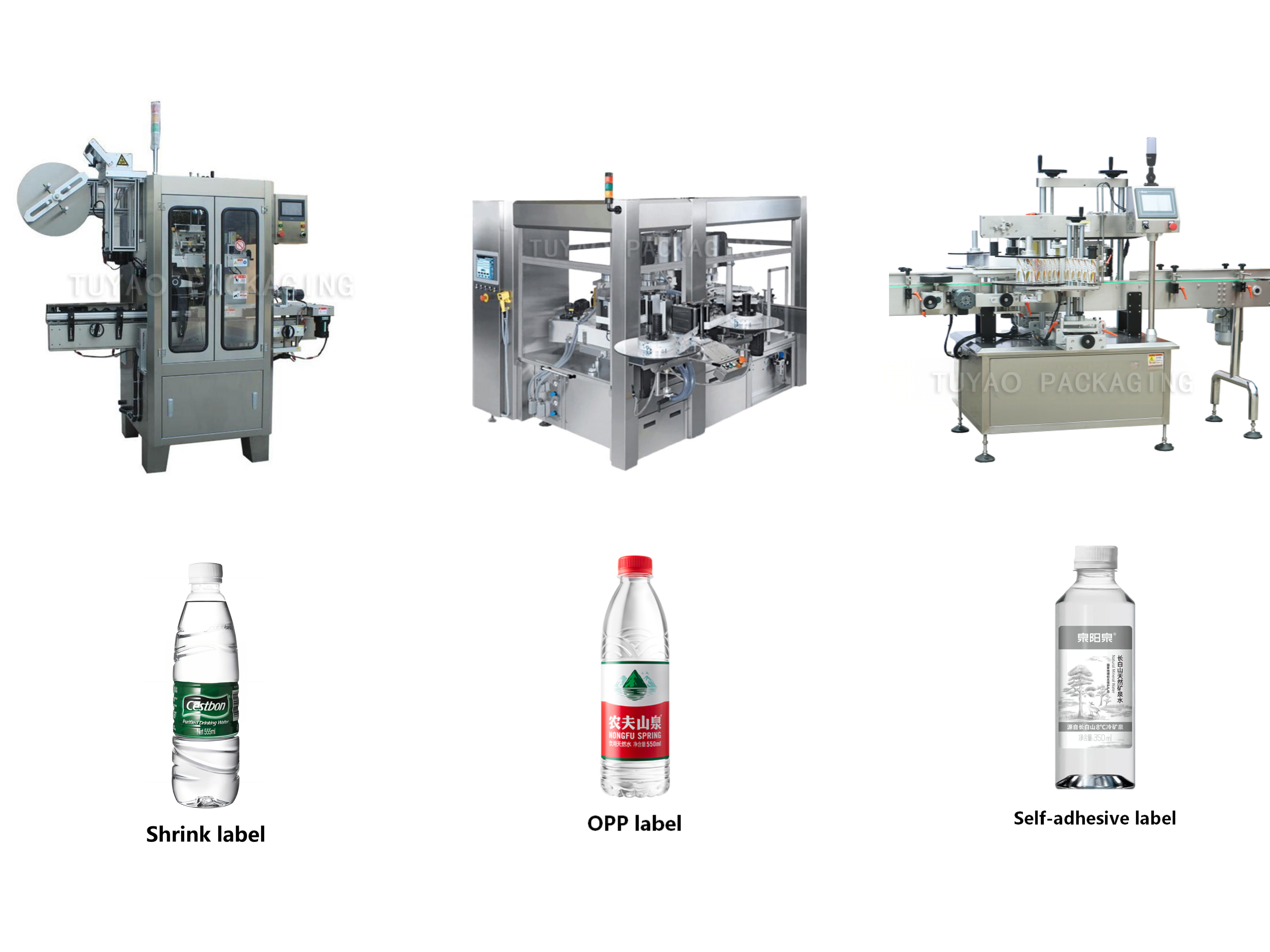

Labeling Machine

We deliver customized final packaging solutions aligned with your needs and market demand, with three mainstream label options for bottle — PVC shrink sleeve, OPP hot-melt glue and self-adhesive labels — each paired with dedicated labeling equipment. As refined label design effectively boosts brand recognition and market appeal, we recommend referencing local mainstream products when making your selection.

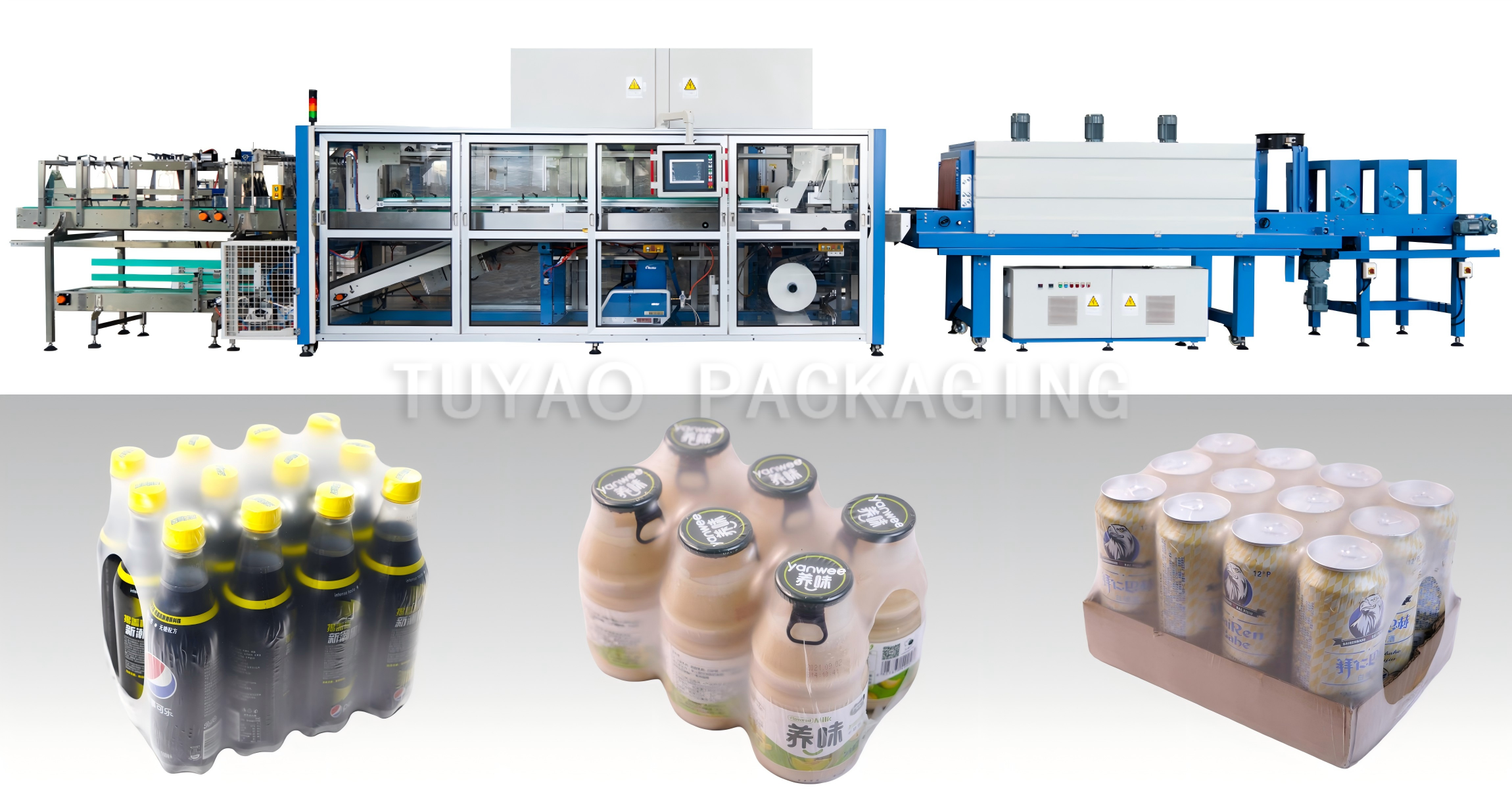

Bottle Packging System

Individual bottled water requires secondary packaging to withstand long-distance transportation and storage. We provide a range of end-of-line packaging solutions, including PE shrink wrapping, carton packing and film-with-tray packaging, each paired with purpose-built equipment.

PE shrink film packaging is the most common choice for bottled water plants due to its low material cost, while carton packaging is typically selected for premium bottled water or glass bottle lines.

Q1: Are you a trading company or a direct manufacturer?

A: We are a dedicated manufacturer with over 22 years of industry experience in beverage filling and packaging. Based in Zhangjiagang (only 2 hours from Shanghai), our factory is equipped with advanced technology to provide high-quality equipment at factory-direct prices. We warmly welcome you to visit our facility to see our machines in action.

Q2: Can this machine be used for both glass and PET bottles?

A: This specific model is optimized for PET bottles, with clamp and guide rail profiles designed for lightweight plastic containers. We also offer separate models built for glass bottle beer filling. Contact our team for the right configuration for your bottle type.

Q3: Can we run different bottle sizes on the same machine?

A: Yes. By adjusting the guide rails, filling height and replacing star wheels and cap chucks, you can switch between different PET bottle volumes and neck sizes.

Q4: Do you provide installation and operator training at our brewery?

A: Yes. We can send experienced technicians to your facility for installation, commissioning and hands-on operator training. We also supply a full operation manual, maintenance guide and recommended spare parts list with every machine.

Q5: What is the warranty period of the equipment?

A: The whole machine comes with a 12-month warranty. We provide long-term technical support and original spare parts supply after the warranty expires.
