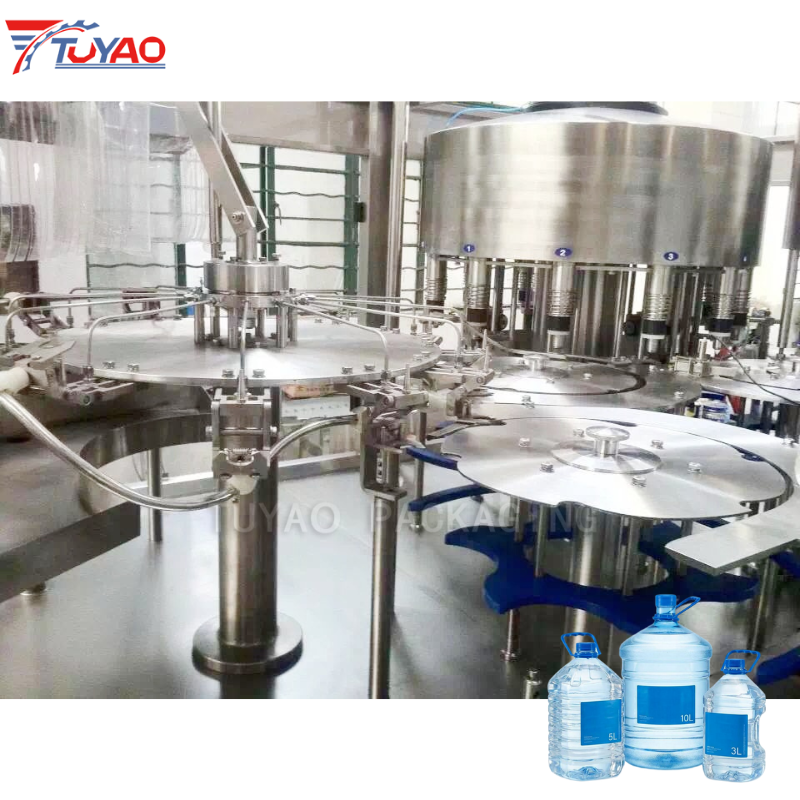

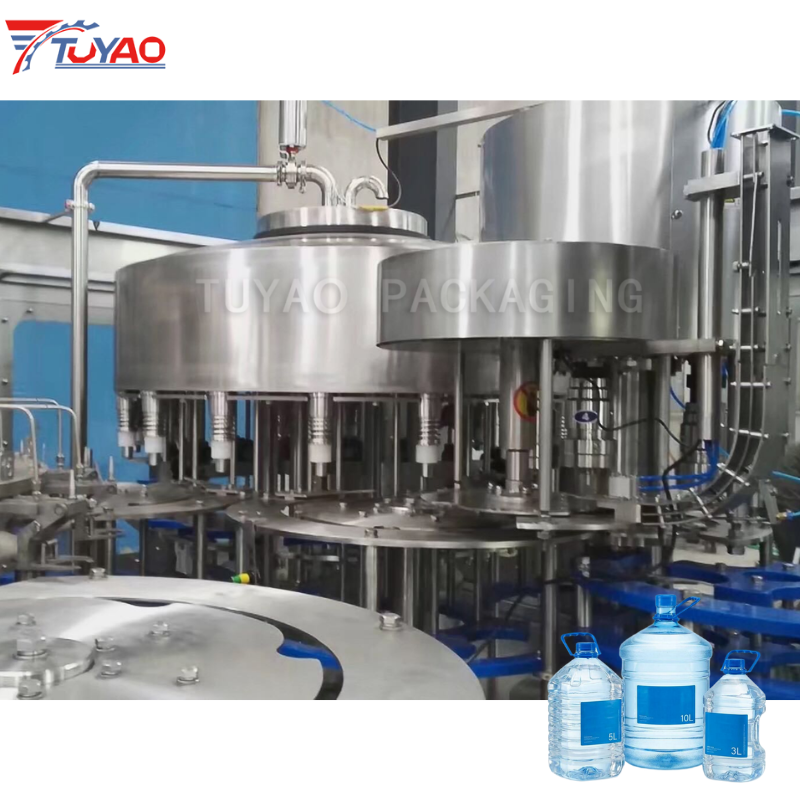

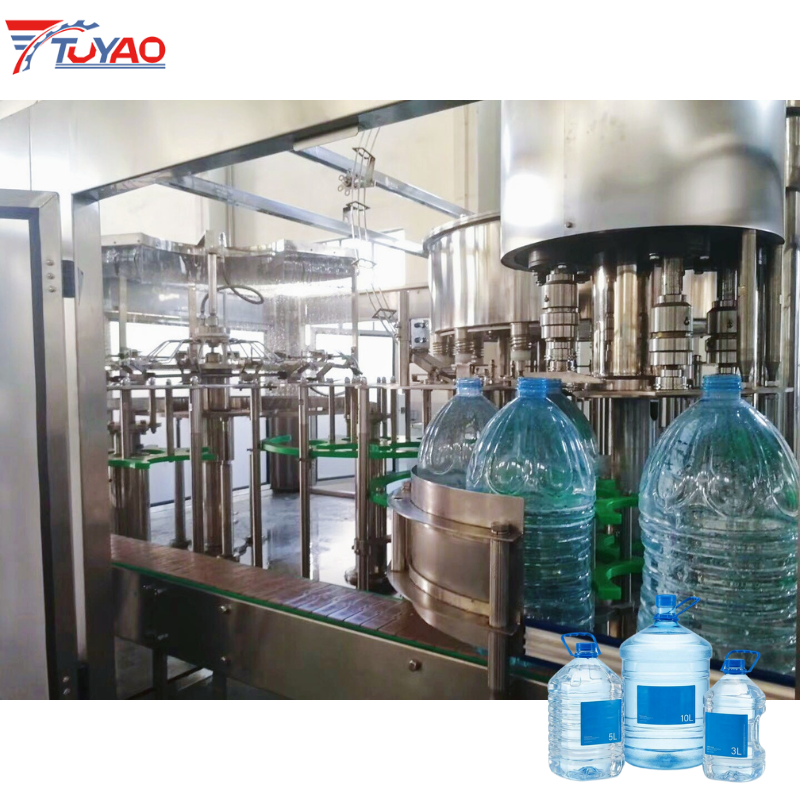

3-10L PET Bottle Water Filling Machine

3-in-1 Monoblock Design: Rinsing, filling and capping completed in one unit, saving floor space and reducing labor demand.

Wide Bottle Compatibility: Tool-less adjustment for 3-10L PET bottles of different diameters and heights.

Precision Gravity Filling: Constant-level filling principle ensures uniform liquid level across all bottles with ±5ml accuracy, no overflow or under-fill.

Drip-Proof Filling Valves: Specially designed large-flow filling nozzles with cut-off structure prevent liquid dripping after filling and keep bottle mouth clean.

Magnetic Torque Capping: Adjustable magnetic capping heads deliver consistent tightening force, guaranteeing leak-proof sealing without damaging caps.

Food-Grade Construction: Full SUS304 stainless steel body, pipelines and contact parts; smooth surface without dead corners for easy CIP cleaning.

Smart PLC Control: International famous brand PLC + touchscreen HMI with real-time production counting, fault self-diagnosis and adjustable running speed.

Comprehensive Safety Protection: Fully enclosed safety guards with door interlock, overload protection and emergency stop buttons, CE compliant.

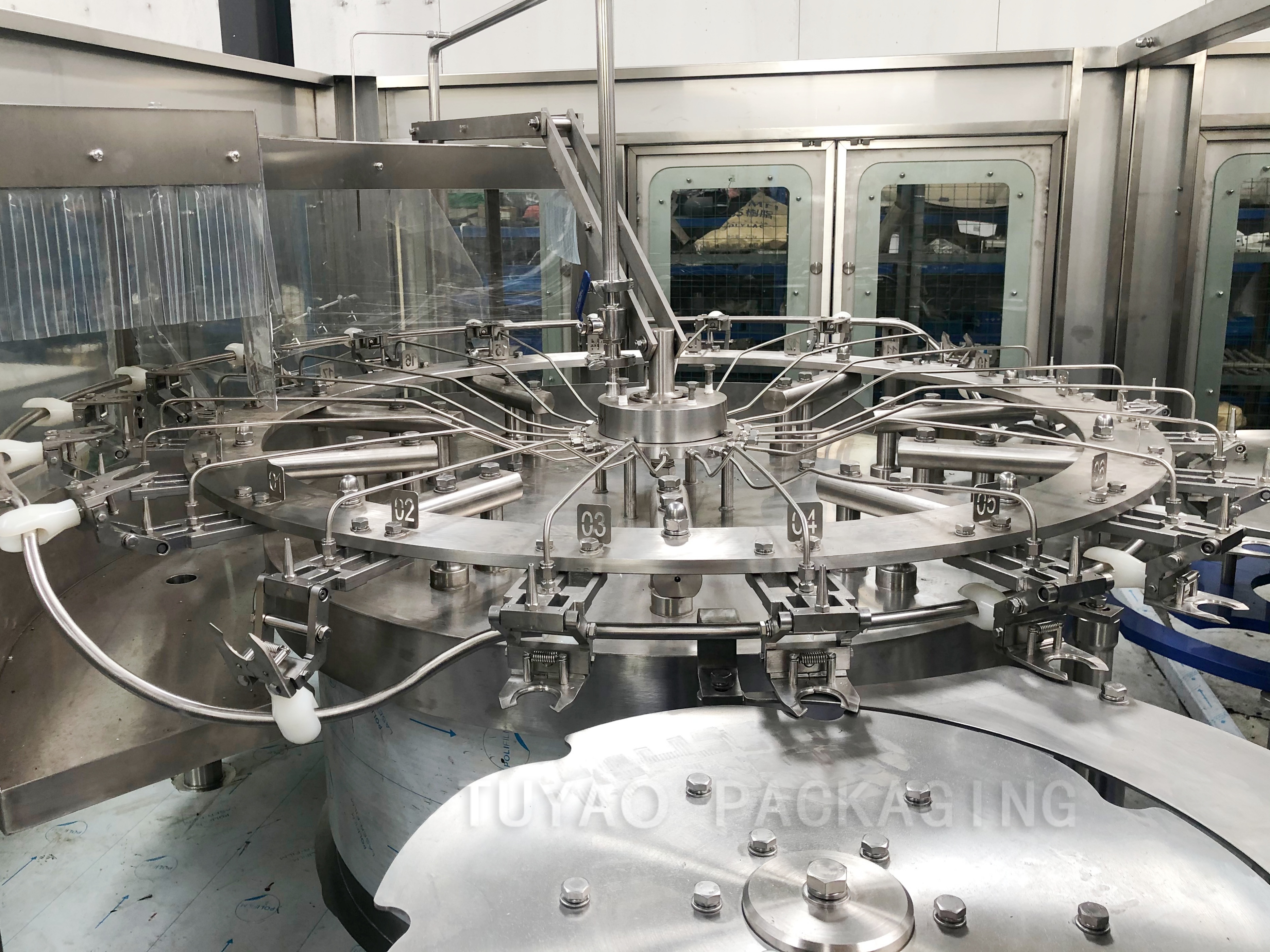

Rinsing part

● Gripper-type clamping mechanism holds bottles by the neck and flips them 180° upside down

● Multi-nozzle spray system rinses the inner wall of bottles with purified water

● Built-in draining section ensures no residual water remains inside bottles before filling

● Bottle clamps are made of food-grade stainless steel, no scratch on bottle surface

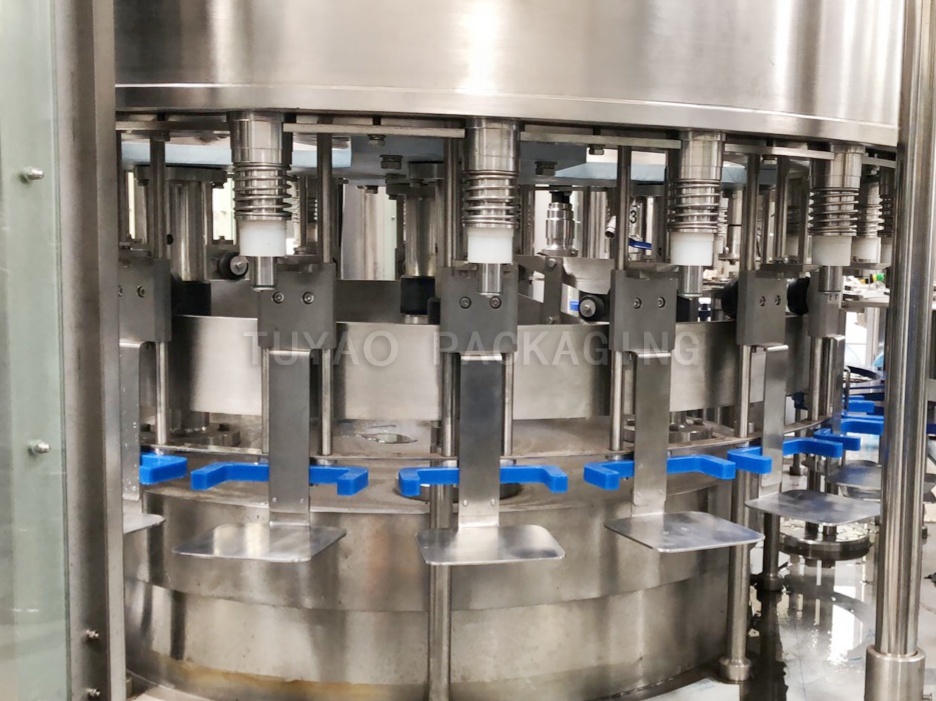

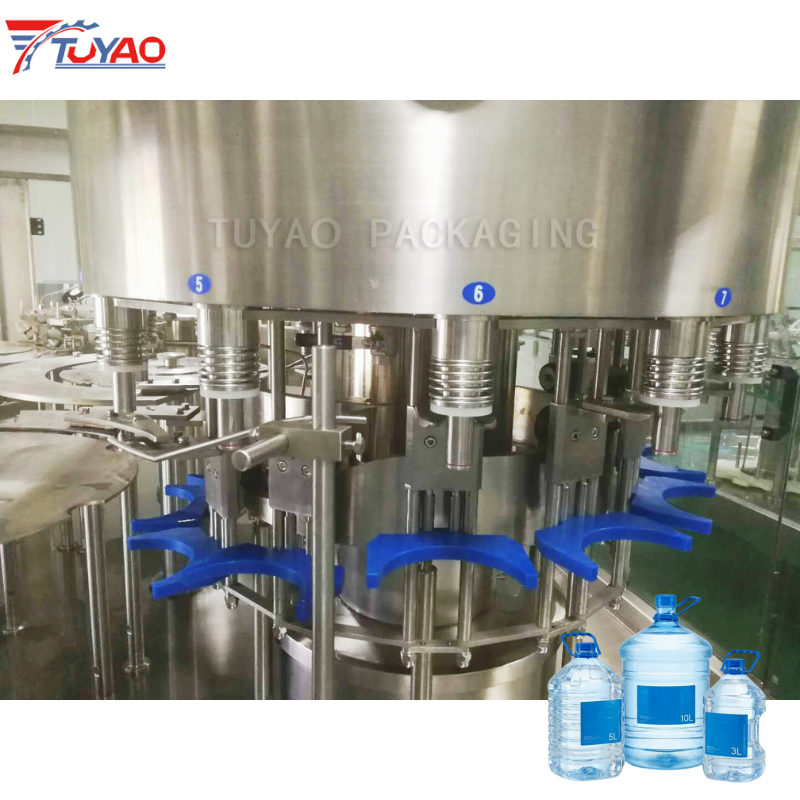

Filling Part

● Large-bore filling valves designed for large bottles, fast filling speed with stable liquid level

● Pneumatic lifting valve structure, accurate positioning and tight sealing

● Liquid level can be fine-tuned via adjusting filling time on the touchscreen

● Equipped with liquid level control system in the filling tank to maintain stable pressure

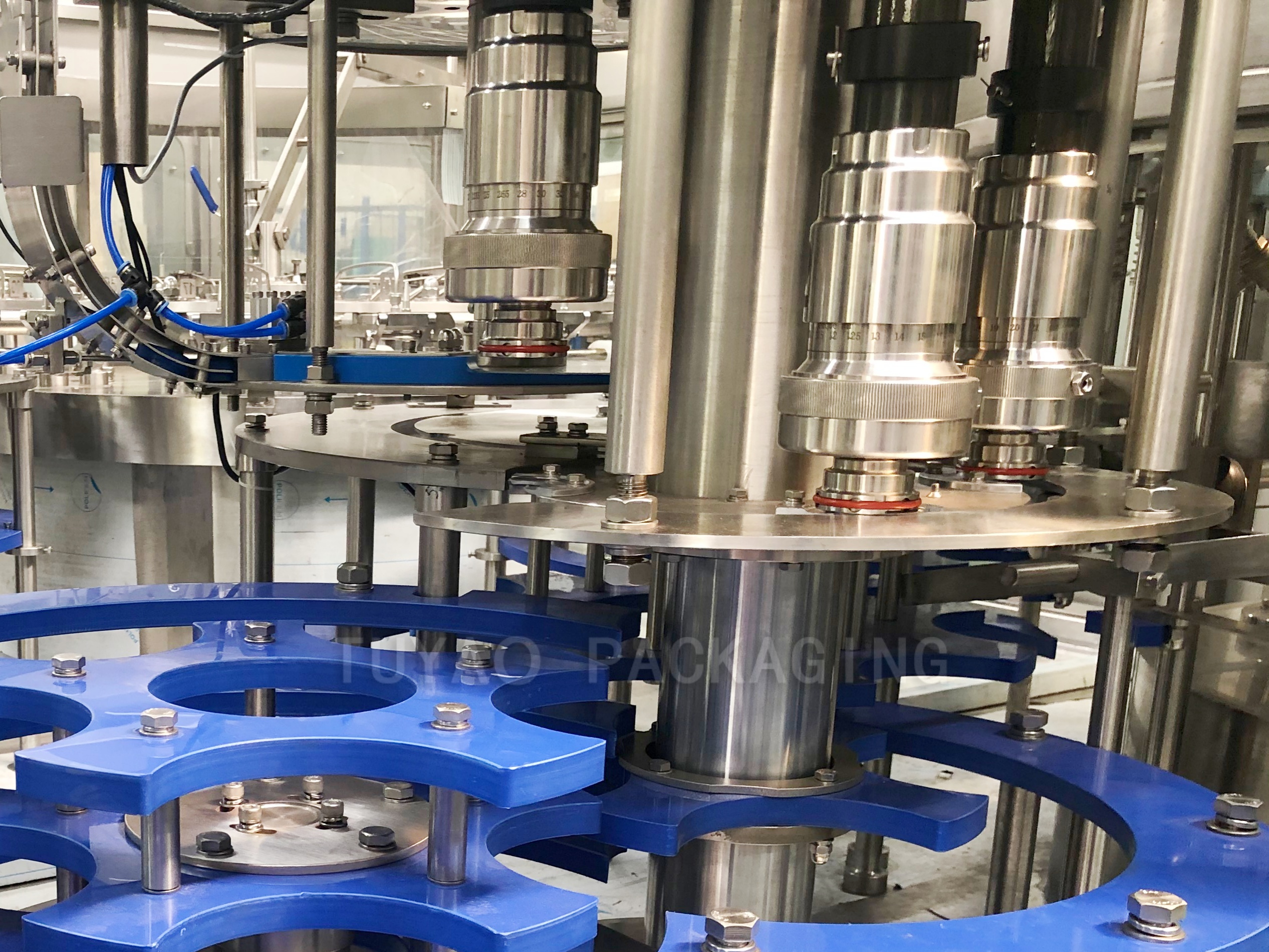

Capping Part

● The cap chute is built with a reverse-cap rejection mechanism to block misoriented caps.

● A photoelectric sensor on the cap chute triggers automatic machine shutdown when caps are depleted.

● A bottle-in detection switch is installed at the capping station.

● A cap-locking cylinder at the cap chute and cap dial junction enables no-bottle, no-cap feeding logic.

● Rotary unit height is adjustable to accommodate different bottle heights.

● The capper is gear-driven by the main frame’s central transmission system.

● All core capping components are precision-machined on CNC machining centers.

Q1: Are you a trading company or a direct manufacturer?

A: We are a dedicated manufacturer with over 22 years of industry experience in beverage filling and packaging. Based in Zhangjiagang (only 2 hours from Shanghai), our factory is equipped with advanced technology to provide high-quality equipment at factory-direct prices. We warmly welcome you to visit our facility to see our machines in action.

Q2: What bottle sizes can this filling machine handle?

A: This 3-in-1 monoblock filler is designed for 3L to 10L PET bottles, including standard 4L, 5L, 6L,7.5L and 10L family-pack water bottles. It supports different bottle heights and neck diameters;

Q3: Can this machine fill liquids other than pure water?

A: Yes, it is suitable for all non-carbonated, low-viscosity liquids such as mineral water, spring water, distilled water and purified water.

Q4: Can the machine be adapted to our local voltage?

A: Yes. Standard configuration is 380V 50Hz 3-phase. We can customize 220V, 415V, 440V, 60Hz and other voltage specifications according to your local power supply.

Q5: Do you provide overseas installation and training service?

A: Yes. We send experienced technical engineers to your factory for on-site installation, commissioning and operator training to ensure your production line starts up smoothly and on schedule.
