Reverse Osmosis (RO) Water Treatment System
To deliver a precise, fully tailored water treatment solution, please share your raw water quality test report and required effluent water quality specifications. Our engineering team will conduct a thorough analysis and design a customized, optimized integrated system aligned with your specific operational needs.
- Product Overview
- Video
- Core Advantages
- Process Flow
- Product Configurations
- FAQ
- Recommended Products
Product Overview
Reliable Pre-treatment Solutions for Pure, Safe, and High-Standard Water
The water treatment system is the foundation of every beverage production line. Whether you are producing bottled water, fruit juice, carbonated drinks, or dairy products, the quality of your raw water directly affects product safety, taste, and machine lifespan.
TUYAO provides customized water treatment solutions tailored to your raw water quality (well water, tap water, surface water) and target standards (WHO drinking water standards, beverage production standards). Our systems utilize advanced Reverse Osmosis (RO) or Ultrafiltration (UF) technology to ensure the removal of impurities, bacteria, and minerals, providing high-purity water for your bottling line.
Video
Core Advantages
Advanced Reverse Osmosis (RO) Technology: Equipped with high-rejection RO membranes (DOW, Toray, or equivalent), achieving up to 99% removal of dissolved salts, organics, and microorganisms.
Hygienic SUS304/316L Construction: All tanks, pipes, and valves are made of food-grade stainless steel (SUS304 or SUS316L), ensuring corrosion resistance and meeting international hygiene standards.
Intelligent PLC Automated Control: Fully automated operation with Siemens/Mitsubishi PLC and touchscreen interface. Real-time monitoring of pressure, flow, and conductivity with auto-protection and alarm systems.
Efficient Multi-Stage Filtration: Integrated quartz sand filtration, activated carbon filtration, and precision security filtration to maximize membrane lifespan and output stability.
Modular and Scalable Design: Customized capacity from 1 Ton/Hour to 50+ Tons/Hour. The compact, modular layout saves floor space and allows for easy installation and expansion.
Process Flow

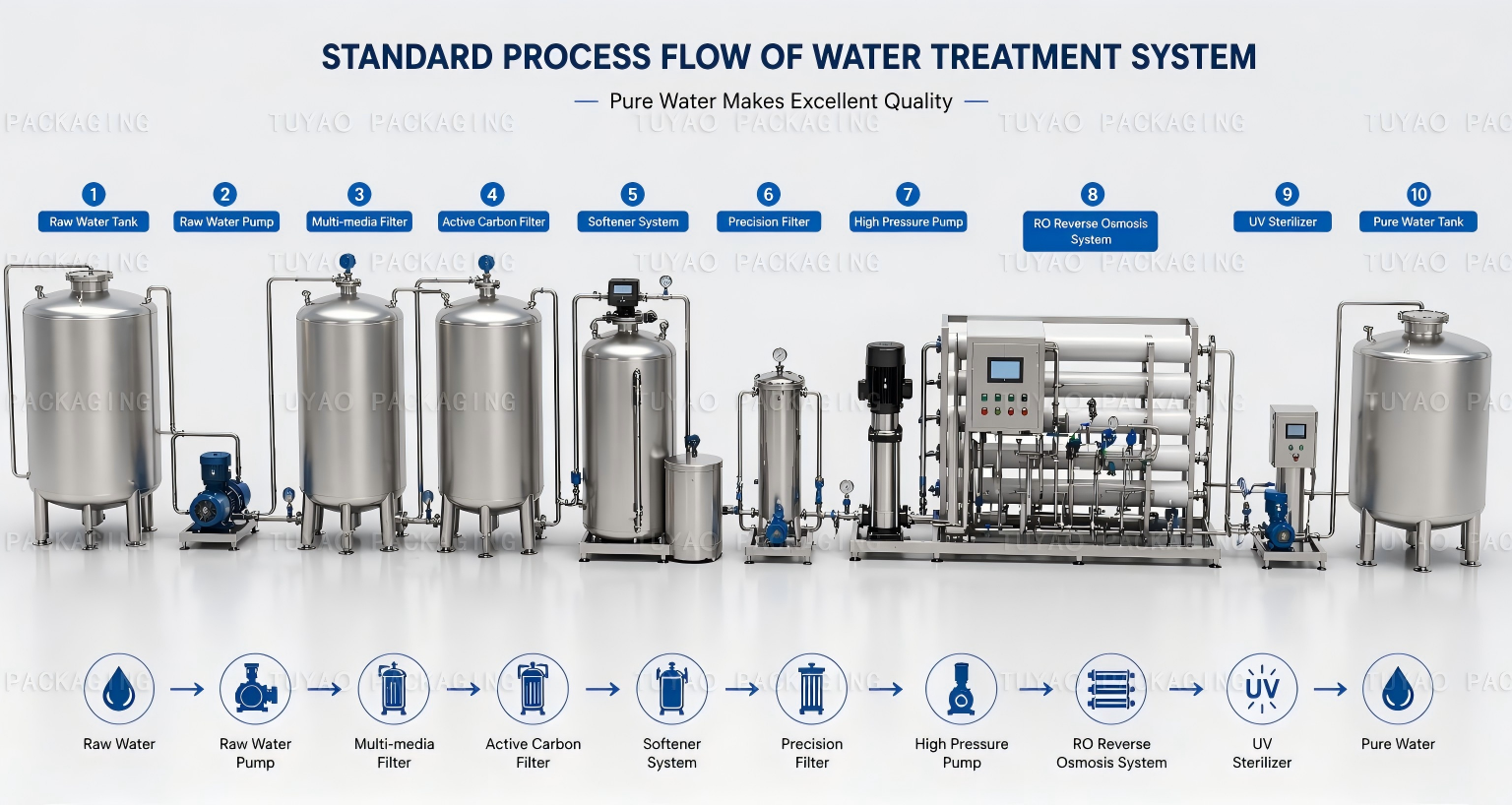

A Standard TUYAO Water Purification Process:
Raw Water Tank: Storage for incoming water.
Raw Water Pump: Provides stable delivery pressure and nominal flow rate for raw water, pressurizes and conveys raw water to each subsequent water treatment process unit.

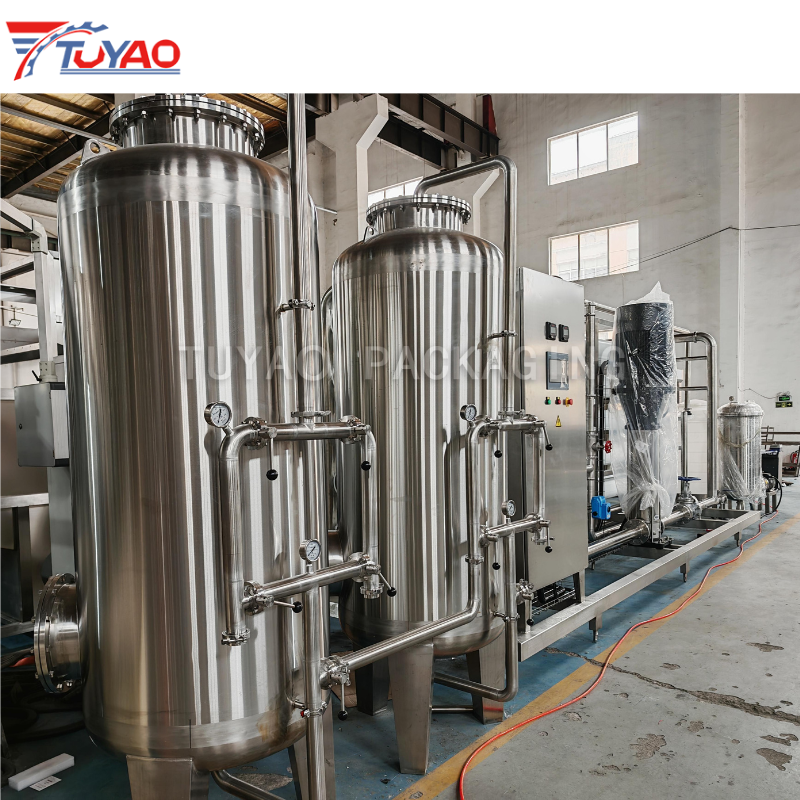

Multi-Medium Filter: Removes suspended solids, sediment, and rust using high-quality quartz sand.
Active Carbon Filter: Removes odors, chlorine, and organic matter to protect RO membranes.
Ion Softener (Optional): Reduces water hardness for specific beverage requirements.

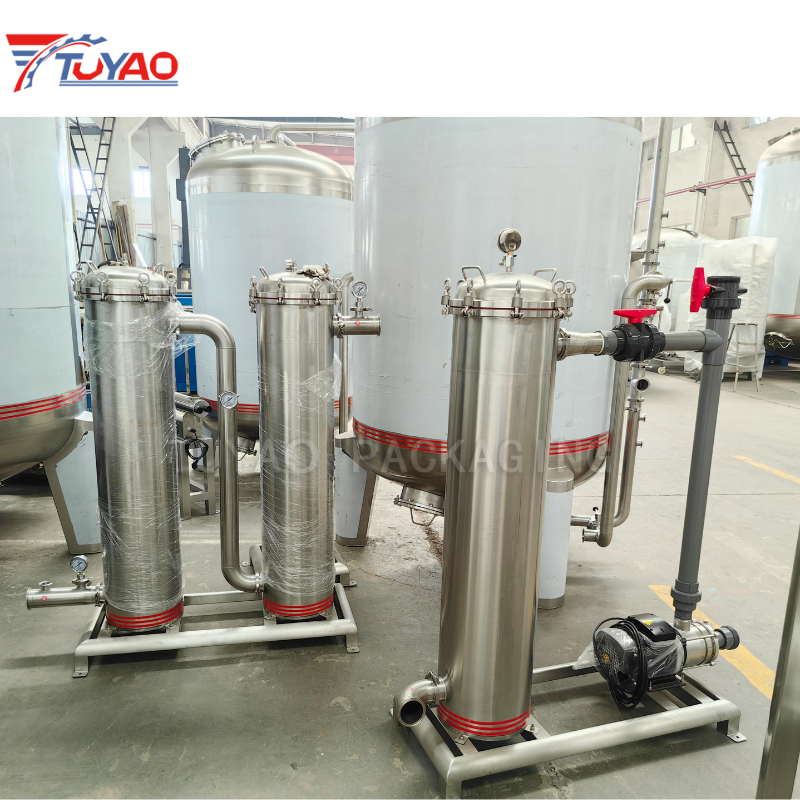

Precision Filter: Final mechanical filtration before the high-pressure pump.
High-Pressure Pump: Provides the necessary pressure for Reverse Osmosis.

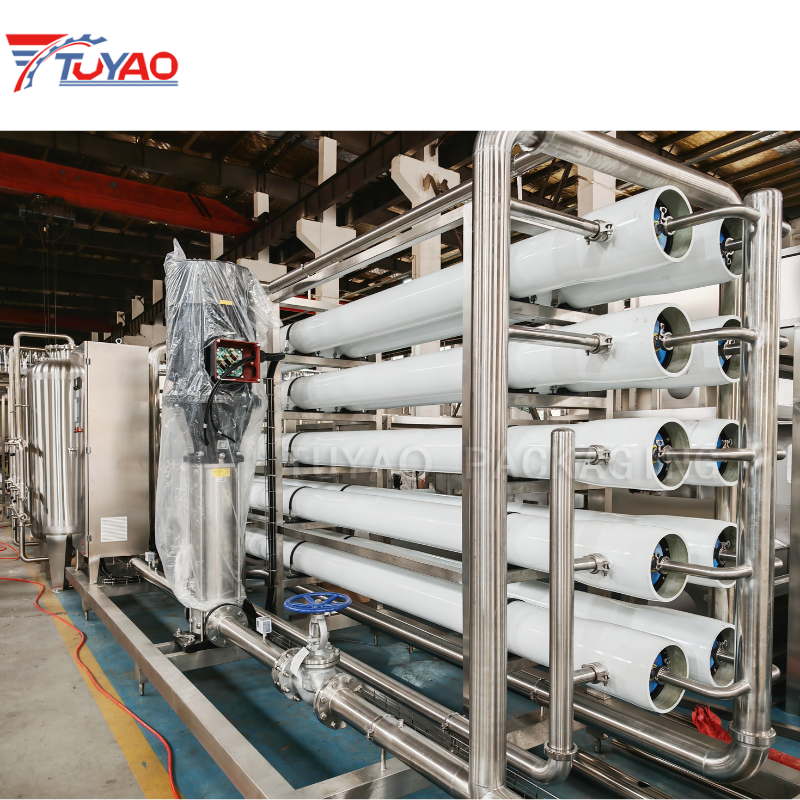

Reverse Osmosis System: Core purification using semi-permeable membranes.
Ozone / UV Sterilizer: Final sterilization to ensure zero bacteria before filling.
Pure Water Tank: Clean water ready for the bottling line.
Product Configurations
| Model | Capacity (L/H) | Power (kW) | Material | RO Membrane Qty |
| TY-RO-1000 | 1,000 | 1.5 | SUS304/316L | According to the model |
| TY-RO-2000 | 2,000 | 3.5 | SUS304/316L | |
| TY-RO-5000 | 5,000 | 7.5 | SUS304/316L | |
| TY-RO-10000 | 10,000 | 15.0 | SUS304/316L | |
| TY-RO-15000 | 15,000 | 25.0 | SUS304/316L | |
| TY-RO-20000 | 20,000 | 30.0 | SUS304/316L |
**Note**:
- Custom capacities from 1,000 L/H to 50,000+ L/H available upon request
- Ultrafiltration (UF) systems and double-pass RO systems available for special water quality requirements
- All parameters are based on standard feed water conditions (TDS < 1000 mg/L, 25°C)
FAQ
Q1: Are you a trading company or a direct manufacturer?
A: We are a dedicated manufacturer with over 22 years of industry experience in beverage filling and packaging. Based in Zhangjiagang (only 2 hours from Shanghai), our factory is equipped with advanced technology to provide high-quality equipment at factory-direct prices. We warmly welcome you to visit our facility to see our machines in action.
Q2: How do I know which water treatment system is right for me?
A: We recommend sending us a Raw Water Analysis Report. Our engineers will analyze the TDS, pH, and mineral content to design the most efficient filtration stages for you.
Q3: What is the maintenance cycle for the filters?
A: Sand and carbon filters usually require backwashing daily and replacement every 12-24 months. RO membranes typically last 2-3 years depending on water quality and maintenance.
Q4: Can you handle high-capacity industrial projects?
A: Yes, we design systems from 1,000 L/H to large-scale plants exceeding 100 Tons/Hour.
Q5: Do you provide overseas installation and training service?
A: Yes. We send experienced technical engineers to your factory for on-site installation, commissioning and operator training to ensure your production line starts up smoothly and on schedule.
