0.1L-2L Fully Automatic PET Bottle Blowing Machine
High-performance fully automatic PET stretch blow molding machine designed for 0.1L to 2L PET bottle production, delivering uniform wall thickness, stable bottle forming and energy-efficient operation for water, juice, carbonated drinks, edible oil and daily chemical packaging. Adopts infrared heating technology, servo-driven stretching and intelligent temperature control to ensure consistent bottle quality and fast mold changeover. Ideal for beverage factories, packaging manufacturers and edible oil producers seeking integrated in-line bottle blowing and filling production.
- Product Overview
- Video
- Core System Features
- Technical Parameters
- Photos
- FAQ
- Recommended Products
Product Overview
The fully automatic PET bottle blowing machine is a professional two-stage stretch blow molding solution optimized for 0.1L to 2L PET bottle manufacturing. It automates the entire production process from preform loading, heating, stretch blowing to finished bottle discharging, enabling continuous, unmanned production with high forming yield.
Full-Automatic Continuous Production: The machine completes preform sorting, loading, heating, stretch blowing and finished bottle discharging in a fully automatic continuous process, greatly reducing manual intervention and labor cost. The stable linear production rhythm ensures uninterrupted operation and high production yield for mass manufacturing.

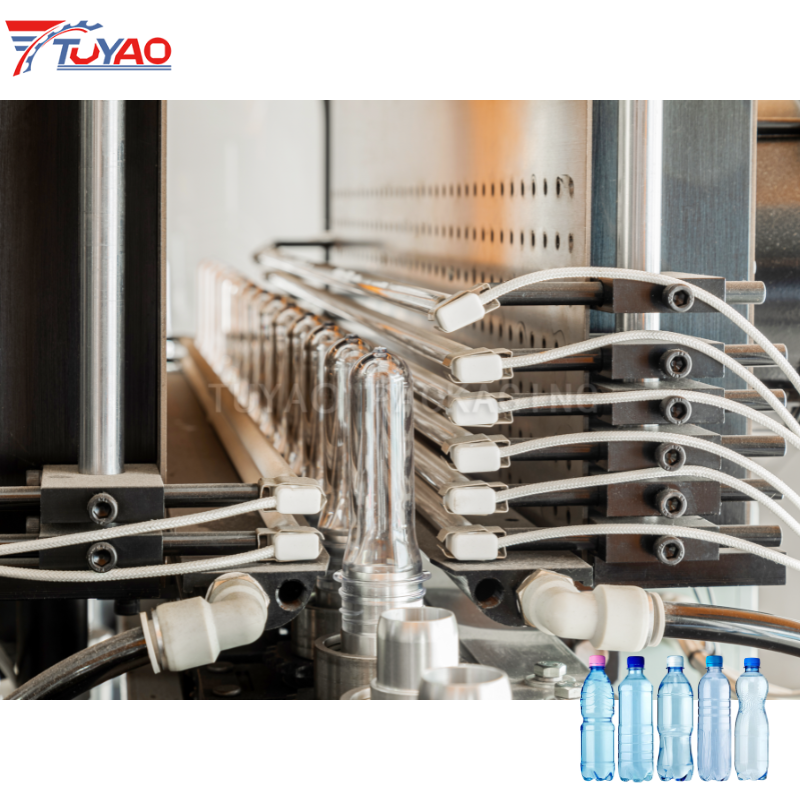

Precision Multi-Zone Infrared Heating: Adopts an advanced infrared heating furnace with multiple independently controlled temperature zones. Each heating lamp can be adjusted individually to match different preform materials, weights and bottle shapes, ensuring uniform preform heating and consistent wall thickness distribution of finished bottles. The preform rotation mechanism during heating guarantees 360° even heating for perfect forming.
Servo-Driven High-Precision Blowing System: Equipped with a servo-driven stretching and mold clamping mechanism, it delivers fast, smooth and accurate stretching action with adjustable stroke and speed. The high-pressure blowing circuit with quick-response valves ensures instant high-pressure inflation, resulting in clear bottle contours, stable neck dimensions and excellent mechanical strength.
Fast Mold Change & Wide Bottle Compatibility: Supports tool-less quick mold change, allowing operators to switch between different bottle shapes and capacities within a short time. It covers a wide range from 0.1L small bottles to 2L standard bottles, adapting to round, square and special-shaped PET bottles for various industries.
Energy-Efficient Optimized Design: The heating furnace is equipped with a reflective insulation layer and thermal energy recycling structure to reduce heat loss and power consumption. Optimized pneumatic circuit design recycles part of the high-pressure air, effectively lowering compressed air consumption and production cost.
Intelligent Control & Simple Operation: Powered by an industrial PLC control system with a large color touchscreen HMI, it supports intuitive parameter setting, temperature adjustment and production status monitoring. Built-in fault self-diagnosis function displays alarm information in real time for quick troubleshooting, reducing downtime and maintenance difficulty.
Food-Grade Hygienic Design: All parts in contact with bottles are made of food-grade materials with smooth surfaces that are easy to clean. The clean forming environment meets food packaging production hygiene requirements, making it suitable for beverage and edible oil bottle production.
Video

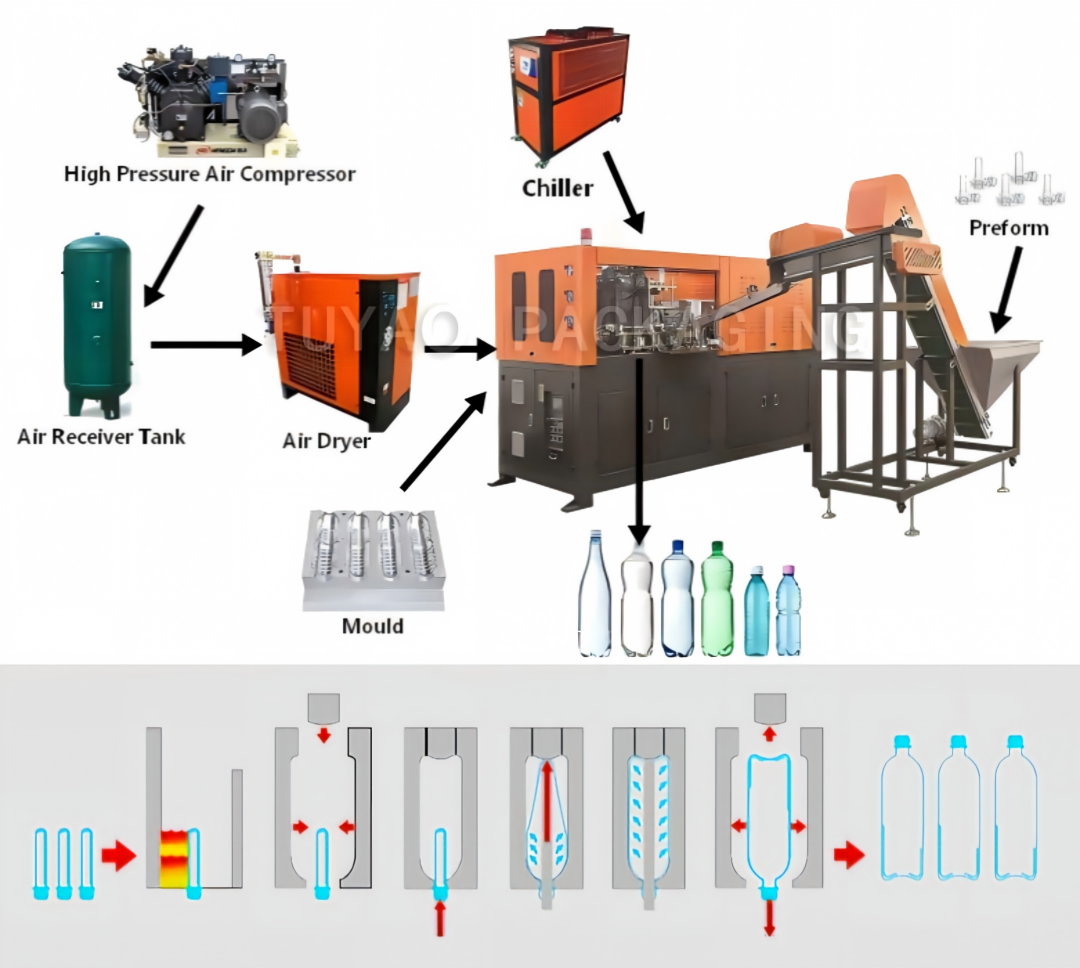

Core System Features

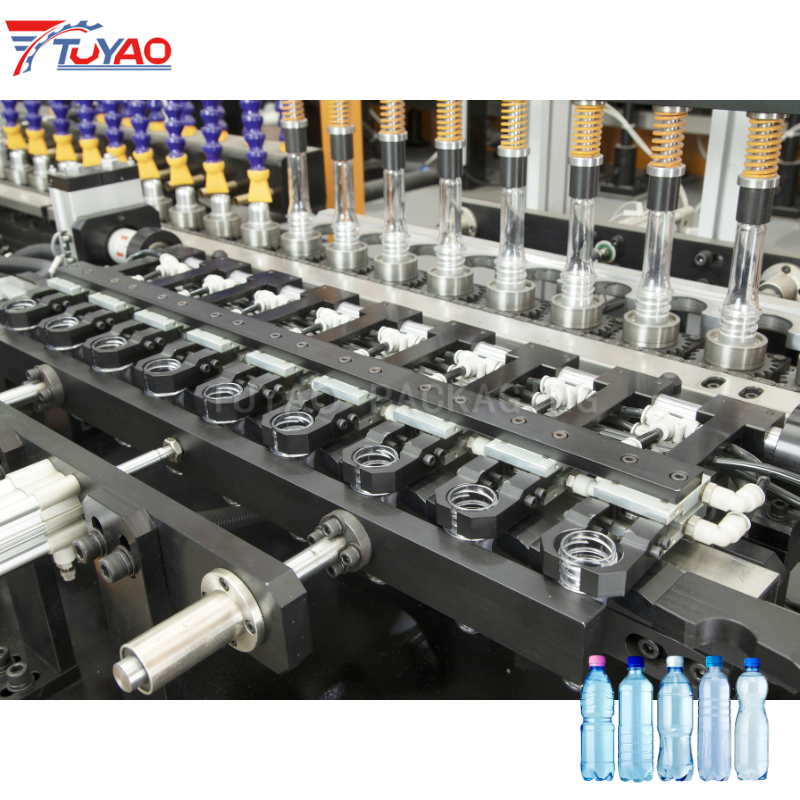

Preform Infeed System: Single-channel preform infeed with servo-driven preform dividing delivers fast, precise preform positioning. It effectively eliminates preform jams, missed loading and abrasion between adjacent preforms for stable continuous operation.
Revolution Drive System: Driven by a servo motor via a specially engineered transmission chain, it ensures smooth movement, fast positioning and low operating noise of the heating units throughout the production cycle.

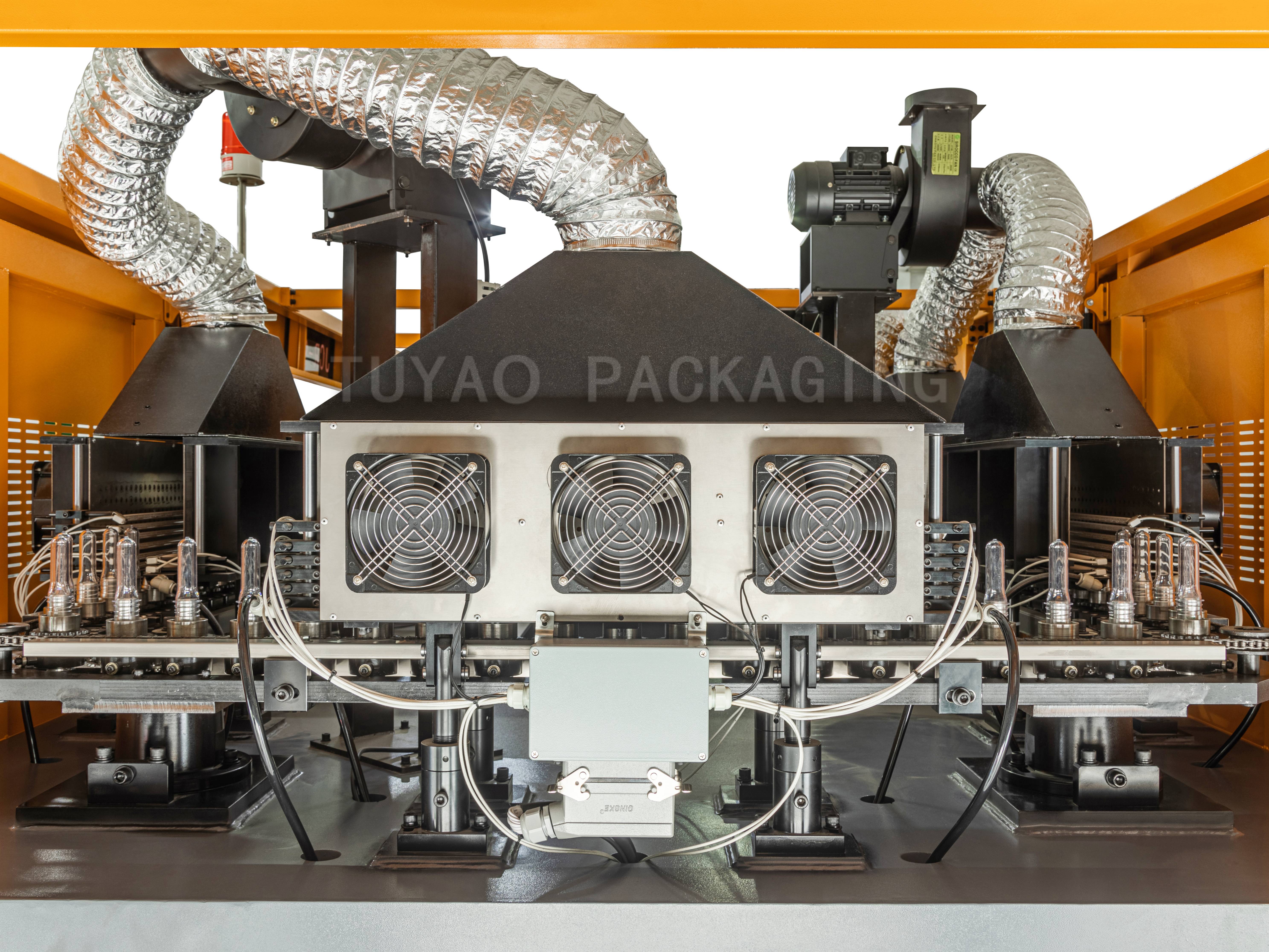

Rotary Heating System: Adopts the rotary blow molder heating and conveying mode, which cuts energy consumption while significantly improving heating speed and temperature uniformity for consistent preform conditioning quality.

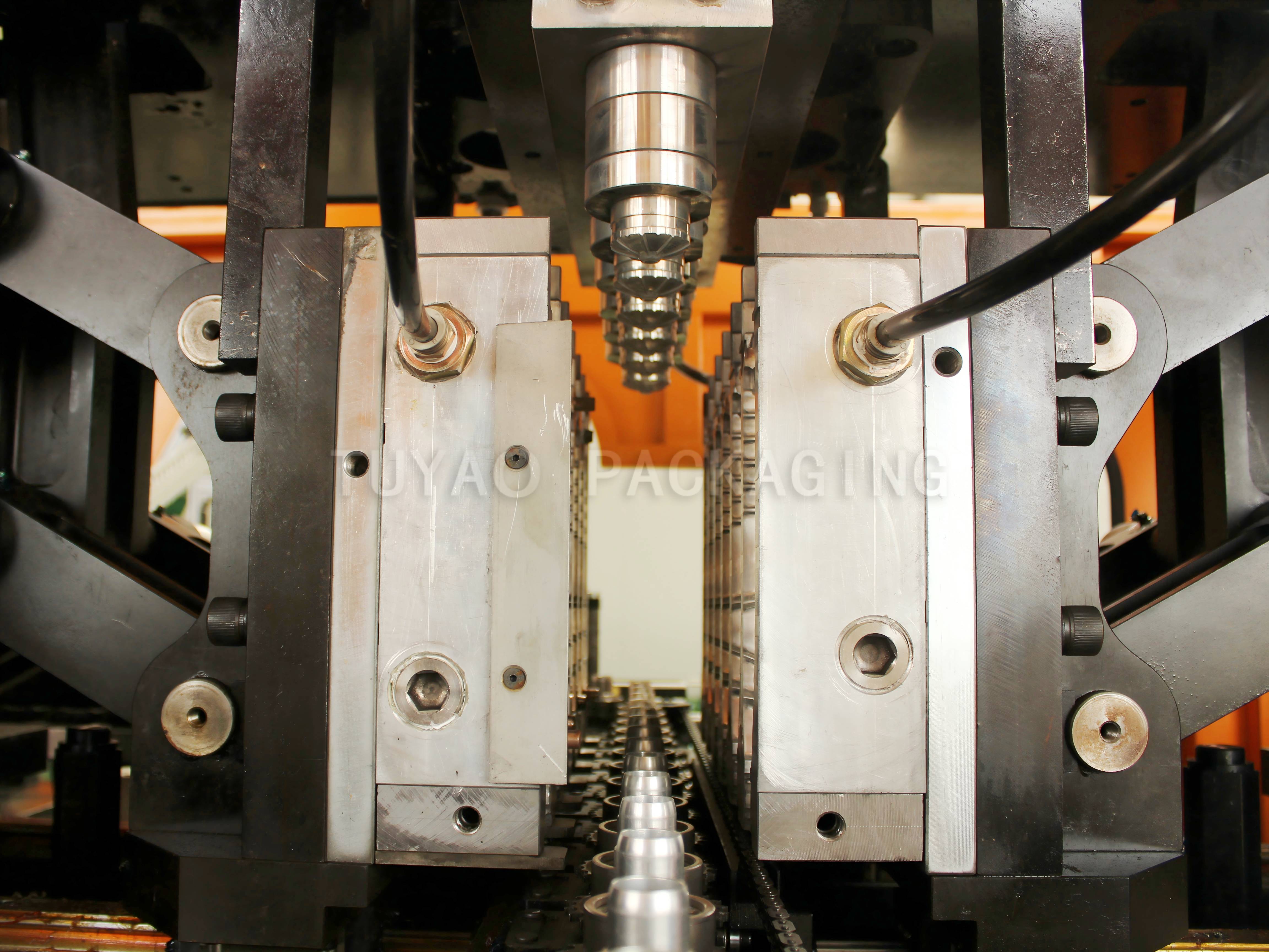

High-Pressure Mold System with Quick-Change Design: Features high-pressure mold clamping technology that eliminates mold bulging and produces ultra-fine parting lines on finished bottles. Built with a drawer-type mold structure positioned by four fixed tie rods on the mold backplate, it enables effortless mold changeover within 20 minutes.
Adjustable Stretch Blow System:Both pre-blow and high-pressure blow cycle times are fully adjustable. Each stretch rod can be fine-tuned individually to accommodate different preform specifications and bottle shapes, delivering outstanding process flexibility.

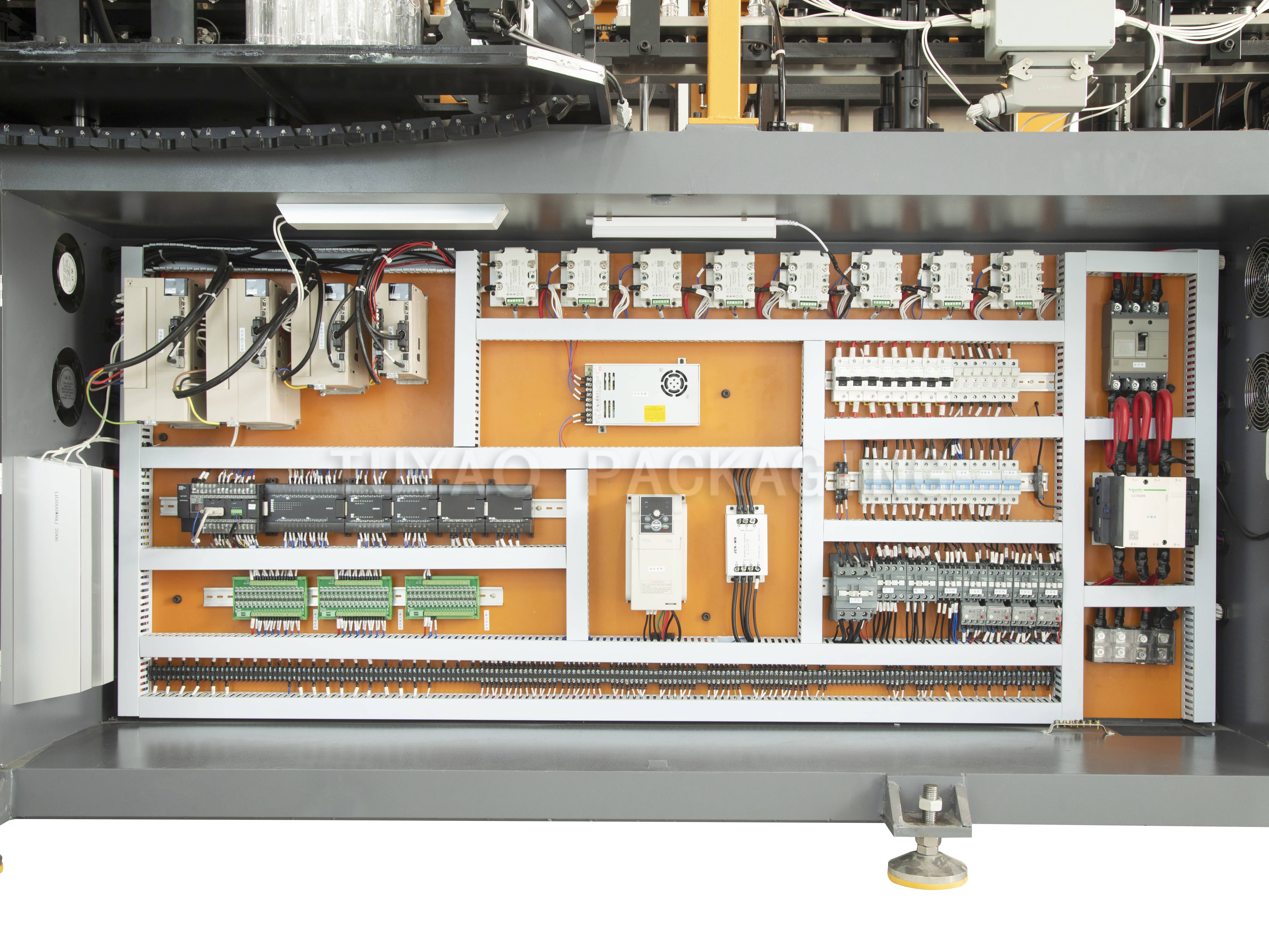

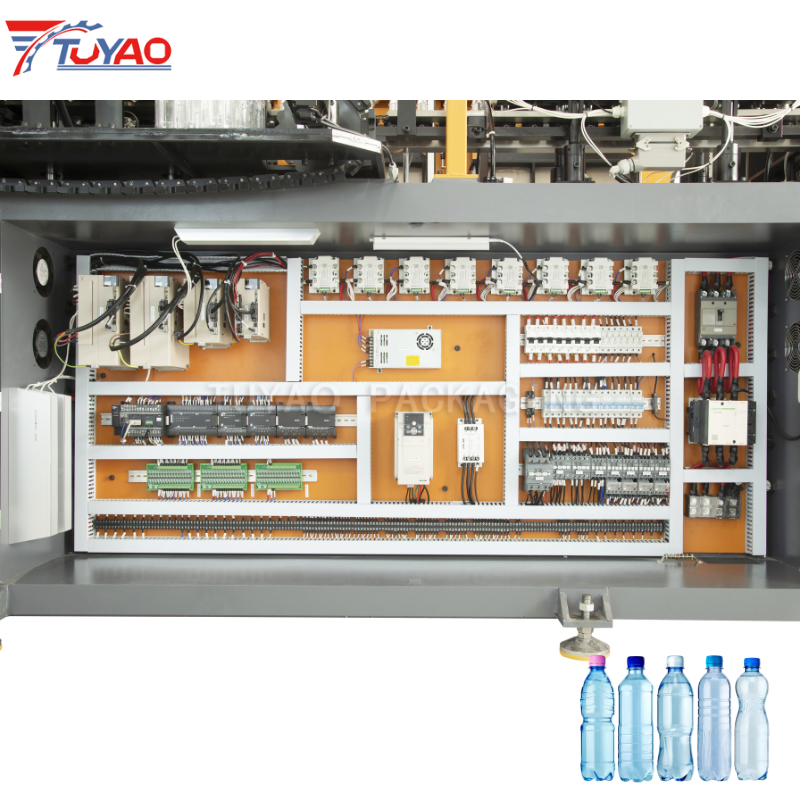

Intelligent Electrical Control System: All pneumatic and electrical components are sourced from internationally renowned brands. The touchscreen control interface is intuitive to operate, with comprehensive sensing monitoring, built-in fault diagnosis and automatic production reporting to track shift-by-shift production efficiency in real time.
Cooling & Chilled Water Circulation System: A dedicated cooling water channel is installed under the heating chamber to block radiant heat from the heating lamps during preform heating, protecting the bottle neck finish from thermal deformation. Chilled water circulates through the mold cavities for rapid mold cooling and setting, which elevates overall machine productivity.
Technical Parameters
| Section | Item | Technical Parameter |
| Product Specifications | Max. bottle volume | 2000 mL |
| Max. bottle diameter | Φ70 mm | |
| Bottle neck finish size | Φ18 ~ Φ38 mm | |
| Max. bottle height | < 320 mm | |
| Max. preform height | < 145 mm | |
| Mold clamping stroke | 125 mm | |
| Bottom mold stroke | 50 mm | |
| Bottle pitch | 76.2 mm | |
| Rated output | 12,000 BPH (for 500mL round water bottles) | |
| Heating System | Heating units | 6 sets |
| Heating lamp layers | 8 layers | |
| Preform holder quantity | 144 pcs | |
| Electrical Specifications | Voltage | 380V |
| Frequency | 50Hz | |
| Operating power | 38–45 kW/h | |
| Installed power | 112 kW | |
| Air Supply | Low-pressure compressed air pressure | 1 MPa |
| Low-pressure compressed air consumption | 1 m³/min | |
| High-pressure compressed air pressure | 3.5 MPa | |
| High-pressure compressed air consumption | 10 m³/min | |
| Cooling Water | Pressure | 2–4 bar |
| Flow rate | 9 m³/h | |
| Weight | Main machine, heating unit, control cabinet, etc. | Approx. 9 t |
| Overall Dimensions | Main machine (L×W×H) | 5500mm × 2600mm × 2600mm |
| Preform unscrambler (L×W×H) | 4500mm × 3500mm × 3500mm |

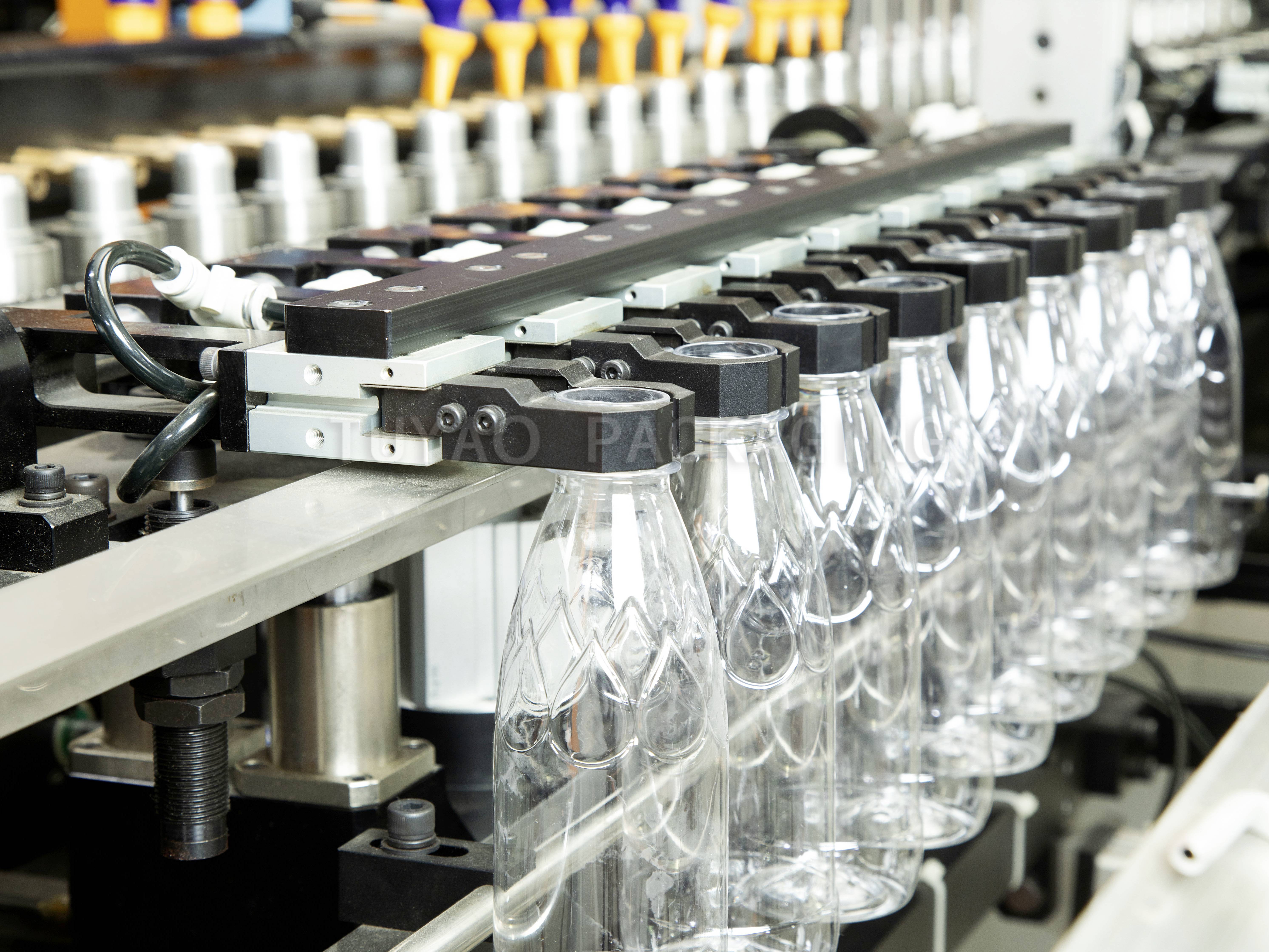

Photos
FAQ
Q1: Are you a trading company or a direct manufacturer?
A: We are a dedicated manufacturer with over 22 years of industry experience in beverage filling and packaging. Based in Zhangjiagang (only 2 hours from Shanghai), our factory is equipped with advanced technology to provide high-quality equipment at factory-direct prices. We warmly welcome you to visit our facility to see our machines in action.
Q2: What bottle sizes and shapes can this machine produce?
A: The machine is designed for 0.1L to 2L PET bottles and supports round, square and various special-shaped bottles. It can produce bottles for water, beverages, edible oil, daily chemicals and other products. We can customize corresponding molds according to your bottle design drawings.
Q3: Can you customize the machine according to our bottle samples?
A: Yes. We can adjust the machine configuration, heating zone setting, mold design and parameters according to your bottle samples, preform specifications and output requirements to ensure optimal production effect.
Q4: Do you provide overseas installation and training?
A: Yes. We can arrange senior technicians to your factory for installation, commissioning and systematic operation & maintenance training, including bottle blowing process adjustment and common fault handling.
Q5: What is the warranty period?
A: We provide a 12-month whole machine warranty starting from the commissioning date, with lifetime technical support and long-term supply of original spare parts and wearing parts at factory price.
