15L Linear Type Edible Oil Filling Machine
Professional linear edible oil filling machine specially optimized for 15L large-volume PET bottle packaging, delivering stable and accurate filling performance for catering pack and family-size cooking oil products. Designed for soybean oil, sunflower oil, rapeseed oil, blended oil and other edible oils in standard PET bottles, it features PET-specific bottle guiding, anti-tipping conveying, drip-proof large-flow filling nozzles and torque-controlled capping. All product-contact parts adopt food-grade 304 stainless steel to ensure hygienic production and reliable sealing quality, making it an ideal choice for grain & oil manufacturers and edible oil bottling plants.
- Product Overview
- Video
- Technical Parameters
- Filling & Capping
- Complete Line Solution
- FAQ
- Recommended Products
Product Overview

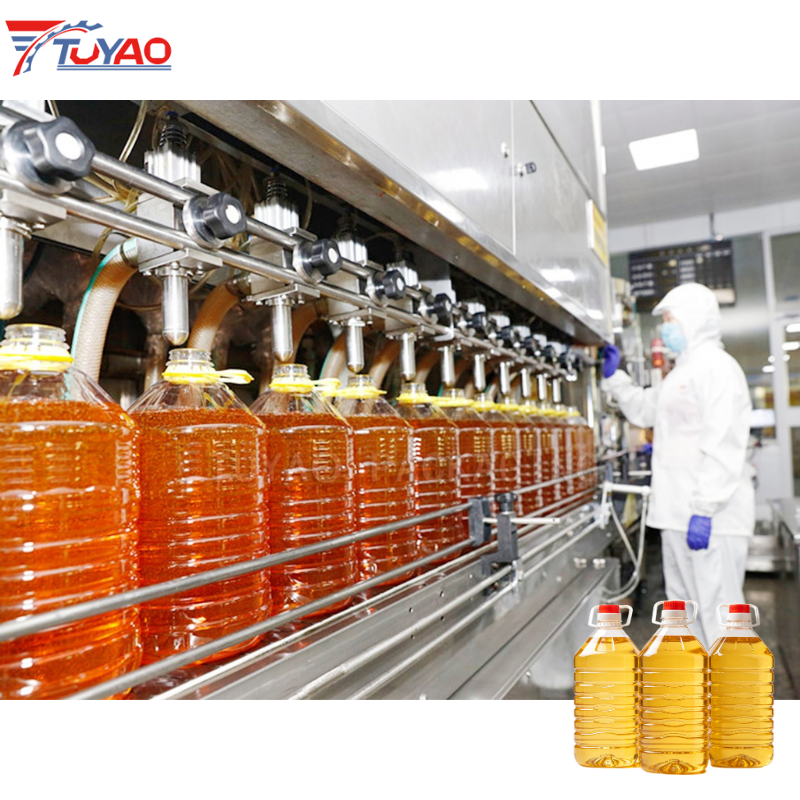

The 15L linear edible oil filling machine is a dedicated bottling solution designed for large-capacity PET bottled edible oil packaging, widely used in catering supply, bulk retail and household large-size oil product scenarios. Built on a streamlined linear frame, it adopts high-precision flow metering filling technology with independent control for each filling nozzle, maintaining consistent filling accuracy across different oil viscosities and production temperatures.
High-Precision Flow Metering Filling System: Adopts independent high-precision flow metering technology for each filling channel, with fast-slow two-stage filling control to balance filling speed and accuracy. The metering principle is not affected by oil viscosity, temperature and density changes, maintaining stable and consistent fill volume for every 15L PET bottle during long-term continuous production and effectively controlling raw material loss.

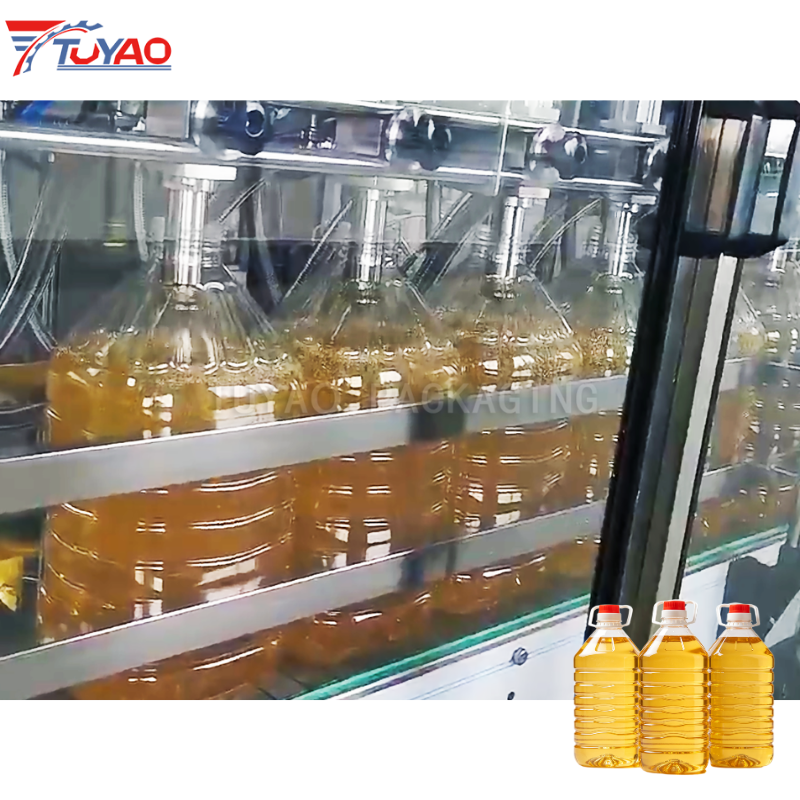

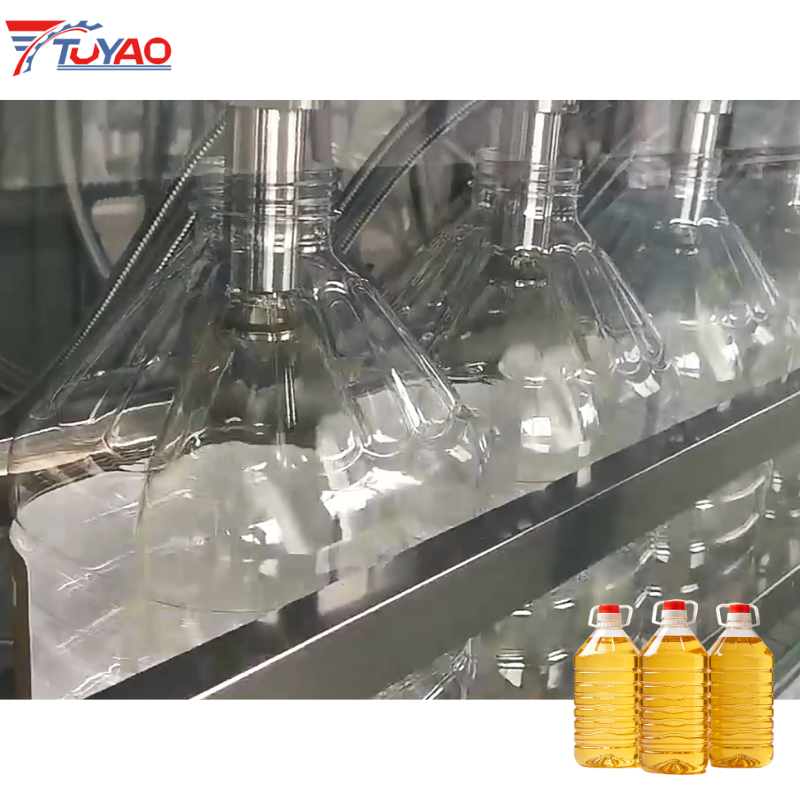

PET-Specific Drip-Proof Filling Design: Equipped with lifting large-flow filling nozzles with bottle mouth guiding structure, which aligns accurately with the PET bottle mouth before filling to avoid offset leakage. Each nozzle adopts an independent oil suction backflow anti-drip structure, achieving zero dripping after filling and keeping the bottle mouth and body clean. The filling speed is adjustable to prevent liquid impact from deforming lightweight PET bottles.
Flexible Anti-Tipping Conveying System: Designed for lightweight empty PET bottles, the whole-line conveying system adopts width-adjustable flexible guardrails and a bottom-support flat belt structure, with an empty bottle righting mechanism installed at the infeed to correct tilted bottles and prevent tipping. The conveyor runs smoothly with low impact, effectively avoiding bottle scratches and ensuring stable conveying of both empty and full 15L PET bottles.
Bottle-Clamping Screw Capping System: The capping unit is equipped with a dedicated bottle body clamping device, which firmly holds the PET bottle during the capping process to prevent the bottle body from rotating with the cap. Matched with magnetic constant-torque capping heads with adjustable tightening force, it avoids over-tightening that damages bottle mouths or loose caps, ensuring consistent and reliable sealing quality for PET bottles.
Full-Process Intelligent Production Protection: Multi-layer safety protection is deployed along the whole line: the inverted bottle detector at the infeed automatically rejects tilted or damaged bottles; the centralized conveying control automatically stops bottle feeding when the filling area is fully loaded to avoid extrusion and jams; the cap shortage detection triggers an alarm or shutdown to prevent uncapped products from flowing downstream.
Food-Grade Sanitary Construction: All oil-contact components including internal pipelines, filling nozzles and buffer tanks are made of food-grade 304 stainless steel, with smooth crevice-free surfaces and sanitary clamp connections. The machine body adopts stainless steel panels with transparent safety doors, which is easy to wipe and clean, fully complying with food production hygiene regulations.
Video
Technical Parameters
| Model | Capacity (for 500ml) | Bottle mouth inner diameter | Bottle volume | Bottle diameter | |
| Rotary weighing type | TY-RWF16 | 5500BPH | less than 2.5L≥27mm; 10L≥45mm; 20L≥55mm. (Different bottle mouth specifications demand different valve nozzles yielding varied outputs.) | 500ml~20L | 45～120mm |
| TY-RWF18 | 7000BPH | ||||
| TY-RWF20 | 8500BPH | ||||
| TY-RWF24 | 11500BPH | ||||
| TY-RWF26 | 13500BPH | ||||
| TY-RWF30 | 16000BPH | ||||
| TY-RWF32 | 17500BPH | ||||
| TY-RWF40 | 23000BPH | ||||
| Linear weighing type | TY-LWF10 | 1700BPH | 500ml~20L | 45～120mm | |
| TY-LWF12 | 2100BPH | ||||
| TY-LWF16 | 2500BPH | ||||
| Linear flowmeter type | TY-LVF6 | 1800BPH | 500ml~20L | 45～120mm | |
| TY-LVF8 | 2100BPH | ||||
| TY-LVF10 | 2400BPH | ||||
| TY-LVF12 | 2900BPH | ||||
Filling & Capping
Filling Part
● Multiple independent filling stations, each equipped with a high-precision flow meter and independently controlled large-flow filling valve.
● Lifting filling nozzle with bottle mouth guiding structure, featuring two-stage filling control and oil suction backflow anti-drip design.
● Integrated 304 stainless steel buffer tank with automatic liquid level control, interlocked with the feed pump and inlet valve to maintain stable oil supply and filling pressure.
● Simplified material flow cavity structure with sanitary clamp connections, fully compatible with automatic CIP circulation cleaning.
Capping Part
● Fully automatic capping system integrating cap hopper, elevator sorter, cap placer, pre-pressing module, tracked capping mechanism and electrical control unit, delivering a seamless automated workflow of cap sorting, placing and sealing.
● Customizable cap sorting solution — available in waterfall-style or inclined-disk design based on actual cap samples — paired with a dedicated cap delivery chute for smooth, jam-free cap feeding.
● Equipped with a dedicated bottle clamping device that secures bottles firmly throughout the capping cycle, ensuring precise cap alignment, consistent sealing quality, and zero bottle shifting or damage.
● Low-voltage electrical components adopt Schneider and other world-renowned standard brands, ensuring low failure rate, operational safety and long-term durability.
● Constructed with a high-quality stainless steel and electroplated aluminum alloy frame; all cap-contact parts are made of 304 stainless steel or food-grade sanitary engineering plastic, fully compliant with food hygiene requirements.
● Built-in cap shortage detection triggers automatic alarm or shutdown to prevent uncapped products from flowing downstream, boosting overall product qualification rate.
● Adjustable cap delivery chute and capping height accommodate bottles of various specifications, supporting flexible multi-SKU production.

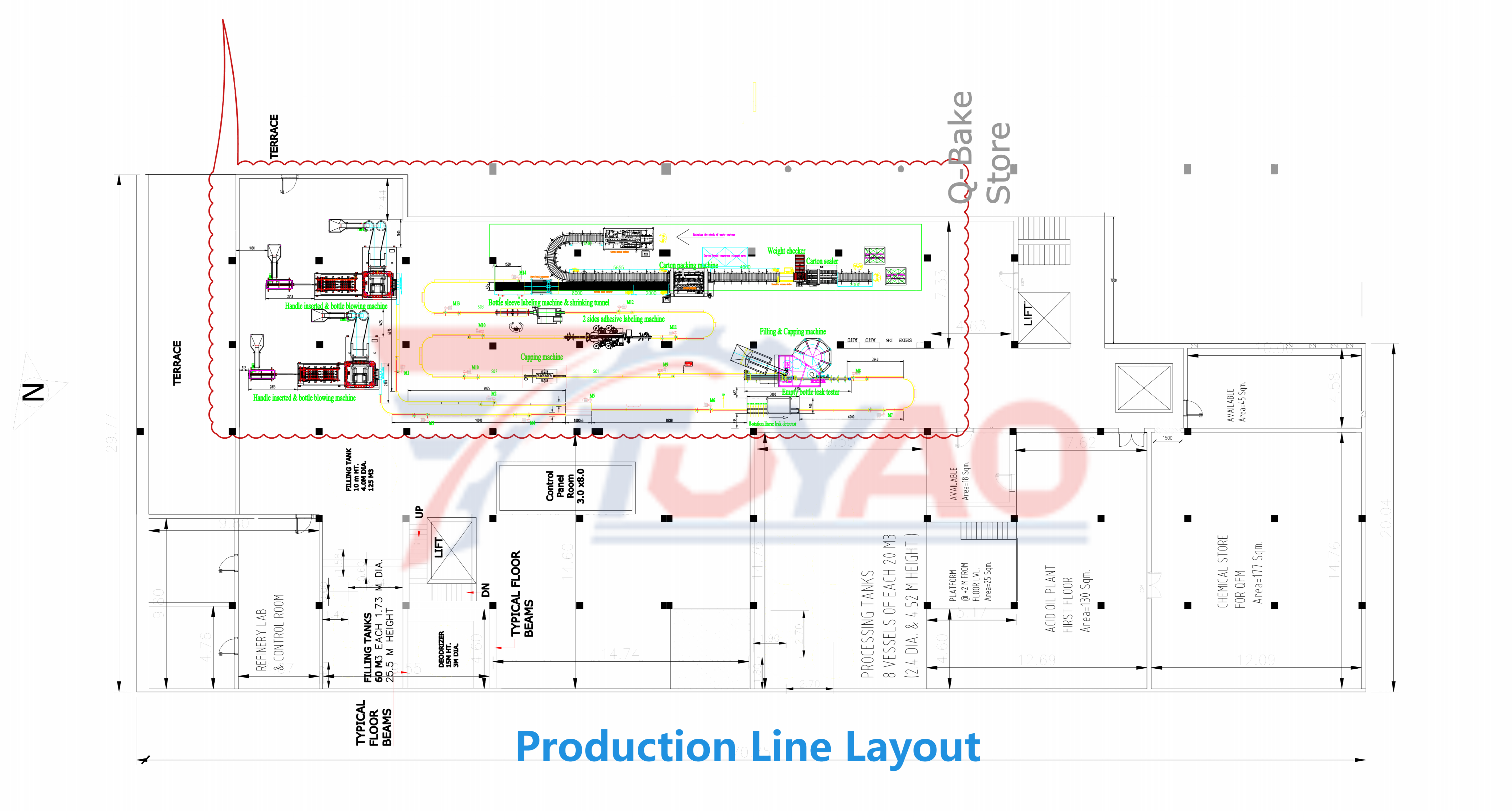

Complete Line Solution

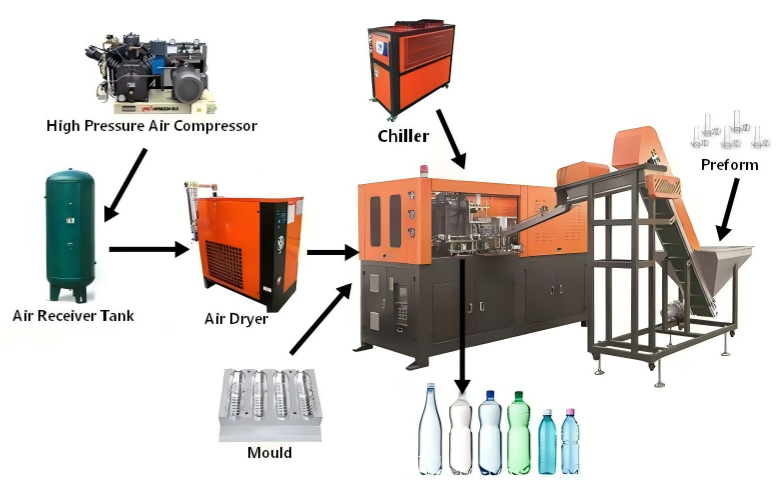

Bottle Blowing System
Our PET bottle blow molding machines support fully custom bottle shapes and serve a wide range of beverage applications. We offer two configurations to fit different production scales:
Semi-automatic blow molder: Manual operation with low upfront investment, ideal for small-batch production and startup plants.
Automatic blow molder: High-level automation for medium to high-speed production lines, ensuring stable output with reduced labor demand.
Automatic models produce PET bottles from 100ml to 2,000ml, commonly used for water, soda and cola bottles. All bottle profiles can be customized to your exact design requirements.

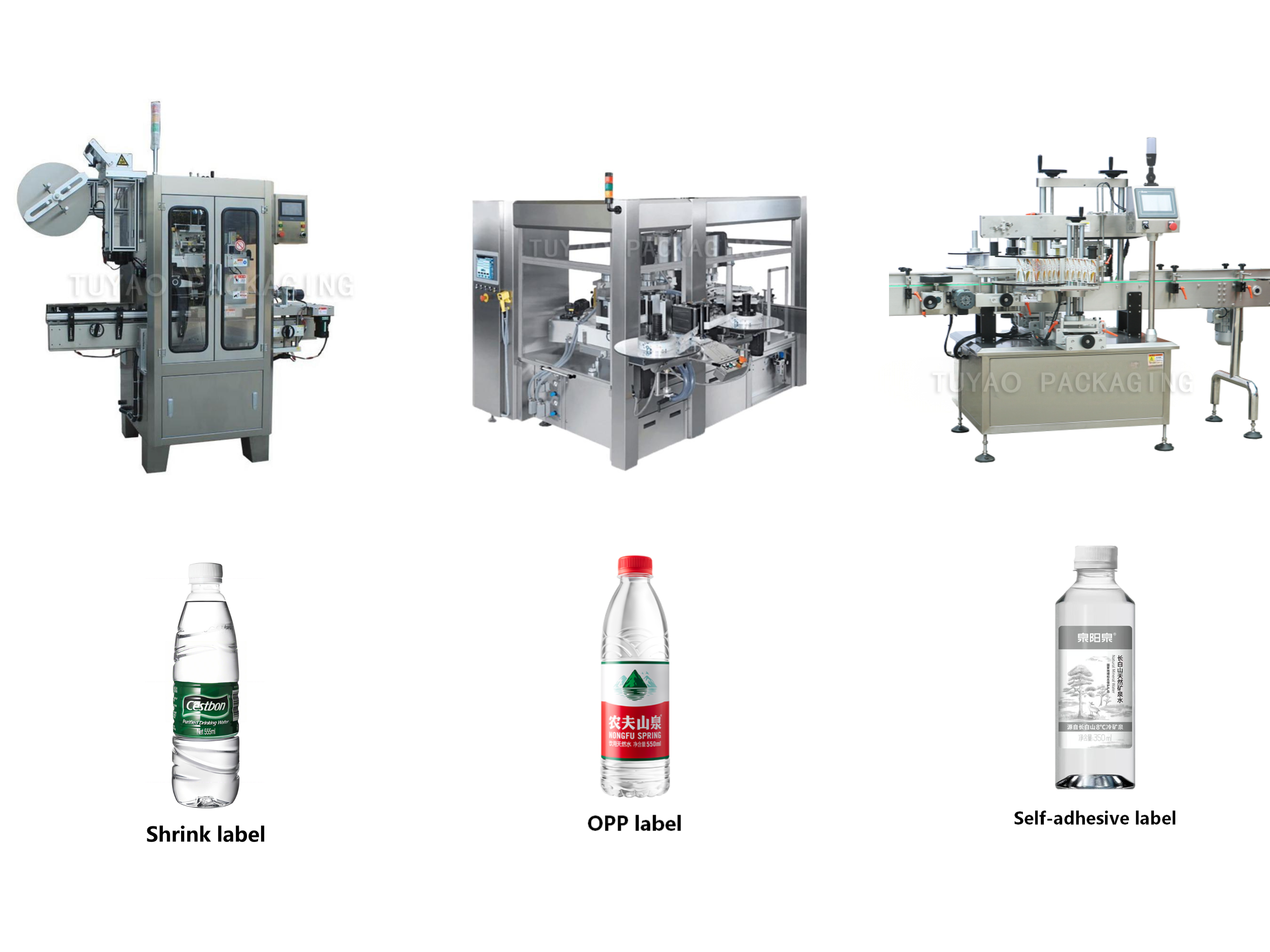

Labeling Machine
We deliver customized final packaging solutions aligned with your needs and market demand, with three mainstream label options for bottle — PVC shrink sleeve, OPP hot-melt glue and self-adhesive labels — each paired with dedicated labeling equipment. As refined label design effectively boosts brand recognition and market appeal, we recommend referencing local mainstream products when making your selection.

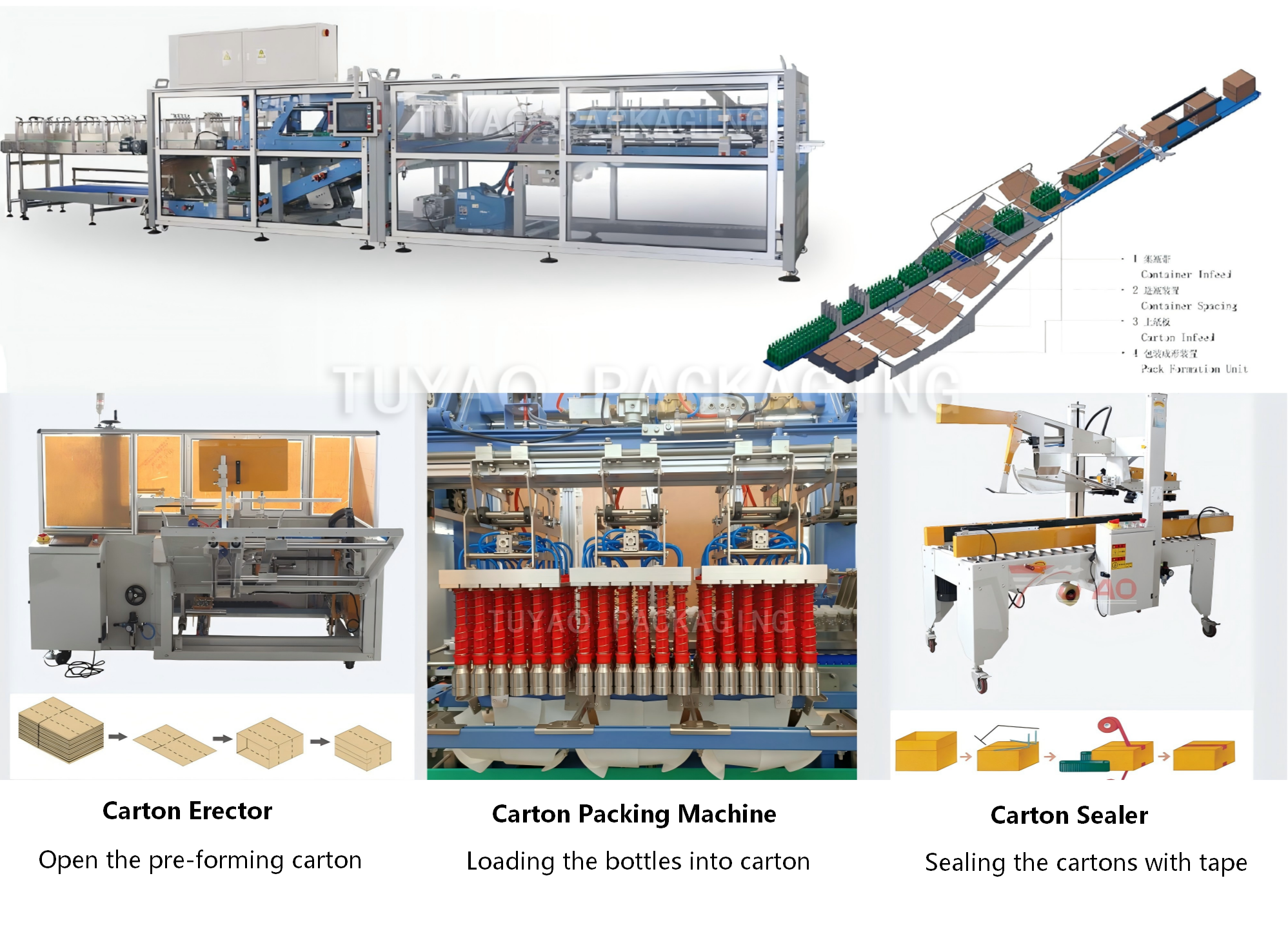

Bottle Packging System
This carton packing machine is widely compatible with bottled water, juice, carbonated soft drinks, edible oil, dairy and other products, delivering 10–80 packs per minute to fit varying production scales, with both one-piece and pre-formed carton configurations available. It features a side bottle feeding design for a compact footprint and simplified conveying system to effectively reduce overall line investment, and adopts an advanced rocker-arm mechanism for smooth, stable operation with low energy consumption; its multi-stage decompression feeding prevents bottle tipping and ensures precise gripper alignment for high reliability, while strict compliance with national safety standards is backed by integrated fault alarms and automatic shutdown protection.
FAQ
Q1: Are you a trading company or a direct manufacturer?
A: We are a dedicated manufacturer with over 22 years of industry experience in beverage filling and packaging. Based in Zhangjiagang (only 2 hours from Shanghai), our factory is equipped with advanced technology to provide high-quality equipment at factory-direct prices. We warmly welcome you to visit our facility to see our machines in action.
Q2: Can it handle different viscosities of edible oil?
A: Yes. The independent metering filling system is suitable for various viscosities of liquid food, from light sunflower oil to thick olive oil and palm oil. Filling parameters can be adjusted via the touchscreen to adapt to different products without replacing parts.
Q3: What types of caps can be used?
A: The machine is compatible with standard plastic screw caps, aluminum screw caps and press caps commonly used for edible oil packaging. The magnetic torque capping heads ensure consistent tightening force and reliable sealing.
Q4: What is the difference between rotary and linear filling machines?
A: Rotary filling machines have higher production speed, smaller footprint and more stable continuous operation, suitable for medium and large-scale mass production. Linear filling machines have lower cost and more flexible format changeover, suitable for small-batch multi-SKU production.
Q5: Do you provide overseas installation and training service?
A: Yes. We send experienced technical engineers to your factory for on-site installation, commissioning and operator training to ensure your production line starts up smoothly and on schedule.
Q6: What is the warranty period?
A: We offer a 12-month whole-machine warranty starting from the commissioning date, plus lifetime technical support and spare parts supply.
