5L Linear Weighing Edible Oil Filling Machine

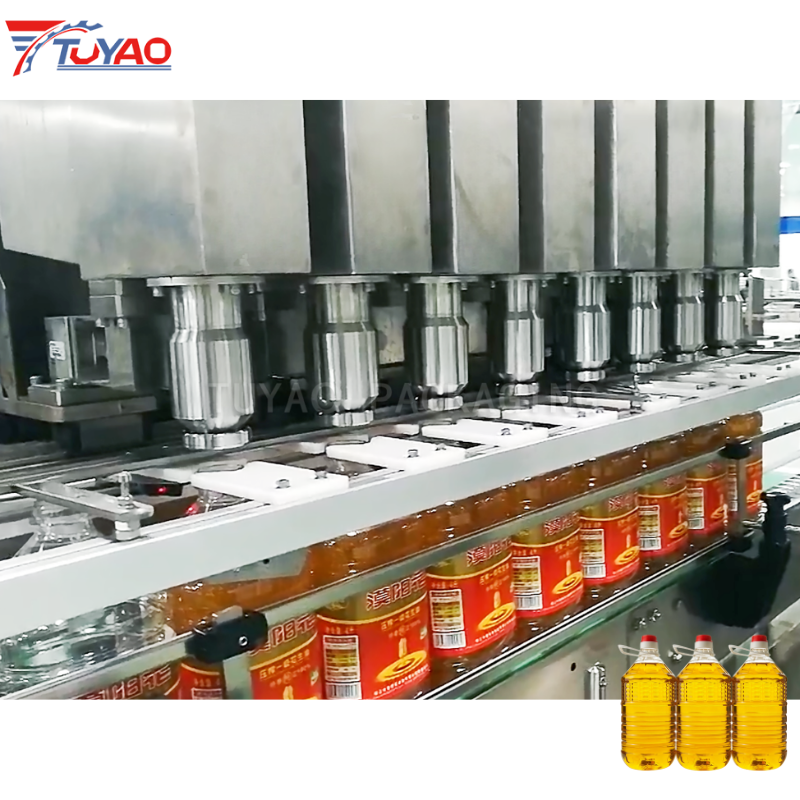

Filling Part

● Adopts top-weighing metering technology with imported FLINTEC weighing sensors. Oil flows by gravity from the elevated buffer tank to the weighing container, then passes through a two-stage filling valve; real-time weight monitoring precisely controls valve action for highly accurate filling results.

● Built-in 304 stainless steel elevated oil tank with level switch and liquid level sensor, interlocked with the inlet valve and feed pump to automatically maintain stable oil level and control oil supply automatically.

● Each filling nozzle is fitted with independent negative pressure anti-drip technology, completely eliminating oil splashing during filling and nozzle retraction, and preventing dripping onto bottle bodies.

● All oil-contact components including internal oil pipelines and filling nozzles are made of food-grade 304 stainless steel with a sanitary dead-end-free design, ensuring safe and hygienic production.

● Core PLC and electrical components adopt industry-leading premium brands for reliable long-term operation and low failure rate.

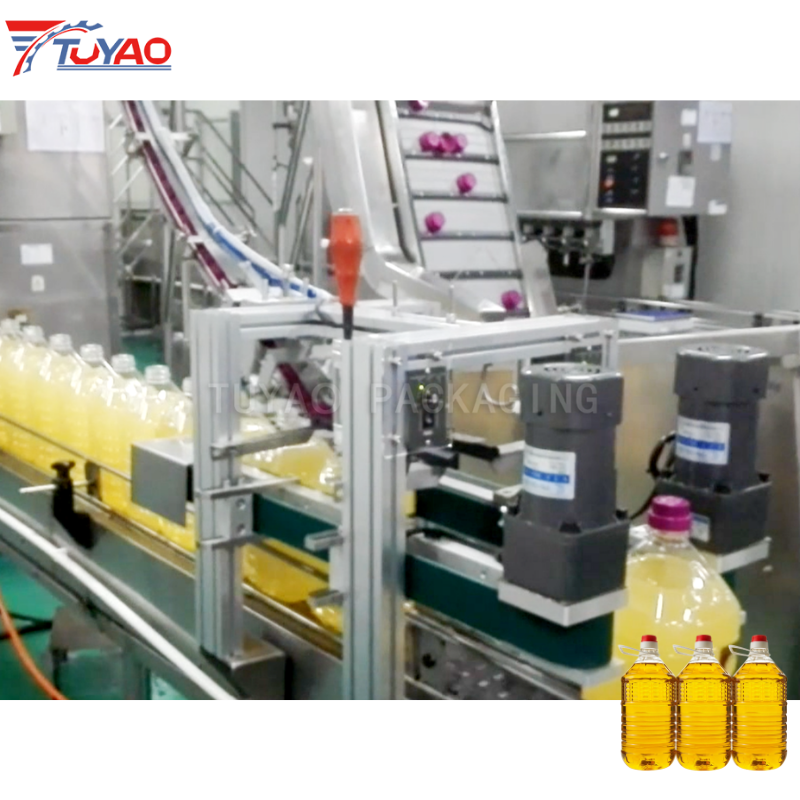

Capping Part

● Fully automatic capping system composed of cap hopper & elevator sorter, cap placing unit, pre-pressing module, tracked capping mechanism and electrical control system, completing cap sorting, placing and sealing in one continuous automated workflow.

● Customizable cap sorting solution: either waterfall-style or inclined-disk cap sorter can be configured based on actual cap samples, paired with a dedicated cap delivery chute for smooth, jam-free cap feeding.

● Added special bottle body clamping device firmly holds bottles in place during the capping cycle, ensuring precise cap alignment and consistent sealing quality while avoiding bottle shifting and damage.

● Low-voltage electrical parts adopt Schneider and other internationally renowned standard components, with low failure rate, safe operation and long-term durability.

● The machine frame is made of high-quality stainless steel and electroplated aluminum alloy; all cap-contact parts are made of 304 stainless steel or food-grade sanitary engineering plastic, meeting food hygiene requirements.

● Built-in cap shortage detection triggers automatic alarm or shutdown to prevent uncapped products from flowing downstream and improve the overall product qualification rate.

● Cap delivery chute and capping height can be adjusted to fit bottles of different specifications, supporting flexible multi-SKU production.

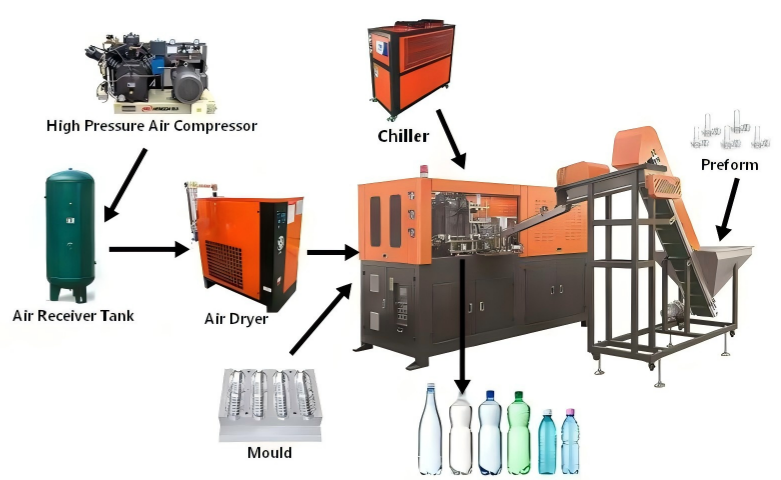

Bottle Blowing System

Our PET bottle blow molding machines support fully custom bottle shapes and serve a wide range of beverage applications. We offer two configurations to fit different production scales:

Semi-automatic blow molder: Manual operation with low upfront investment, ideal for small-batch production and startup plants.

Automatic blow molder: High-level automation for medium to high-speed production lines, ensuring stable output with reduced labor demand.

Automatic models produce PET bottles from 100ml to 2,000ml, commonly used for water, soda and cola bottles. All bottle profiles can be customized to your exact design requirements.

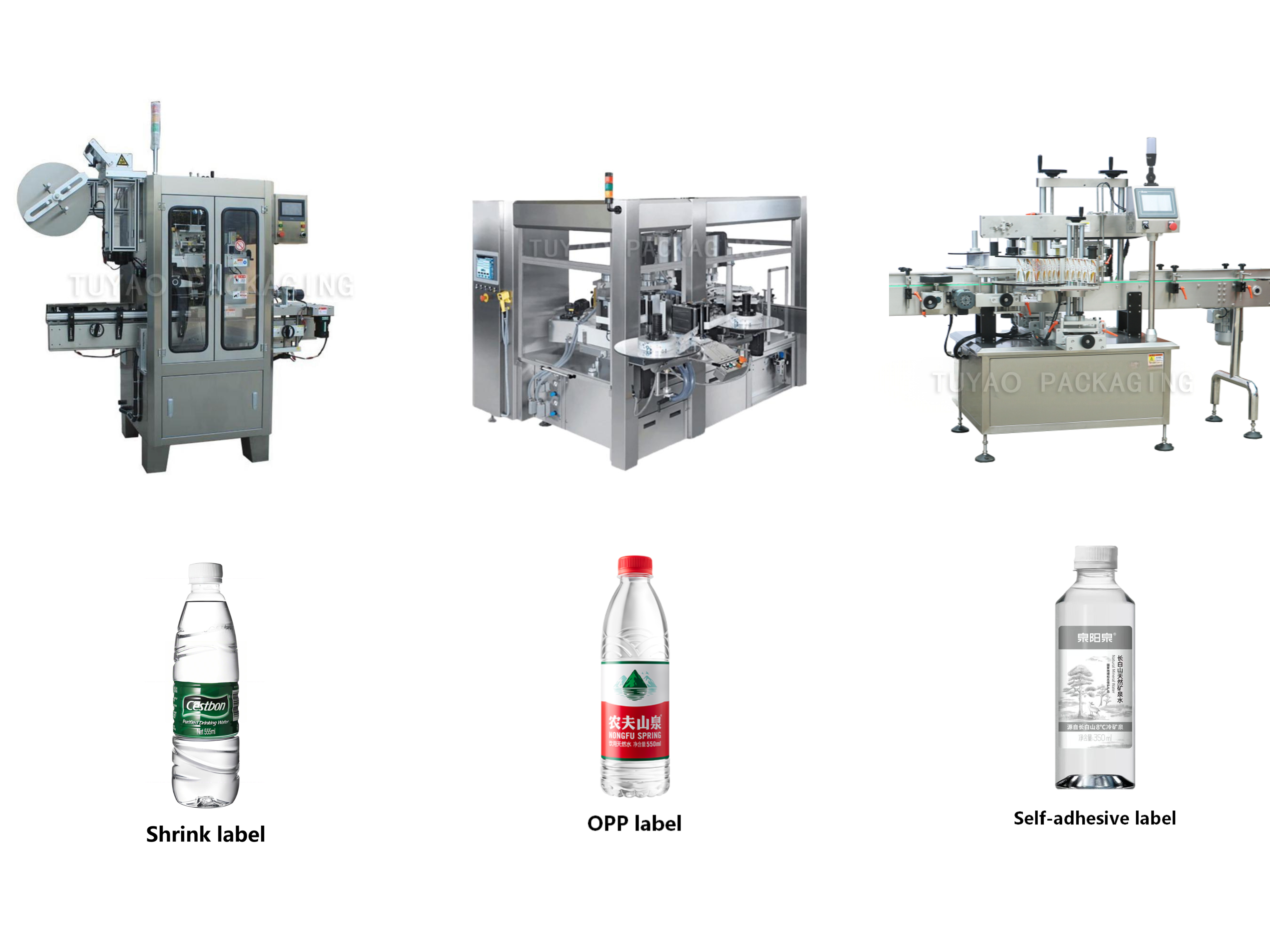

Labeling Machine

We deliver customized final packaging solutions aligned with your needs and market demand, with three mainstream label options for bottle — PVC shrink sleeve, OPP hot-melt glue and self-adhesive labels — each paired with dedicated labeling equipment. As refined label design effectively boosts brand recognition and market appeal, we recommend referencing local mainstream products when making your selection.

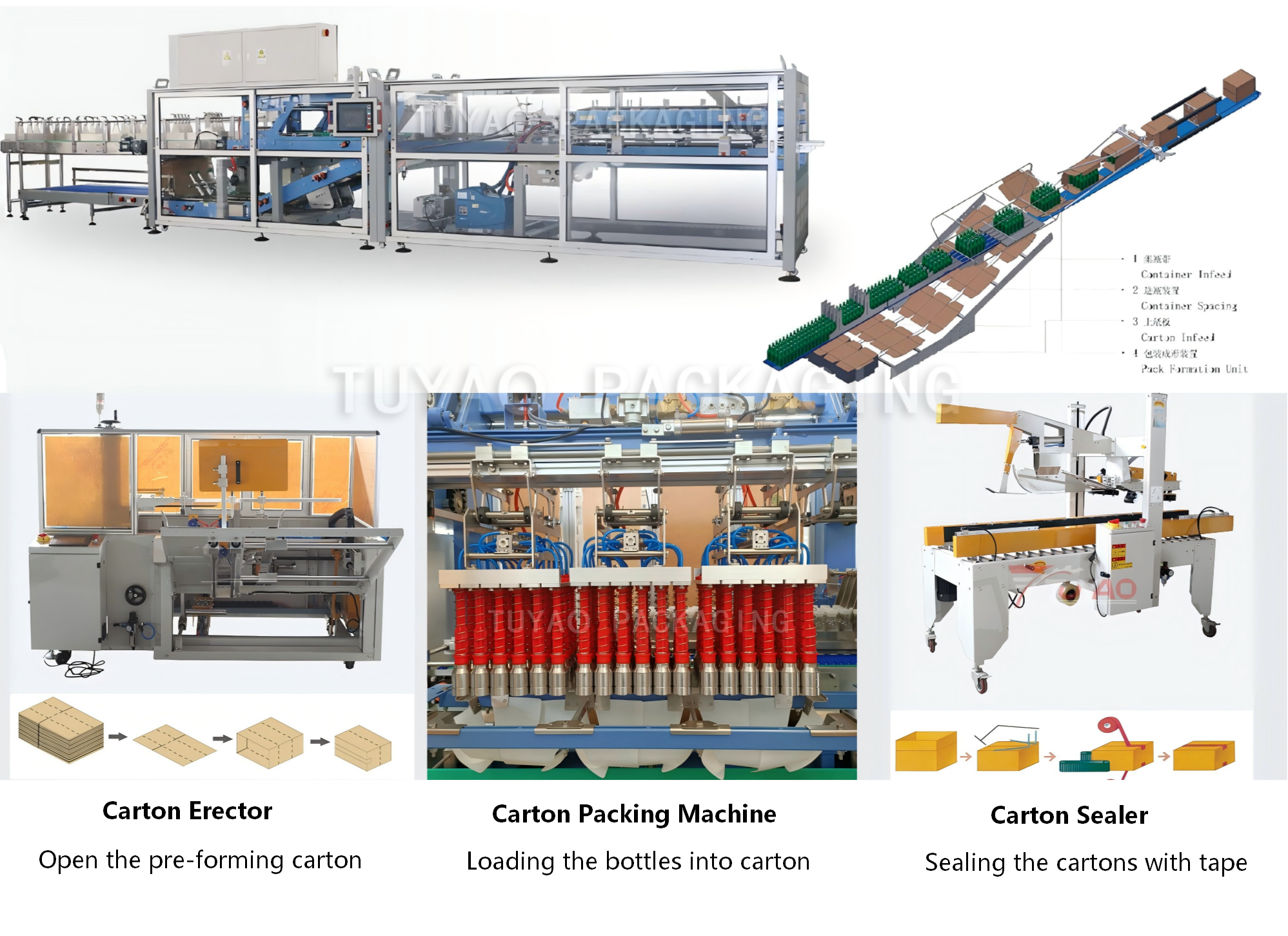

Bottle Packging System

This carton packing machine is widely compatible with bottled water, juice, carbonated soft drinks, edible oil, dairy and other products, delivering 10–80 packs per minute to fit varying production scales, with both one-piece and pre-formed carton configurations available. It features a side bottle feeding design for a compact footprint and simplified conveying system to effectively reduce overall line investment, and adopts an advanced rocker-arm mechanism for smooth, stable operation with low energy consumption; its multi-stage decompression feeding prevents bottle tipping and ensures precise gripper alignment for high reliability, while strict compliance with national safety standards is backed by integrated fault alarms and automatic shutdown protection.

Q1: Are you a trading company or a direct manufacturer?

A: We are a dedicated manufacturer with over 22 years of industry experience in beverage filling and packaging. Based in Zhangjiagang (only 2 hours from Shanghai), our factory is equipped with advanced technology to provide high-quality equipment at factory-direct prices. We warmly welcome you to visit our facility to see our machines in action.

Q2: Can it handle different viscosities of edible oil?

A: Yes. The independent metering filling system is suitable for various viscosities of liquid food, from light sunflower oil to thick olive oil and palm oil. Filling parameters can be adjusted via the touchscreen to adapt to different products without replacing parts.

Q3: What types of caps can be used?

A: The machine is compatible with standard plastic screw caps, aluminum screw caps and press caps commonly used for edible oil packaging. The magnetic torque capping heads ensure consistent tightening force and reliable sealing.

Q4: What is the difference between rotary and linear filling machines?

A: Rotary filling machines have higher production speed, smaller footprint and more stable continuous operation, suitable for medium and large-scale mass production. Linear filling machines have lower cost and more flexible format changeover, suitable for small-batch multi-SKU production.

Q5: Do you provide overseas installation and training service?

A: Yes. We send experienced technical engineers to your factory for on-site installation, commissioning and operator training to ensure your production line starts up smoothly and on schedule.

Q6: What is the warranty period?

A: We offer a 12-month whole-machine warranty starting from the commissioning date, plus lifetime technical support and spare parts supply.
