Self Adhesive Sticker Labeling Machine
TUYAO high-precision self-adhesive sticker labeling machine supports single-side, double-side and full-wrap labeling for a wide range of rigid bottles. Widely deployed in beverage, food, cosmetic and pharmaceutical production lines, it delivers stable and dependable labeling quality. Featuring a servo-driven system, it ensures smooth operation with minimal label waste, and accommodates round, square, flat and irregular bottles as well as diverse sticker materials including paper, transparent PET and matte silver film. Designed for fast label changeover, it is perfectly suited for multi-SKU production.
- Product Overview
- Video
- Core Advantages
- Technical Parameters
- Equipment Details
- FAQ
- Recommended Products
Product Overview
The TUYAO series self-adhesive sticker labeling machine is a versatile automatic labeling solution that applies pressure-sensitive sticker labels directly onto container surfaces. Unlike hot melt glue and shrink sleeve labeling, it requires no additional heating or shrinking system, with faster label changeover and lower debugging cost, making it especially suitable for factories with multiple product SKUs and flexible production plans.
This machine supports single-side labeling, double-side front & back labeling, full-wrap labeling and neck labeling, and can be adapted to round, square, flat and special-shaped rigid containers. It can be seamlessly integrated with existing filling, capping and coding production lines to realize fully automated packaging.
Video
Core Advantages
Wide Industry & Container Compatibility: Suitable for pharmaceutical, food, cosmetic and other light industry products; supports single-side and double-side labeling on oval, square, flat and other irregular rigid bottles.
Advanced Intuitive HMI Control System: Highly compatible human-machine interface with straightforward operation, full functional modules and comprehensive built-in online help, enabling quick operator training and smooth daily use.

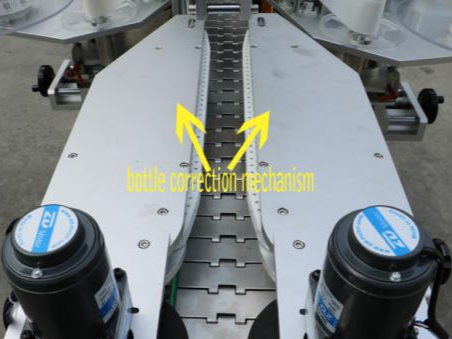

Universal Bottle Dividing & Centering Mechanism: General-purpose bottle divider fits all bottle diameters without requiring replacement parts for fast positioning adjustment; dual-side chain correction device ensures precise container centering during conveying.
Stable Feeding with Elastic Pressing Structure: Special elastic pressing assembly firmly holds containers in position throughout the labeling process, guaranteeing stable material feeding and consistent positioning accuracy.

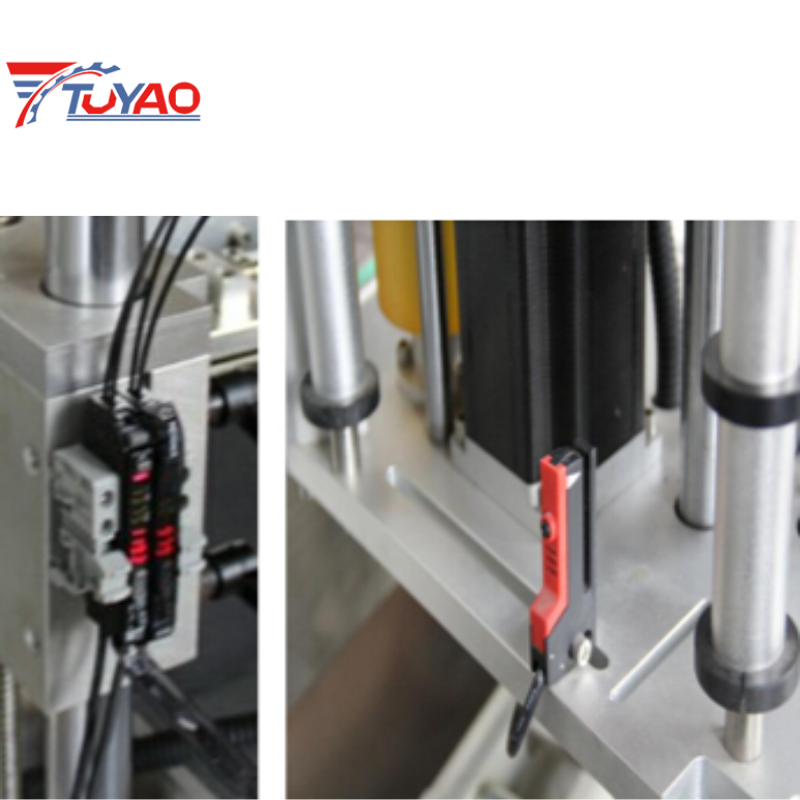

Intelligent Photoelectric Detection & Anti-Waste Function: Automatic optical inspection system achieves no-product-no-labeling operation, automatic label position correction, label shortage alarm and missing label detection, effectively preventing labeling defects and material waste.
Full Stepless Speed Adjustment: Labeling speed, conveyor speed and bottle dividing speed all support stepless adjustment, allowing flexible parameter tuning to match different production needs and product specifications.
Compact & Maintenance-Friendly Design: Simple and compact modular structure with well-arranged components, offering great convenience for daily operation, routine maintenance and quick wearing parts replacement.
Technical Parameters
| Labeling capacity | 40–120 pcs/min (varies with product material and label size) |
| Labeling accuracy | ±1.0 mm |
| Applicable label size | 20~300mm (Length) × 10~180mm (Height) |
| Label roll inner diameter | Φ76 mm |
| Max. label roll outer diameter | Φ350 mm |
| Applicable material size | 20–200 mm (Width) × 40–300 mm (Height) |
| Overall dimensions | 3500(L) × 1250(W) × 1700(H) mm |
| Power supply | AC 220V, 50Hz/60Hz, 2000W |
Equipment Details
FAQ
Q1: Are you a trading company or a direct manufacturer?
A: We are a dedicated manufacturer with over 22 years of industry experience in beverage filling and packaging. Based in Zhangjiagang (only 2 hours from Shanghai), our factory is equipped with advanced technology to provide high-quality equipment at factory-direct prices. We warmly welcome you to visit our facility to see our machines in action.
Q2: What is the difference between self-adhesive labeling and hot melt glue labeling?
A: Self-adhesive labeling uses pre-coated pressure-sensitive stickers, requires no heating system, with fast changeover and low debugging cost, ideal for multi-SKU and small-to-medium volume production. Hot melt glue labeling uses OPP film with on-site glue application, with lower label material cost for mass production, more suitable for high-volume single-product beverage lines. We can recommend the best solution based on your product mix and output.
Q3: What is the labeling accuracy of this sticker labeler?
A: Equipped with a servo label feeding system and high-precision photoelectric sensors, the standard labeling accuracy is ±0.1mm. It ensures stable position consistency for mass production, with no obvious skew or edge warping.
Q4: Can this machine apply both front and back labels on square bottles?
A: Yes. By configuring a second labeling head and bottle positioning mechanism, the machine can complete front and back double-side labeling in one pass.
Q5: Do you provide overseas installation and training service?
A: Yes. We have a professional after-sales engineering team that can visit your factory for equipment installation, commissioning and on-site training. The training covers daily operation, parameter adjustment, routine maintenance and simple troubleshooting.
