Shrink Sleeve Labeling Machine
TUYAO high-speed shrink sleeve labeling machine achieves high precision for full-body bottle labeling. Featuring servo-driven stable high-speed operation, it offers optional steam or electric shrink tunnels, adopts food-grade 304 stainless steel construction, and can be customized to accommodate round, square and irregular bottle shapes.
- Product Overview
- Video
- Equipment Composition
- Technical Specifications
- Configuration Table
- FAQ
- Recommended Products

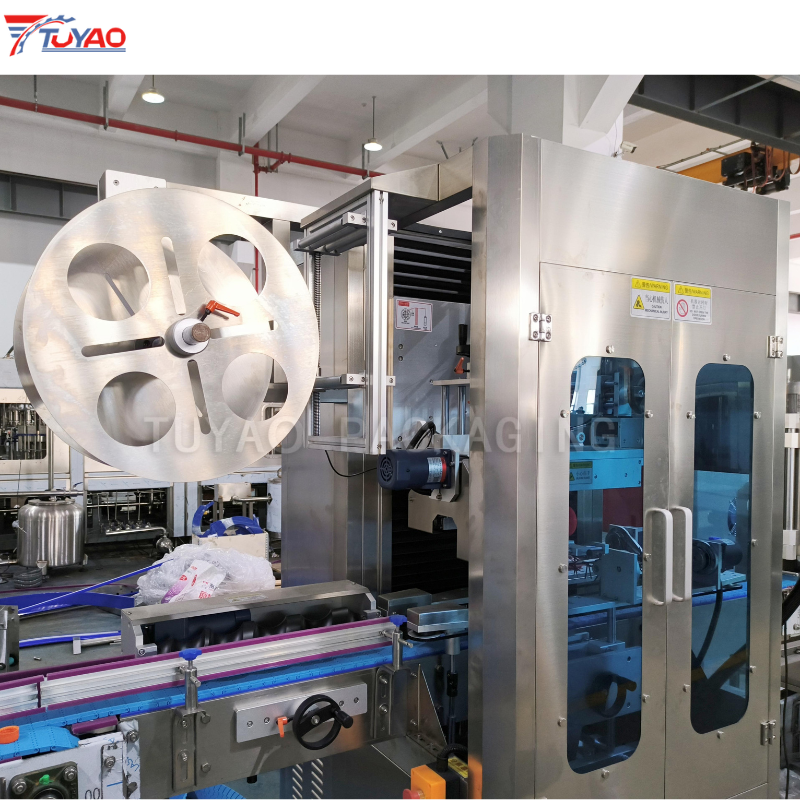

Product Overview
TUYAO series automatic shrink sleeve labeling machine is a high-performance packaging equipment designed for full-body and neck sleeve labeling of rigid bottles. Widely applied in bottled water, fruit juice, carbonated beverage, dairy, condiment and personal care industries, this machine delivers wrinkle-free, tightly fitted label finish with consistent quality.
It supports PVC, PET and OPS shrink sleeve films, and can be seamlessly integrated into complete beverage filling production lines. We provide fully customized configurations based on your bottle dimensions, label specifications and production capacity to perfectly match your existing production setup.
Video

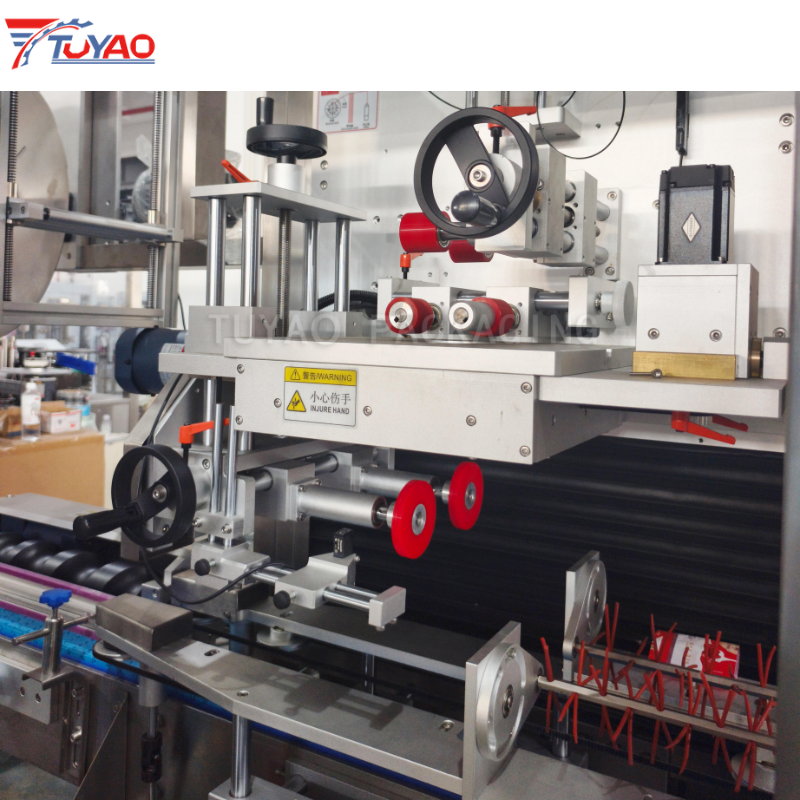

Equipment Composition

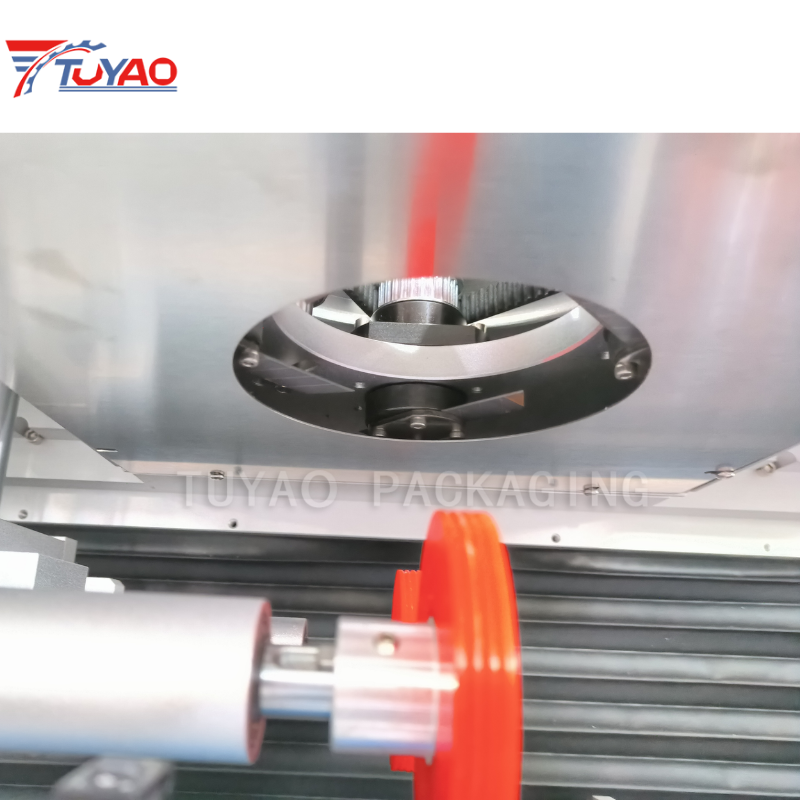

| NO. | Name | Function |
| 1 | Material supply group | Provides the power for bid submission; |
| 2 | Material rack assembly | Install labeling device; |
| 3 | machine lifting group | Adjust the height of the main unit according to the bottle shape; |
| 4 | Brush the group | Responsible for brushing the cut labels onto the bottles; |
| 5 | Cutterhead assembly | Cut the label sent to the central column; |
| 6 | Cutting control group | Control the running position of the cutting blade inside the cutter head; |
| 7 | Rear-wheel drive group | Provides power to drive the label on the central column; |
| 8 | Front-wheel drive adjustment group | Clamp the central column; |
| 9 | Electric eye frame set | Adjust the label to the optimal cutting position; |
| 10 | Bottle-viewing camera detection team | Adjust the position of the label on the bottle; |
| 11 | brush set | Apply the label that cannot fit onto the bottle to the required position; |
| 12 | Label suction device assembly | To ensure stable label supply, control the label sleeve supply speed; |
| 13 | Central column group | The label is opened to facilitate conveying and cutting; |
| 14 | Dispensing screw | This allows the bottles to be spaced evenly, making it easier to accurately apply labels. |

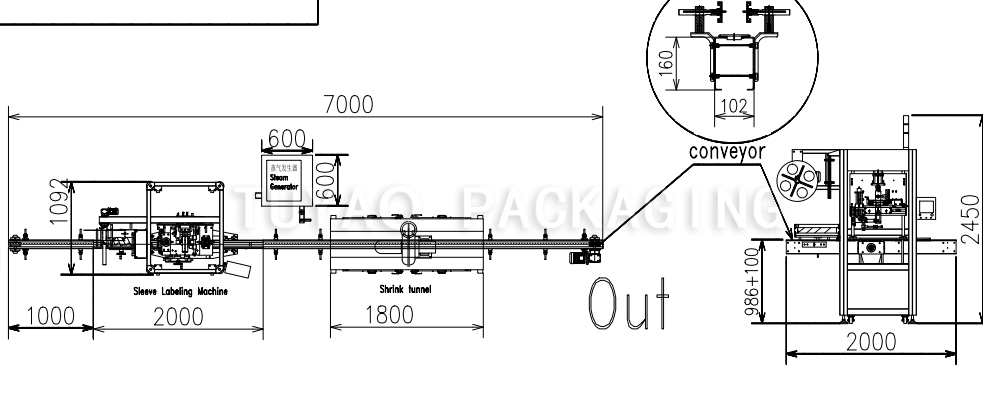

Technical Specifications
| Main unit dimensions | 2000(L) × 1000(W) × 2000(H) mm | Compatible label materials | PVC, PET, OPS |
| Net weight | Approx. 350 KG | Main conveyor frame | 2m stainless steel frame (excluding conveyor belt, power head and power tail) |
| Applicable bottle diameter | Ø25–50mm / Ø50–95mm (one range selectable; custom size available for special specifications) | Power supply | 3-phase 380V AC±5%, 50/60Hz |
| Applicable label length | 30–170 mm | Total power | 3kW |
| Label paper tube inner diameter | 5”–10” (freely adjustable) | Grounding protection | Effective grounding wire with cross-sectional area ≥ 2 mm² |
| Production speed | Max. 150 bottles/min (9000 BPH @ 100mm label height) Speed decreases with longer label length | Power cord specification | 3 × 4C cable / 4 mm² |
| Applicable label thickness | 0.045–0.08 mm | Protective switch | 380V-3P 25A |
Configuration Table
| Component Name | Appliance Name | Model | Qty. | Manufacturers | Origin |
| Brush the group | Small power AC motor | 25W | 2 | JSCC | Taiwan |
| Material supply group | Small power AC motor | 90W | 1 | JSCC | Taiwan |
| Photoelectric sensor | GL6-N1212 | 1 | Schick | Germany | |
| Bottle group | Small power AC motor | 120W | 1 | Mitsubishi | Japan |
| Frequency converter | 400W | 1 | Mitsubishi | Japan | |
| Brush set | Small power AC motor | 25W | 2 | JSCC | Taiwan |
| Cutterhead assembly | Cutter head servo motor | 400W | 1 | Mitsubishi | Japan |
| Cutter head servo driver | 400W | 1 | Mitsubishi | Japan | |
| Cutter head origin sensor | PM-L44 | 1 | Matsushita | Japan | |
| Driver group | Drive servo motor | 400W | 1 | Mitsubishi | Japan |
| Drive servo driver | 400W | 1 | Mitsubishi | Japan | |
| Electric eye frame set | Photoelectric sensor | GL6-N1212 | 1 | Schick | Germany |
| Bottle Group | Photoelectric sensor | GL6-N1212 | 1 | Schick | Germany |
| Conveyor Group | Frequency converter | 1.5KW | 1 | Mitsubishi | Taiwan |
| Programmable Controller | PLC | FX2N-3U | 1 | Mitsubishi | Japan |
| Touchscreen | Human-machine interaction | 1 | Mitsubishi | Japan | |
| Contactor | SE-03 | 5 | Schneider | France |
FAQ
Q1: Are you a trading company or a direct manufacturer?
A: We are a dedicated manufacturer with over 22 years of industry experience in beverage filling and packaging. Based in Zhangjiagang (only 2 hours from Shanghai), our factory is equipped with advanced technology to provide high-quality equipment at factory-direct prices. We warmly welcome you to visit our facility to see our machines in action.
Q2: What types of bottles can this shrink sleeve labeling machine handle?
A: This automatic shrink sleeve labeling machine is compatible with round, square, flat and irregular rigid bottles made of PET, PP, glass and other materials, widely used for beverage, condiment and daily chemical products. We can also customize the bottle passage size for special bottle types.

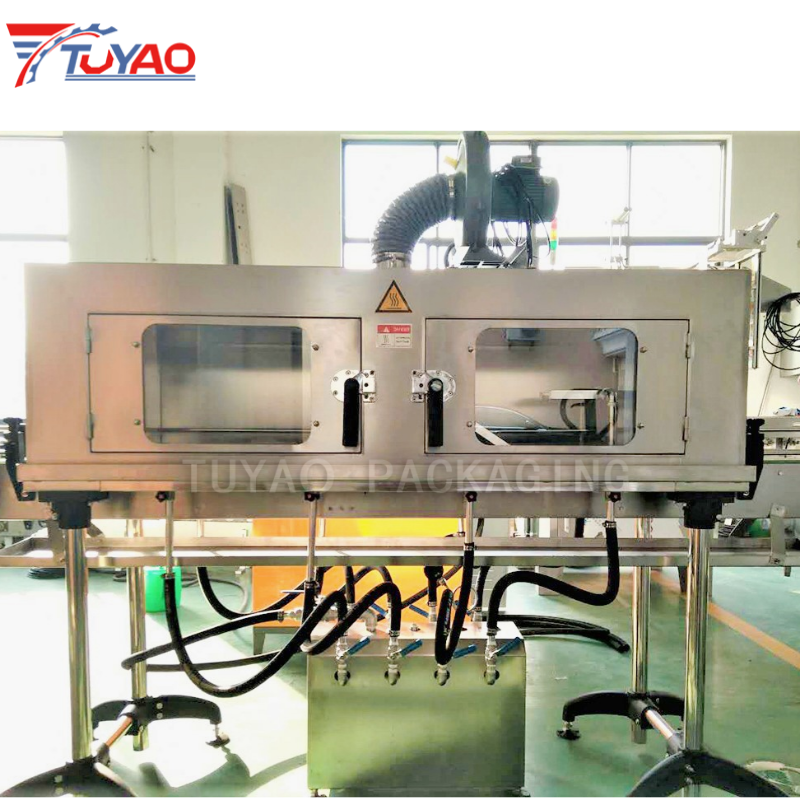

Q3: Which is better, steam shrink or electric heat shrink?
A: The steam shrink tunnel delivers more uniform heating and a softer shrink effect, suitable for heat-sensitive products and high-quality label requirements, but requires a steam supply system. The electric heat shrink tunnel is easy to install and operate, with lower initial investment, ideal for factories without steam infrastructure. We will recommend the most suitable solution based on your actual situation.
Q4:Can you provide a complete turnkey packaging solution?
A: Yes. We can provide a full turnkey solution from water treatment, bottle blowing, filling, shrink sleeve labeling to end-of-line packaging. All equipment is uniformly matched and factory-tested before delivery, reducing multi-supplier docking costs for customers.
Q5: Do you provide overseas installation and training service?
A: Yes. We send experienced technical engineers to your factory for on-site installation, commissioning and operator training to ensure your production line starts up smoothly and on schedule.
