Hot Melt Glue Labeling Machine
TUYAO high-speed hot melt glue labeling machine delivers reliable OPP label application for PET bottles and seamlessly integrates with beverage filling production lines. Featuring a servo-driven system for stable high-speed operation, it supports OPP/BOPP labels to help lower packaging costs, is constructed with food-grade 304 stainless steel, accommodates round, square and irregular bottles, and delivers uniform glue application free of overflow or stringing.
- Product Overview
- Video
- Technical Parameters
- Technical Features
- Layout
- FAQ
- Recommended Products
Product Overview
TUYAO series automatic hot melt glue labeling machine is a high-efficiency packaging equipment designed for OPP film label application on rigid bottles. It is widely used in bottled water, juice, carbonated beverage, condiment and daily chemical industries, delivering smooth, bubble-free and firmly adhered label finish.
Compared with self-adhesive labels and shrink sleeves, OPP hot melt glue labeling has obvious cost advantage in mass production, making it an ideal choice for medium and large beverage factories. The machine supports seamless integration with complete filling production lines, and we provide fully customized configurations based on your bottle dimensions, label specifications and production capacity.
Video
Technical Parameters
| Capacity | 15,000 BPH |
| Bottle holder stations | 12 stations |
| Vacuum drum labeling stations | 3 stations / 4 stations optional |
| — 4-station vacuum drum | Max. applicable bottle diameter: 84mm |
| — 3-station vacuum drum | Max. applicable bottle diameter: 104mm |
| Label roll configuration | 1 set, servo motor controlled |
| Labeling method | Full wrap-around labeling; hot melt glue applied at label head and tail; compatible with round and square bottles |
| Bottle rotation mode | Clockwise rotation (viewed from bottle mouth) to apply the label onto the bottle body |
| Labeling position requirement | The labeling area on the bottle body shall be 3.5mm wider than the label width |
| Labeling accuracy | ±1mm |
| Power supply | 3-phase 4-wire, 380V, 50Hz |
| Touch screen size | 7 inches |
| Compressed air pressure | 0.5 MPa |
| Total installed power | 13 kW |
| Operating power | 9 kW |
| Overall dimensions | Tabletop: 2013mm (L) × 1486mm (W); Total machine height: 2000mm |
| Weight | 2300 kg |
Technical Features

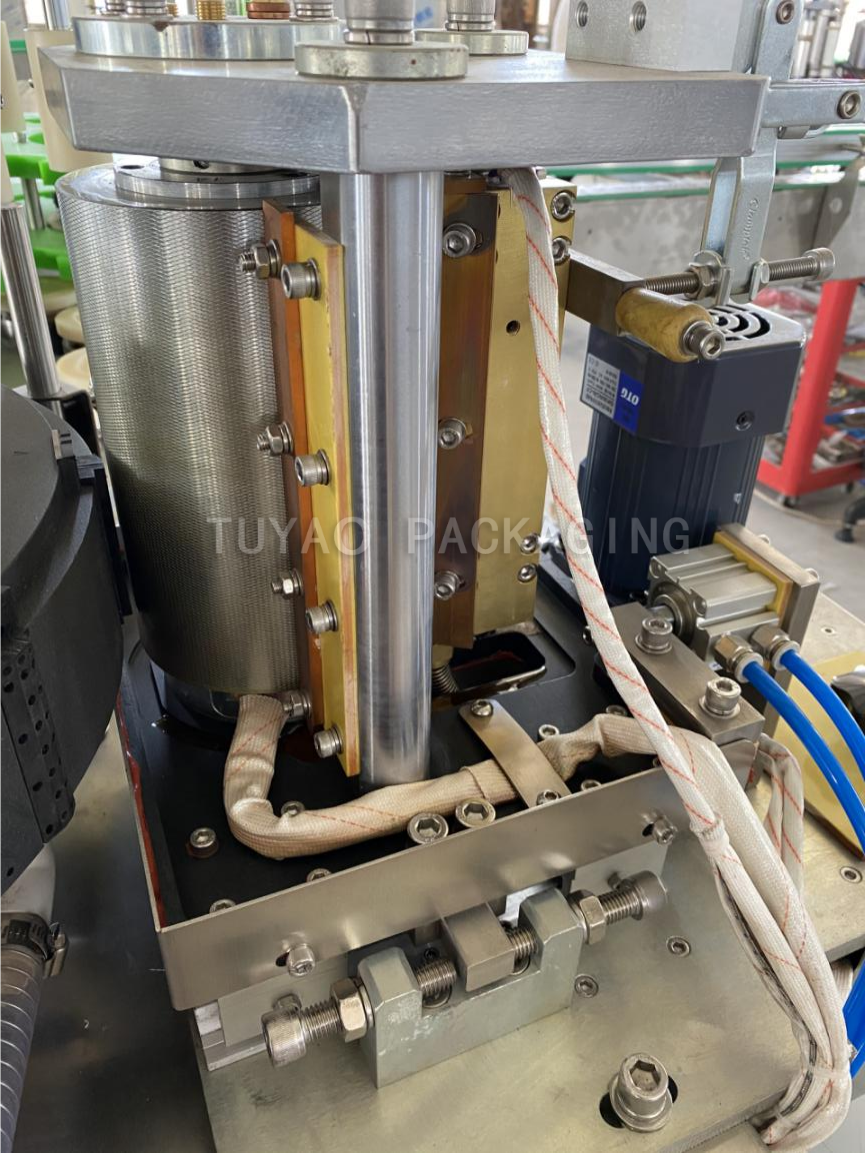

Glue Application Unit
The surface texture of the glue application roller is laser-engraved with uniform depth, ensuring consistent and even glue distribution. The unit is equipped with imported high-temperature bearings from SKF (Germany) and an innovative lubrication oil circuit, which guarantees long-term stable operation of the glue roller under continuous high-temperature conditions.
The entire glue application assembly can be adjusted forward and backward. The glue catch tray is supported by 2 guide rollers and 4 sliders underneath, featuring high structural rigidity and excellent running stability. The glue spray tube is made of brass and controlled at a constant temperature by a thermostat, which maintains stable glue viscosity and ensures reliable labeling quality.

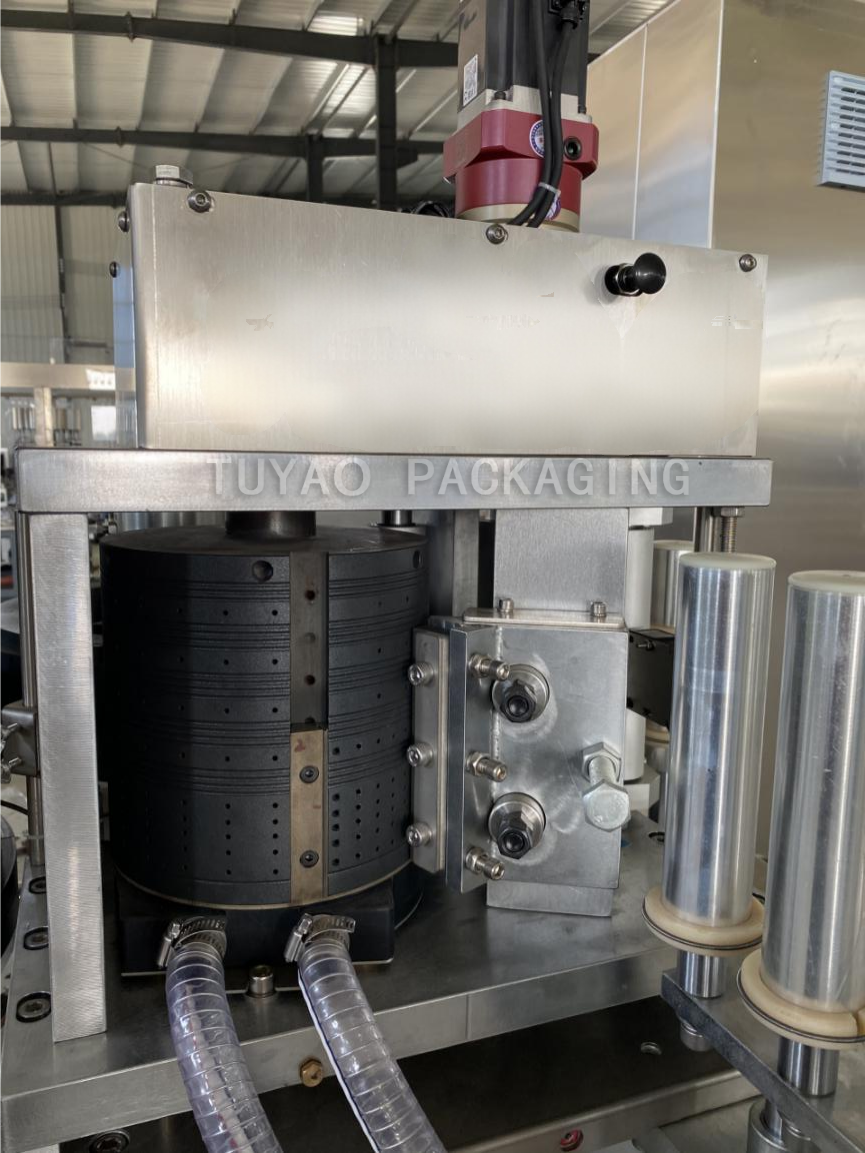

Cutter Unit
The cutter roller is manufactured via hard mold casting process, remaining dimensionally stable and free from deformation after long-term high-speed operation. The cutter blade is easy to calibrate — only one screw needs to be adjusted, enabling simple and fast setup.
The surface of the cutter drum is coated with Teflon, which improves compatibility with different label materials and reduces friction between the drum and labels. The cutter blade delivers exceptional durability, with a single set rated for a service life of up to 80 million label cuts.

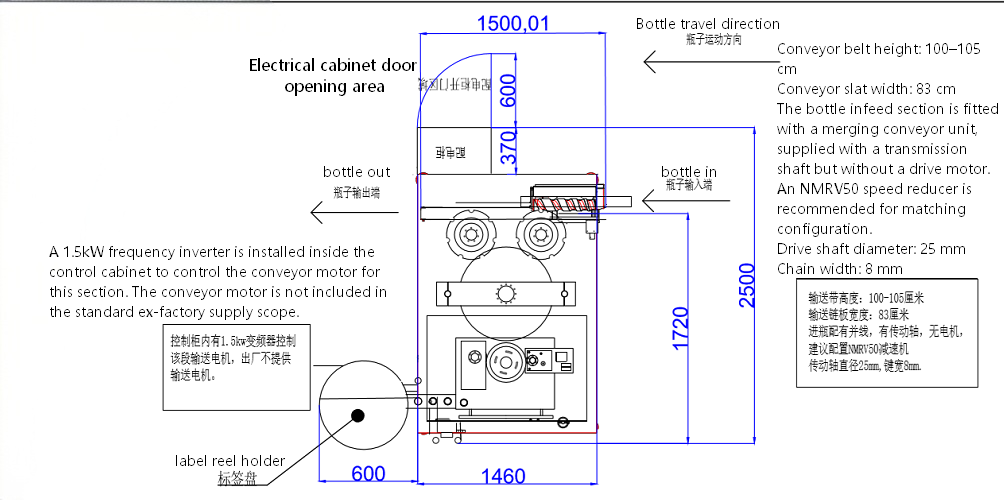

Layout
FAQ
Q1: Are you a trading company or a direct manufacturer?
A: We are a dedicated manufacturer with over 22 years of industry experience in beverage filling and packaging. Based in Zhangjiagang (only 2 hours from Shanghai), our factory is equipped with advanced technology to provide high-quality equipment at factory-direct prices. We warmly welcome you to visit our facility to see our machines in action.
Q2: What label materials are compatible with this hot melt glue labeling machine?
A: The machine is mainly designed for OPP and BOPP film labels, which are the most widely used materials for hot melt glue labeling. It can also be adjusted for other film materials with similar properties. We can do sample testing with your label materials before order confirmation.
Q3: Can this machine apply labels to square or irregular-shaped bottles?
A: Yes. With optimized bottle guiding and rolling mechanism, the machine is compatible with round, square, flat and mild irregular-shaped rigid bottles. For special-shaped bottles, we can customize the guide structure and rolling system to ensure stable labeling effect.
Q4: Can this machine integrate with my existing filling production line?
A: Yes. The machine is designed with standard conveyor interface and adjustable running speed, which can be seamlessly connected with most filling machines, bottle unscramblers and coding machines. We can customize the conveyor height, docking structure and control logic to match your existing production setup.
Q5: Do you provide overseas installation and training service?
A: Yes. We have a professional after-sales engineering team that can visit your factory for equipment installation, commissioning and on-site training. The training covers daily operation, parameter adjustment, routine maintenance and simple troubleshooting.
