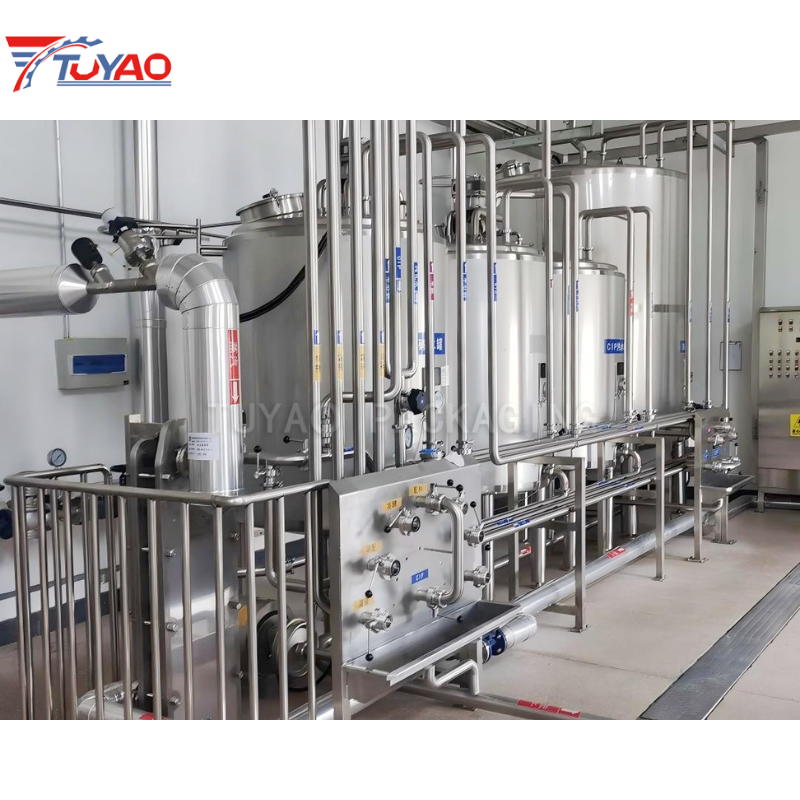

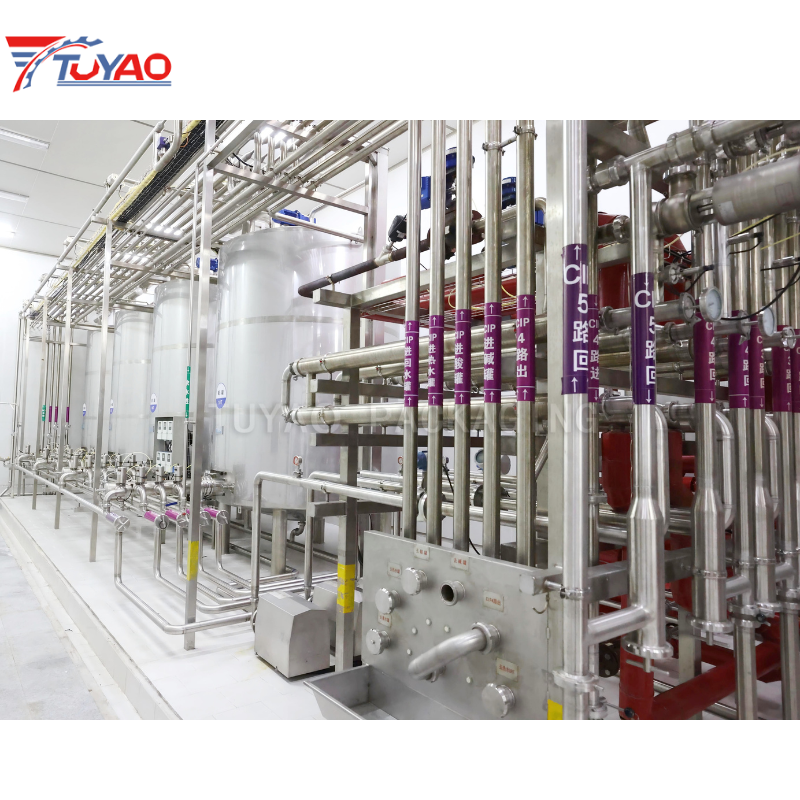

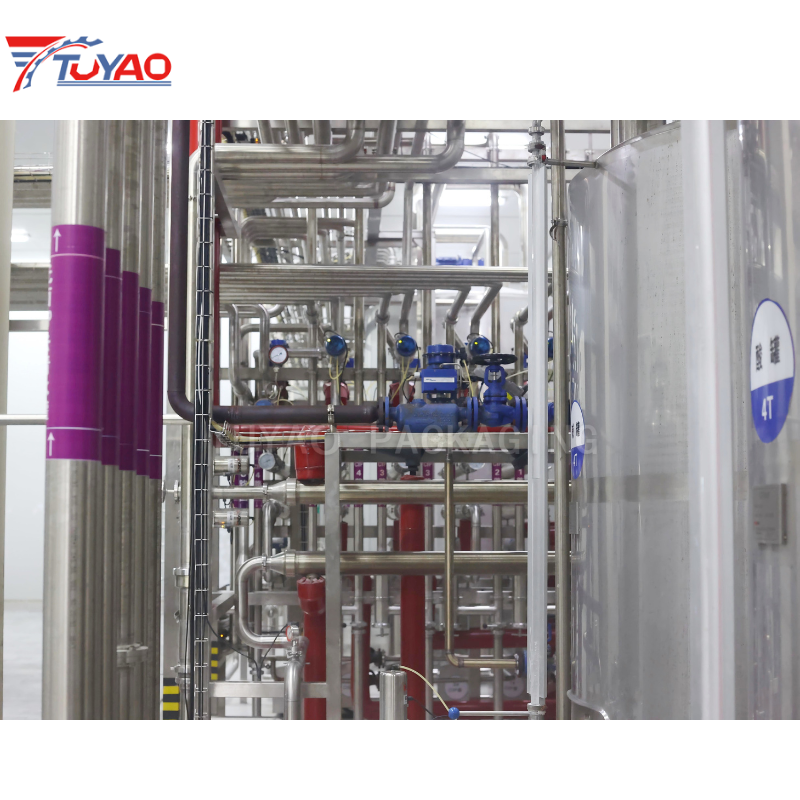

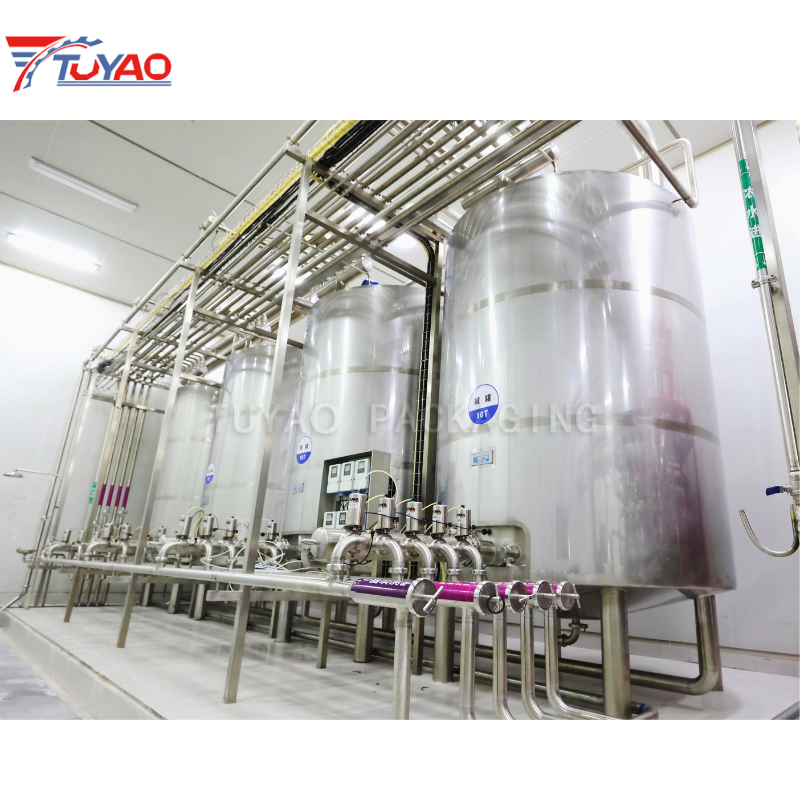

CIP System
Fully automated CIP (Clean-in-Place) system designed for online cleaning and sterilization of filling machines, storage tanks, pipelines and food-grade production lines. This self-circulating cleaning unit completes water rinsing, alkaline washing, acid washing, hot disinfection and pure water flushing without disassembly of production equipment. Built with full stainless steel sanitary structure, PLC intelligent automatic cycle control and independent liquid tank separation, it eliminates cross-contamination, meets global food hygiene standards, and matches edible oil bottling, beverage filling and PET bottle manufacturing workshops perfectly.
- Product Overview
- Equipment Features
- Working Flow
- Photos
- FAQ
- Recommended Products
Product Overview
CIP stands for Clean-in-Place. This compact modular CIP cleaning station is specially designed for full-cycle sanitization of beverage processing lines, supporting both hot and cold circulating cleaning workflows.
The entire CIP workstation operates under fully automatic PLC control. All core cleaning parameters — including cycle duration, acid & alkaline detergent concentration, cleaning fluid temperature and cleaning modes — are configurable directly via the human-machine touchscreen interface. When cleaning is required, operators simply select the target production equipment and corresponding cleaning program on the HMI before launching the system. The unit will execute the complete cleaning sequence autonomously per pre-programmed recipes, with segmented automatic recovery of alkaline solution, acid solution and fresh clean water to cut chemical and water waste.
This integrated system comes with comprehensive automatic control and monitoring capabilities: automatic water feeding, auto replenishment of acid and alkaline detergents, as well as closed-loop temperature adjustment. Real-time data including fluid temperature, detergent concentration and tank liquid levels are displayed visually alongside a graphical simulation of the full cleaning workflow. Audible and visual alarm notifications activate once abnormal working conditions are detected.
All adjustable operational parameters can be modified through the touchscreen. Password authorization with multi-level access protection is applied to manual operation mode and parameter editing functions, preventing unauthorized tampering and ensuring production safety and stable cleaning consistency.
Equipment Features
● Steam flow regulating valves are automatically adjusted based on real-time readings from outlet temperature probes, maintaining cleaning fluid temperature within a stable range with a temperature control accuracy of ±2°C.
● The return pipeline is fitted with a conductivity sensor, temperature transmitter and flow switch, enabling continuous real-time monitoring of core process parameters throughout the entire cleaning cycle.
● All cleaning parameters are configurable on the HMI touchscreen. The system runs fully automatic cleaning cycles following customized preset recipes. Multiple independent standard cleaning programs are pre-installed inside the unit, allowing flexible free combination to match diverse on-site production and sanitization requirements.
● Multi-port switching manifolds are installed at the CIP delivery outlets to link multiple cleaning circulation pipelines. Matching multi-hole switching plates are equipped on each internal storage tank for seamless connection to individual tank circulation lines.
Working Flow
Pre-set cleaning recipe on touch screen → Automatic pure water pre-rinse to flush loose residual dirt → Alkaline liquid high-temperature circulation cleaning to dissolve grease and organic residues → Intermediate pure water flushing to wash residual alkaline liquid → Acid liquid circulation to remove scale and biofilm → Hot sterile water circulation disinfection → Final pure water finish rinse → Automatic liquid recovery to corresponding storage tanks → System standby

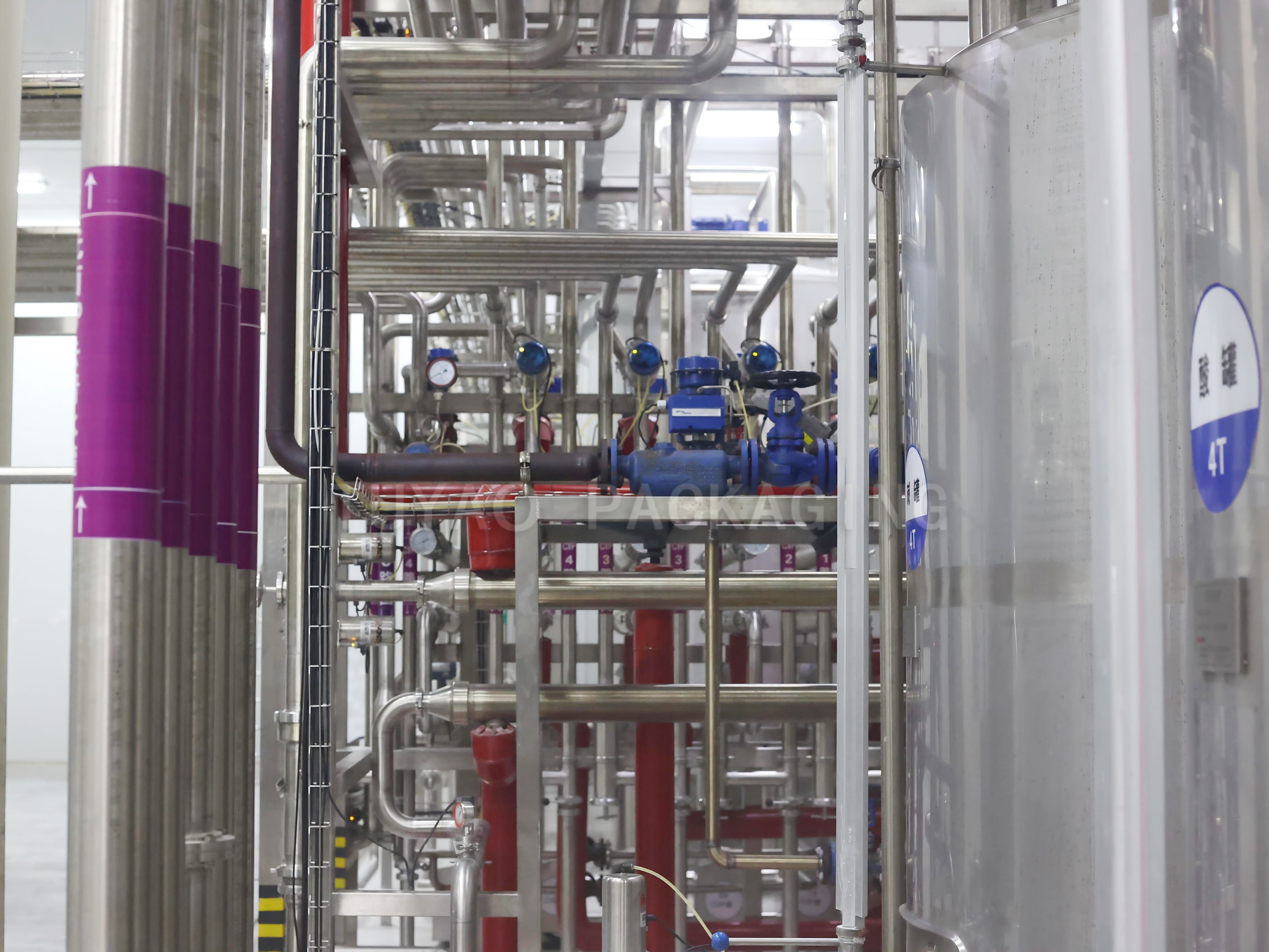

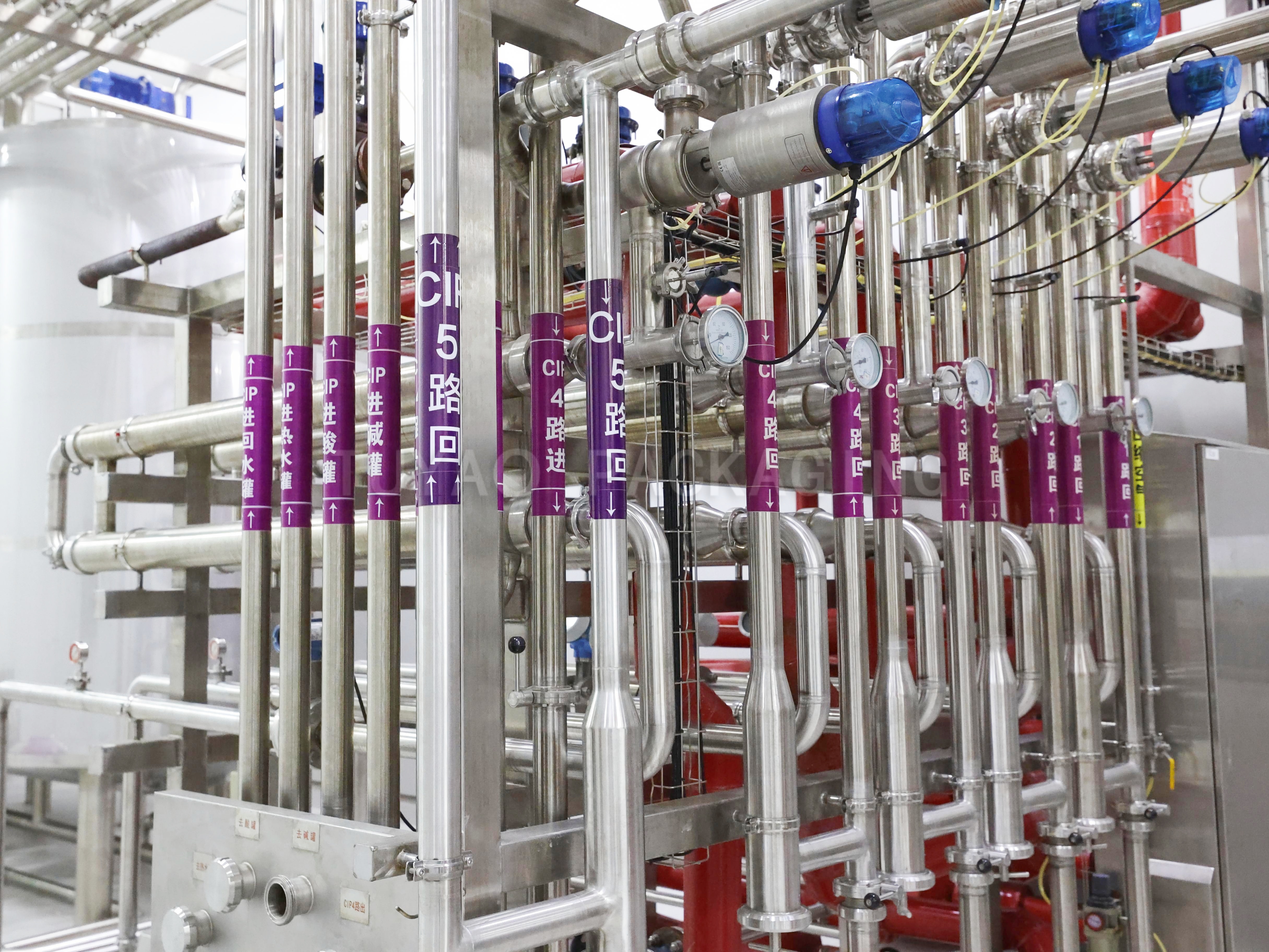

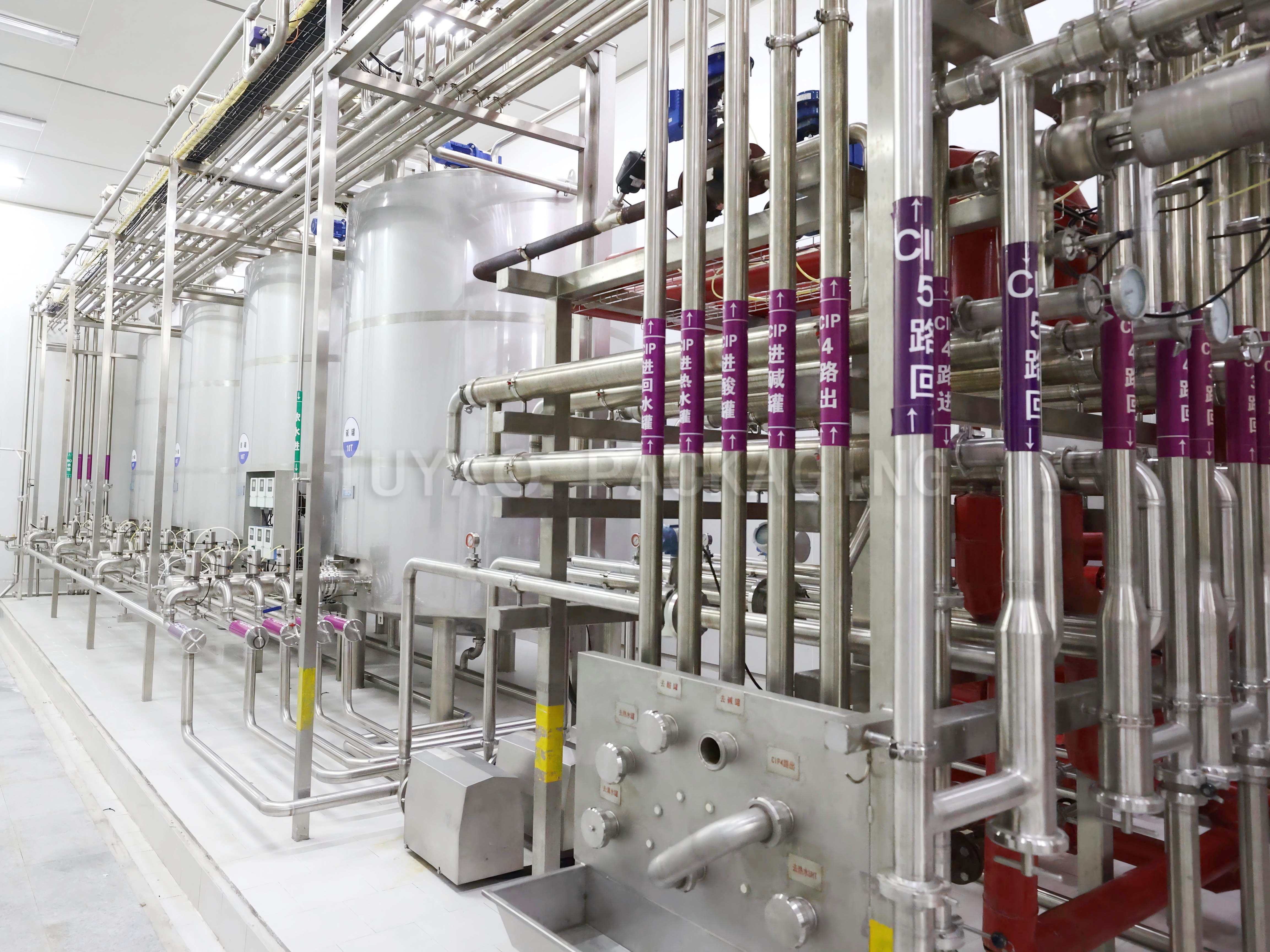

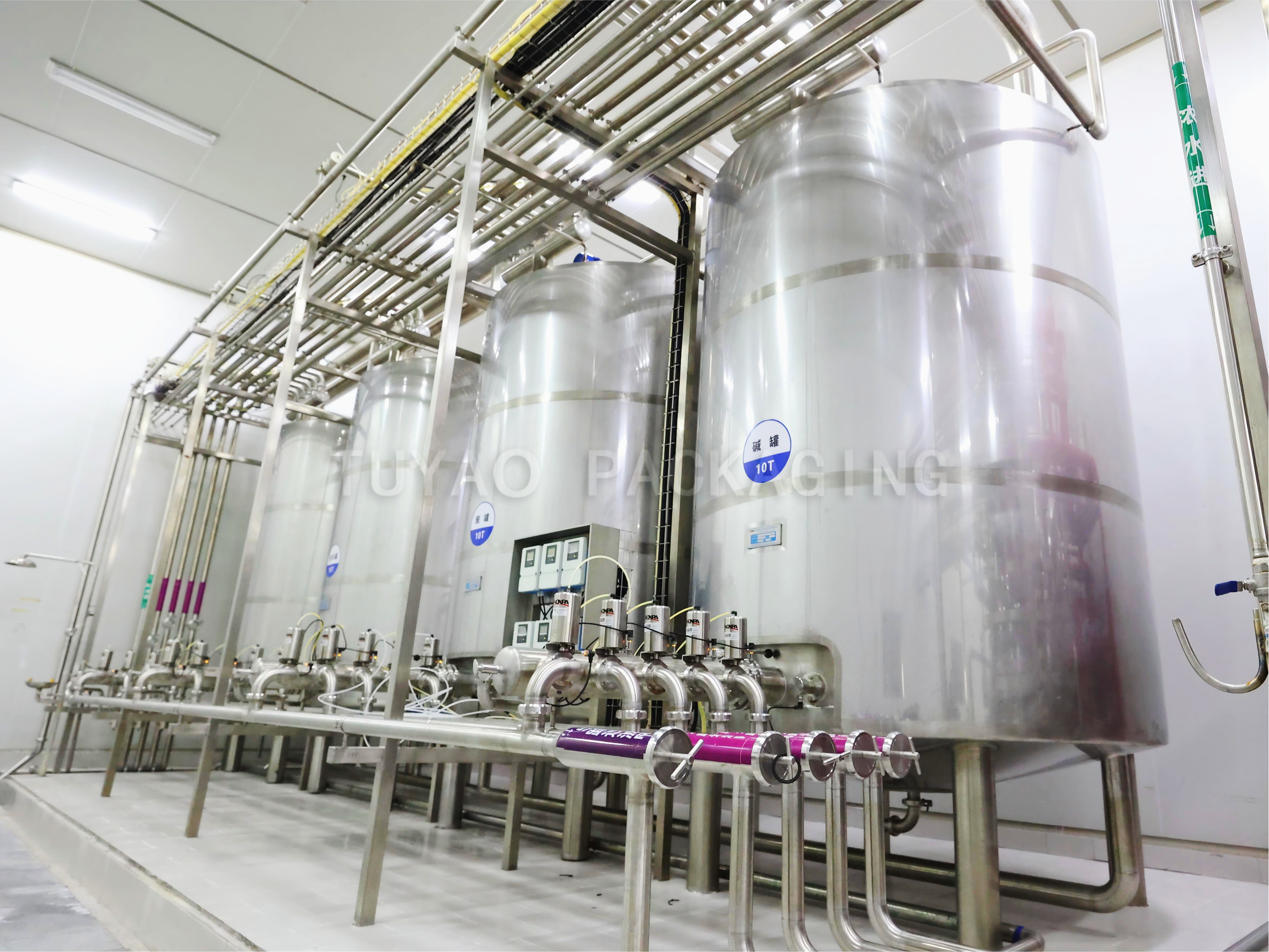

Photos
FAQ
Q1: Are you a trading company or a direct manufacturer?
A: We are a dedicated manufacturer with over 22 years of industry experience in beverage filling and packaging. Based in Zhangjiagang (only 2 hours from Shanghai), our factory is equipped with advanced technology to provide high-quality equipment at factory-direct prices. We warmly welcome you to visit our facility to see our machines in action.
Q2: What production equipment can this CIP system clean?
A: This CIP system supports online cleaning for all food-grade liquid contact equipment, including oil storage tanks, conveying pipelines, juice/beverage filling lines, sauce filling equipment, etc. No disassembly is required during the cleaning process.
Q3: Does the CIP system save water and detergent compared with manual cleaning?
A: Obviously. It adopts closed circulating recovery design; acid and alkaline detergent can be recycled multiple times within effective concentration. Manual disassembly cleaning wastes massive water and detergent, while automatic CIP circulation cuts long-term operating costs significantly and shortens production line downtime.
Q4: Do you provide overseas installation and training?
A: Yes. We can arrange senior technicians to your factory for installation, commissioning and systematic operation & maintenance training, including bottle blowing process adjustment and common fault handling.
Q5: What is the warranty period?
A: We provide a 12-month whole machine warranty starting from the commissioning date, with lifetime technical support and long-term supply of original spare parts and wearing parts at factory price.
