Semi Automatic 5Gallon Bottle Blowing Machine
Economical semi-automatic 5-gallon bottle blow molding machine designed for 20-liter barrel water packaging, featuring manual preform loading with automatic stretch blow forming, simple structure and low investment cost. Adopts rotary infrared heating, pneumatic-servo driving and reliable mold clamping to produce uniform, high-strength 5-gallon PET water bottles. Ideal for small and medium drinking water plants, bottled water factories and barrel packaging manufacturers seeking cost-effective barrel production solutions.
- Product Overview
- Video
- Process Flow
- Technical Parameters
- Photos
- FAQ
- Recommended Products
Product Overview
The fully automatic 5L PET bottle blow molding machine is a professional large-volume bottle forming solution optimized for 5L specification PET containers. Based on advanced two-stage stretch blow molding technology, it is specially designed for the forming characteristics of large-volume and thick-walled bottles, solving common problems of uneven wall thickness, unstable neck size and mold bulging in large bottle production.
Cost-Effective Semi-Automatic Solution: With manual preform loading and automatic blow forming design, it greatly reduces equipment procurement cost and investment threshold compared with fully automatic models. It is especially suitable for small and medium production scales, helping enterprises realize self-production of 5-gallon barrels and reduce packaging cost.
Rotary Uniform Heating System: Equipped with a multi-station rotary heating turntable and high-quality infrared heating lamps, it delivers accurate temperature control and strong heat penetration. Preforms rotate continuously during heating to receive 360° uniform heating, ensuring consistent softening of thick-walled barrel preforms and laying a solid foundation for high-quality forming.
Heavy-Duty High-Pressure Mold Clamping: Adopts a robust high-pressure mold clamping structure with sufficient clamping force to completely avoid mold bulging during high-pressure blowing of large 5-gallon barrels. Finished barrels have fine and smooth parting lines, beautiful appearance and stable structural strength, meeting the quality requirements of repeated recycling of drinking water barrels.
Pneumatic & Servo Clean Drive: All actions are driven by pneumatic cylinders and servo mechanism without hydraulic oil pump. There is no oil pollution in the production process, which meets the hygienic requirements of food packaging production. The driving system is responsive, stable in action and simple in daily maintenance.
Efficient Cooling & Neck Protection: The optimized cooling system achieves ideal cooling and setting effect, and can effectively block the influence of infrared heat radiation on the bottle mouth, prevent thermal deformation of the barrel neck, and ensure the dimensional accuracy of the bottle mouth and the sealing reliability with the barrel cap.
Simple Operation & Easy Maintenance: The whole machine has a concise structure and clear modules, with low requirements for operator skills. It is convenient for installation, debugging and daily maintenance.
Video
Process Flow
Manual Preform Loading → Rotary Multi-Zone Heating → Preform Transfer to Mold Cavity →High-Pressure Mold Closing → Servo Stretching & Pre-Blow → High-Pressure Blow Forming →Cooling & Setting → Mold Opening → Finished Barrel Discharge

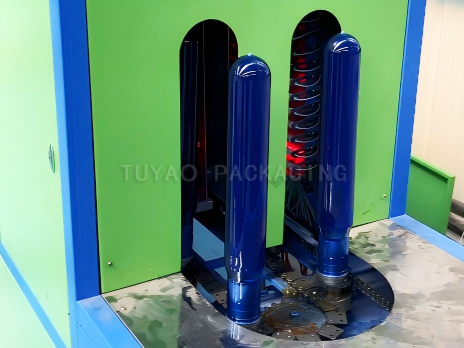

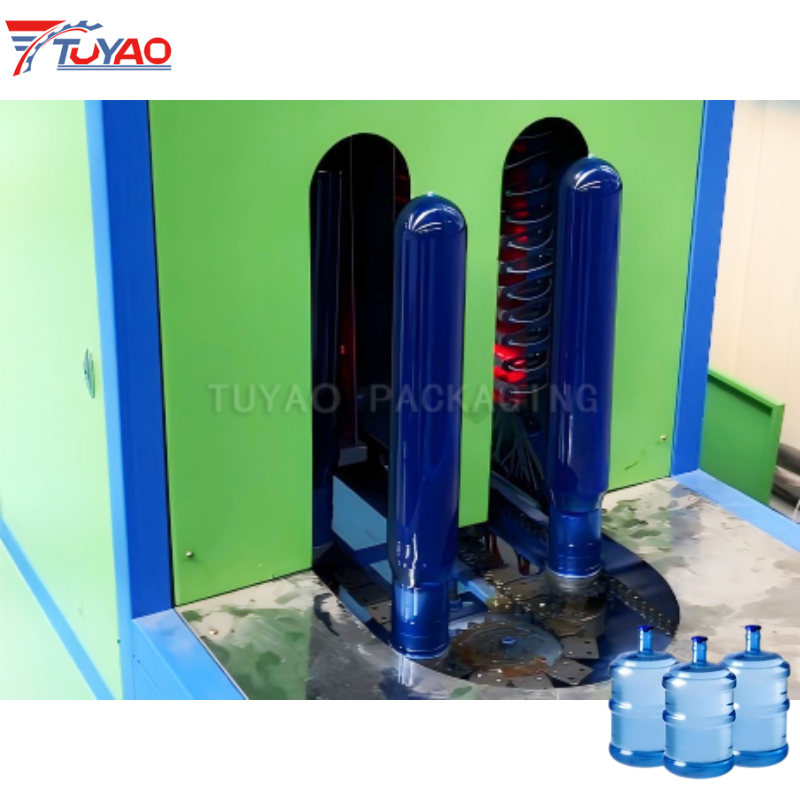

1. Manual Preform Loading: The operator places the 5-gallon barrel preform on the heating station of the turntable, and the turntable rotates step by step to send the preform into the heating area.
2. Rotary Uniform Heating: The preform rotates continuously while passing through each heating zone, and receives uniform infrared radiation to reach the optimal blowing temperature. The bottle mouth area is cooled and protected to maintain dimensional accuracy.
3. Preform Transfer: The heated preform is taken out from the heating station and placed into the mold cavity of the blowing station.

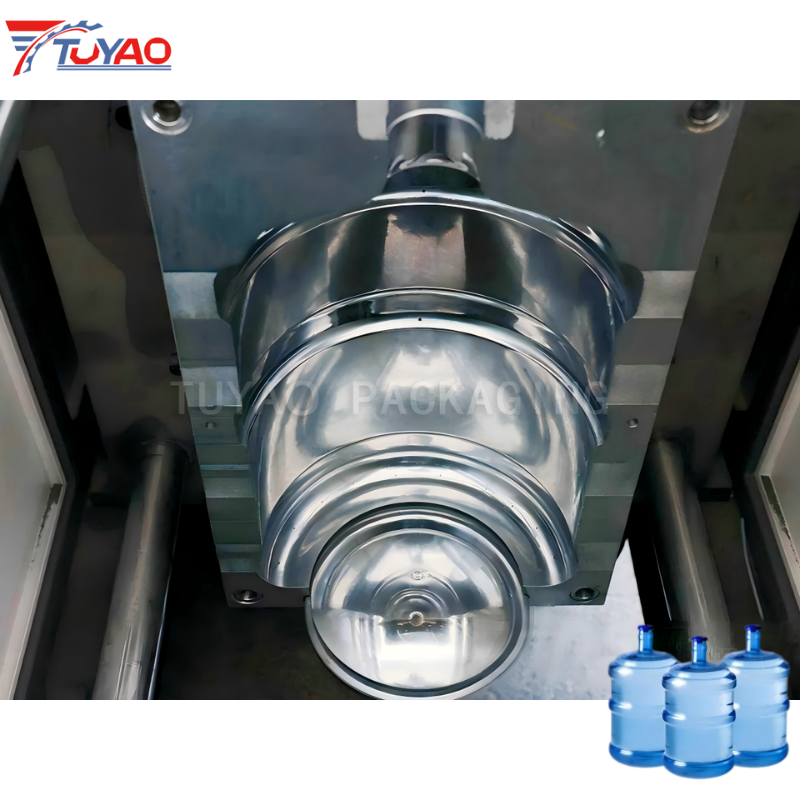

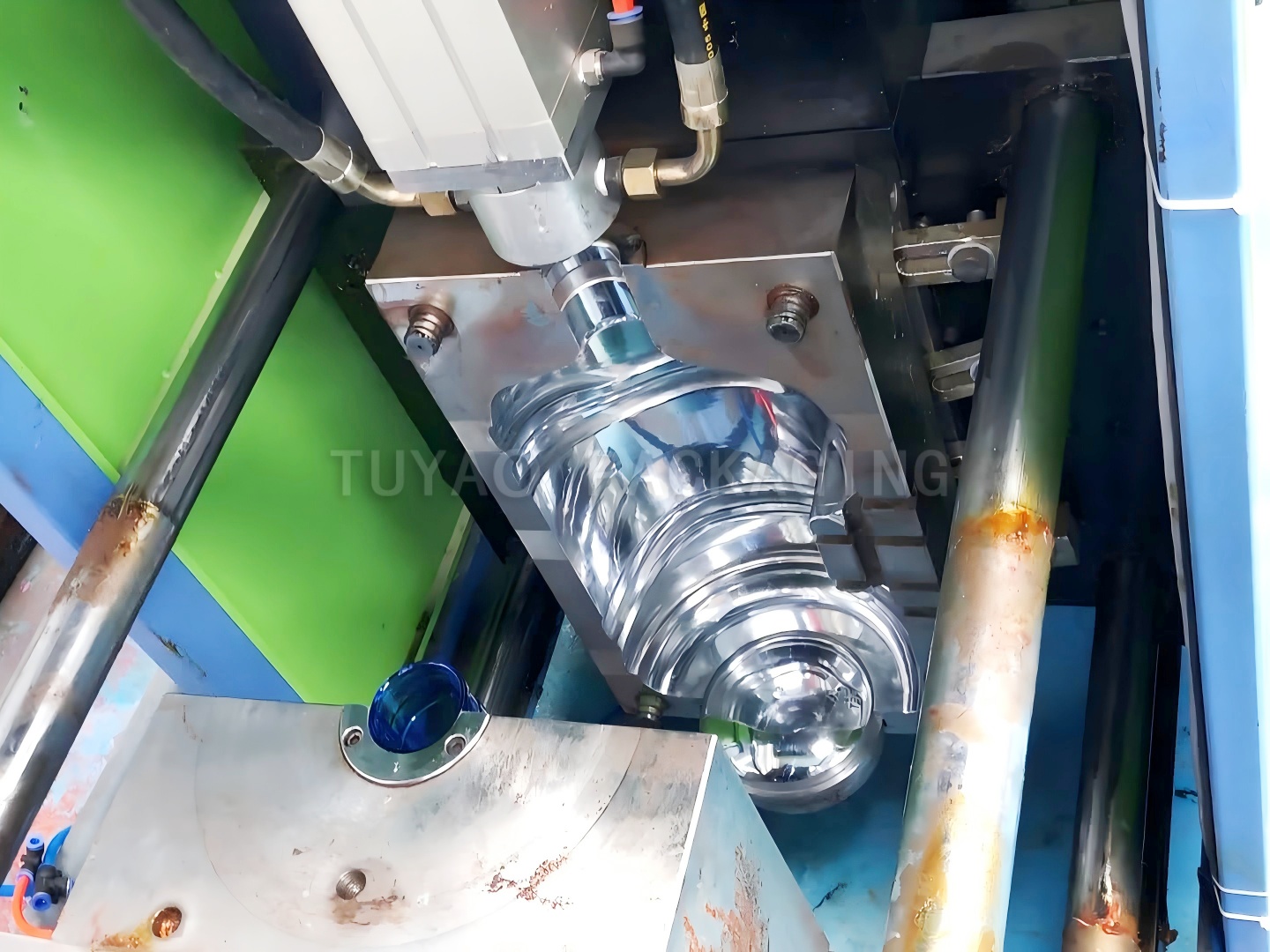

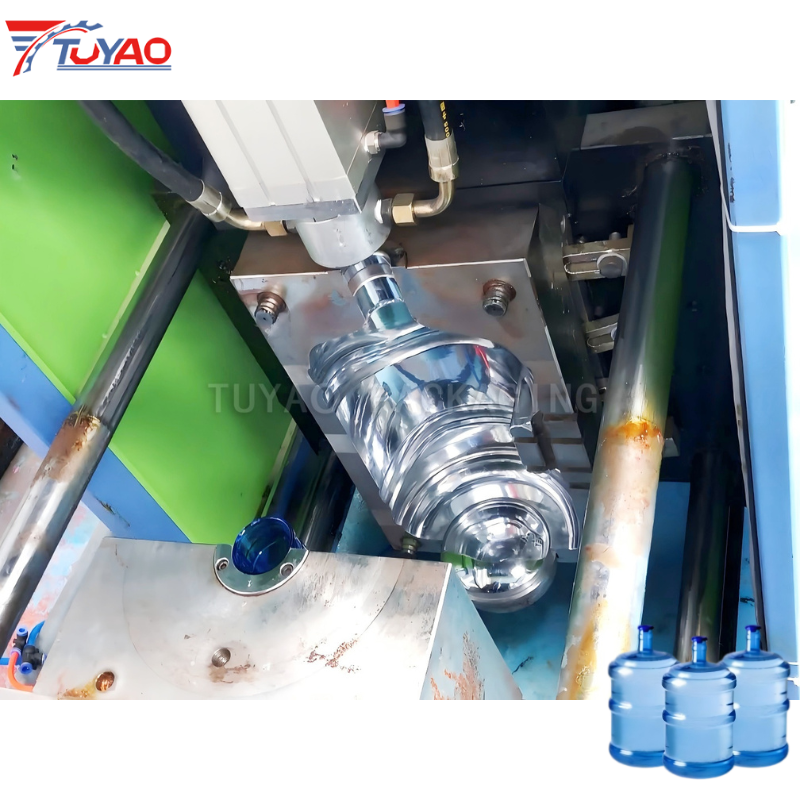

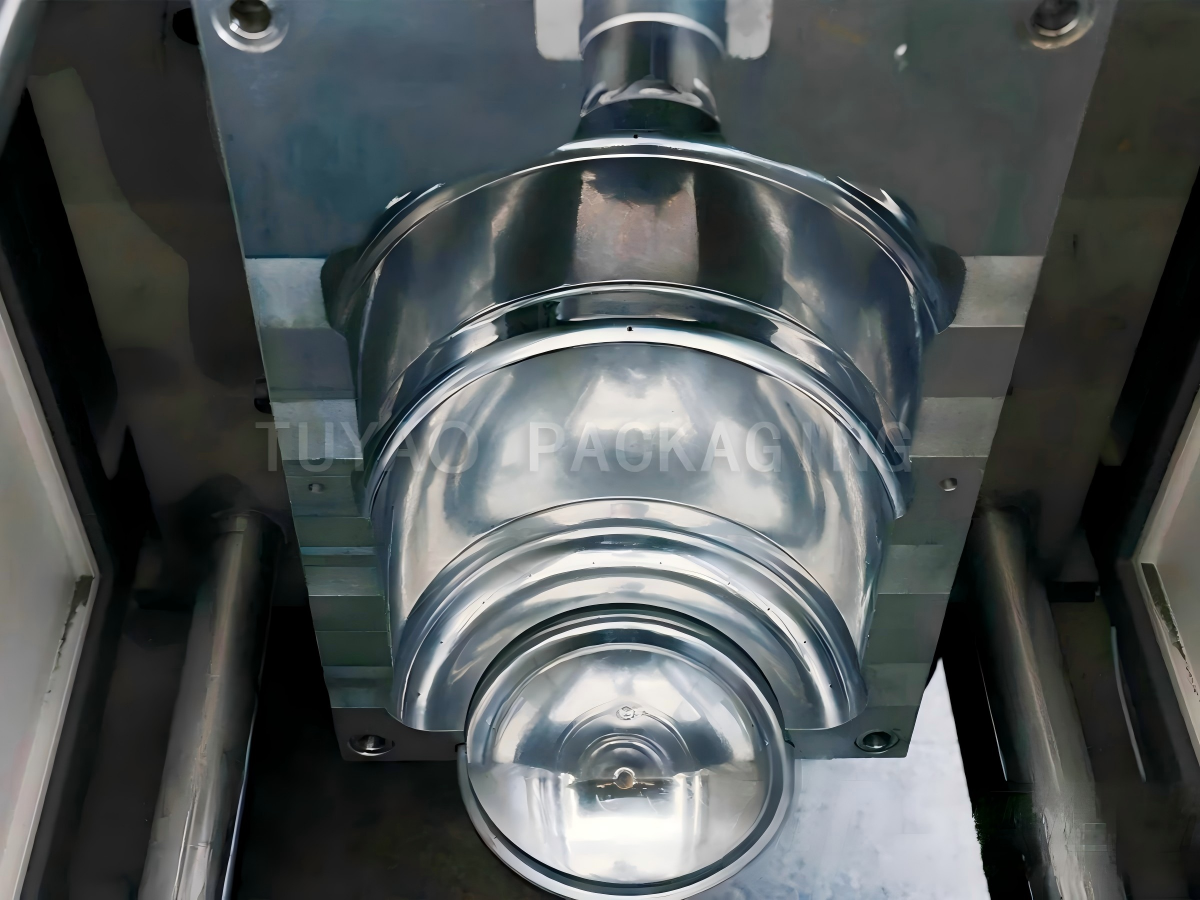

4. Mold Closing & Stretching: The mold is closed with high pressure, and the servo stretching rod stretches the preform longitudinally at a set speed.
5. Two-Stage Blowing: Pre-blow air is injected first to initially expand the preform, then high-pressure air is injected to make the material closely fit the mold cavity to form a complete 5-gallon barrel shape.

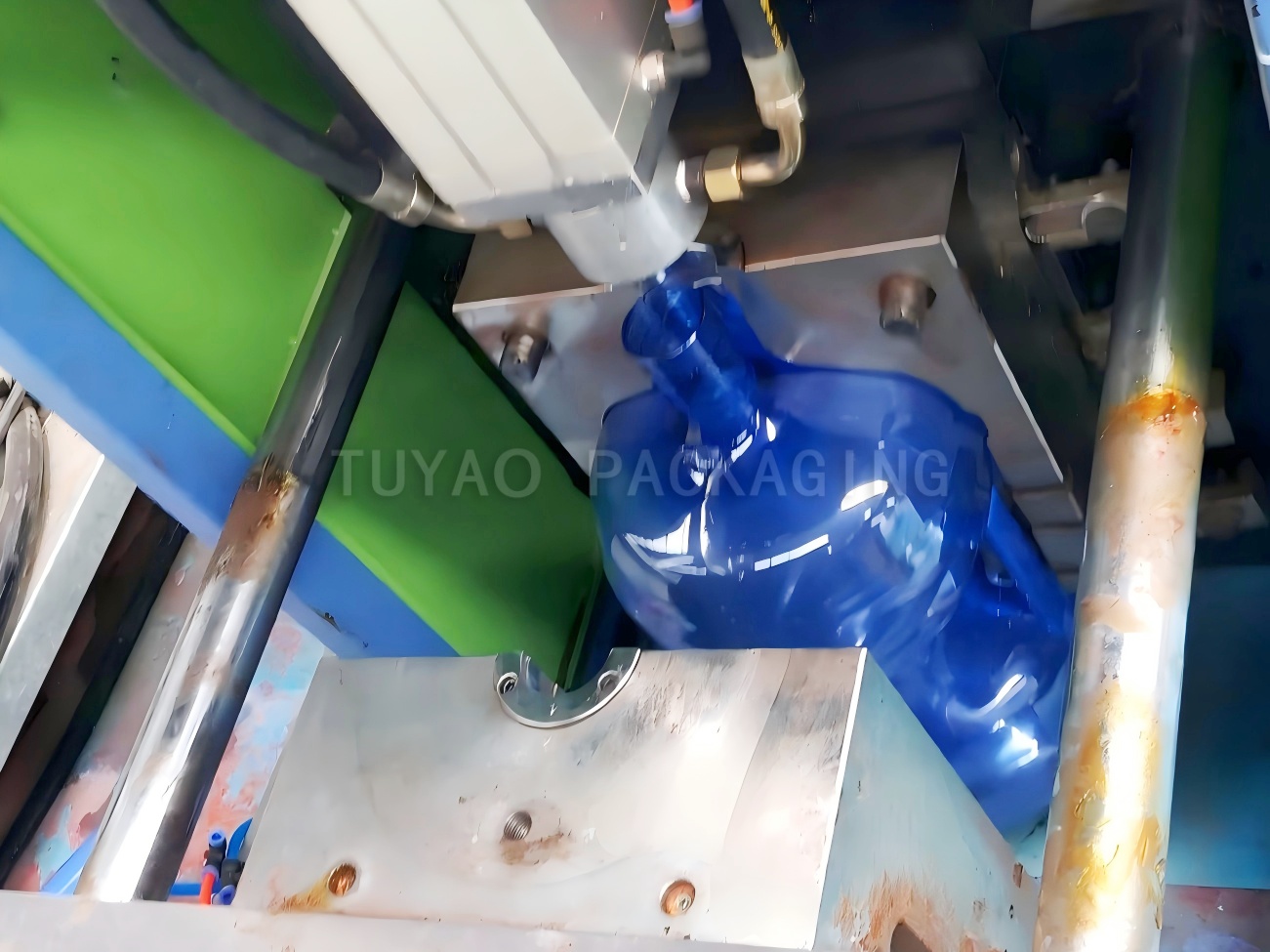

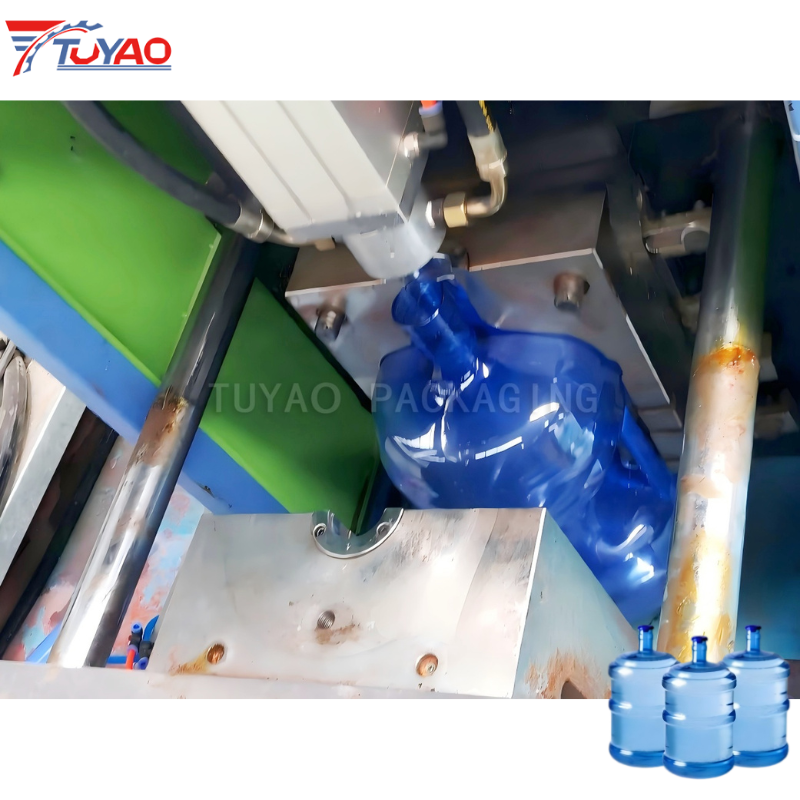

6. Cooling & Discharging: Chilled water circulates in the mold for rapid cooling and setting. After the mold is opened, the finished barrel is taken out and enters the next process.
Technical Parameters
| Model | TY-20L Semi Automatic PET Bottle Blowing Machine | |
| Theoretical output | 90pcs/h | |
| Finished bottle | Max. bottle volume | 20L |
| Max. neck diameter | 48mm | |
| Max. bottle diameter | 230mm | |
| Max. bottle height | 460mm | |
| Mold specifications | Cavity | 1 cavity |
| Mold thickness | 140mm-310mm | |
| Open stroke | 260mm | |
| Electrical system | Power voltage | 380v/3Phase/50HZ |
| Installation power | 38kw | |
| Actual power consumption | 20kw | |
| Air source | Recommend air compressor | 1.6m³/min 30Kg |
| Cooling water | Recommend water chiller | 5HP |
| Blowing machine size | Length*width*height/weight | 2000*630*1570mm/850kg |
Photos
FAQ
Q1: Are you a trading company or a direct manufacturer?
A: We are a dedicated manufacturer with over 22 years of industry experience in beverage filling and packaging. Based in Zhangjiagang (only 2 hours from Shanghai), our factory is equipped with advanced technology to provide high-quality equipment at factory-direct prices. We warmly welcome you to visit our facility to see our machines in action.
Q2: Can it produce barrels of other specifications besides 5 gallons?
A: The machine is optimized for 5-gallon (20L) barrels. Within the applicable mold size range, it can also produce barrels of other capacities by replacing corresponding molds and adjusting process parameters.
Q3: Can you customize molds according to our barrel design?
A: Yes. We can provide professional mold design and manufacturing services according to your barrel drawings and preform parameters to ensure that the produced barrels fully meet your size and appearance requirements.
Q4: Do you provide overseas installation and training?
A: Yes. We can arrange senior technicians to your factory for installation, commissioning and systematic operation & maintenance training, including bottle blowing process adjustment and common fault handling.
Q5: What is the warranty period?
A: We provide a 12-month whole machine warranty starting from the commissioning date, with lifetime technical support and long-term supply of original spare parts and wearing parts at factory price.
