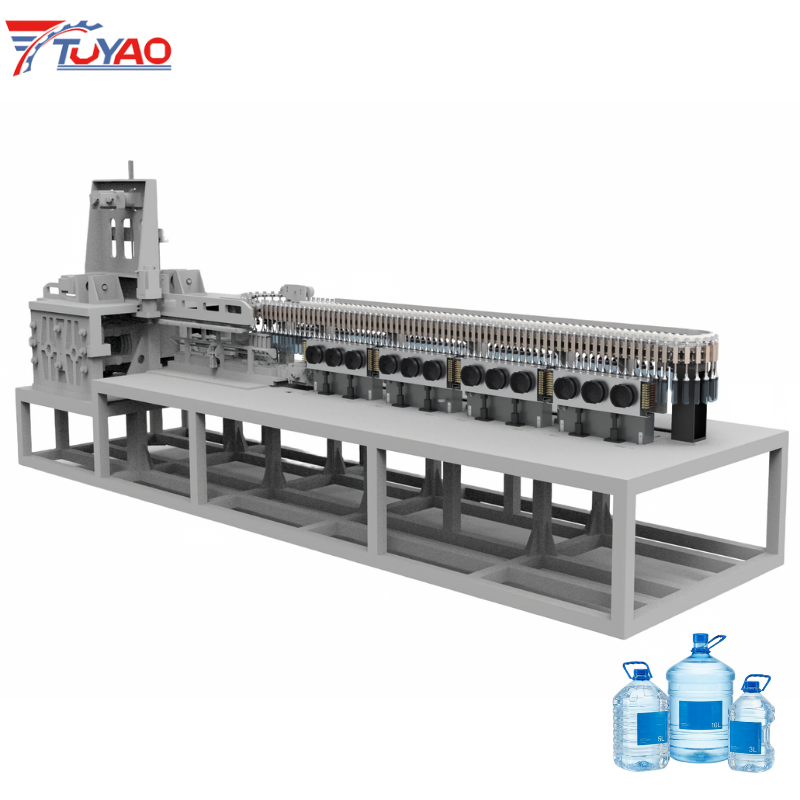

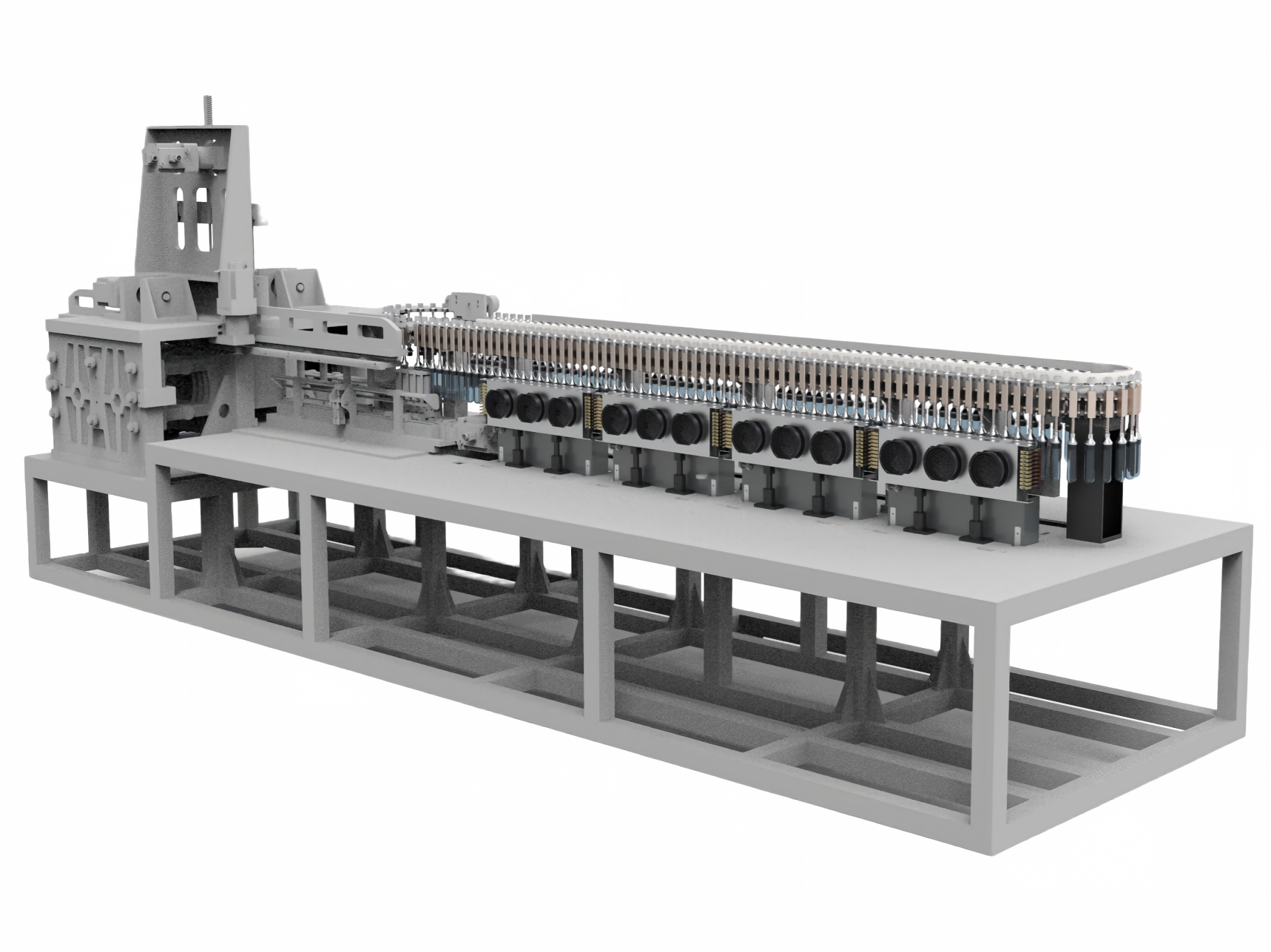

Fully Automatic 5L PET Bottle Blow Molding Machine

The fully automatic 5L PET bottle blow molding machine is a professional large-volume bottle forming solution optimized for 5L specification PET containers. Based on advanced two-stage stretch blow molding technology, it is specially designed for the forming characteristics of large-volume and thick-walled bottles, solving common problems of uneven wall thickness, unstable neck size and mold bulging in large bottle production.

Compact Space-Saving Layout: The machine features a compact overall design that greatly reduces floor footprint, allowing easy installation in limited workshop space and seamless integration with downstream filling and packaging lines.

Automatic Preform Conveying System: A fully automated preform feeding and conveying system eliminates repetitive manual loading work, ensuring a steady, uninterrupted supply of preforms to support continuous non-stop production.

Advanced PLC Control with Intuitive Touchscreen HMI: Equipped with an advanced PLC control system and a streamlined touchscreen control panel, it delivers precise, responsive control. The user-friendly interface enables real-time production monitoring and quick parameter adjustment.

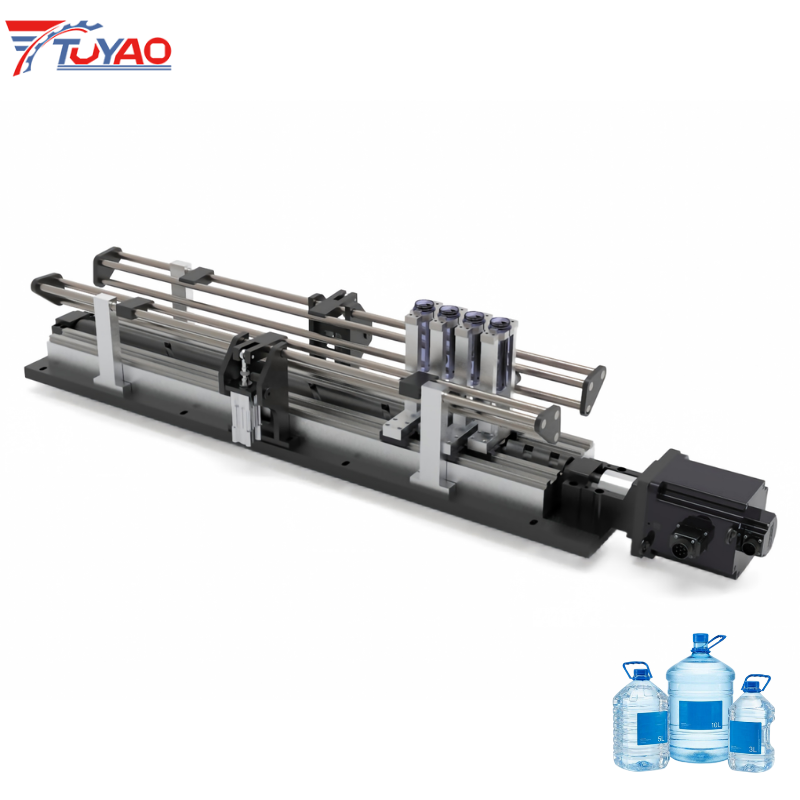

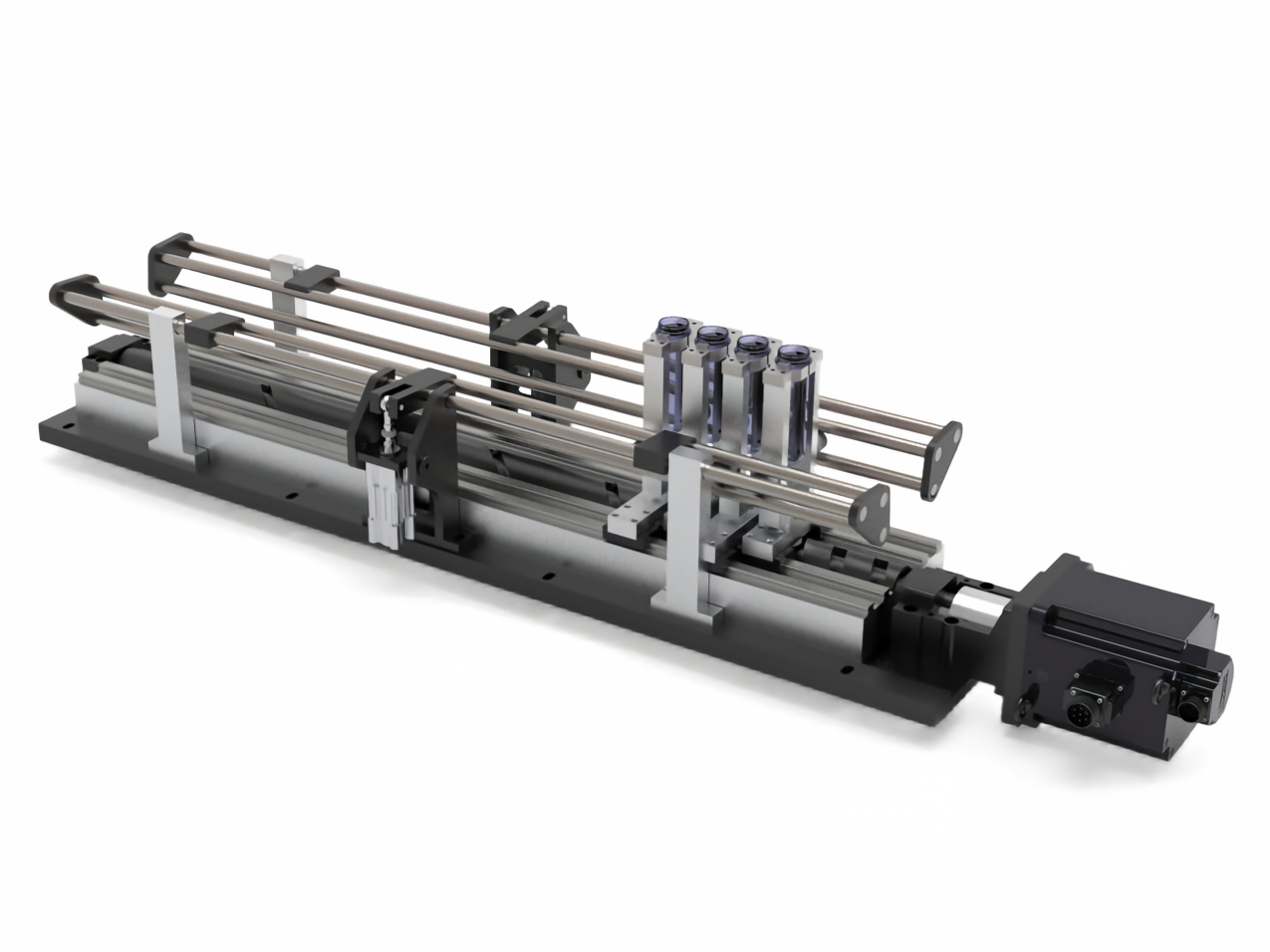

Independent Linear Motion System: It adopts an independent linear operating system with a simplified, robust structure. The design minimizes mechanical complexity for highly stable, reliable long-term operation and fewer fault points.

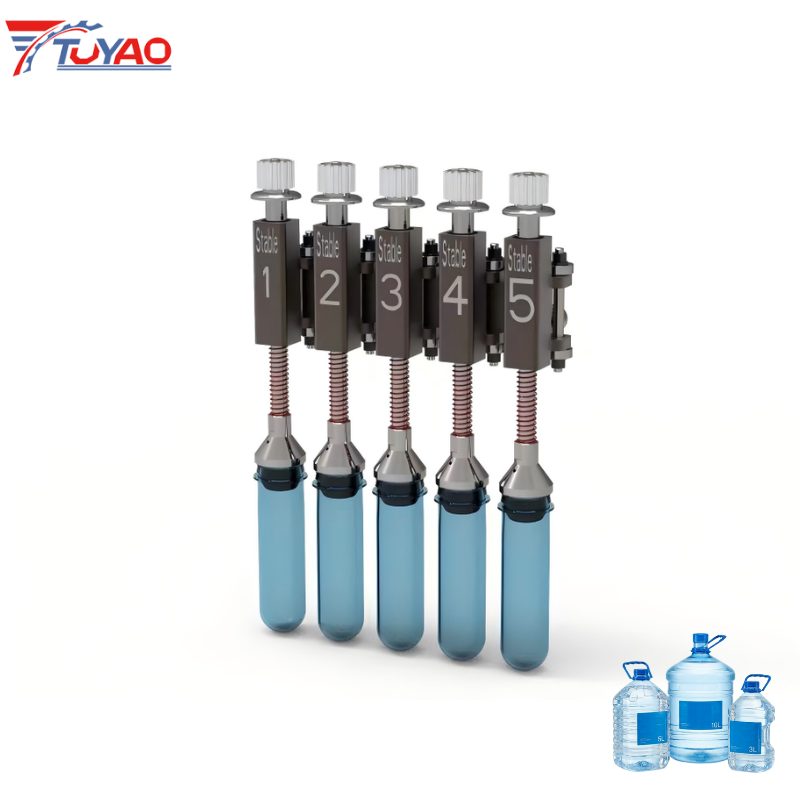

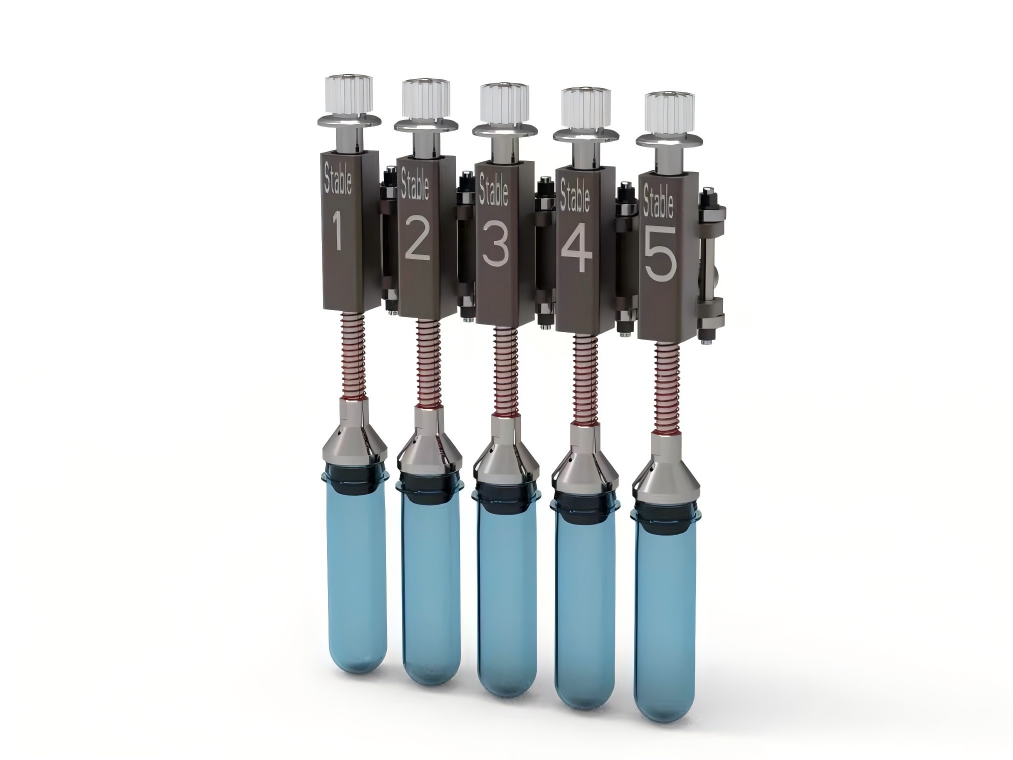

Exclusive Uniform Infrared Heating System The dedicated infrared lamp heating system offers accurate temperature control and strong heat penetration. Preforms rotate continuously throughout the heating process for 360° even heating, and temperature settings can be adjusted easily and quickly.

Three-Stage Independent Air Storage System: A specialized air storage unit is divided into three separate air tanks for actuation, pre-blow and high-pressure blow respectively. This design ensures stable air pressure at each stage and meets the different pressure requirements of every process step.

High-Efficiency Cooling System with Neck Protection: The optimized cooling system delivers excellent cooling performance. It effectively blocks infrared heat radiation from reaching the bottle neck finish, preventing thermal deformation and maintaining consistent, accurate neck dimensions.

Clean Pneumatic & Servo Drive (No Hydraulic Oil): All machine motions are driven by pneumatic cylinders and servo motors, with no hydraulic oil pump used in the system. This creates a clean, pollution-free operation that fully complies with food packaging hygiene requirements.

Safety Self-Locking Mechanism for Every Motion: Each operating step is fitted with an independent safety self-locking device. When any motion malfunctions, the machine automatically reverts to a safe state, protecting both the equipment and on-site operators.

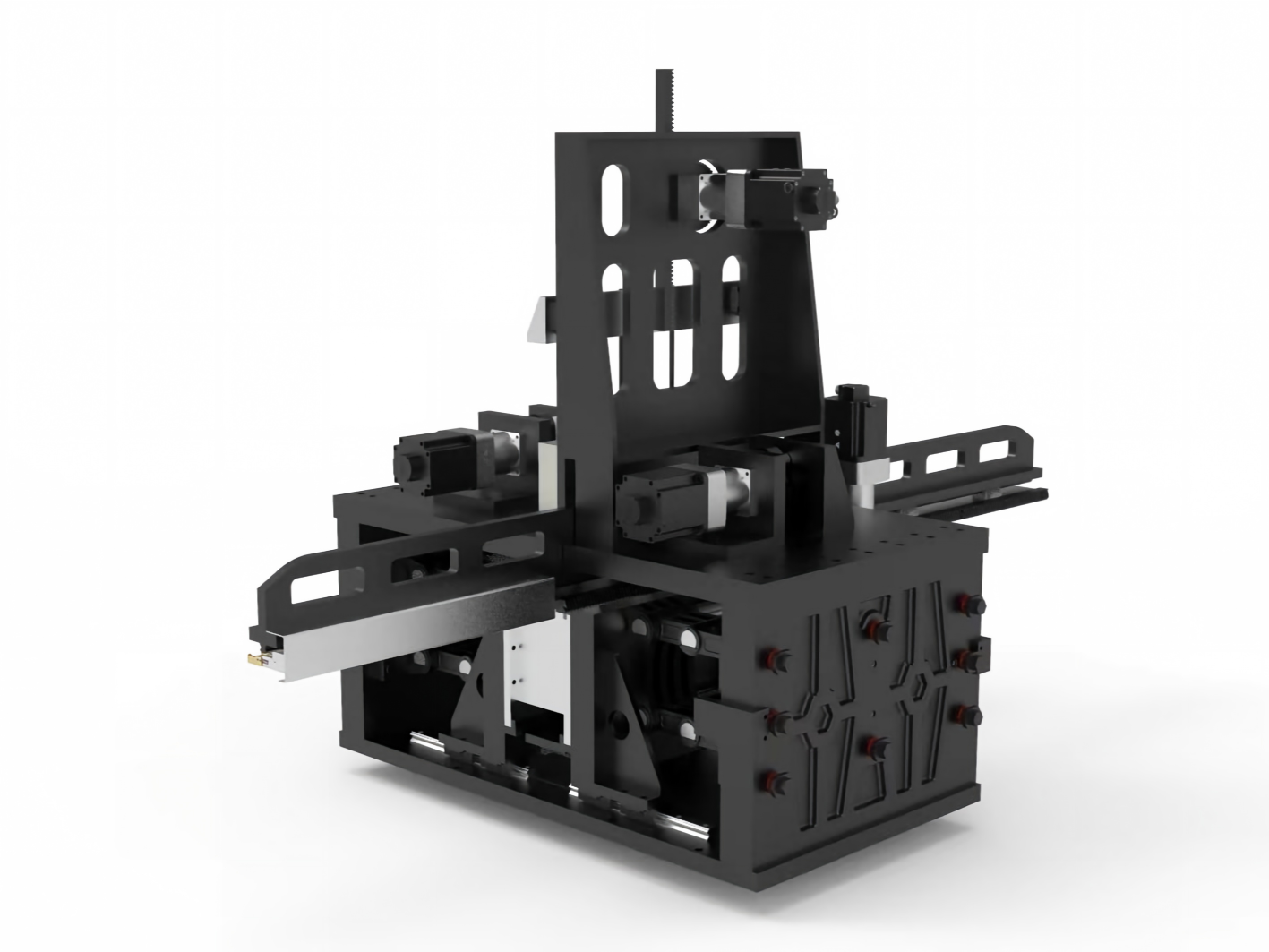

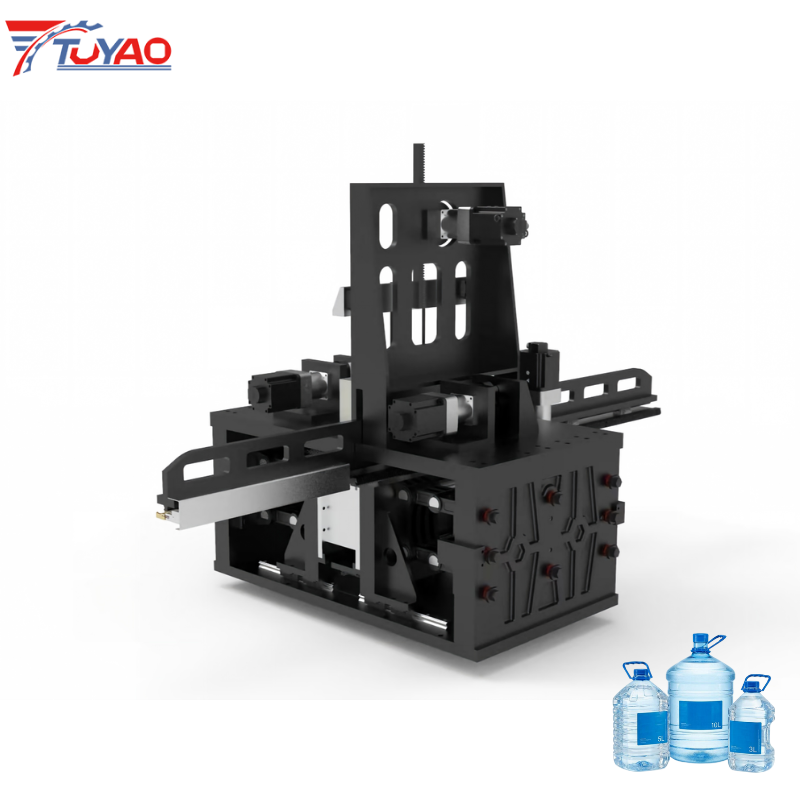

High-Pressure Mold Clamping for Fine Parting Lines: The high-pressure mold clamping system ensures tight, secure mold closure during the blowing process. It eliminates mold bulging and leaves barely visible parting lines on finished bottles, delivering a premium, high-quality appearance.

Fully Automated, Cost-Effective Production: The entire production process runs fully automatically, offering high production efficiency with low upfront investment. It is designed for easy operation and straightforward maintenance, effectively reducing long-term operating costs.

Ergonomic Design with Full Visibility: The user-friendly, safety-focused design provides clear, open visibility of air circuits, electrical systems and mechanical movements, making daily inspection and troubleshooting fast and convenient.

Dual Operation Modes: Manual & Automatic: The machine supports both manual and automatic operation modes. Manual mode is ideal for installation, debugging and mold changeover, while automatic mode delivers efficient continuous mass production.

Quick & Easy Installation: Designed for straightforward on-site setup and commissioning, the machine reduces installation time and allows fast deployment to put it into production quickly.

Minimized Product Scrap Rate: Stable process control, precise heating and reliable blowing performance work together to cut down defective products effectively, keeping the scrap rate extremely low and reducing raw material waste.
