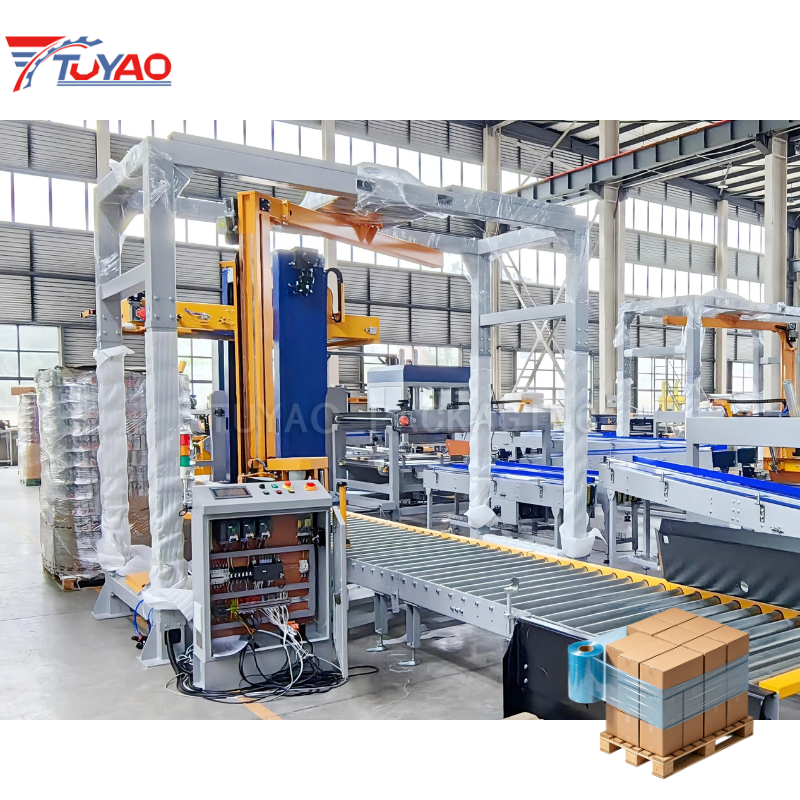

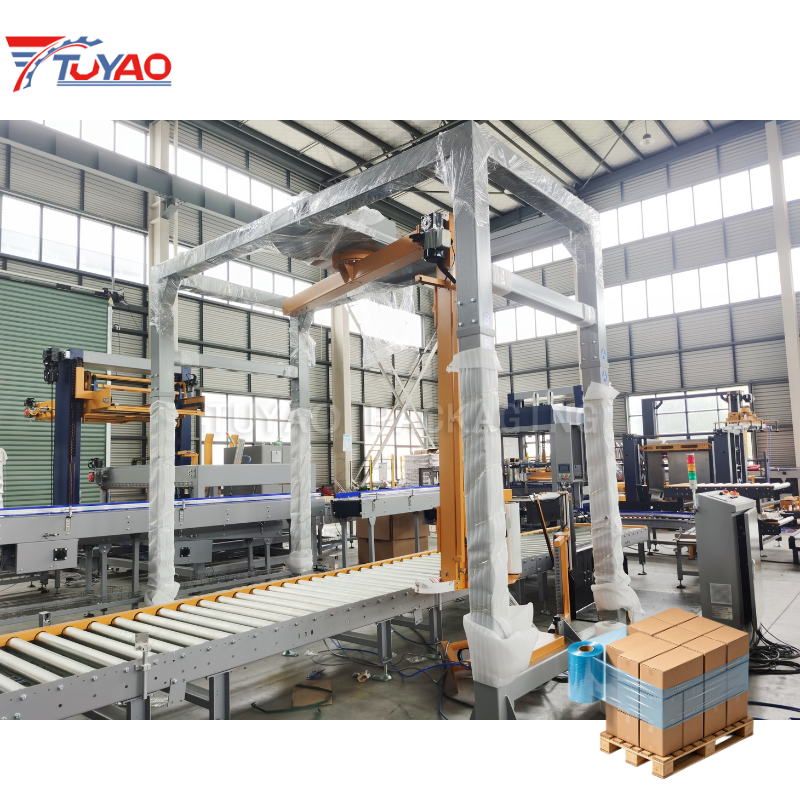

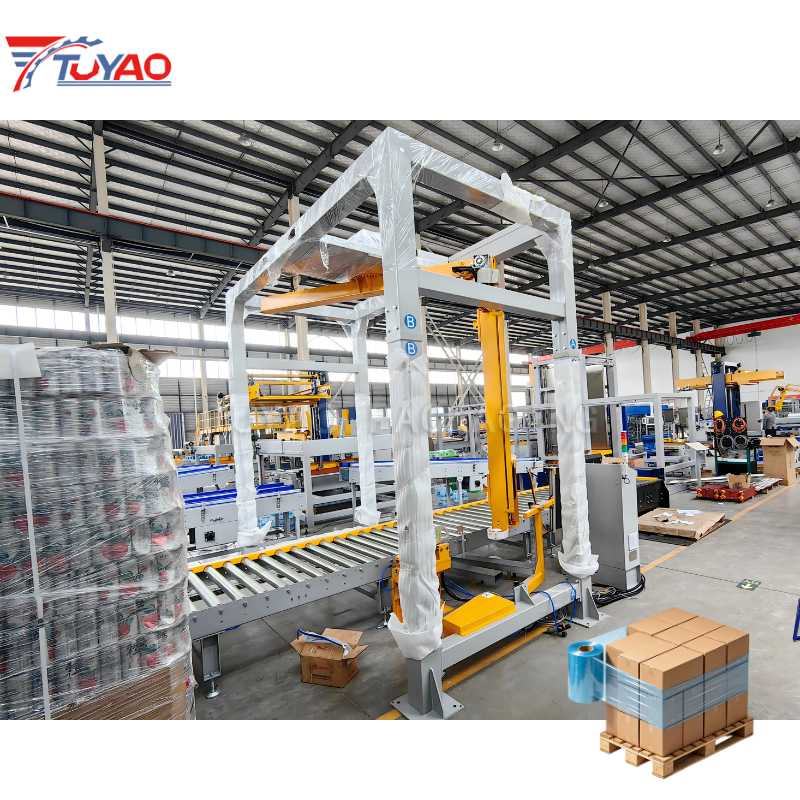

Inline Rotary Arm Pallet Stretch Wrapper
This fully automatic inline rotary arm pallet stretch wrapper is conveyor-integrated for continuous unmanned pallet wrapping. It uses rotary arm rotation technology to wrap LLDPE stretch film around palletized cartons, film bundles and stacked goods, delivering dustproof, moisture-proof and load-stabilizing packaging. Equipped with PLC touchscreen intelligent control, powered pre-stretch film carriage, automatic film feeding & hot cutting unit and full safety interlock protection. Perfectly docks with gantry palletizers, carton sealers and conveying lines to build a complete automated packaging workflow, cutting labor costs, lowering operation intensity and upgrading overall packaging uniformity for food, beverage, edible oil and manufacturing factories.
- Product Overview
- Video
- Machine Structure
- Working Process
- Photos
- FAQ
- Recommended Products
Product Overview
The inline rotary arm pallet stretch wrapper is a continuous online pallet wrapping solution specially matched with automatic palletizing production lines. Different from turntable wrappers that rotate pallets, this machine keeps loaded pallets stationary while the rotary cantilever orbits around goods to complete stretch film wrapping, effectively avoiding tipping risks for tall, lightweight, bagged or top-heavy pallet stacks.
The whole unit integrates incoming conveyor, rotary arm wrapping host, auto film loading mechanism and pneumatic hot film cutting assembly as one seamless system. After palletized products are conveyed into the wrapping station via roller lines, the equipment automatically completes film threading, multi-layer wrapping, top/bottom reinforcement wrapping, film fusing and smoothing without repeated manual intervention after initial film setup.
It forms a closed-loop unmanned packaging line when connected with upstream case packers, carton sealers and gantry palletizers. The LLDPE stretch film tightly binds goods on pallets to prevent scattering during forklift handling and warehouse storage, providing excellent dust-proof, moisture-proof and anti-collision protection. With stepless frequency conversion regulation, adjustable pre-stretch ratio and programmable wrapping recipes, it adapts to diverse pallet sizes and packaging requirements, reducing film consumption and long-term packaging expenditure for mass production workshops.
Video
Machine Structure
1. Intelligent Control System
a. Adopts PLC + touch screen integrated control; users can freely adjust wrapping cycles and wrapping layers on the HMI.
b. Comes with independent electrical control cabinet and local operation box. The display panel and physical buttons support parameter setup, including wrapping layers, rotary speed and film output speed.
c. Cantilever rotation and film carriage lifting/lowering adopt stepless frequency conversion drive, which simplifies operation and precisely controls wrapping quality.
d. Equipped with photoelectric sensors to detect pallet infeed and outfeed positions accurately.
e. Built-in reinforcement wrapping function to add extra film coverage for key load areas for enhanced protection.
f. The film feeding speed of the film carriage supports stepless adjustment.
g. User-friendly operation: One tap on the auto-start button to finish the full automatic wrapping cycle.
h. Premium brand electrical components are adopted to guarantee long-term stable operation; free switching between automatic and manual operation modes at any time.
i. Custom rubber-coated guide rollers reduce scratch and breakage of stretch film, realizing smooth film delivery and consistent stretching tension.
2. Film Carriage Assembly
● Equipped with motor-driven pre-stretch unit, maximum pre-stretch ratio up to 250%.
● Dual parallel guide rail design ensures stable vertical movement of the film rack.
● Lifting speed of the film carriage and film feeding speed are independently adjustable.
● Separate parameter settings for top-layer wrapping cycles and bottom-layer wrapping cycles.
● Fitted with wear-resistant rubber-coated guide rollers to protect stretch film.
● Adopts follow-up film feeding structure to maintain stable tension during wrapping.
● Independent adjustable drive motors control film feeding speed and film rack lifting speed respectively.
3. Rotary Cantilever Driving Assembly
● Frequency conversion speed control; cantilever rotating speed adjustable within 6–25 rpm.
● High-sensitivity safety photoelectric emergency stop system for perimeter protection.
● The cantilever automatically returns to the origin position once wrapping is completed.
● Cantilever drive motor supports variable frequency speed regulation, built-in brake system for accurate positioning.

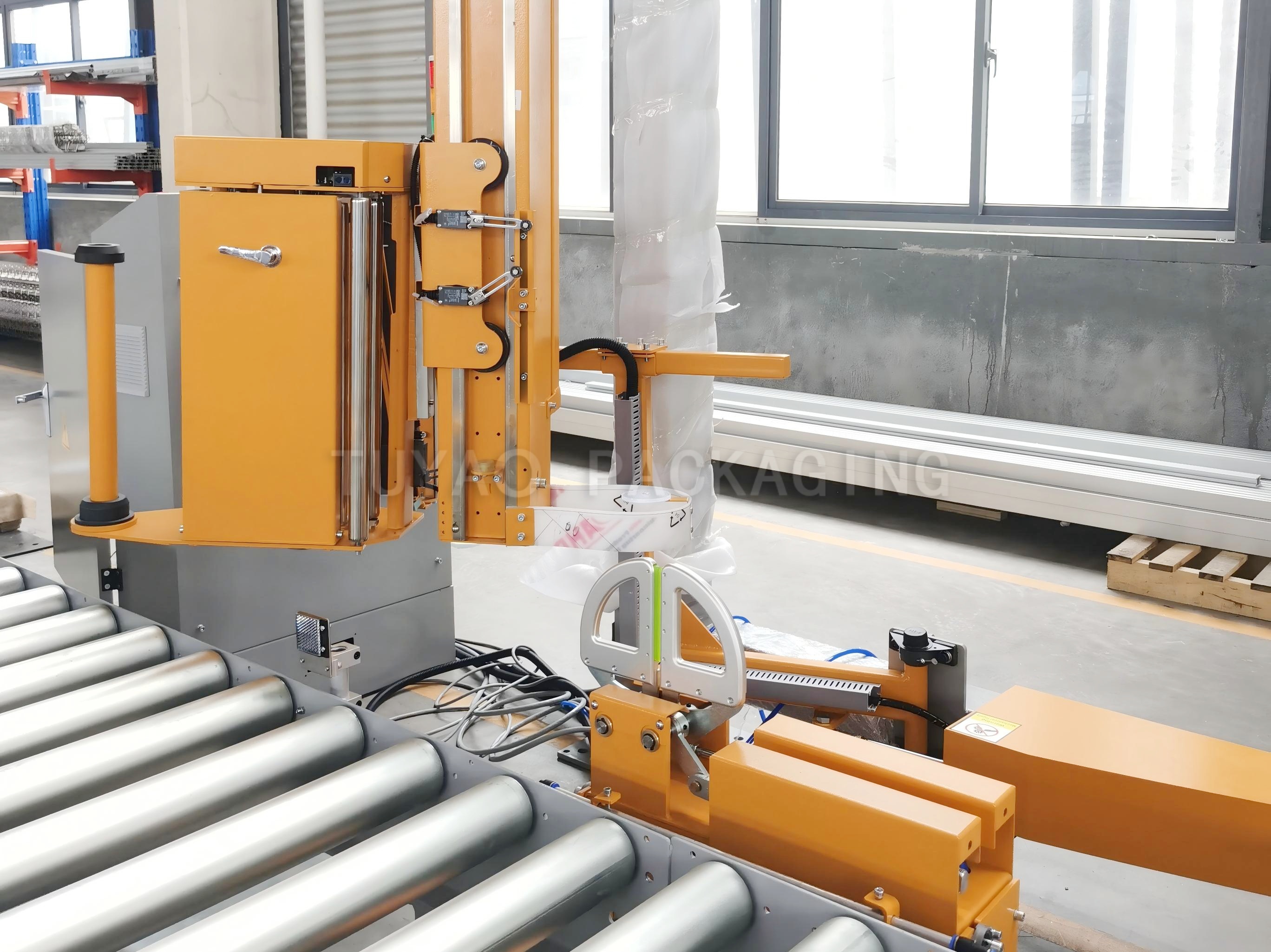

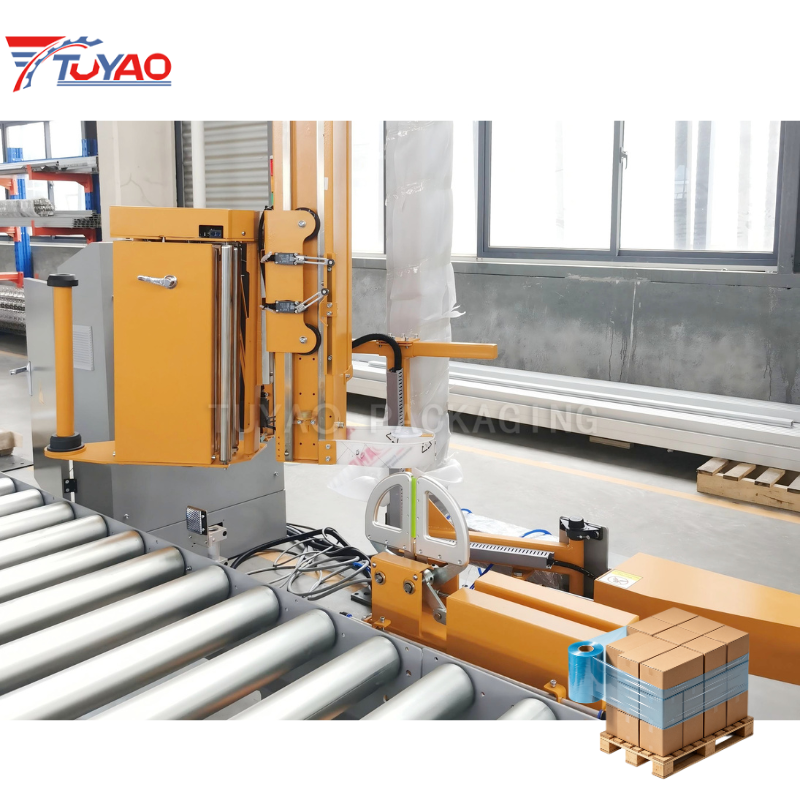

4. Automatic Film Cutting Unit
● Complete set of film cutting execution parts.
● Pneumatic film clamping jaws deliver stable and reliable film holding without slipping.
● Pneumatic push mechanism + heating wire thermal fusion cutting mode for neat film separation.
● Required working air pressure: 0.4–0.6 MPa.
5. Full Machine Safety Protection System
● A flashing warning light is installed on the whole equipment, which triggers visual and audible alarm signals once abnormal running status is detected.
Working Process
1.Pre-operation preparation
Switch on main power and air supply; open control cabinet and close air switch. Complete one-time manual film threading, clamp film on the auto feeding device. Set wrapping layers, cantilever speed, film tension and reinforcement wrapping loops on touch screen according to pallet load conditions and save as recipe.
2.Automatic cyclic wrapping workflow
Pallets stacked by palletizer are delivered to the infeed station via roller conveyor, detected by photoelectric sensor to trigger auto conveyor startup. Pallets stop at fixed wrapping position. Rotary cantilever begins orbiting around stationary goods, while film carriage ascends/descends synchronously and pre-stretch system feeds film evenly to wrap full pallet height. After completing preset wrapping cycles, cantilever automatically returns to origin position. Pneumatic cutting unit clamps and fuses stretch film, smooths film tail onto goods surface. Once cutting action finishes, conveyor restarts to transport wrapped pallets to outfeed station, finishing one full automatic cycle and waiting for next pallet.
3.Film roll replacement steps
When stretch film is nearly exhausted, pause machine and cut power supply. Replace new LLDPE film roll, re-thread film manually following initial preparation procedures to resume continuous wrapping.

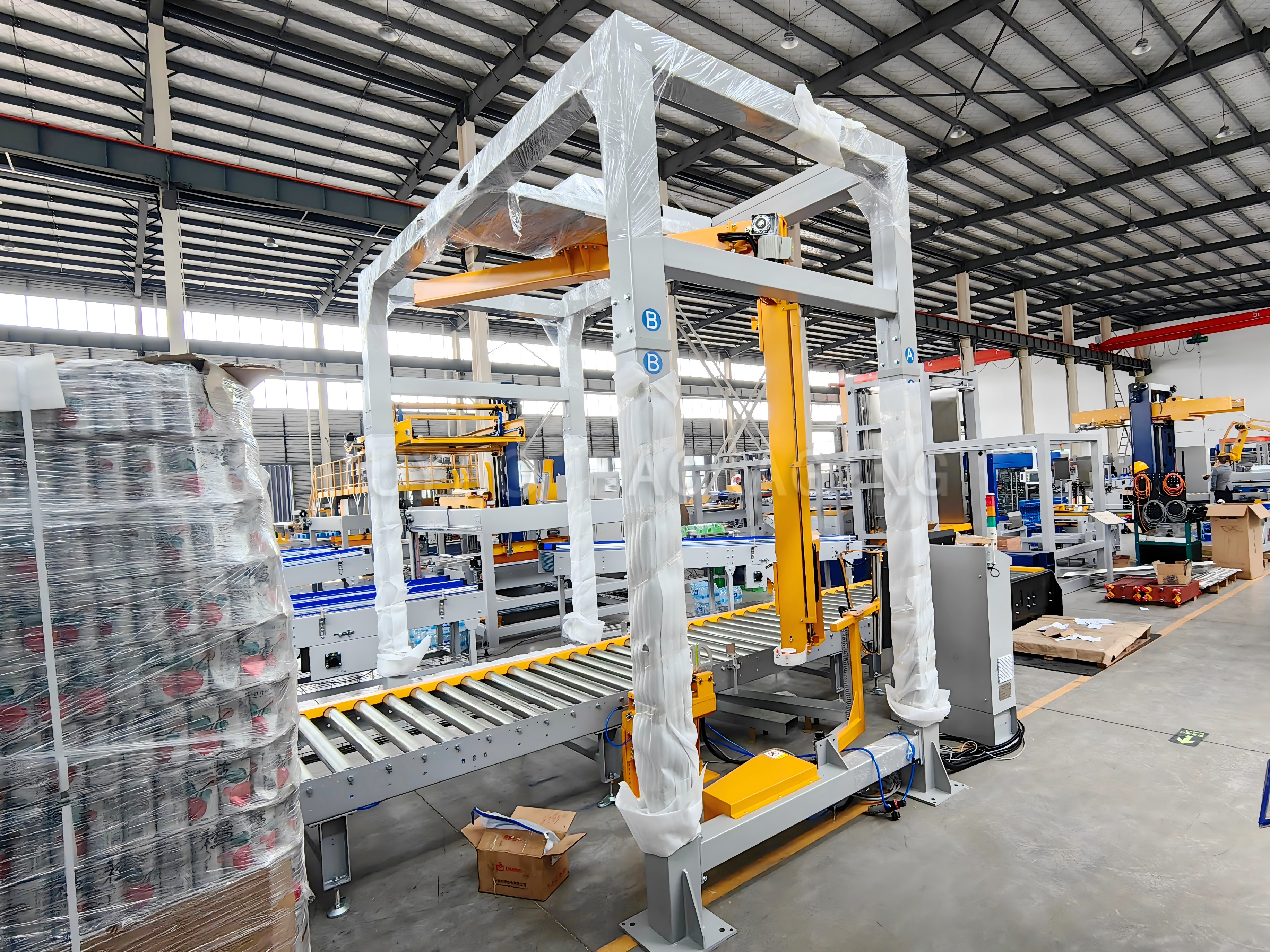

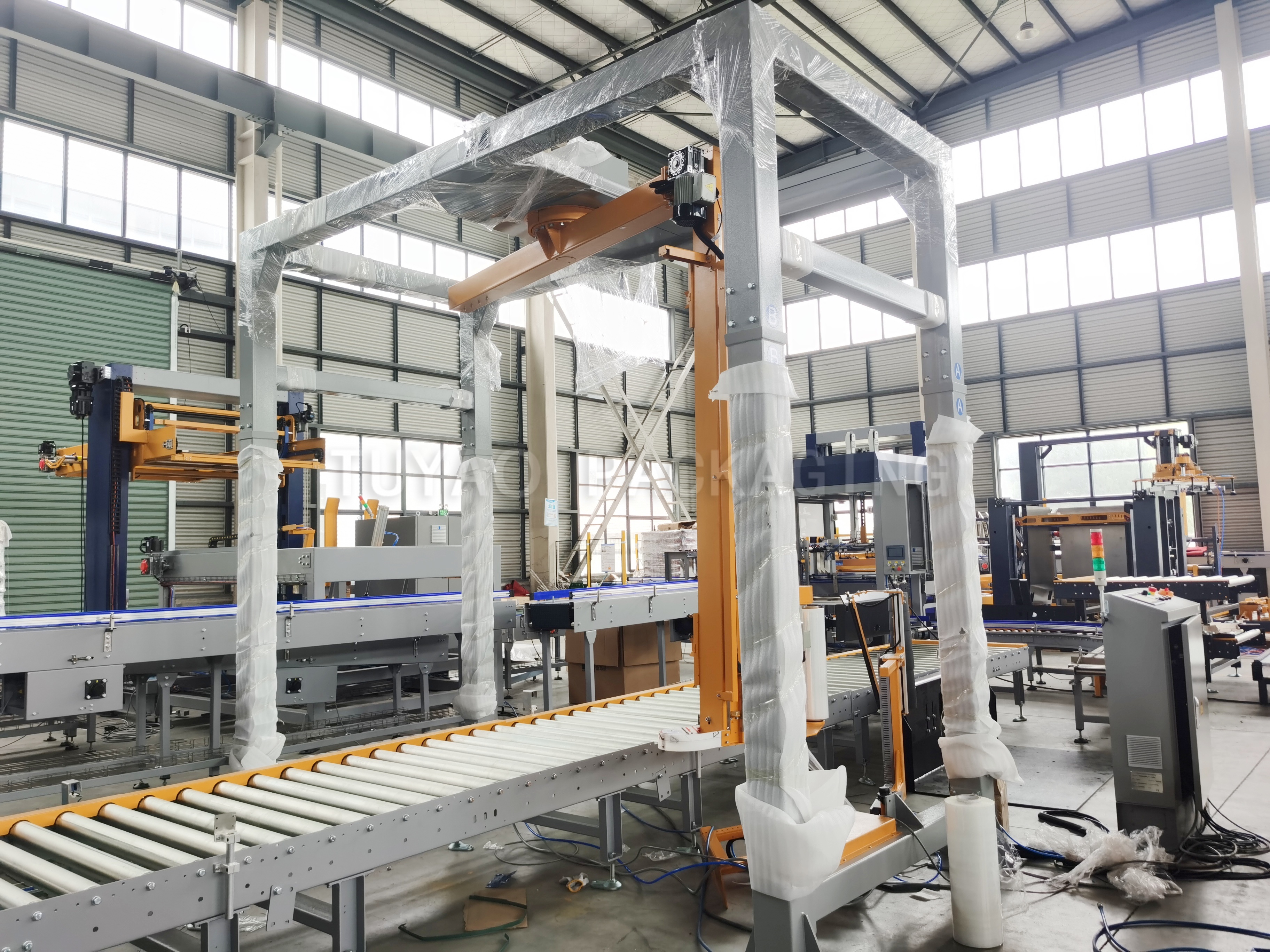

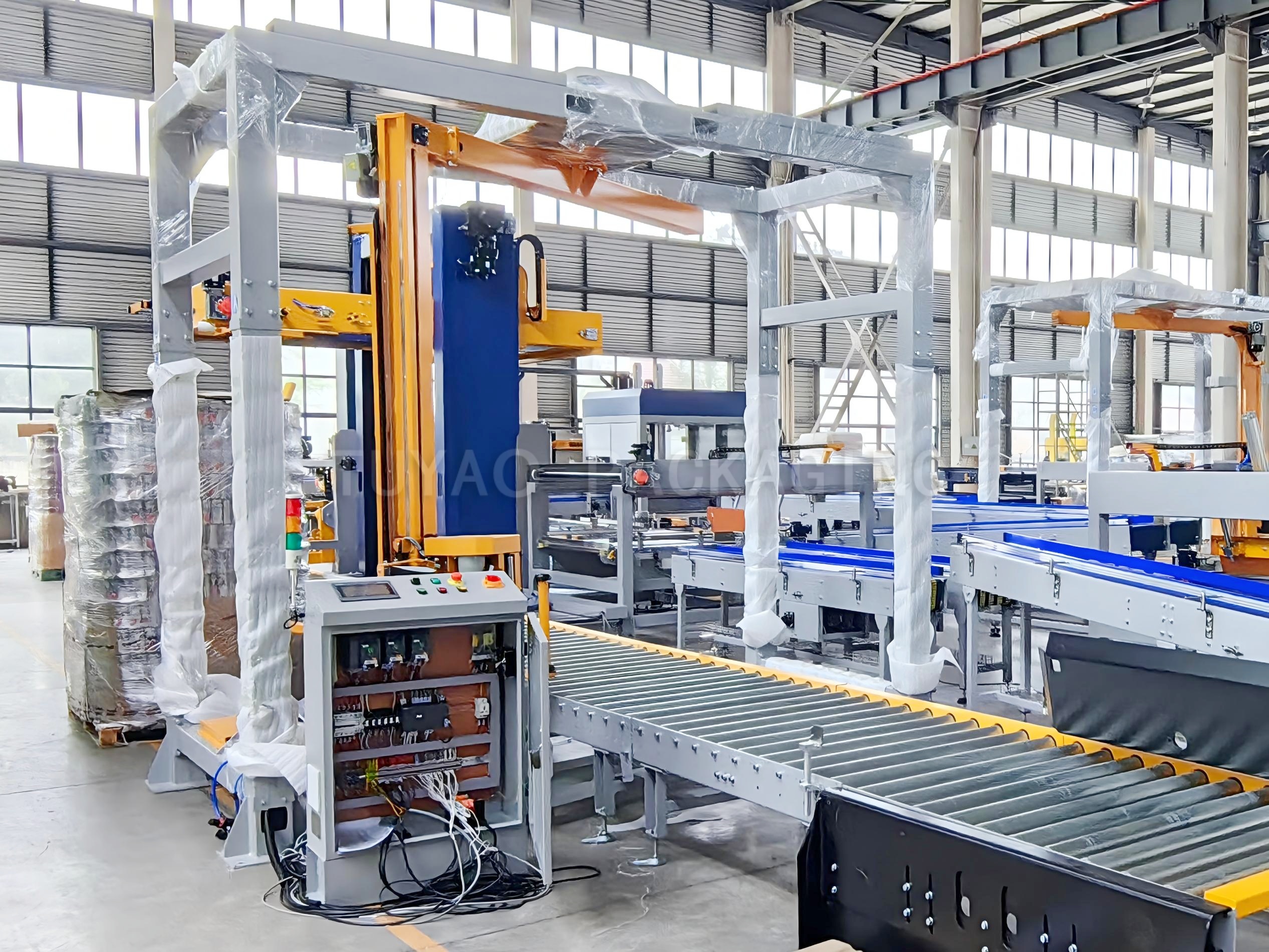

Photos
FAQ
Q1: Are you a trading company or a direct manufacturer?
A: We are a dedicated manufacturer with over 22 years of industry experience in beverage filling and packaging. Based in Zhangjiagang (only 2 hours from Shanghai), our factory is equipped with advanced technology to provide high-quality equipment at factory-direct prices. We warmly welcome you to visit our facility to see our machines in action.
Q2: What advantages does rotary arm inline wrapper have compared with turntable pallet wrappers?
A: The rotary arm model keeps pallets fixed during wrapping, no centrifugal force generated. It avoids tipping risks for high stacks, bagged goods and light-weight pallet loads. Equipped with integrated inline conveyor, it directly connects palletizing machines to realize continuous unmanned production, while turntable models mostly require forklift pallet transfer between processes.
Q3: Can this inline rotary arm wrapper connect with gantry palletizer and carton sealer to form a complete automatic packaging line?
A: Yes. Reserved synchronous signal interfaces for upstream carton sealers, case packers and gantry palletizers, as well as downstream outfeed conveying equipment. All equipment achieves coordinated linkage to finish the full workflow from carton packing, sealing, pallet stacking to stretch film wrapping without manual transfer.
Q4: Can the machine adapt to different pallet sizes?
A: Yes. We adjust the rotary cantilever effective rotation radius, conveyor width and film rack lifting stroke according to your maximum pallet outer dimensions, supporting personalized customization for standard and non-standard pallet specifications.
Q5: Do you provide overseas installation and training?
A: Yes. We can arrange senior technicians to your factory for installation, commissioning and systematic operation & maintenance training, including bottle blowing process adjustment and common fault handling.
Q6: What is the warranty period?
A: We provide a 12-month whole machine warranty starting from the commissioning date, with lifetime technical support and long-term supply of original spare parts and wearing parts at factory price.
