Inline Turntable Pallet Stretch Wrapper
This fully automatic inline turntable pallet stretch wrapper integrates roller conveying line and turntable wrapping unit as one complete inline system. Loaded pallets are transported to the rotary turntable station continuously without forklift handling. The turntable rotates pallets while the film carriage moves vertically to wrap LLDPE stretch film tightly around palletized goods, achieving dust-proof, moisture-proof and cargo stabilization effects. Supported by PLC touchscreen intelligent control, powered pre-stretch film rack and automatic pneumatic film cutting structure, it seamlessly matches carton sealers, case packers and palletizers to build unmanned packaging workflows. Ideal for regular, heavy, rigid carton pallet stacks in food, beverage, edible oil and chemical manufacturing to cut labor cost, reduce working intensity and standardize wrapping quality.
- Product Overview
- Video
- Machine Structure
- Working Process
- Photos
- FAQ
- Recommended Products
Product Overview
The inline turntable pallet stretch wrapper is a conveyor-integrated online wrapping equipment designed to connect automated palletizing lines. Different from rotary arm models that keep pallets stationary, this machine uses a heavy-duty rotary turntable to drive pallets for circumferential wrapping. It is highly suitable for regular-shaped, heavy-weight, rigid carton stacks without risk of collapse from centrifugal rotation.
The whole machine combines pallet infeed conveyor, rotary turntable main body, powered pre-stretch film carriage, automatic film feeding and hot cutting module, and unified electrical control system. After pallets finished stacking by palletizer are delivered to the turntable positioning station via roller conveyor, photoelectric sensors trigger full-automatic wrapping cycles. The film carriage ascends and descends synchronously with turntable rotation to complete multi-layer wrapping, reinforcement wrapping, automatic film fusing and film tail smoothing. Only one-time manual film threading is required for initial startup, realizing unattended continuous wrapping.
Matched with front-end carton sealing, case packing and palletizing equipment, it forms a closed-loop automatic packaging production line. Stretch film tightly binds scattered cartons on pallets to avoid shifting during forklift transit and warehouse storage, providing reliable dust and moisture isolation. Stepless adjustable wrapping parameters and high film pre-stretch ratio lower film consumption, bringing long-term packaging cost savings for mass production workshops.
● Integrated inline conveying design: Built-in matched roller conveyor realizes seamless docking with upstream palletizing equipment. Auto and manual running modes are switchable at will; dual groups of photoelectric sensors accurately detect pallet infeed and outfeed positions for cyclic automatic operation without manual pallet transfer.

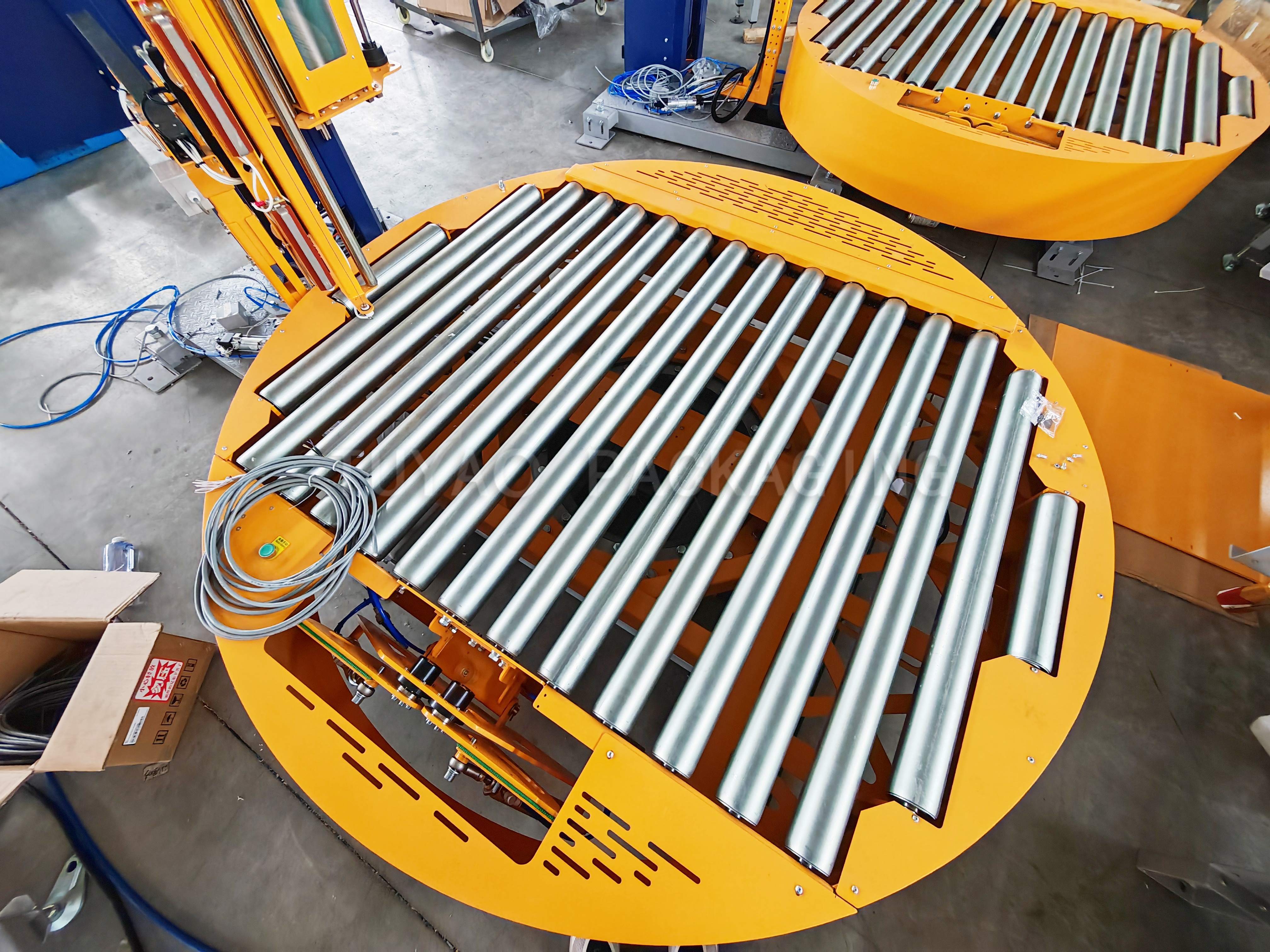

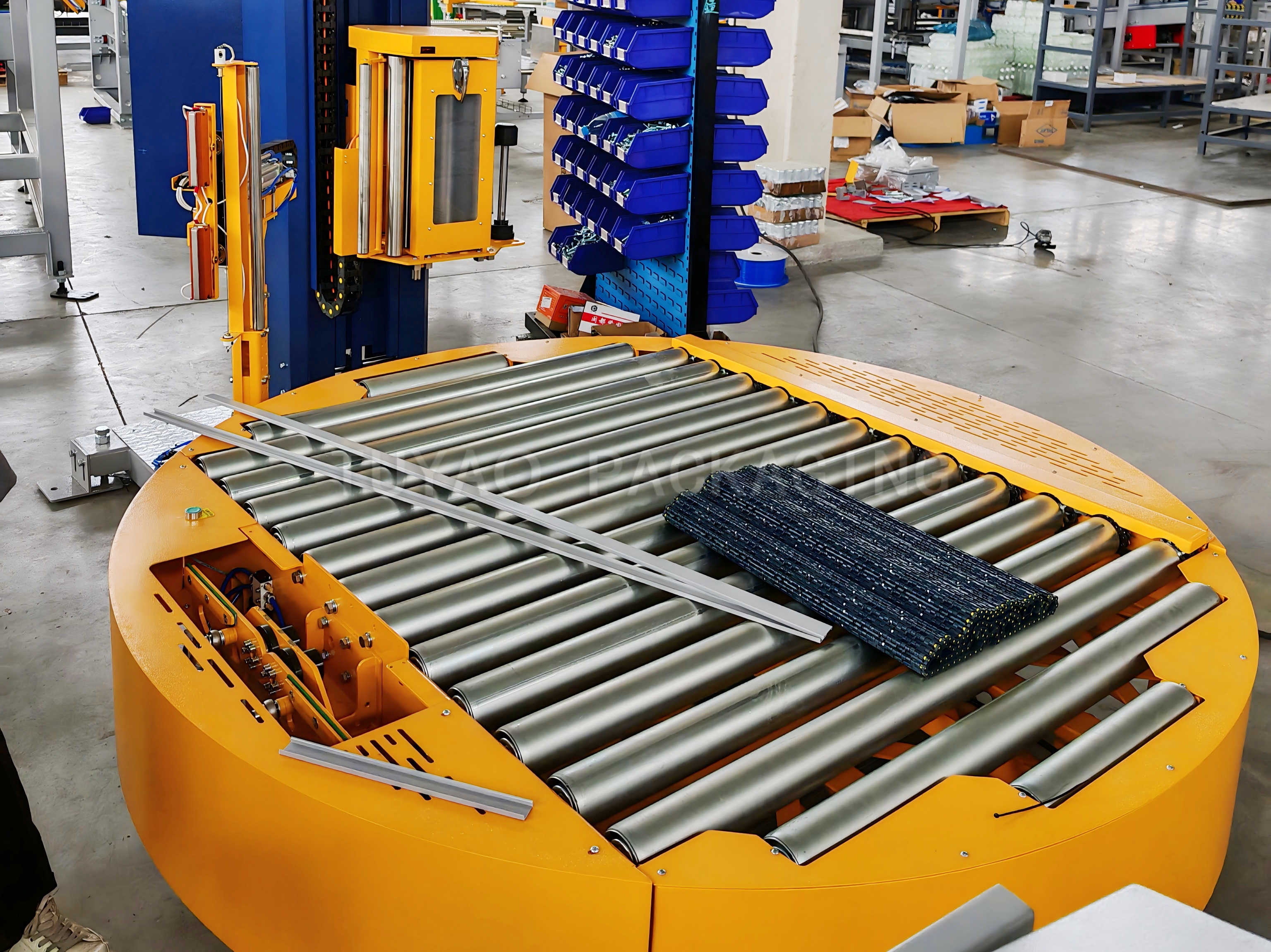

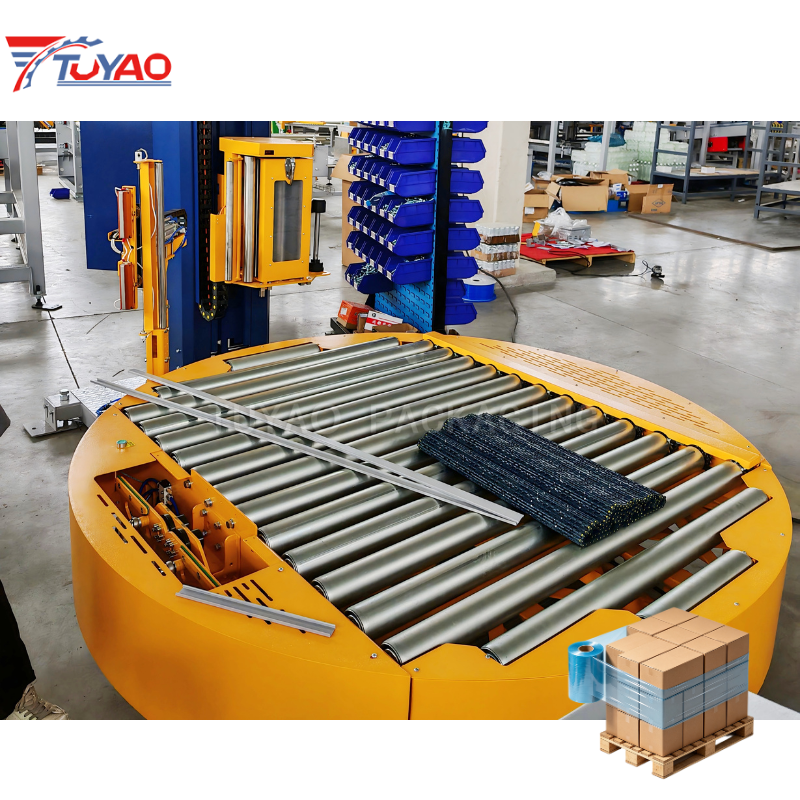

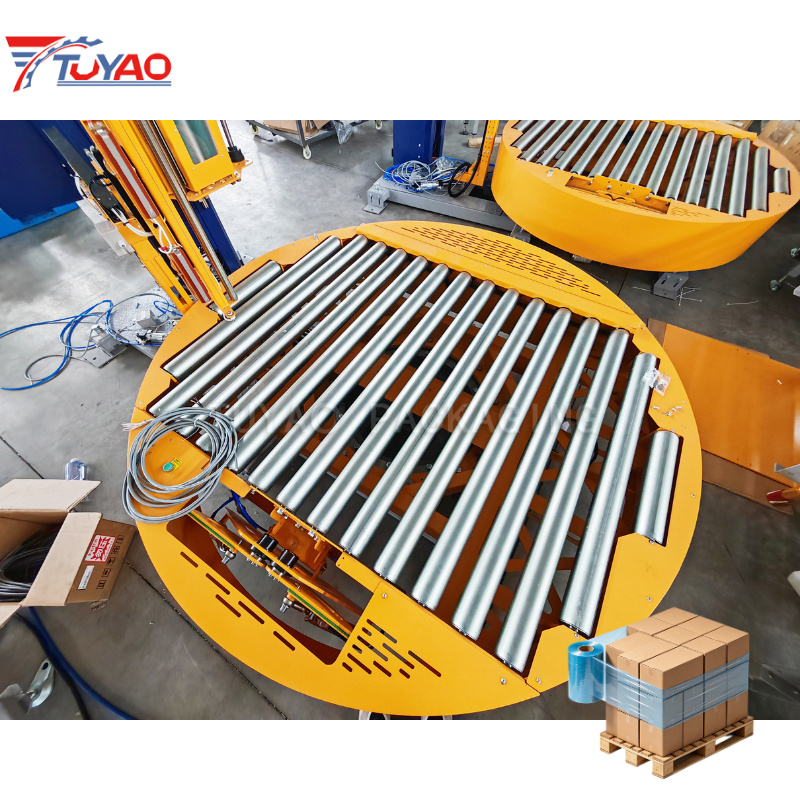

● Heavy-duty turntable rotary wrapping structure: The turntable bears full pallet weight and rotates goods steadily. It features strong load capacity, stable operation and low failure rate, perfectly fitting regular rigid carton, canned and heavy pallet loads.
● Full automatic film feeding & pneumatic hot cutting system: Only initial manual film threading needed; subsequent cycles feed film automatically. Pneumatic clamping jaws hold film firmly, heating wire thermal fusion cuts film neatly and smooths film tails on pallet surface after wrapping completion.
● PLC + touch screen intelligent programmable control: All wrapping parameters can be saved as independent recipes: turntable rotation speed, film carriage lifting speed, film feed tension, top/bottom wrapping layers and reinforcement wrapping loops. Real-time running status and fault code display simplify daily operation and equipment maintenance.
● Complete multi-level safety protection configuration: Whole-machine flashing alarm light, perimeter safety photoelectric emergency stop, turntable overload protection, multi-position emergency stop buttons and brake protection, which cut all mechanical movements instantly once abnormal conditions occur, meeting international industrial safety standards.
● Modular split structure for easy maintenance: Each functional module is independently assembled for convenient inspection, disassembly and spare parts replacement; internationally recognized brand electrical and pneumatic components reduce long-term operation failure rate.
Video
Machine Structure
Control System
● PLC programmable logic control; the number of wrapping layers and wrapping cycles can be freely modified on the HMI.
● Photoelectric sensor automatically detects the actual height of pallet loads.
● Automatic sound-light alarm triggered when stretch film breaks during operation.
● Fully automatic control for film clamping, film cutting and film tail smoothing procedures.
Turntable Driving System
● Chain transmission structure for the turntable, with soft start, soft stop and automatic homing functions.
● Frequency conversion speed regulation; turntable rotation speed adjustable within the range of 0 ~ 15 rpm.

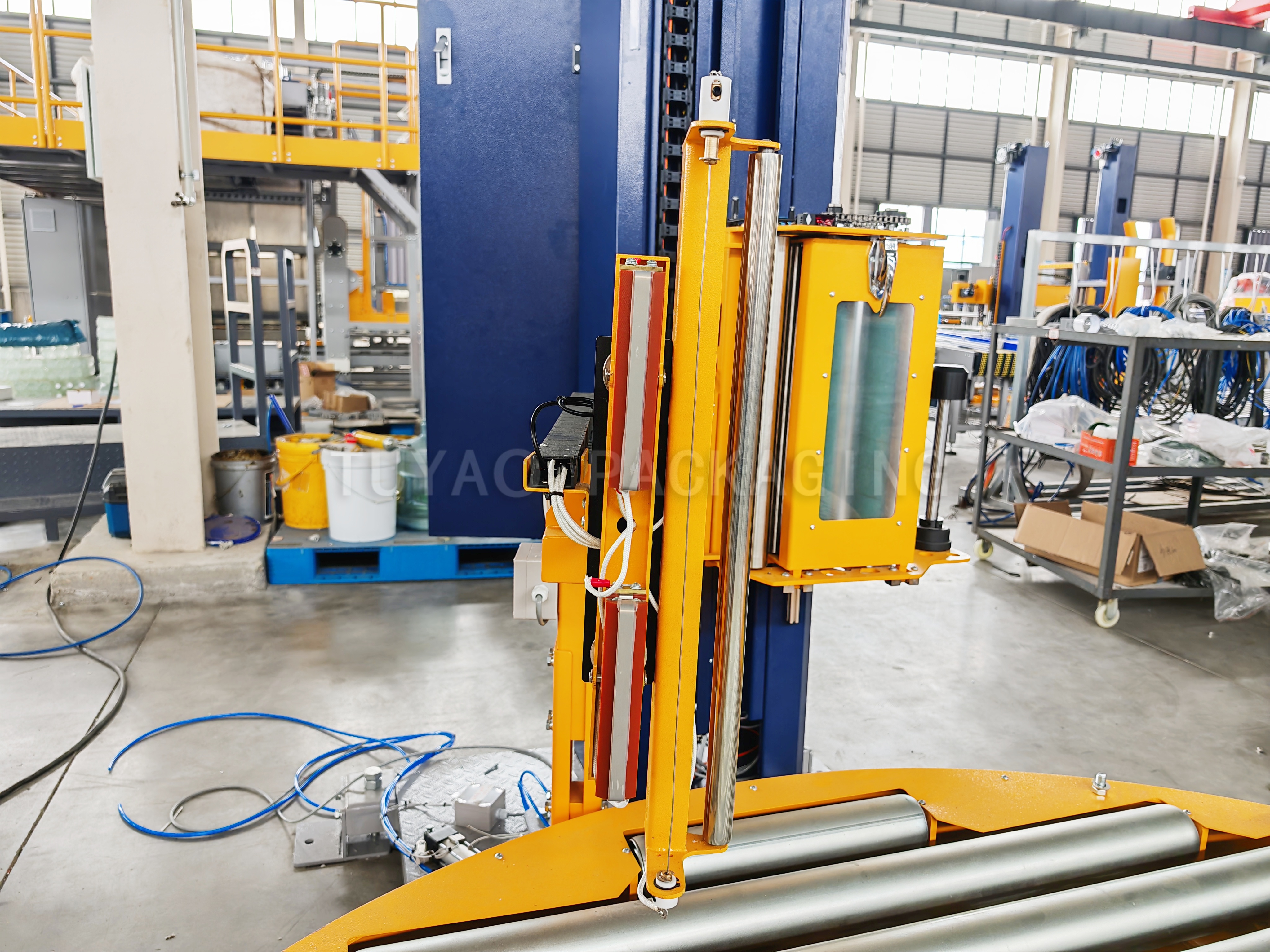

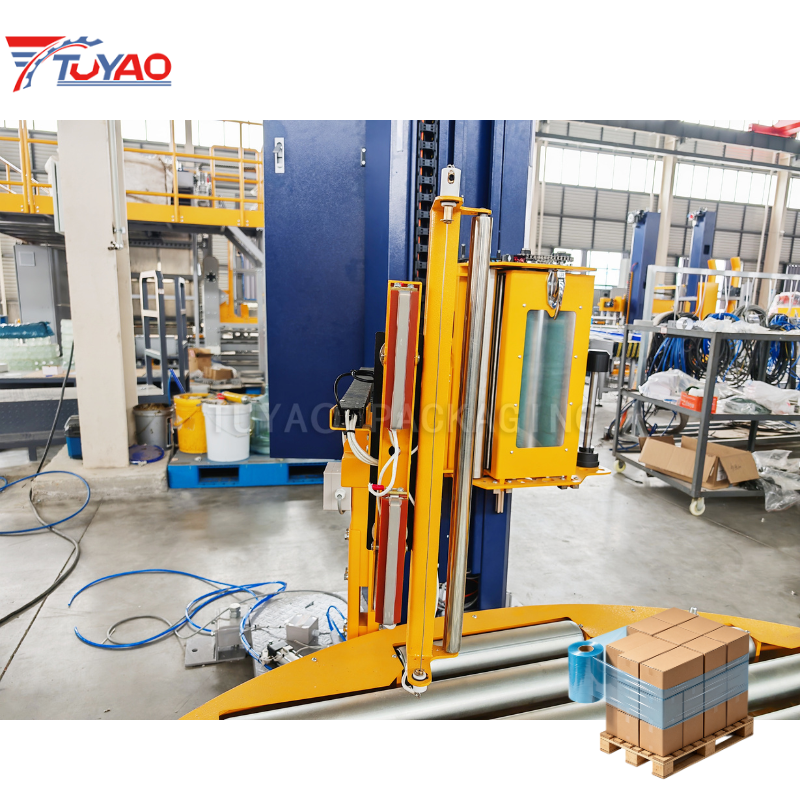

Stretch Film Carriage System
● Motor-driven frequency conversion pre-stretch mechanism, with a maximum pre-stretch ratio up to 250%.
● Dual-chain traction structure for film carriage lifting unit; the traveling mechanism adopts fully enclosed design with self-lubricating structure for stable operation.
● Independent frequency conversion speed adjustment for film carriage ascending and descending speed; stepless adjustable film feeding speed.
● Separately configurable wrapping cycles for pallet top and pallet bottom sections.
● Equipped with film follow-up tension system to realize active and stable film feeding during wrapping cycles.
Working Process
1. After the turntable decelerates, the clamping cylinder extends to lift the clamping plate. The stretch film wraps both the clamping plate and pallet load synchronously as the turntable rotates.

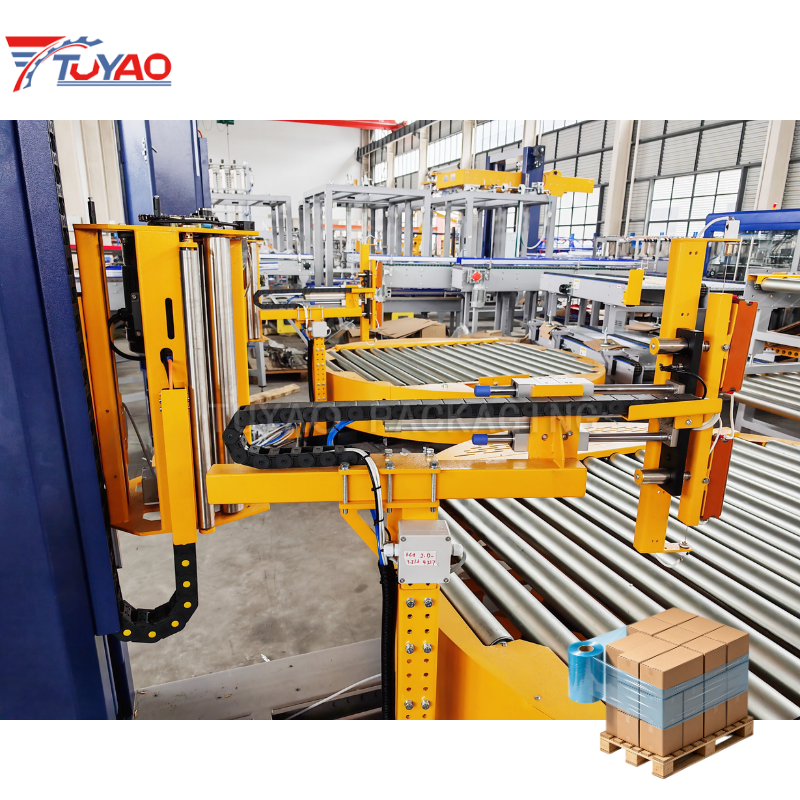

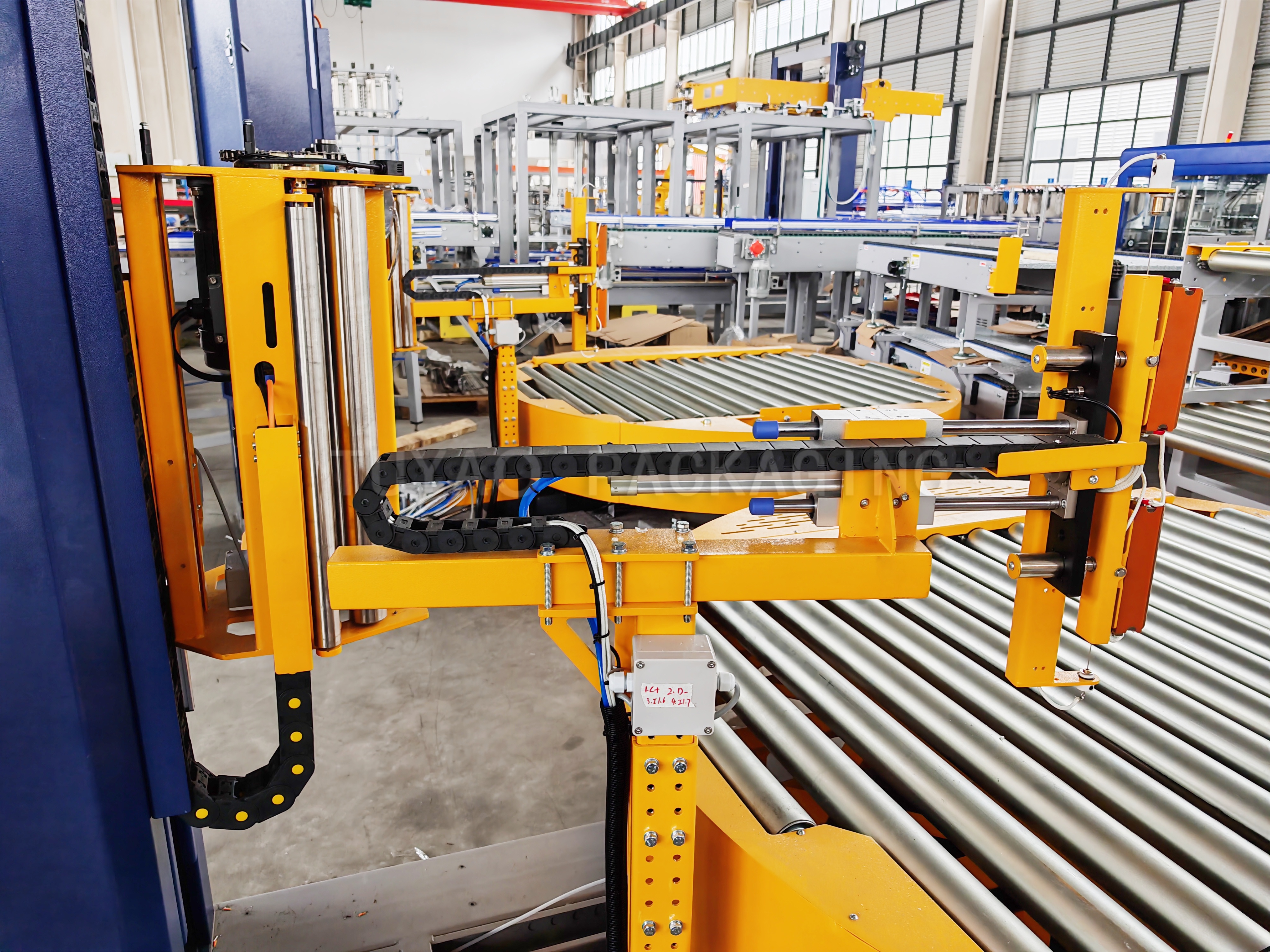

2. The turntable stops rotating completely. The swing arm cylinder actuates and moves into position, triggering an electrical signal via the magnetic sensor. The clamping cylinder then lifts the clamping plate to firmly grip the stretch film. Next, the film smoothing cylinder drives the sponge roller mounted on the swing arm to press the film tightly against pallet goods. Meanwhile, the heating wire is energized to thermally cut off the stretch film cleanly.
Photos
FAQ
Q1: Are you a trading company or a direct manufacturer?
A: We are a dedicated manufacturer with over 22 years of industry experience in beverage filling and packaging. Based in Zhangjiagang (only 2 hours from Shanghai), our factory is equipped with advanced technology to provide high-quality equipment at factory-direct prices. We warmly welcome you to visit our facility to see our machines in action.
Q2: What is the difference between inline turntable wrapper and inline rotary arm wrapper?
A: The turntable model rotates pallets via rotary platform, featuring stronger load capacity, more suitable for heavy, regular rigid carton stacks. The rotary arm model keeps pallets stationary, which avoids centrifugal collapse for tall, light, bagged goods. The inline turntable type has simpler structure and lower maintenance cost for standard heavy pallet production lines.
Q3: Can this inline turntable wrapper link with gantry palletizer and carton sealer to form a full automatic packaging line?
A: Yes. The equipment reserves synchronous signal docking interfaces for upstream carton sealers, case packers and gantry palletizers, as well as downstream outfeed conveying equipment. All machines can realize coordinated linkage to complete the whole process from carton packing, sealing, pallet stacking to stretch film wrapping without manual pallet transfer.
Q4: Can conveyor height be customized to match my existing production line?
A: Yes. The roller conveyor infeed and outfeed height can be fully customized according to the elevation of your upstream palletizer and conveying equipment to realize seamless docking without secondary pallet lifting and transfer.
Q5: Do you provide overseas installation and training?
A: Yes. We can arrange senior technicians to your factory for installation, commissioning and systematic operation & maintenance training, including bottle blowing process adjustment and common fault handling.
Q6: What is the warranty period?
A: We provide a 12-month whole machine warranty starting from the commissioning date, with lifetime technical support and long-term supply of original spare parts and wearing parts at factory price.
