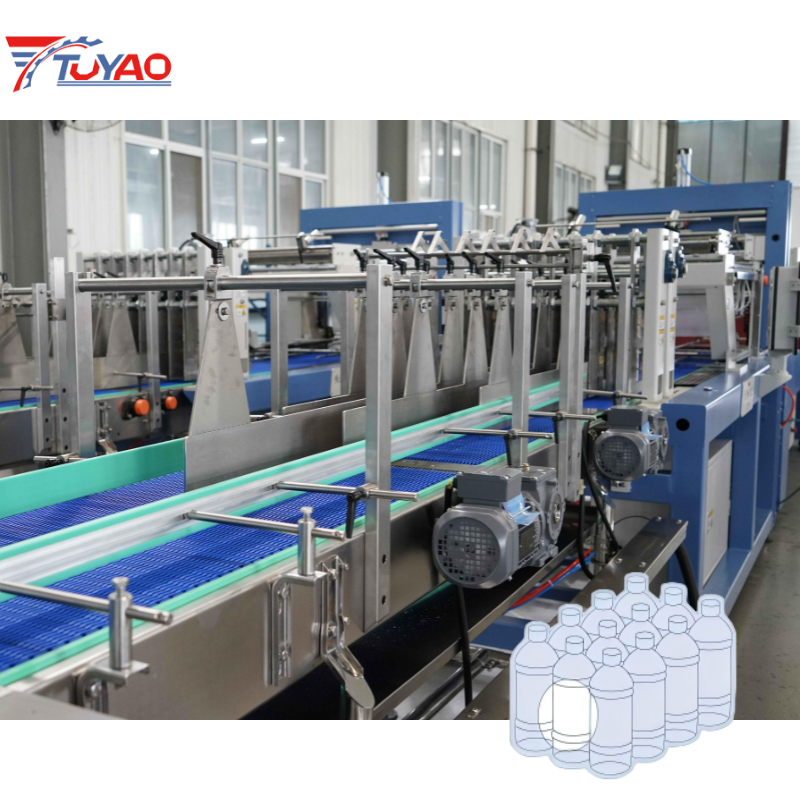

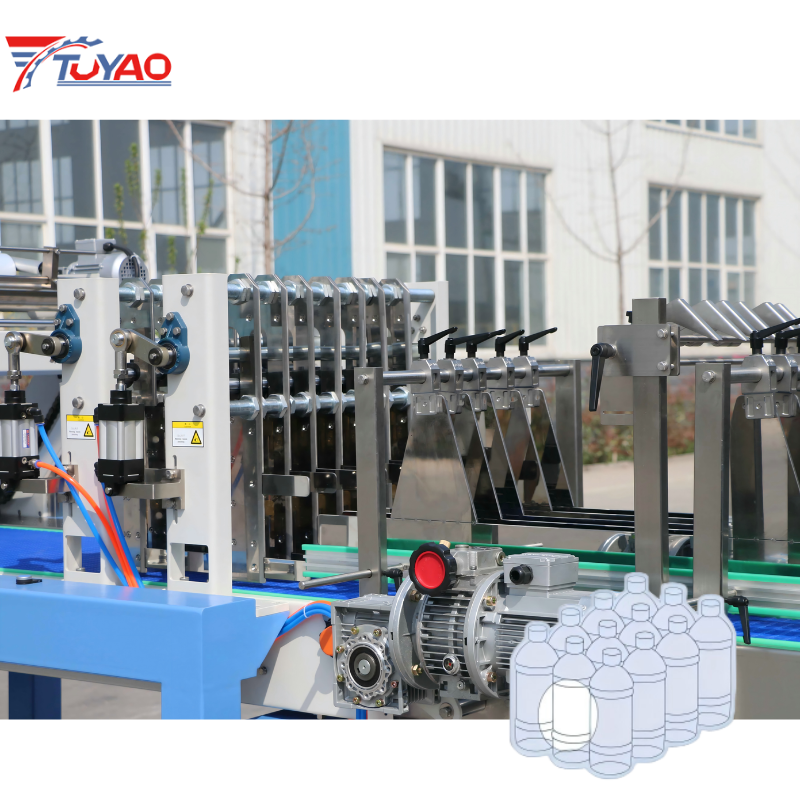

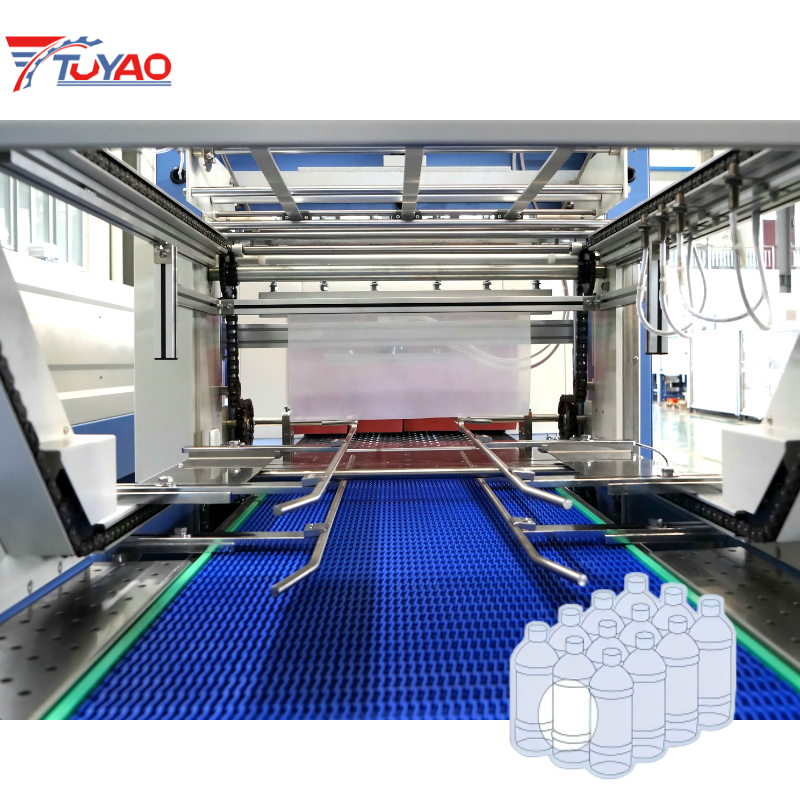

Automatic Film Shrink Wrapping Machine
Fully automatic integrated film shrink wrapping equipment integrating auto film cutting, wrapping and heat shrink forming, specially designed for batch group packaging of PET bottles, plastic barrels and cans. Adopts low-power constant temperature heat shrink tunnel, servo film traction and intelligent PLC control system, supporting PE heat shrink film continuous wrapping without manual film feeding. The whole machine uses thickened carbon steel frame and food-grade anti-scald insulation layer, stable operation, low film loss, widely matched with filling line, blow molding machine and end-of-line packaging production of edible oil, carbonated drinks, barreled water and daily chemicals.
- Product Overview
- video
- Equipment Features
- Technical Parameters
- Photos
- FAQ
- Recommended Products
Product Overview
The automatic film shrink wrapping machine is an indispensable terminal group packaging equipment for liquid food production lines, which completes automatic product sorting, film wrapping, heat sealing, film cutting and thermal shrinkage shaping in one continuous flow without manual intervention.
Different from semi-automatic separate sleeve packaging equipment, this integrated machine realizes automatic stacking grouping of bottles/barrels, automatic film stretching wrapping and sealed cutting, then enters the circulating hot air shrink tunnel to make the shrink film tightly fit the product surface, dust-proof, anti-collision, convenient whole case transportation and palletizing.
video
Equipment Features
● Sleek and aesthetic overall appearance with an innovative, distinctive mechanical layout, allowing straightforward daily maintenance and component replacement.

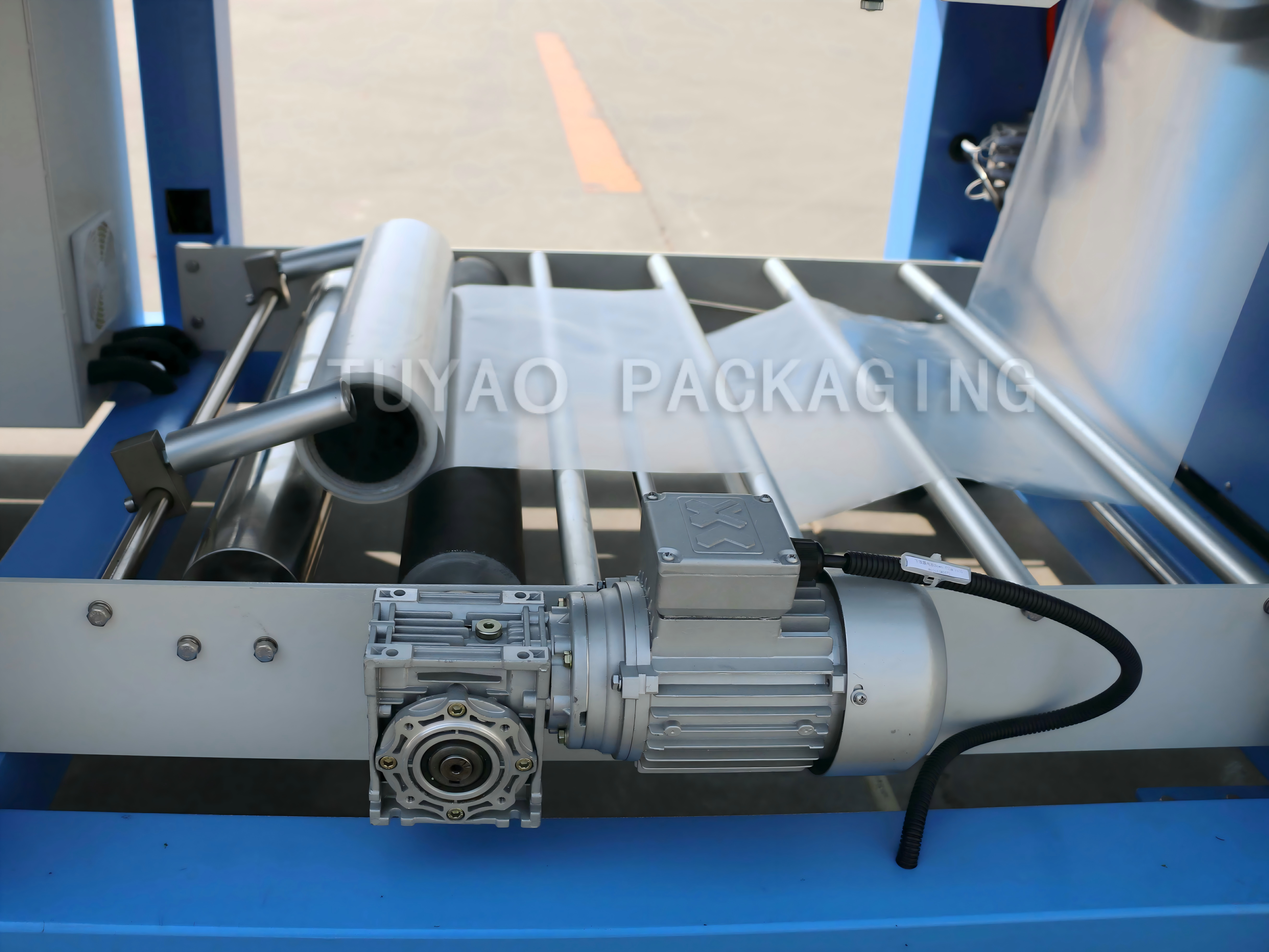

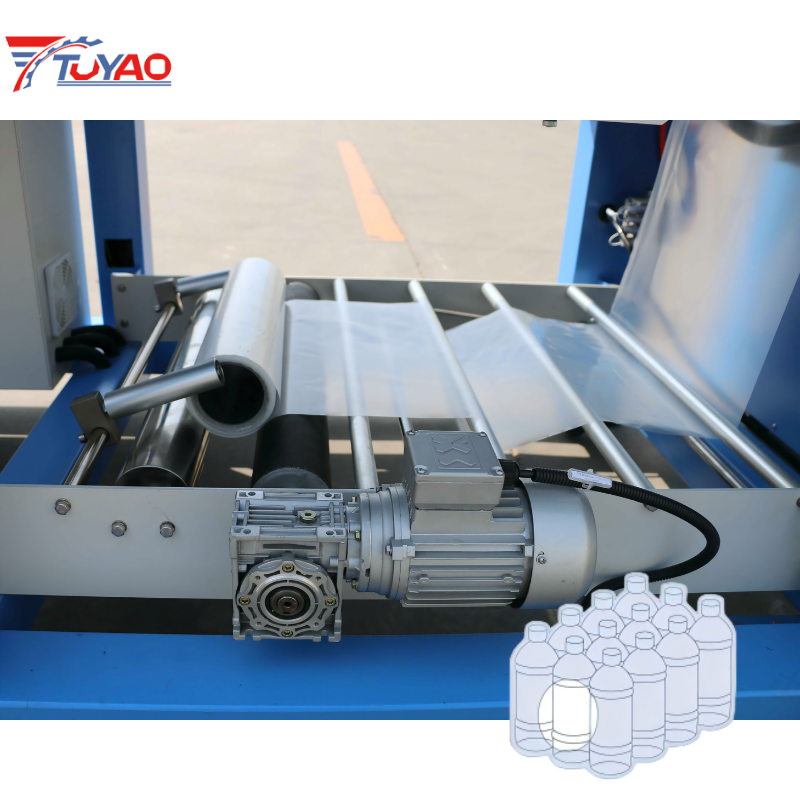

● Electronically sensor-controlled film feeding delivers stable, consistent film traction, enabling quick and effortless film roll changeovers.
● Constant-temperature sealing and cutting blade design provides sealing strength over three times higher than conventional hot-cut cold-seal blades. It creates smooth, uniform sealed edges and boasts a service life up to 80 times longer than standard hot-seal blades.
● The shrink tunnel adopts circulating hot air circulation technology with a well-engineered thermal insulation structure, delivering precise temperature control and superior uniform shrink wrapping results for finished packages.
● Equipped with premium internationally renowned control components including Siemens (Germany), Inovance and UNIQUC, ensuring reliable and sophisticated system performance.
● A separation distance of over 500 mm between the cooling section and heat shrink tunnel prevents cold air interference with the hot air circulation system and effectively reduces heat energy loss.
● Overload protection devices are installed for both the film feed motor and circulating air fans; additional intermediate relays are integrated into the circuit to safeguard the whole electrical system against overload damage.
Technical Parameters
| Item | Specification |
| Operating Power Supply | 3-phase 5-wire, 380V / 50Hz |
| Working Air Pressure | 0.6 ~ 0.8 MPa |
| Air Consumption | 0.35 m³/min |
| Air Pipe Connector Diameter | Φ12 mm |
| Heat Shrink Tunnel Internal Size (L × W × H) | 2400 × 650 × 450 mm |
| Sealing & Cutting Temperature | 170 ℃ ~ 200 ℃ |
| Heat Shrink Temperature | 150 ℃ ~ 280 ℃ |
| Packaging Film Material | Anti-dust & anti-static LDPE shrink film |
| Max. Film Roll Width | ≤ 580 mm |
| Film Thickness Range | 0.05 ~ 0.08 mm |
| Max. Film Roll Outer Diameter | ≤ 400 mm |
| Operating Noise Level | ≤ 65 dB |
| Total Machine Weight | 2500 kg |
| Overall Machine Dimension (L × W × H) | 13840 × 1100 × 2100 mm |
| Export Packing Case Size | Main Machine: 3240 × 1100 × 2100 mm |
| Shrink Tunnel Unit: 4000 × 1100 × 1700 mm |

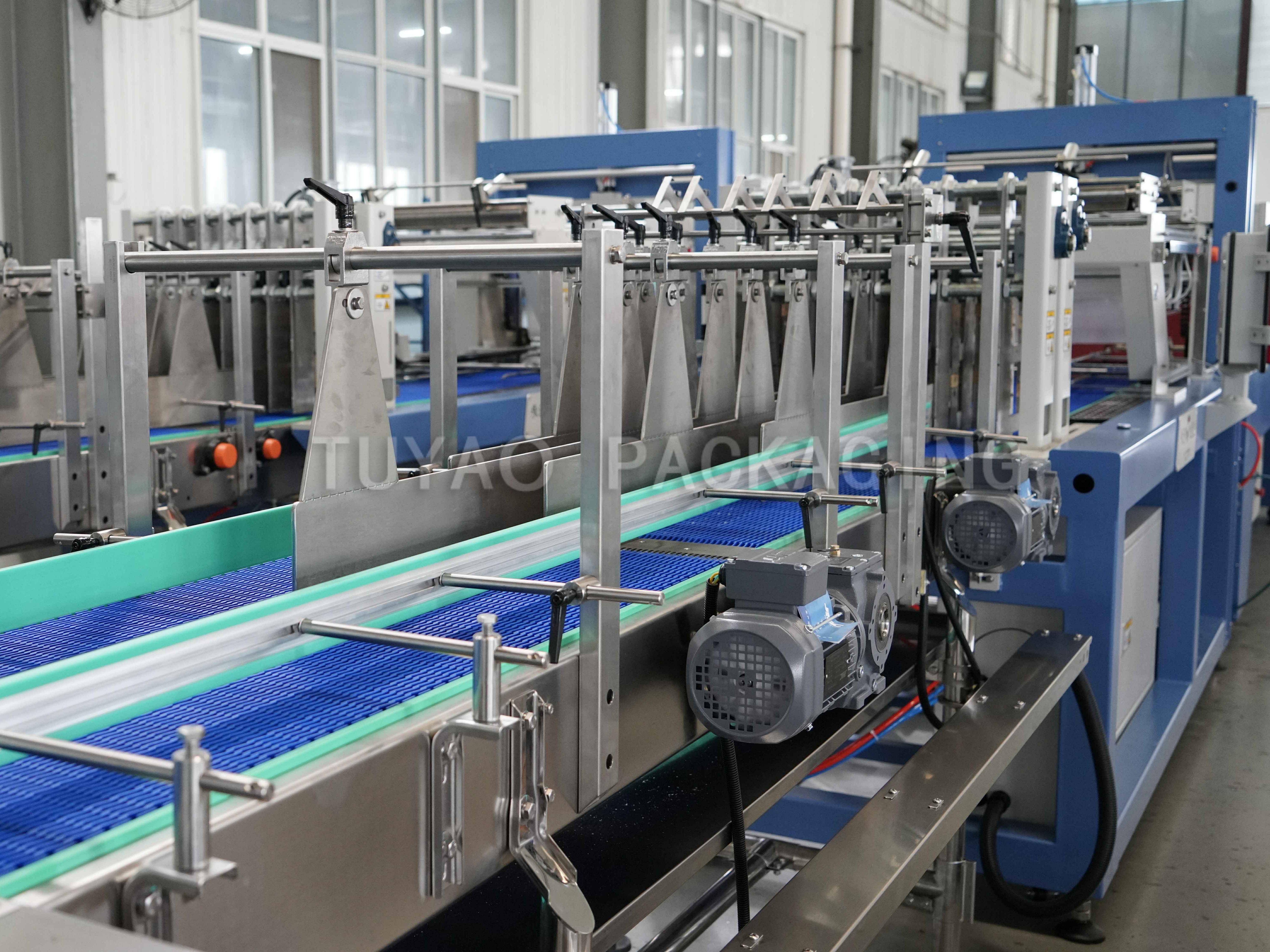

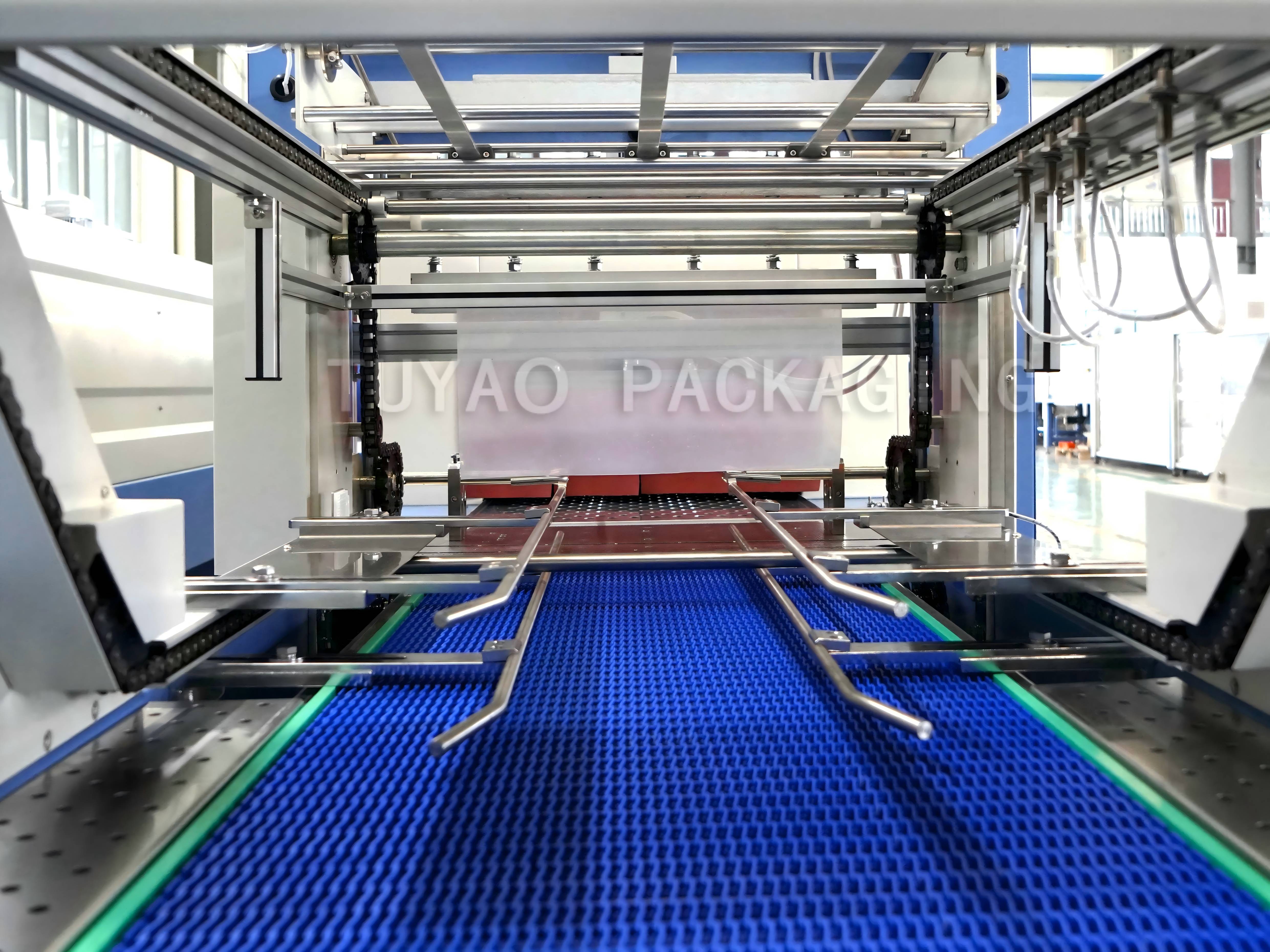

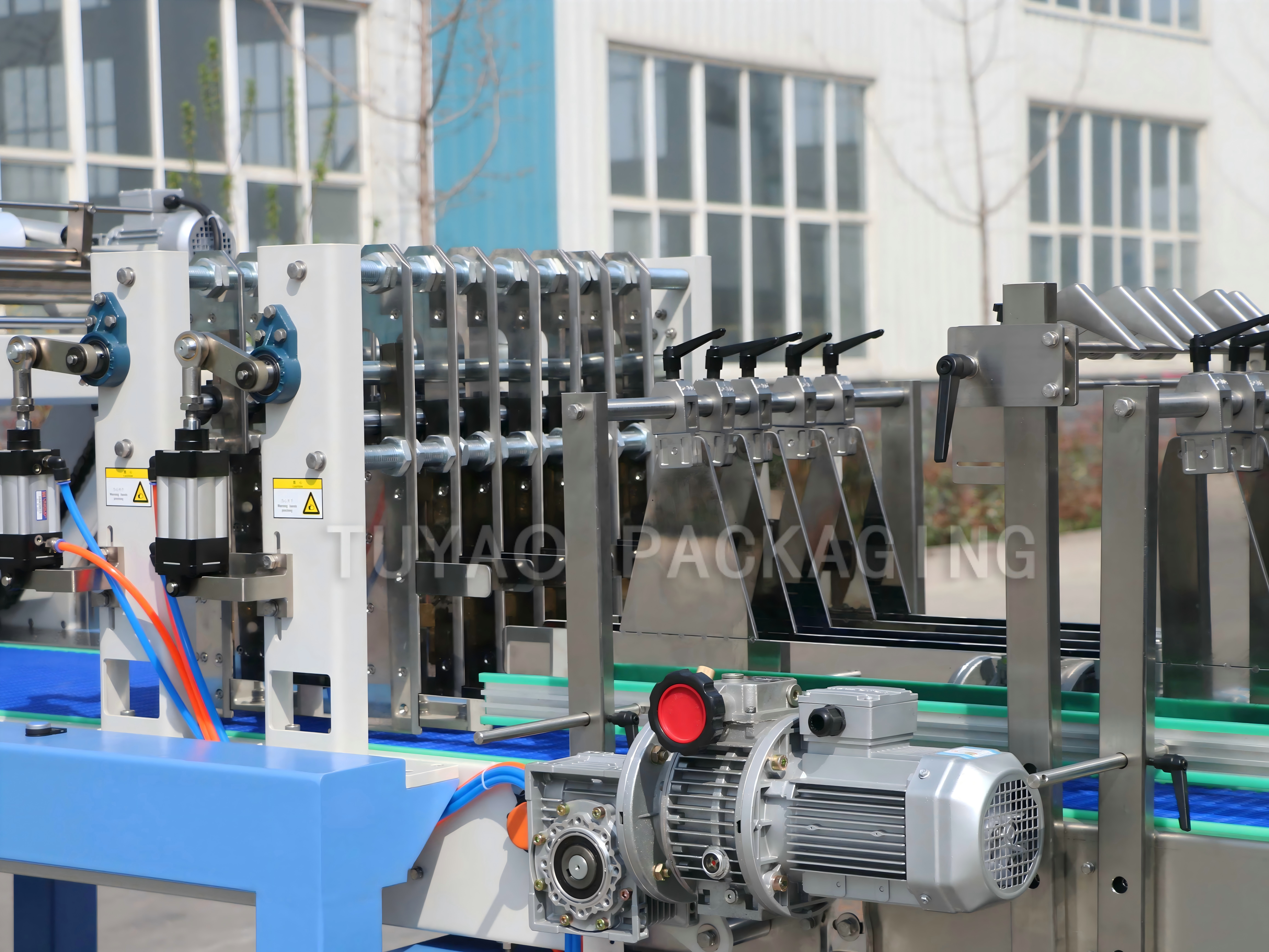

Photos
FAQ
Q1: Are you a trading company or a direct manufacturer?
A: We are a dedicated manufacturer with over 22 years of industry experience in beverage filling and packaging. Based in Zhangjiagang (only 2 hours from Shanghai), our factory is equipped with advanced technology to provide high-quality equipment at factory-direct prices. We warmly welcome you to visit our facility to see our machines in action.
Q2: Can it be connected with filling machine to form an automatic production line?
A: Yes. The inlet conveyor height and conveying speed can be adjusted to match the outlet conveyor of filling machine. Complete unmanned conveying from bottle forming, filling to terminal shrink packaging can be realized without manual transfer of semi-finished products.
Q3: Why does the shrink film have wrinkles or partial incomplete fitting after packaging?
A: This machine adopts circulating hot air tunnel and constant temperature control system, which fundamentally avoids uneven heating problems of single-sided air outlet ordinary shrink machines. If wrinkles appear, it can be solved by adjusting tunnel temperature, conveying speed and servo film tension via touch screen, with simple parameter adjustment.
Q4: Do you provide overseas installation and training?
A: Yes. We can arrange senior technicians to your factory for installation, commissioning and systematic operation & maintenance training, including bottle blowing process adjustment and common fault handling.
Q5: What is the warranty period?
A: We provide a 12-month whole machine warranty starting from the commissioning date, with lifetime technical support and long-term supply of original spare parts and wearing parts at factory price.
