Gripper Type Case Packer
Automatic gripper type case packer designed for full-automatic batch packing of grouped bottles, cans and barrels into empty shipping cartons. Equipped with servo-driven moving gripper assembly, adjustable pneumatic clamping jaws and complete PLC touch screen intelligent control system. Cooperating seamlessly with automatic carton erectors, collating grouping conveyors and carton sealers, it realizes unmanned continuous carton packing workflow. The chain tray transfer structure shortens product format changeover time greatly, while modular energy-saving design cuts power consumption by 30%. Widely matched with beverage filling and end-of-line packaging systems for food, beverage and edible oil factories.
- Product Overview
- Video
- Equipment Details
- FAQ
- Recommended Products
Product Overview
The gripper type case packer is core end-of-line packaging equipment dedicated to automatic bottle carton packing for liquid food workshops including carbonated drinks, fruit juice, bottled water, dairy products, edible oil and condiments.
Grouped bottled products are conveyed steadily via collating and positioning conveyors, while empty cartons are erected and delivered to the packing station by automatic carton erectors. Servo gripper mechanism precisely grabs whole rows of finished bottles without scratching product surfaces, lifts and transfers bundles above cartons, then descends to place goods neatly inside cartons before releasing. The whole grabbing, transferring and packing cycle runs fully automatically without manual intervention.
This machine adopts exclusive four-chain transmission system for product switching, greatly shortening format replacement time and improving line flexibility for factories producing multiple bottle specifications. Built with full energy-saving structural layout, it reduces overall power loss by 30% to achieve low-carbon eco-friendly operation. All core pneumatic components adopt internationally renowned brands to minimize grabbing failure rate and ensure stable long-cycle industrial operation.
Modular integrated layout brings outstanding cost performance, making it one of the most preferred automatic carton packing equipment for medium and large beverage production lines. It can form a complete automatic packaging line when matched with carton erector, grouping conveyor, carton positioning conveyor and automatic carton sealer.
Video
Equipment Details

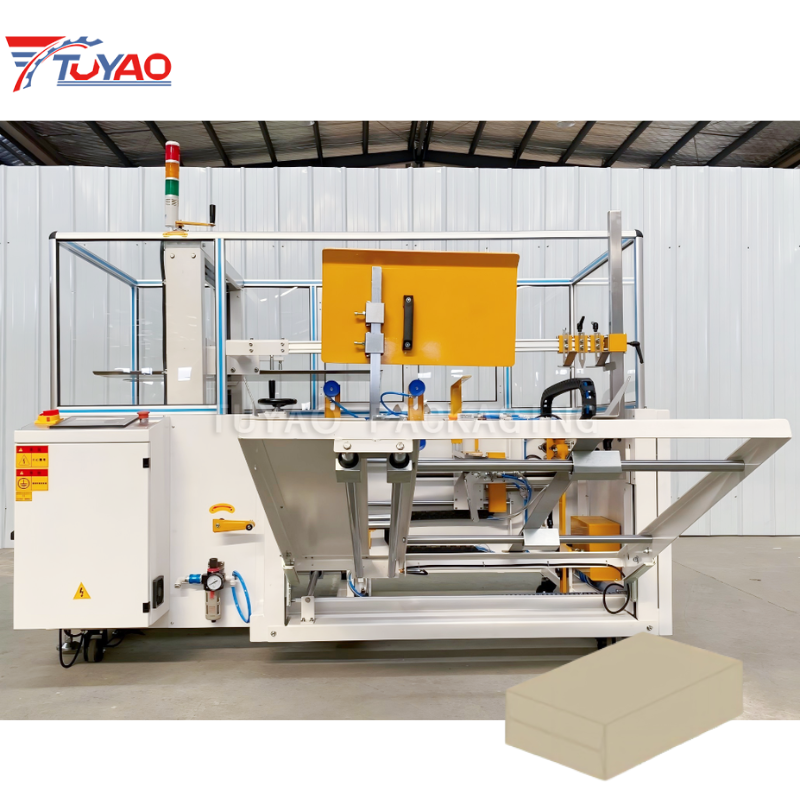

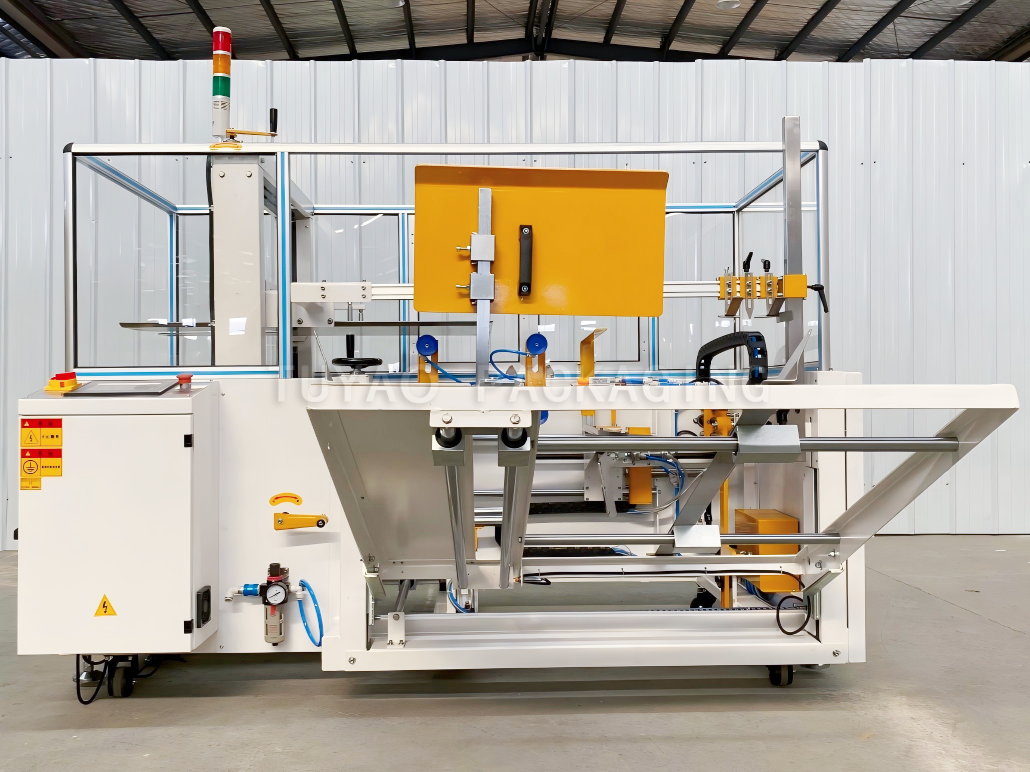

Automatic Carton Erector
Machine Core Features
● The machine is engineered and manufactured to perfectly match the process flow and layout requirements of automatic packaging production lines, featuring an elegant, streamlined appearance and precise fabrication craftsmanship.
● Low power and air consumption; all operation, format adjustment and maintenance procedures are simple and time-saving.
● Complete built-in safety protection mechanisms, including motor overload protection and safety interlock doors to avoid accidental injury during operation.
● Intelligent audible & visual alarm system that triggers reminders when adhesive tape runs out or carton stock is insufficient.
● Large-capacity carton storage magazine: Approximately 50 flat blank cartons can be loaded at one time (actual capacity varies based on carton thickness), and supplementary cartons can be added anytime without halting production.
| Item | Specification |
| Power Supply | Single-phase 220V / 50Hz, Total Power 400W |
| Working Air Pressure | 6 kg/cm² |
| Air Consumption | 200 L/min |
| Overall Machine Dimension (L × W × H) | 2160 × 2080 × 1492 mm |
| Net Machine Weight | 400 kg |
| Applicable Adhesive Tape Width | 4.8 ~ 7.2 cm |
| Carton Erecting Speed | 10 cartons per minute |

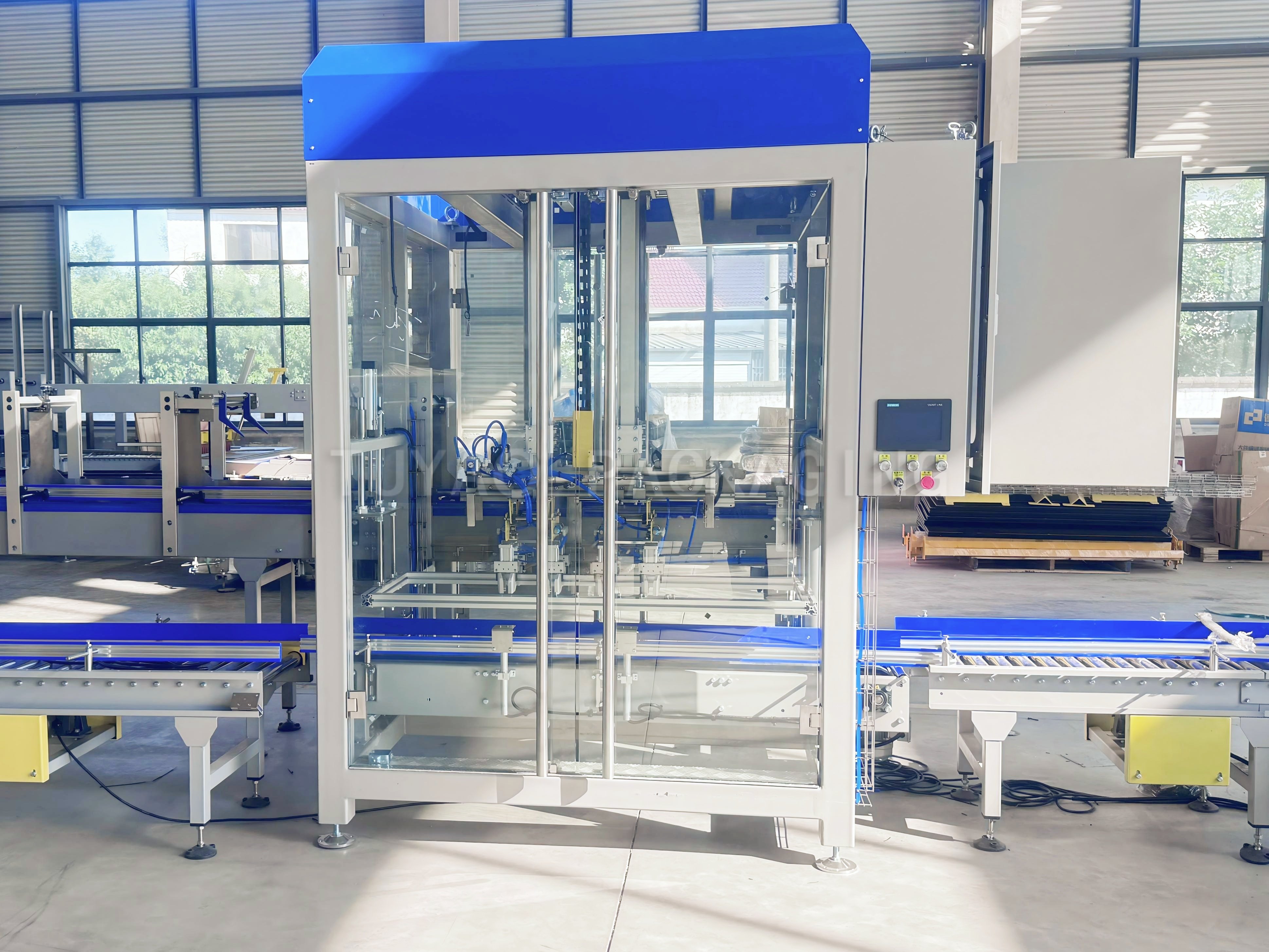

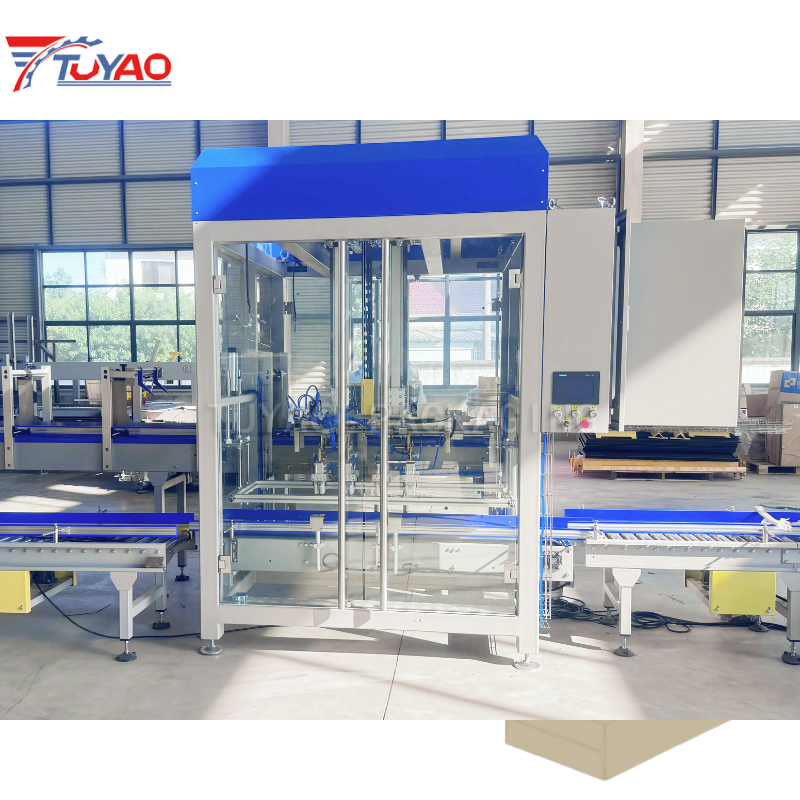

Automatic Carton Packer
This intelligent fully automatic gripper case packer features automatic sensor detection after carton filling. Once packing is finished, filled cartons are automatically discharged and delivered to the subsequent carton sealer.
The whole unit adopts PLC + color touchscreen integrated control. It is equipped with safety interlock functions: automatic alarm and machine halt when bottles are missing, and the packing cycle will not activate without products to avoid empty packing. This streamlined packaging line simplifies daily operation and workshop management, cuts staffing demand and labor intensity, and serves as indispensable core equipment for large-scale automated production.
Core Advantages
● Automatically sorts and arranges products into standard groups to meet various carton packing layout requirements
● Innovative compact layout saves workshop floor space
● Stable packing throughput up to 10 cartons per minute
● Wide compatibility, supporting automatic packing for multiple types of bottled goods
● Perfect matching with front and back end packaging line equipment; flexible for site relocation
● PLC programmed logic control with user-friendly operation and smooth, reliable mechanical movements

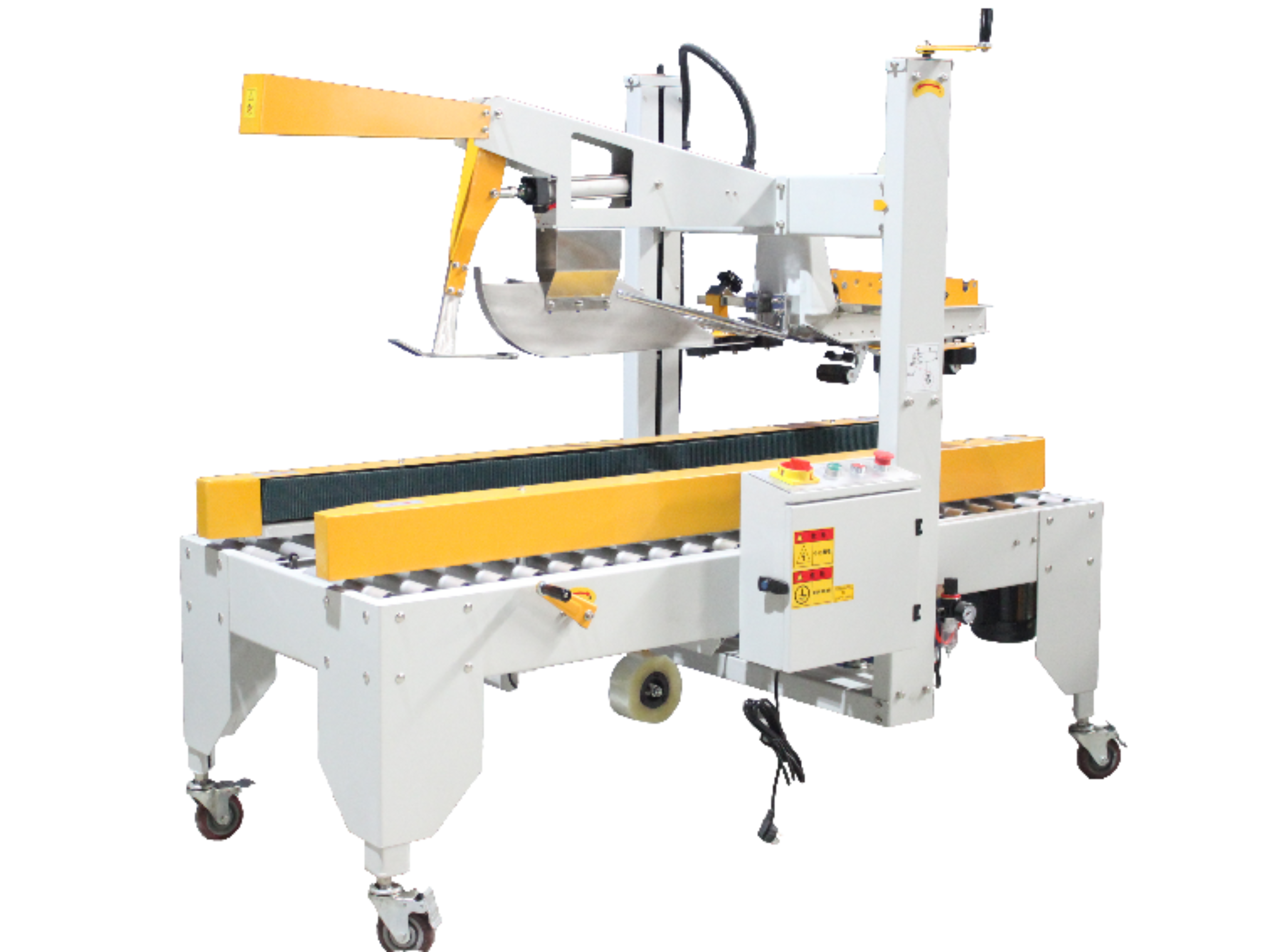

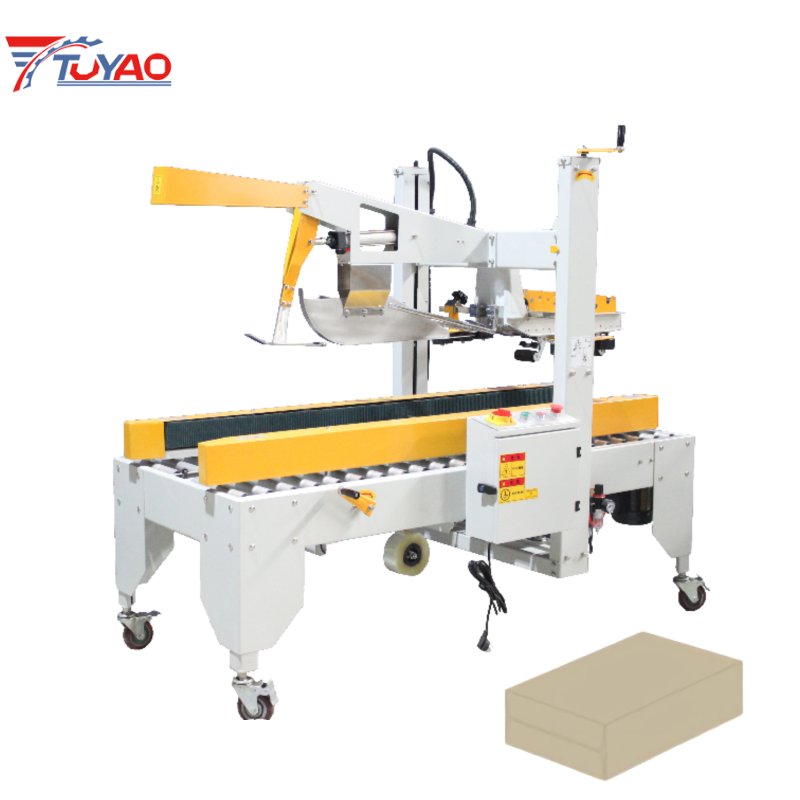

Automatic Carton Sealer
Core Machine Performance
The machine realizes automatic carton positioning, automatic top flap folding and timed automatic carton output without manual attendance. It is perfectly designed to connect with fully automatic front-end packaging production lines for continuous unmanned operation.
| Item | Specification |
| Frame Material | Integrally welded high-quality carbon steel with plastic-sprayed anti-rust surface finish |
| Power Supply | 220V, 50Hz, Total Power 400W |
| Working Air Pressure | 4 kg/cm² |
| Overall Dimension (L × W × H) | 1700 × 830 × 1450 mm |
| Machine Weight | 210 kg |
| Working Table Height | 600–750 mm (adjustable) |
| Sealing Speed | 10 cartons per minute |
| Operating Noise | ≤ 80 dB |
| Working Ambient Conditions | Ambient humidity ≤ 98%; Ambient temperature: 0–40 ℃ |
FAQ
Q1: Are you a trading company or a direct manufacturer?
A: We are a dedicated manufacturer with over 22 years of industry experience in beverage filling and packaging. Based in Zhangjiagang (only 2 hours from Shanghai), our factory is equipped with advanced technology to provide high-quality equipment at factory-direct prices. We warmly welcome you to visit our facility to see our machines in action.
Q2: Can the machine be customized for different bottle and carton sizes?
A: Fully customizable. We adjust gripper stroke, chain conveying width, carton magazine size and clamping jaw spacing according to your actual bottle groups and carton dimensions to meet personalized packing demands.
Q3: How does the gripper type case packer complete automatic carton packing?
A: After bottles are grouped by the collating conveyor and empty cartons are positioned at the packing station, the servo three-axis gripper automatically descends to clamp the whole product bundle, transfers the group above the carton, lowers and releases goods into the carton, then resets to finish one packing cycle. The whole process is fully controlled by PLC without manual intervention.
Q4: Do you provide overseas installation and training?
A: Yes. We can arrange senior technicians to your factory for installation, commissioning and systematic operation & maintenance training, including bottle blowing process adjustment and common fault handling.
Q5: What is the warranty period?
A: We provide a 12-month whole machine warranty starting from the commissioning date, with lifetime technical support and long-term supply of original spare parts and wearing parts at factory price.
