Glass Bottle Depalletizer
Our automatic glass bottle depalletizer efficiently unloads empty glass bottles from pallets, seamlessly connecting with rinsing and filling equipment. Designed for glass beverage containers, this depalletizing machine delivers stable operation, reduces manual labor, and fits perfectly into complete turnkey bottling production lines.
- Product Overview
- Video
- Working Principle
- Equipment Composition
- Technical Parameter
- FAQ
- Recommended Products
Product Overview

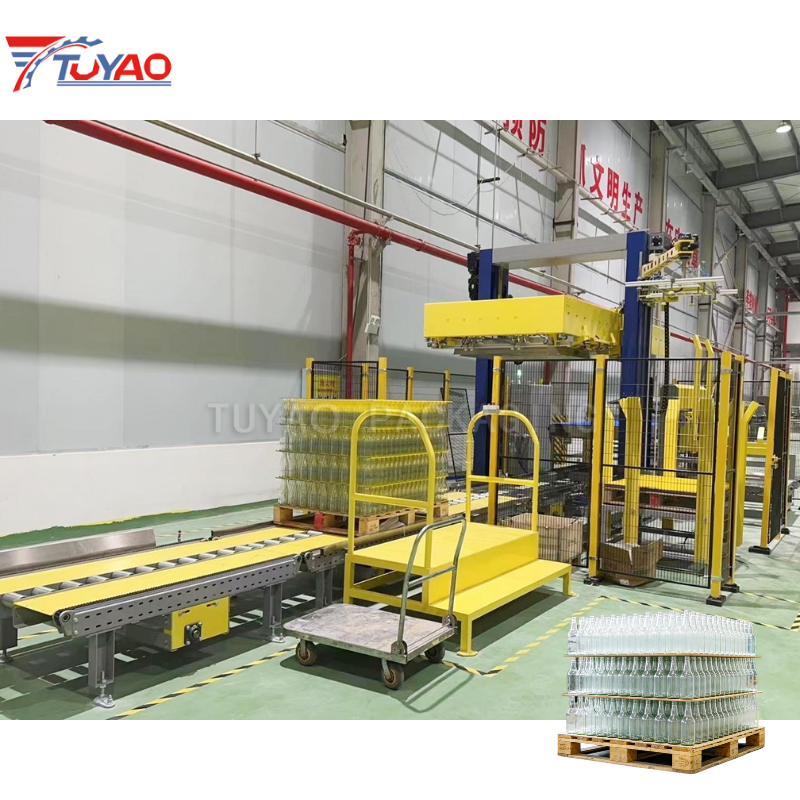

The glass bottle depalletizer serves as the front-end equipment of fully automatic glass bottling workshops. It automatically separates and transports empty glass bottles from stacked pallets to the conveyor system, replacing heavy manual bottle handling. Suitable for glass bottles used in juice, carbonated drinks, wine, mineral water and other liquid products. The machine works cooperatively with bottle rinsers, filling machines, capping machines and labeling equipment to realize continuous automated bottling production.
● Advanced Automatic Control: The machine adopts integrated PLC centralized control system paired with a human-machine interface, realizing full-range control over all depalletizing procedures. The operation console supports both Chinese and English display options.
● Easy Operation: The PLC system automatically adjusts production speed to keep the depalletizer running in sync with the entire bottling line.
● Innovative Structure Design: Boasting a rational and simplified mechanical structure, the machine is equipped with advanced and stable pneumatic and electric assemblies. It integrates the high efficiency and stability of high-position depalletizers as well as the space-saving advantage and convenient operability of low-position depalletizers.
● Reliable Performance with Full Safety Protection: Built-in safety protection mechanisms are equipped throughout the machine. If operators enter the working area, the equipment will stop automatically to avoid personal safety accidents.
Video
Working Principle
1. A forklift places the full pallet stacked with empty glass bottles onto the infeed platform. The pallet is then conveyed by chain conveyors to the unwrapping station. At this station, operators remove strapping bands and stretch film wrapped around the bottle stack. Afterwards, the unwrapped pallet of bottles is transported to the base platform.

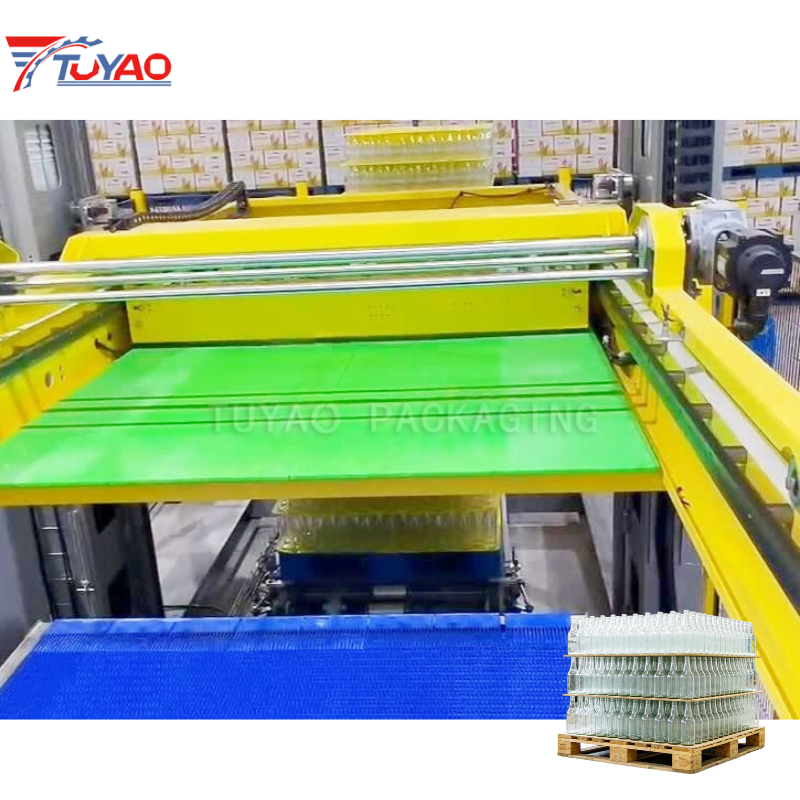

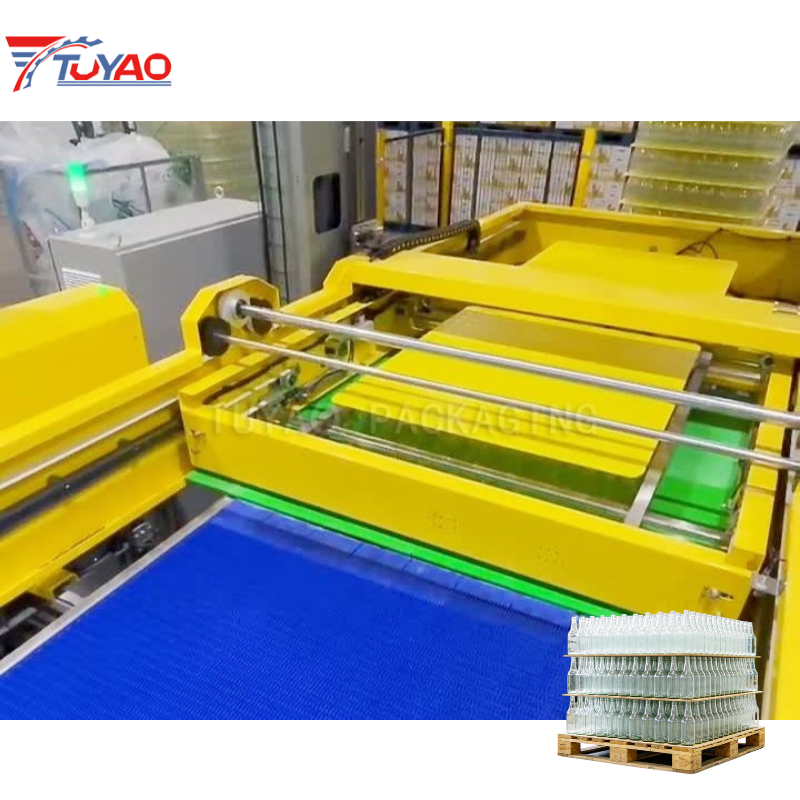

2. The lifting mechanism of the main machine raises the bottle stack on the base platform to the preset height via the lifting table. Separators between bottle layers are then pulled out. Next, the bottle discharging mechanism clamps and lifts the glass bottles. Driven by the motor, the whole discharging assembly moves horizontally toward the bottle conveying platform.
3. The clamping unit releases the bottles and places them onto the conveying platform. The unloaded glass bottles are forwarded by slat conveyors to the downstream process.
4. After one layer of bottles is completely discharged, the lifting mechanism rises by one layer height according to preset parameters to unload the next layer. This cycle repeats until all bottles on the pallet are fully depalletized.
5. Once all bottles are unloaded, the lifting mechanism lowers the empty pallet back to the base platform. Chain conveyors transfer the empty pallet to the empty pallet collecting station. Meanwhile, the base platform gets ready to receive a new bottle stack from the unwrapping station. Finally, forklifts remove the empty pallets from the collecting area.
Equipment Composition
Bottle Stack Conveyor
It buffers and transports bottle stacks. Equipped with two sets of double-row conveyor chains, the station can accommodate two bottle stacks to guarantee continuous production feeding.

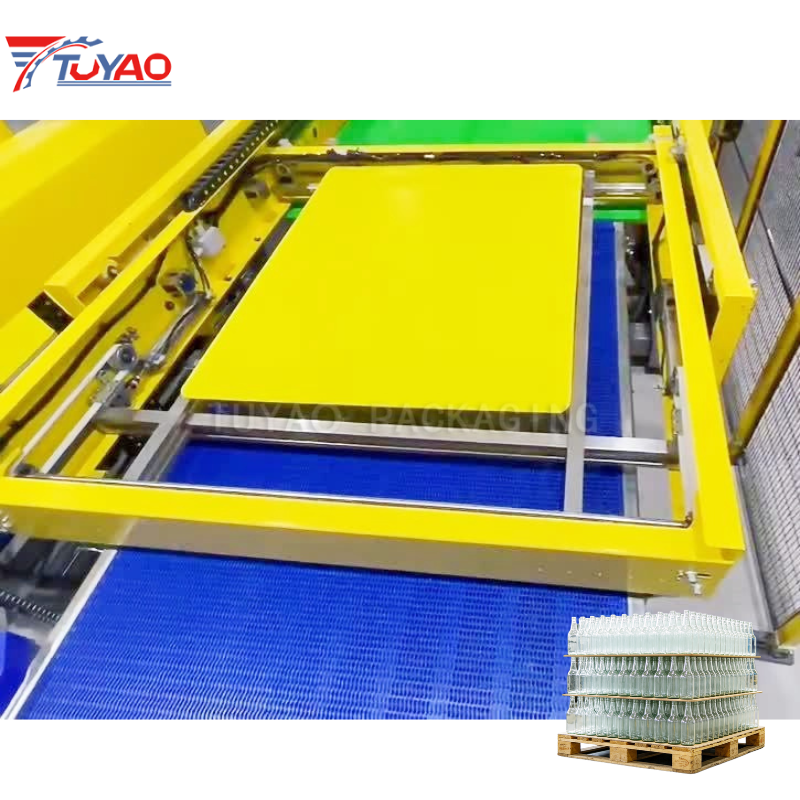

Main Depalletizing Unit
Carries out layer-by-layer bottle unloading. The lifting action is driven by domestic motors to ensure reliable vertical movement.
Empty Pallet Conveyor
Used to discharge empty pallets. It supports automatic output and centralized collection of empty pallets after all bottles are unloaded.
Separator Storage Station
Interlayer separators are collected and placed neatly by the separator transfer mechanism.
Technical Parameter
| Item | Parameter |
| Production Capacity | ≥24000 bottles per hour |
| Applicable Containers | Glass bottles / Plastic bottles |
| Bottle height: 70 ~ 360 mm | |
| Overall Dimension of Main Machine | 8500 * 3000 * 3200 mm (L*W*H) |
| Pallet Size | Customized according to customer requirements |
| Power Supply | 3-phase AC 380V±5%, 50Hz |
| Machine Weight | 6.5 T |
| Total Installed Power | 7 KW |
| Bottle Tipping Rate | ≤0.2% |
| Bottle Breakage Rate | ≤0.3% |
| Noise Level | ＜75 dB |
FAQ
Q1: Are you a trading company or a direct manufacturer?
A: We are a dedicated manufacturer with over 22 years of industry experience in beverage filling and packaging. Based in Zhangjiagang (only 2 hours from Shanghai), our factory is equipped with advanced technology to provide high-quality equipment at factory-direct prices. We warmly welcome you to visit our facility to see our machines in action.
Q2: Can this glass bottle depalletizer work with different shapes of glass bottles?
A: Yes. The clamping and guiding structure supports flexible adjustment to fit various conventional glass bottle designs. Please provide your bottle dimensions and pallet information so we can confirm adaptability.
Q3: Is the depalletizer able to connect directly with existing bottle rinsing machines?
A: Absolutely. The outlet conveyor can be customized to match your downstream equipment such as bottle rinsers and filling machines. Our engineering team can design the connection layout for your production line.
Q4: Do you provide overseas installation and training?
A: Yes. We can arrange senior technicians to your factory for installation, commissioning and systematic operation & maintenance training, including bottle blowing process adjustment and common fault handling.
Q5: What is the warranty period?
A: We provide a 12-month whole machine warranty starting from the commissioning date, with lifetime technical support and long-term supply of original spare parts and wearing parts at factory price.
