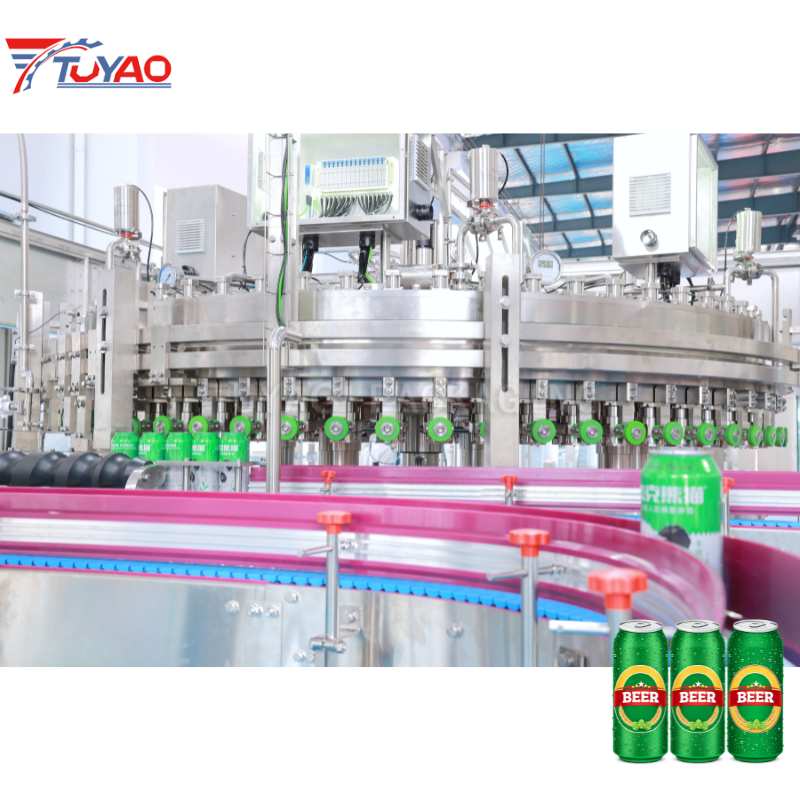

Beer Can Filling Machine

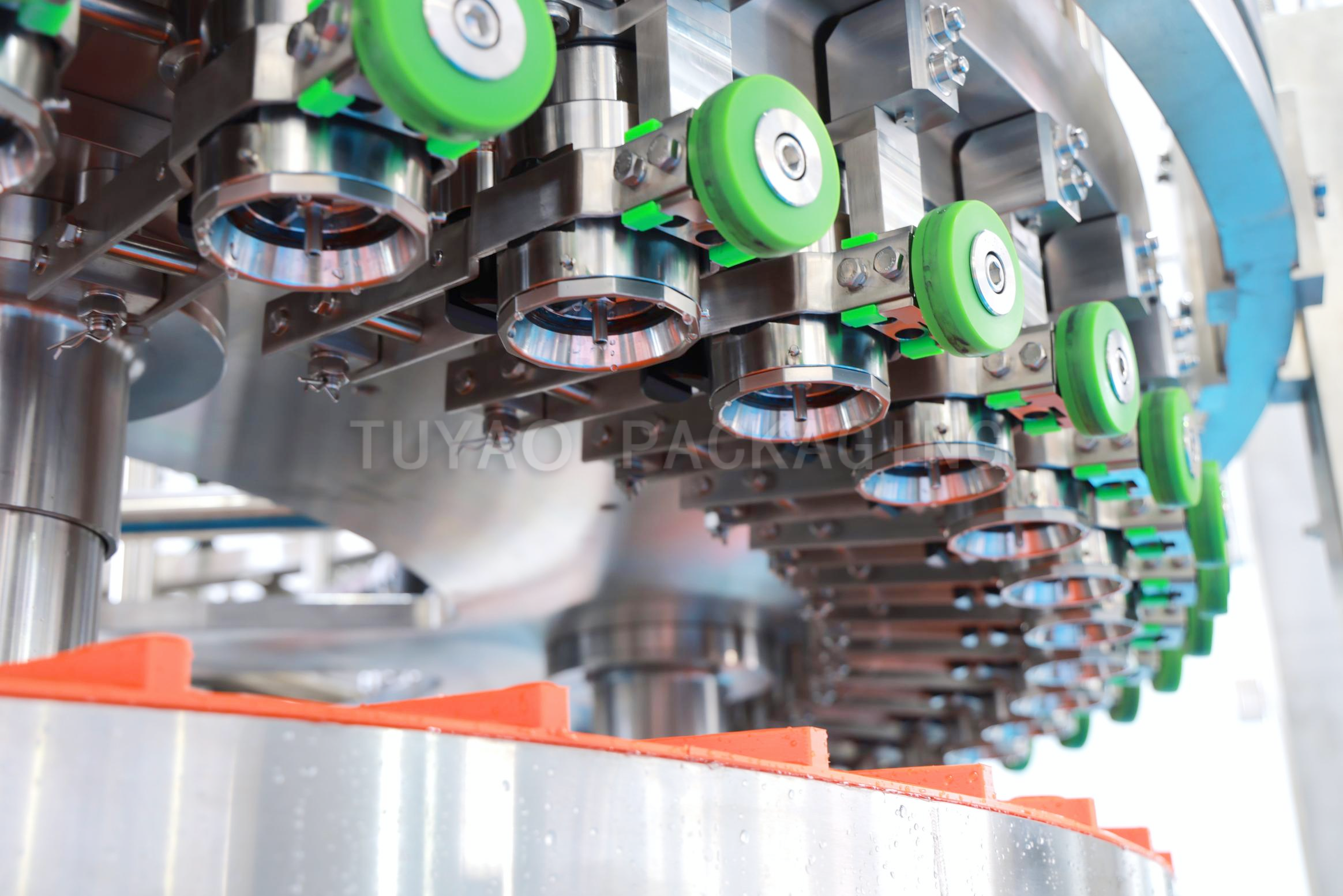

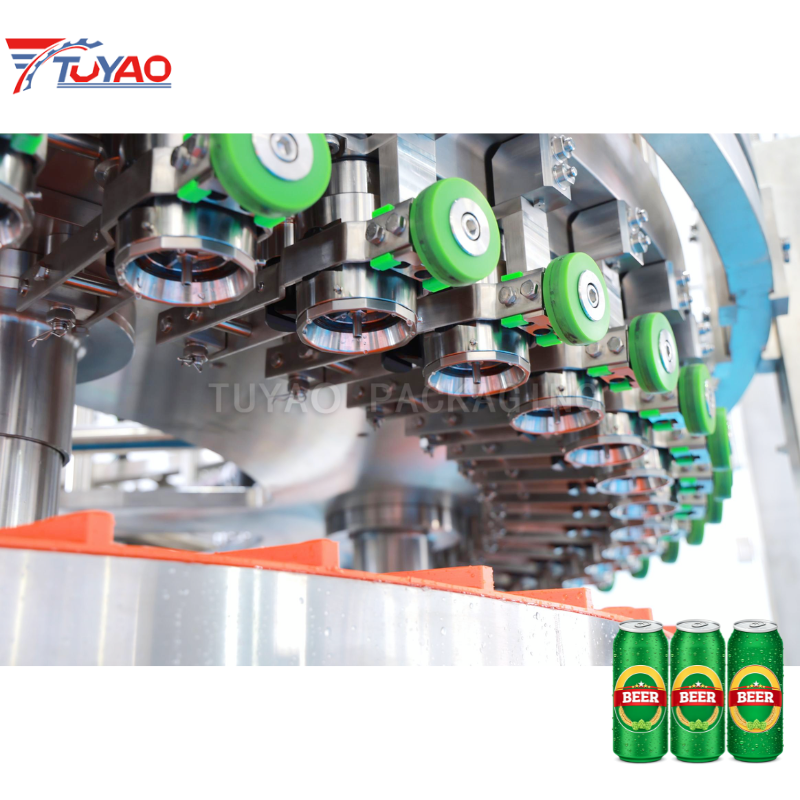

Can Filling Part

● Built with German-introduced isobaric filling technology, this section uses precision mechanical valves for fast response and highly accurate fill levels.

● Back pressure equalization before filling minimizes foaming and preserves beer carbonation. The system supports full CIP cleaning, with cam-driven valve lifting for reliable sealing and low product leakage. Fill height adjusts automatically to fit different can sizes.

● Gear transmission delivers high efficiency, low noise and easy maintenance, paired with stepless variable frequency speed control. Bottom-supported can conveying ensures stable positioning and enables quick format changeovers.

● PLC-controlled with on-site fault display for issues like can jams and lid shortages, it includes no-can no-fill, no-can no-lid and auto-stop safety logic. Filling cylinder liquid level is sensor-monitored for consistent performance, with all key components and electrical parts imported.

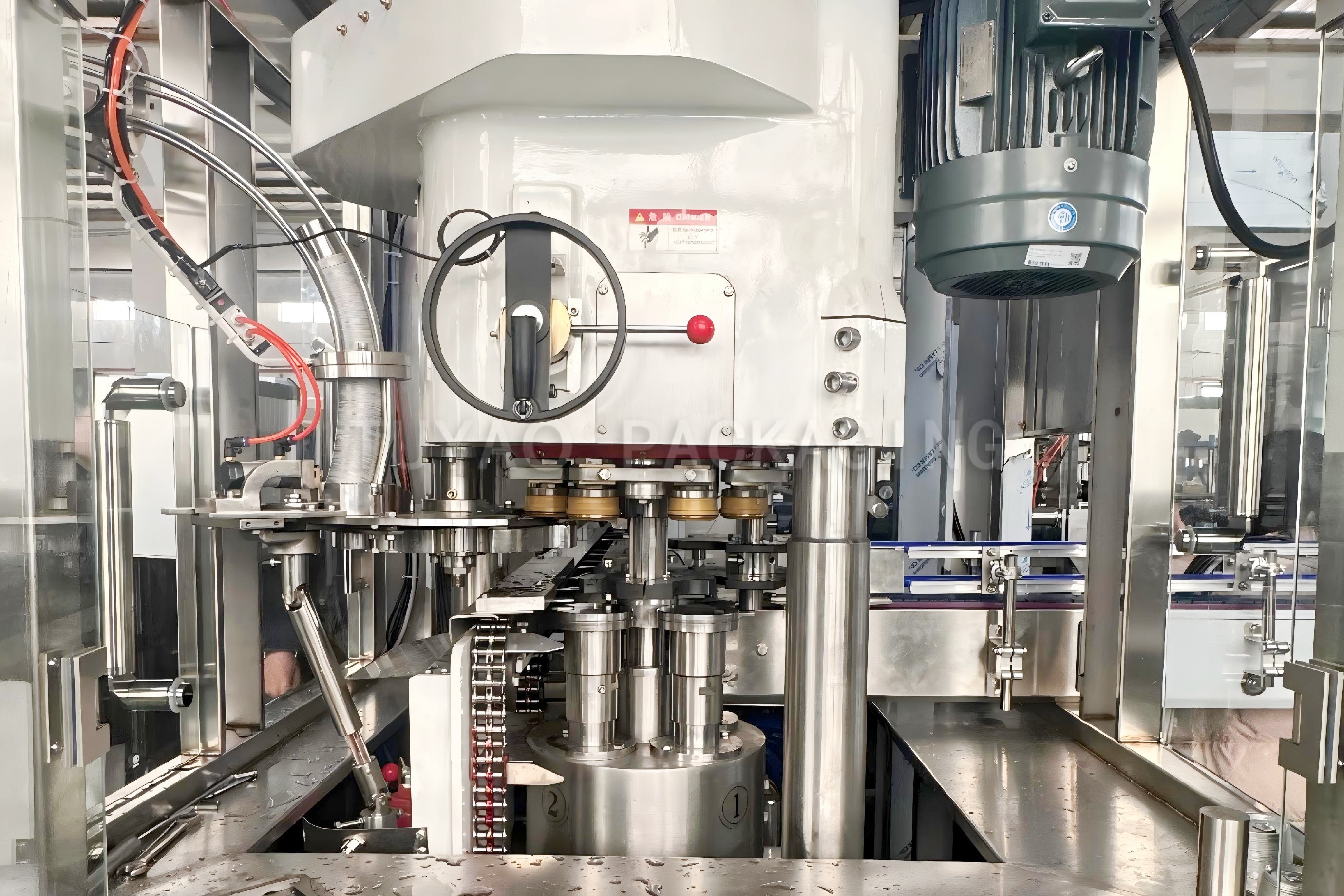

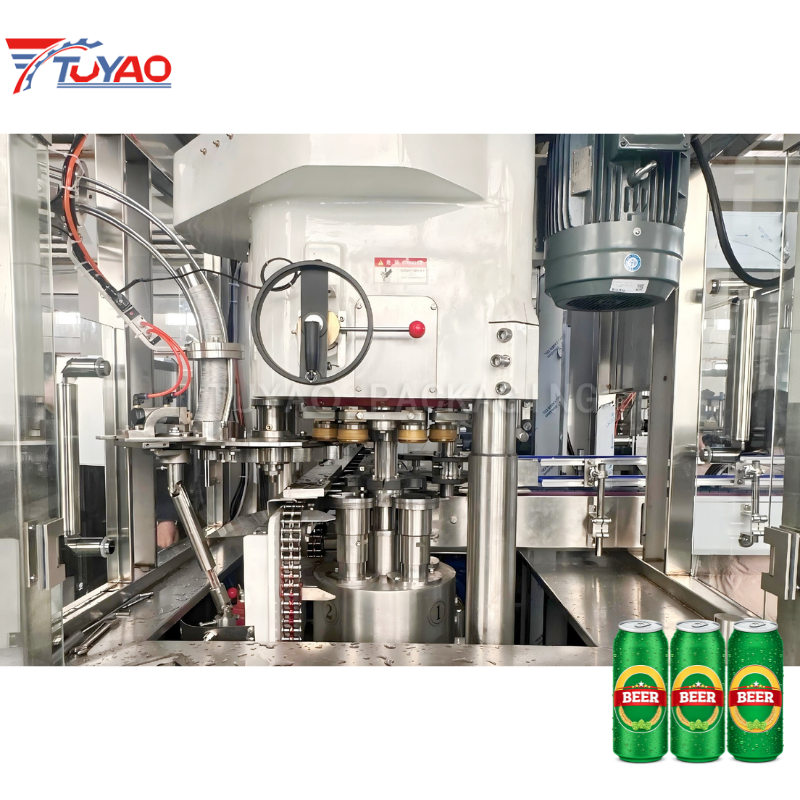

Can Sealing Part

● This unit seals lids onto filled cans and transfers finished products to downstream processes via conveyor chain.

● Seaming rollers are forged from high-hardness quenched alloy steel (HRC>62) with precision optical profile grinding, delivering consistent, reliable seam quality and extended service life.

● Before the lid seats on the can rim, sterile back-pressure gas purges the headspace to remove residual oxygen, preserving beer freshness and carbonation right through to final sealing.

● It features a can-synced lid feed system that dispenses lids only when cans are present to cut lid waste. Lids are manually loaded into the chute, gravity-fed with a pusher assist, and an integrated detection switch triggers auto-stop on lid shortage.

● The seaming unit supports manual height adjustment to accommodate different can specifications.

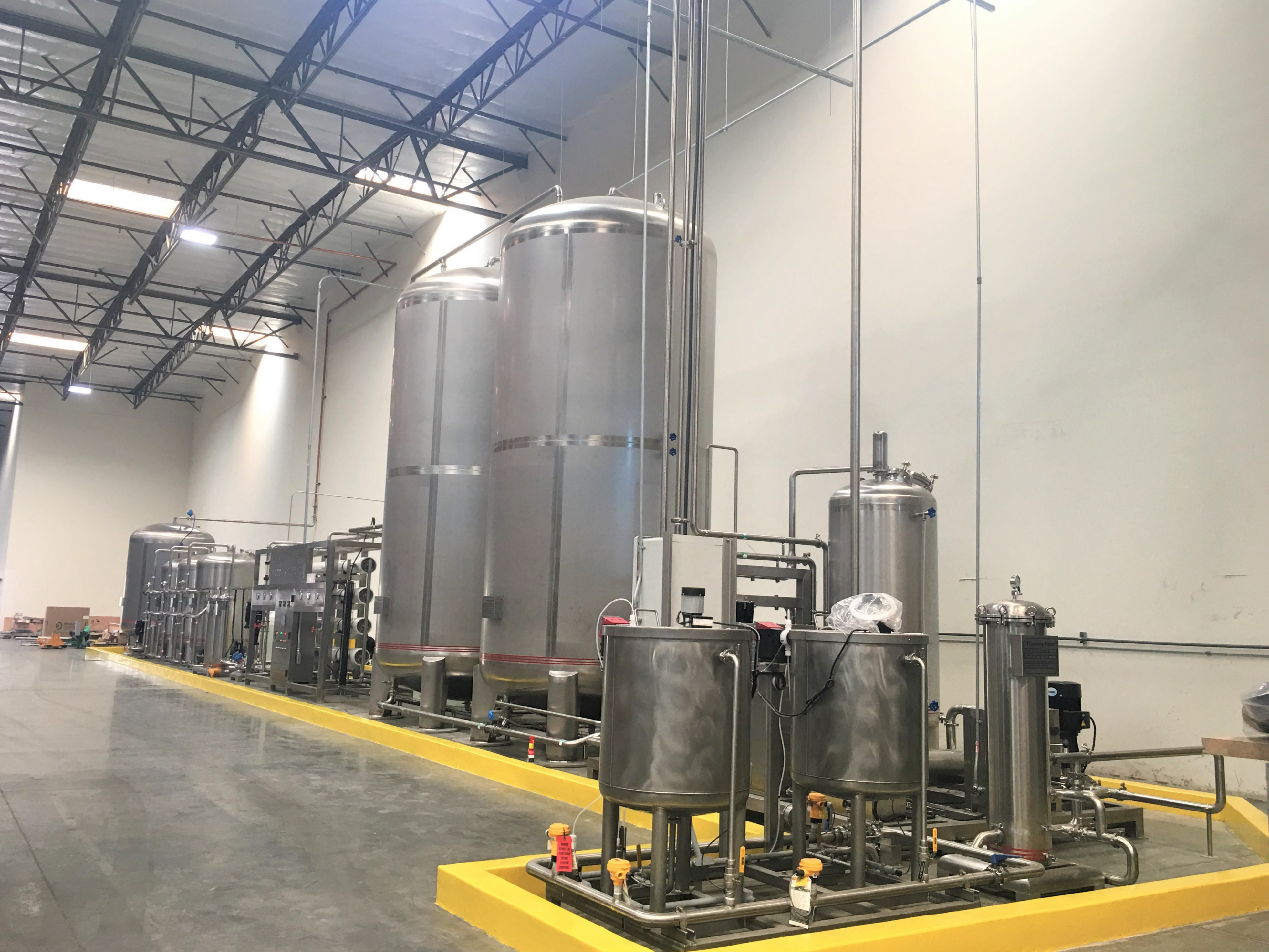

Water Treatment System

Our water treatment systems are fully custom-engineered to your raw water conditions. After reviewing your water analysis report, we design a tailored solution combining pre-filtration, reverse osmosis (RO), ultrafiltration (UF) and ozone/UV sterilization for deep purification — effectively removing contaminants, reducing hardness and ensuring compliance with drinking water standards.

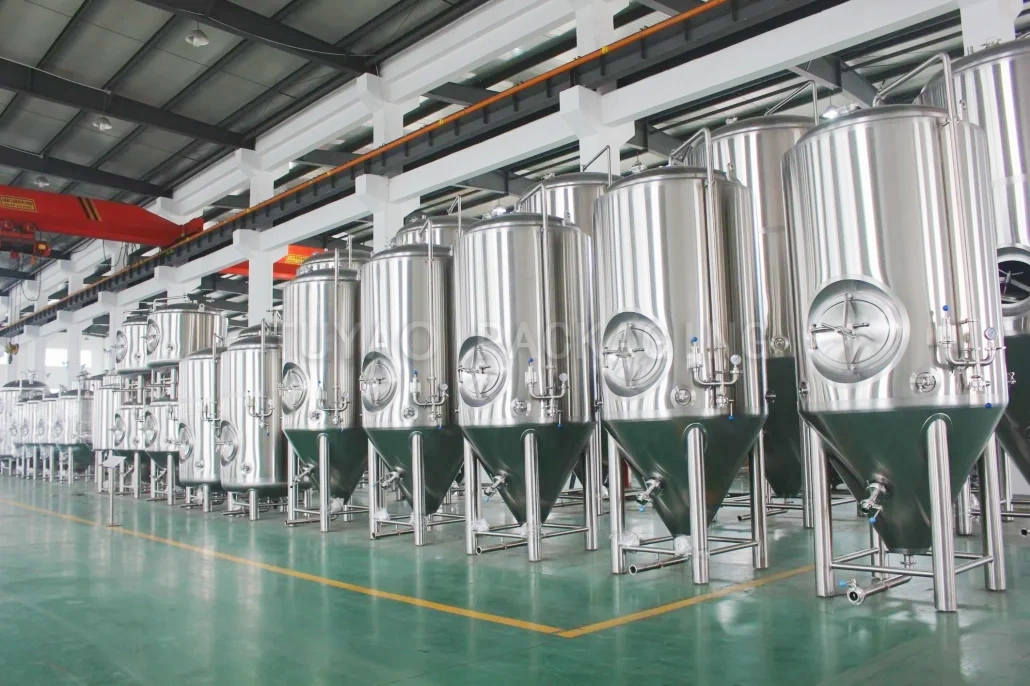

Beer Brewery System

Custom-engineered premium beer brewing systems and complete turnkey auxiliary equipment, built specifically to address the full range of operational and technical requirements across the brewing industry.

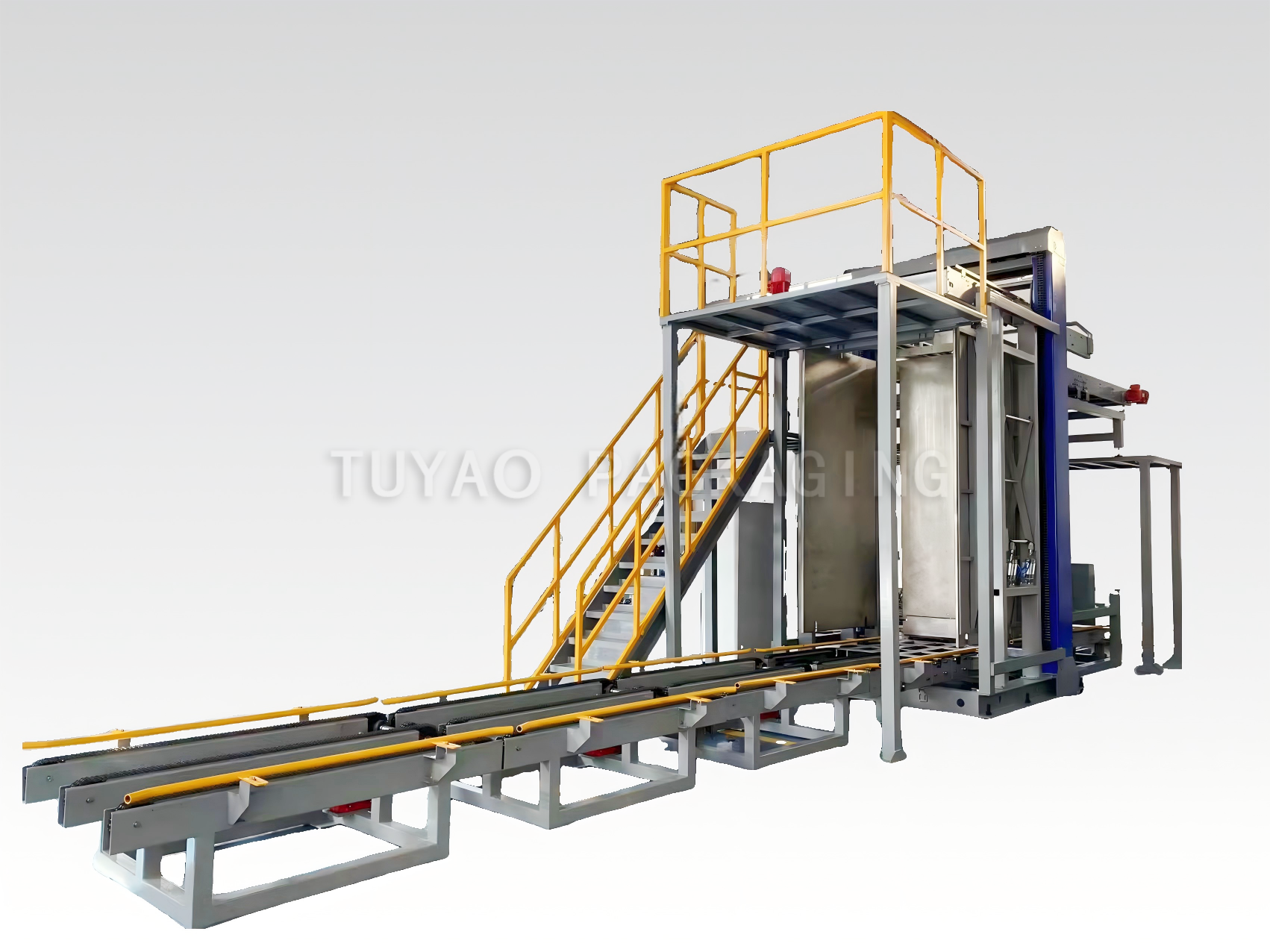

Empty Can Depalletizer

This machine is designed specifically for the unloading of empty can pallets. It efficiently lifts the empty cans stacked on the pallet layer by layer, starting from the bottom and moving upwards. Subsequently, it smoothly pushes these cans onto the top - mounted chain conveyor. The top chain conveyor then transports the cans to the filling machine. This makes it an essential and ideal piece of equipment for beverage manufacturers, streamlining their production processes.

Empty Can Rinser

Automated inverting: Empty cans are fed to the front-end mechanism via conveyor, automatically rotating from mouth-up to mouth-down with zero manual intervention for higher production efficiency.

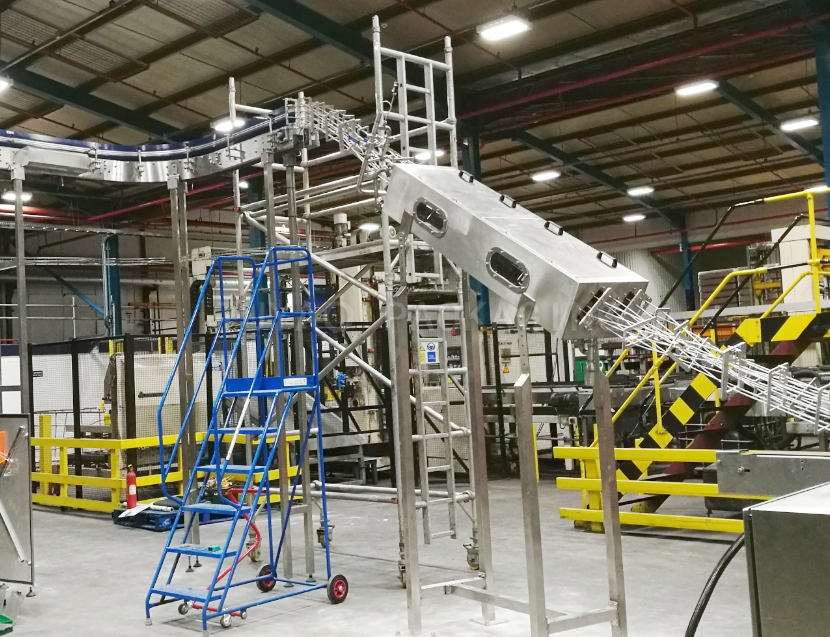

Gravity-driven rinsing: Internal flushing nozzles deliver thorough interior cleaning with no blind spots. The unit’s adjustable incline lets cans roll horizontally by gravity, requiring no extra drive power — cutting energy use and simplifying maintenance.

Dual-channel flexibility: Dual channels support 330ml and 500ml cans, freely switchable to fit different production needs and diverse order requirements

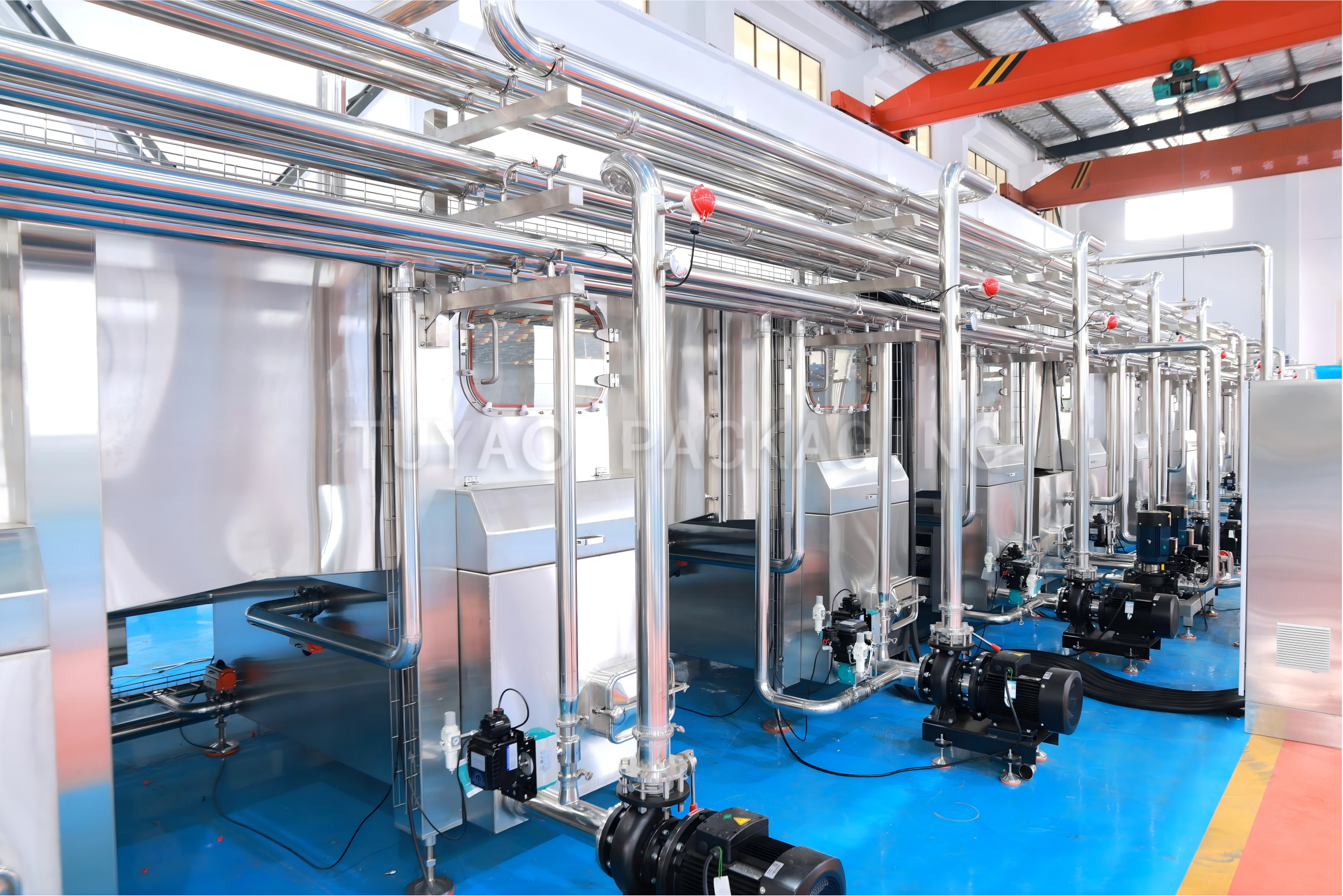

Tunnel Type Spray Sterilizer

Extended shelf stability: Precision spray pasteurization extends PET bottled beer shelf life to 6–12 months.

Flavor & bottle protection: Gradient temperature control preserves beer flavor and avoids thin-wall PET deformation.

In-line continuous production: Runs synchronously with filling lines, matching 2,000–24,000 BPH output.

Dry bottle for downstream processing: Built-in air knife drying ensures reliable labeling and coding quality.

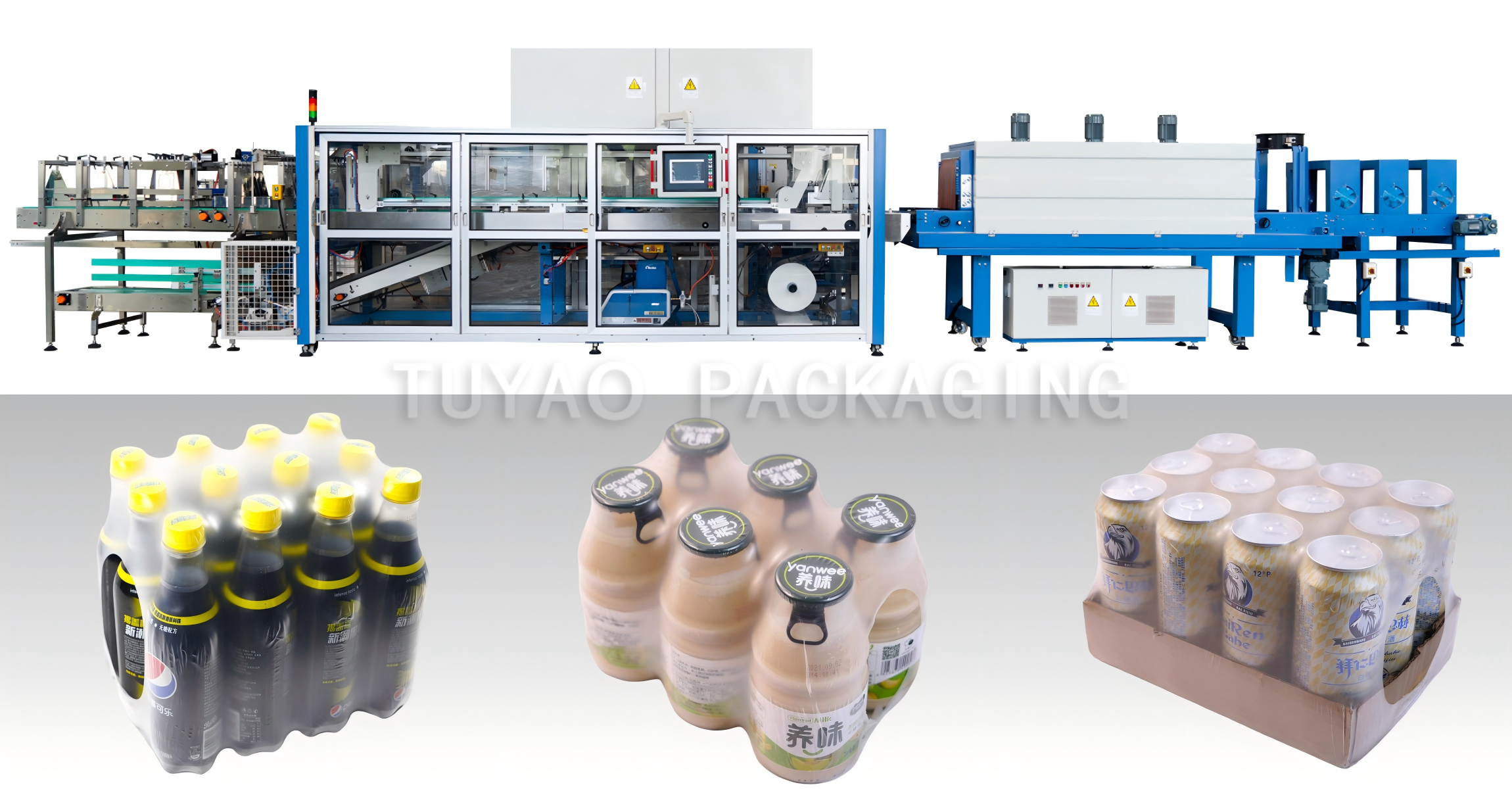

Bottle Packging System

Individual bottled water requires secondary packaging to withstand long-distance transportation and storage. We provide a range of end-of-line packaging solutions, including PE shrink wrapping, carton packing and film-with-tray packaging, each paired with purpose-built equipment.

PE shrink film packaging is the most common choice for bottled water plants due to its low material cost, while carton packaging is typically selected for premium bottled water or glass bottle lines.

Q1: Are you a trading company or a direct manufacturer?

A: We are a dedicated manufacturer with over 22 years of industry experience in beverage filling and packaging. Based in Zhangjiagang (only 2 hours from Shanghai), our factory is equipped with advanced technology to provide high-quality equipment at factory-direct prices. We warmly welcome you to visit our facility to see our machines in action.

Q2: Can this machine integrate with our existing canning line?

A: Yes. It uses standard conveying heights and industry-standard interface dimensions. We can adjust the infeed and outfeed conveyor length and control logic to work seamlessly with your existing can depalletizer, pasteurizer, labeler or packaging equipment.

Q3: What types of beverages can this can filling machine run?

A: It is primarily designed for carbonated beer products including lager, ale, IPA, wheat beer and hard seltzer. It can also handle other carbonated soft drinks and sparkling beverages packaged in standard aluminum cans.

Q4: Do you provide installation and training at our brewery?

A: Yes. We can send experienced service technicians to your facility for installation, commissioning and hands-on operator and maintenance training. We also supply a full operation manual, maintenance guide and recommended spare parts list with every machine.

Q5: What is the warranty period?

A: We offer a 12-month whole-machine warranty starting from the commissioning date, plus lifetime technical support and spare parts supply.
