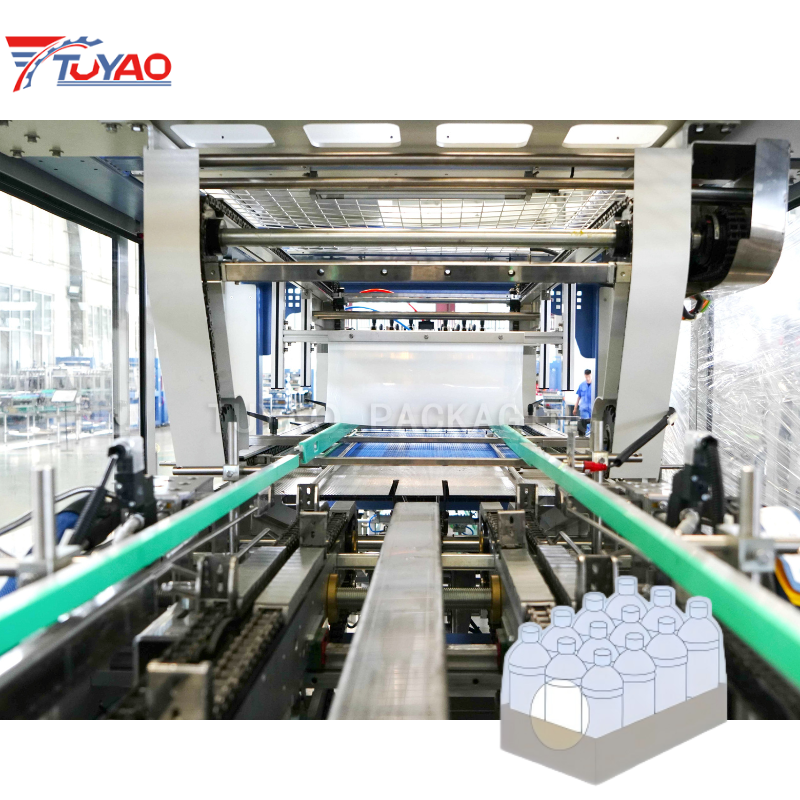

Half-tray Film Shrink Wrapping Machine
Fully automatic half-tray film shrink wrapping machine engineered for bottom half-tray supported bundle packaging of beer, carbonated drinks, fruit juice, bottled water, dairy products and condiment bottles. It integrates automatic bottle grouping, half-tray feeding, servo film traction, constant-temperature sealing & cutting and circulating hot air heat shrinkage into one continuous workflow. Fitted with intuitive color touchscreen HMI, energy-saving insulated circulating hot air tunnel and high-durability sealing cutter. Optional upgrades include printed film wrapping and full cardboard half-tray packaging solutions. The machine seamlessly links blow molding and filling production lines to cut labor costs and elevate end-of-line packaging efficiency for food and beverage factories.
- Product Overview
- Video
- Equipment Features
- Technical Parameters
- Photos
- FAQ
- Recommended Products
Product Overview
The half-tray film shrink wrapping machine is dedicated terminal bundling packaging equipment specially designed for half-tray bottom-support packaging of bottled goods including beer, assorted beverages, fruit juice, bottled drinking water, dairy drinks and condiments.
As products are conveyed forward on the production line, photoelectric sensors automatically count and group bottles, then the built-in tray feeding mechanism delivers half cardboard trays underneath each product bundle. The servo film traction system pulls anti-static LDPE shrink film to fully wrap the grouped bottles and half trays. After hot knife sealing and cutting, bundled goods enter the circulating hot air shrink tunnel, where evenly distributed constant-temperature hot air makes shrink film tightly fit the half-tray and bottle surfaces, creating neat, dust-proof, stackable packaged bundles ideal for storage, transportation and palletization.
The shrink tunnel adopts mature circulating hot air technology with thick thermal insulation layers and high-precision temperature control modules, eliminating common defects like incomplete shrinkage, wrinkling or burnt film. Equipped with a friendly color touchscreen operation interface, operators can complete rapid parameter setting and intuitive human-machine communication to adjust conveying speed, sealing temperature, shrink temperature and film tension flexibly.
This machine boasts strong compatibility for bottles with various neck sizes and supports multiple packaging modes: standard plastic half-tray + film wrapping. Customized functional upgrades are available upon request, including printed film packaging modules and dedicated cardboard half-tray wrapping systems. All core electrical and pneumatic components adopt premium well-known brands such as Siemens, Inovance and UNIQUC to guarantee stable round-the-clock industrial operation.
Video
Equipment Features
● This all-in-one cardboard half-tray feeding & film wrapping machine boasts a sleek, attractive appearance paired with an innovative unique mechanical layout, enabling convenient daily inspection and maintenance.

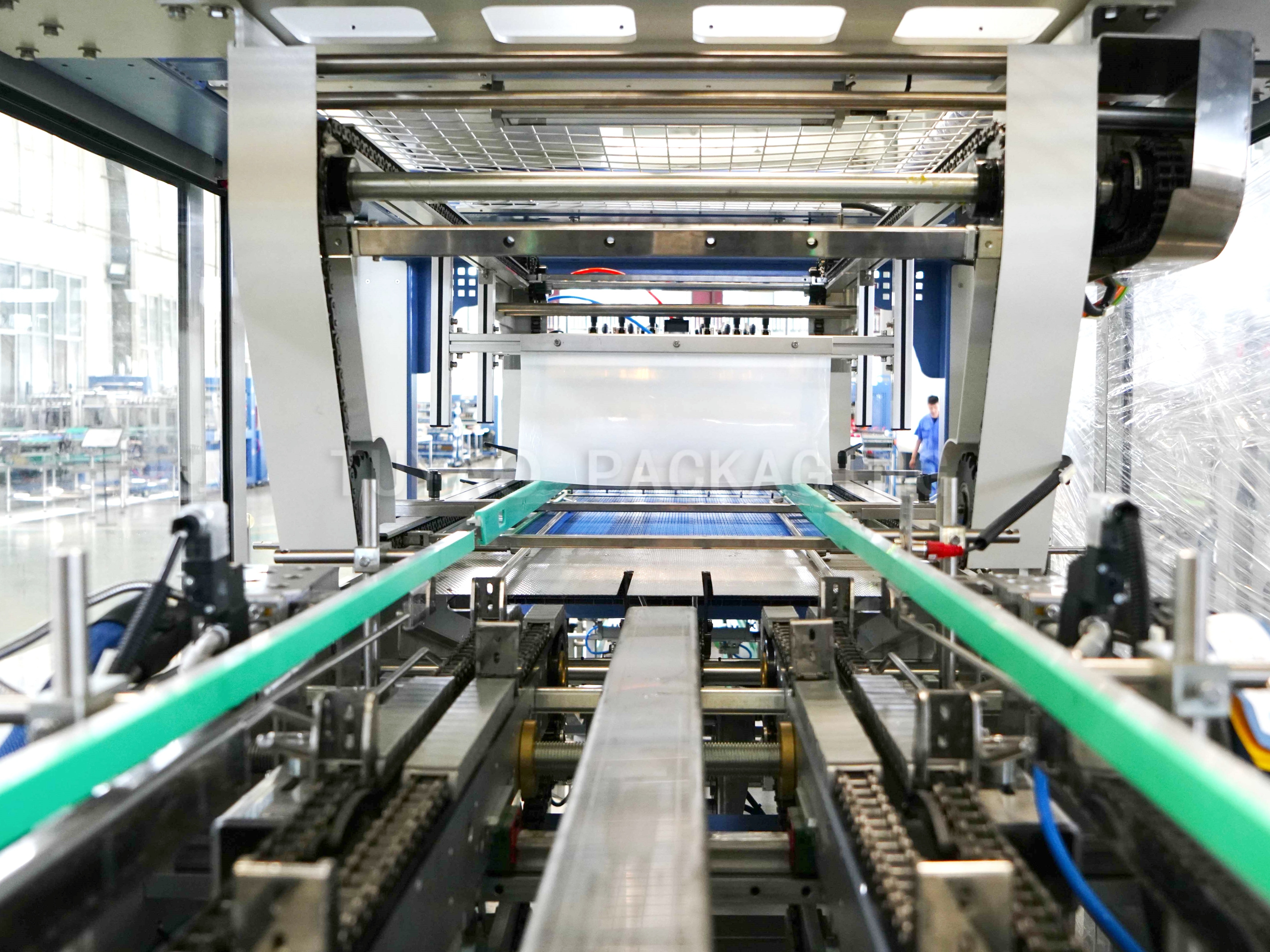

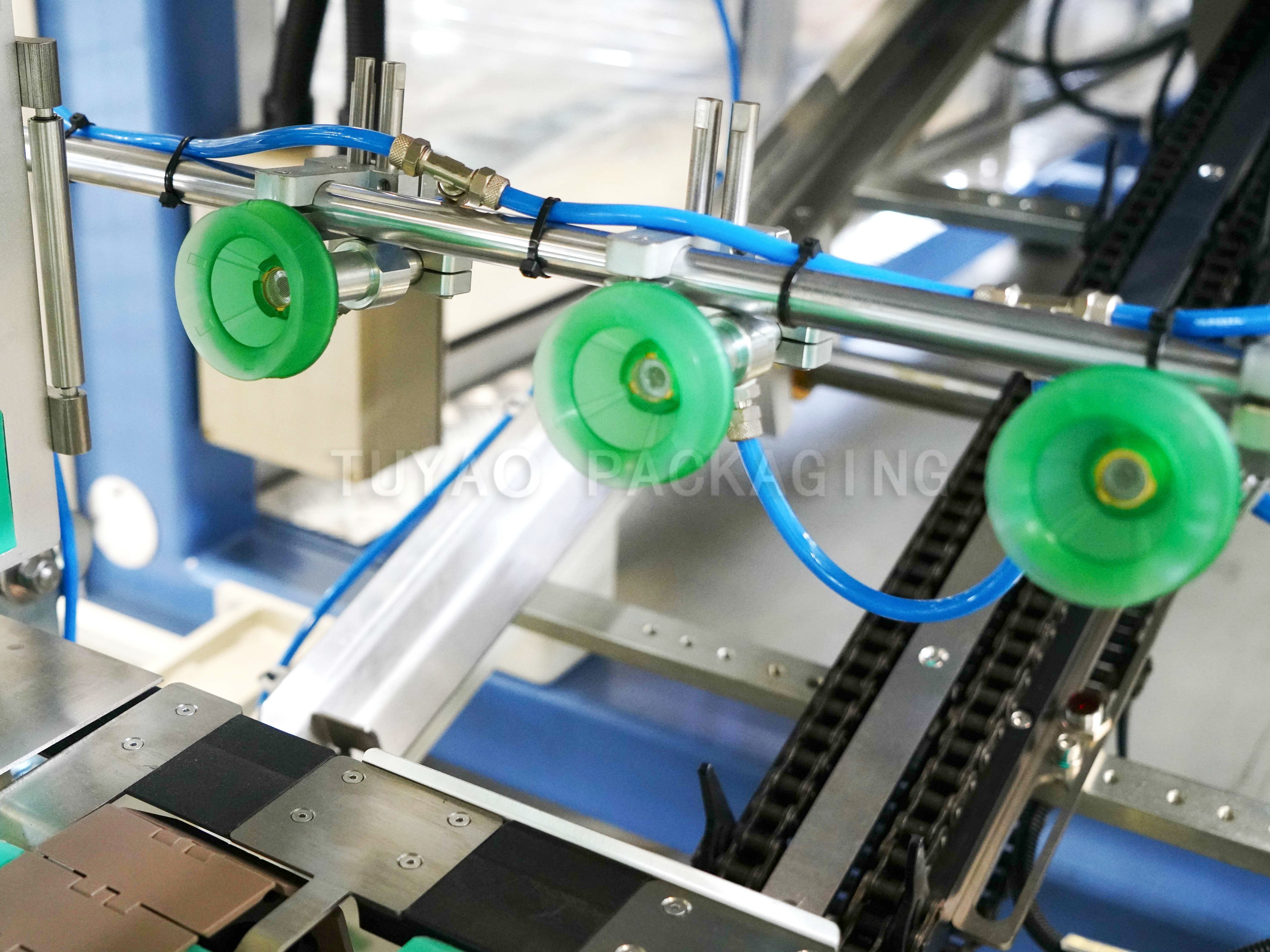

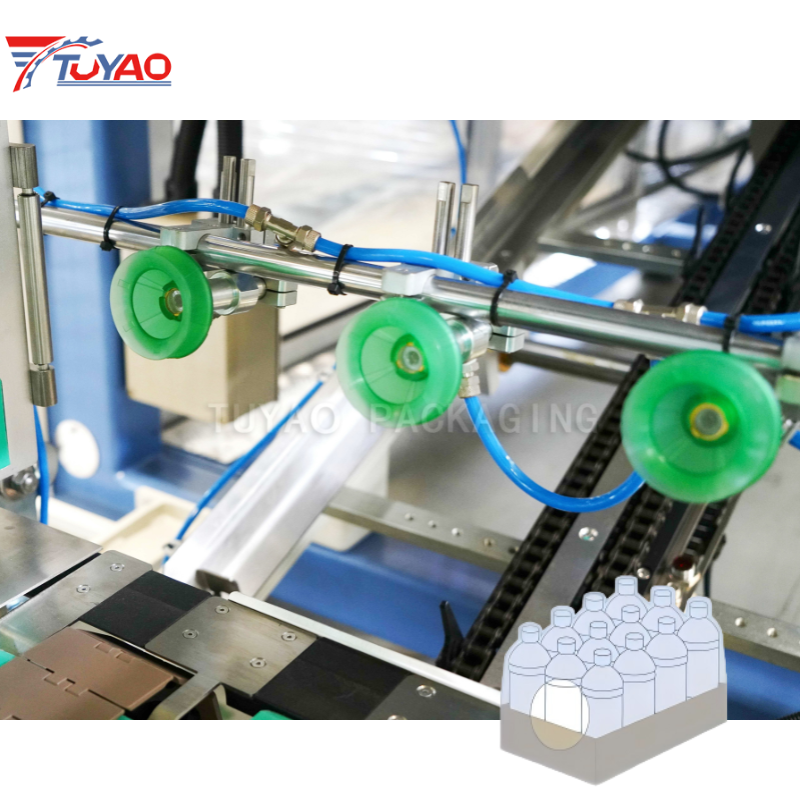

● Equipped with an independently controlled pneumatic cylinder suction & grabbing mechanism for corrugated half-trays, fitted with world-renowned premium pneumatic components. It lowers the cardboard grabbing failure rate down to only 0.5‰ for stable continuous production.
● Exclusive open, extended side-mounted cardboard magazine design simplifies manual cardboard loading and allows larger storage capacity for corrugated half-trays. It boosts overall line throughput while effectively cutting operators’ physical workload.
● The heat shrink tunnel adopts proprietary circulating air supply technology with multi-directional airflow regulation. Both fan wind speed and air outlet positions are fully adjustable, delivering flawless, consistent shrink wrapping results for all bundle formats.

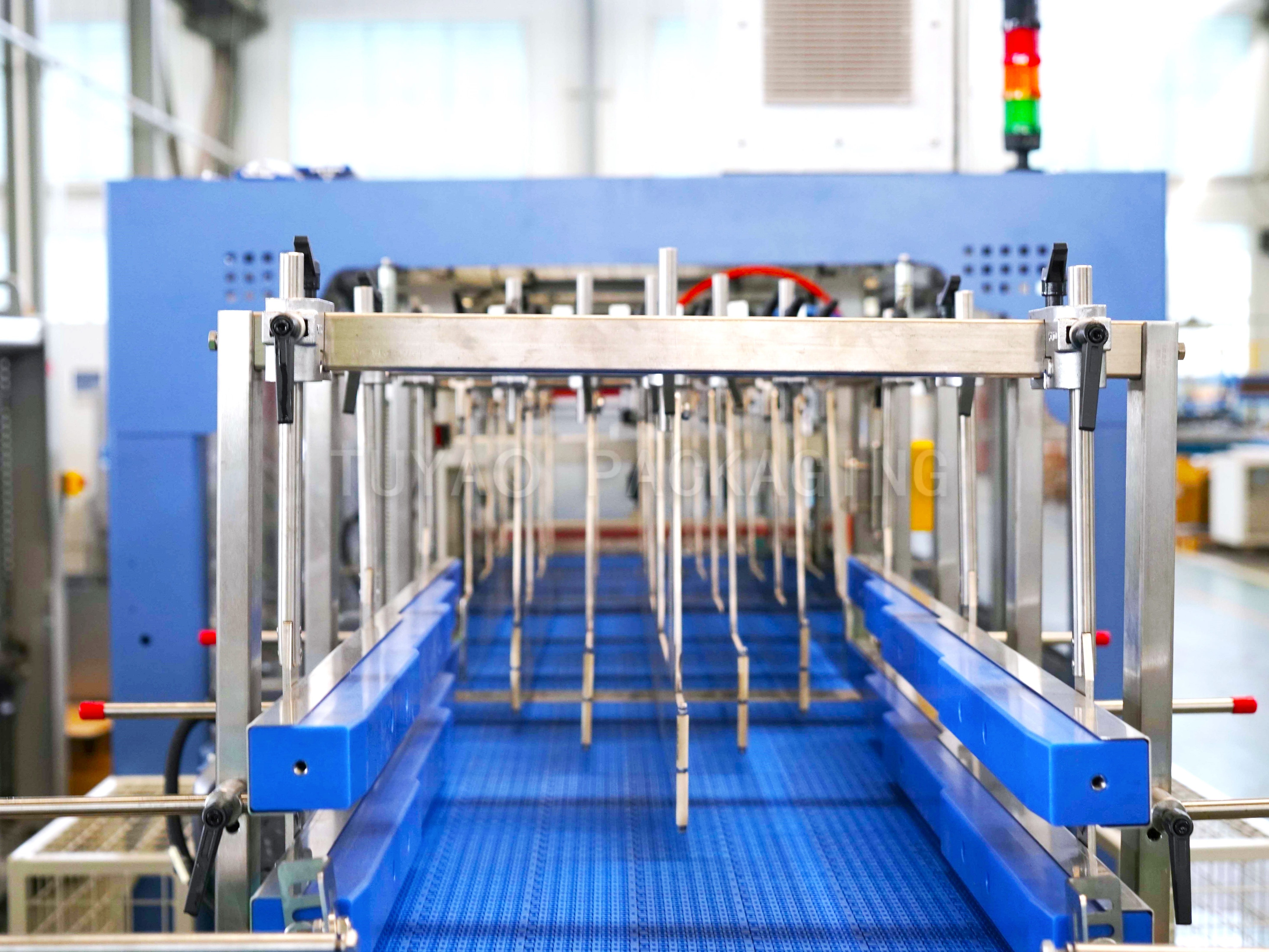

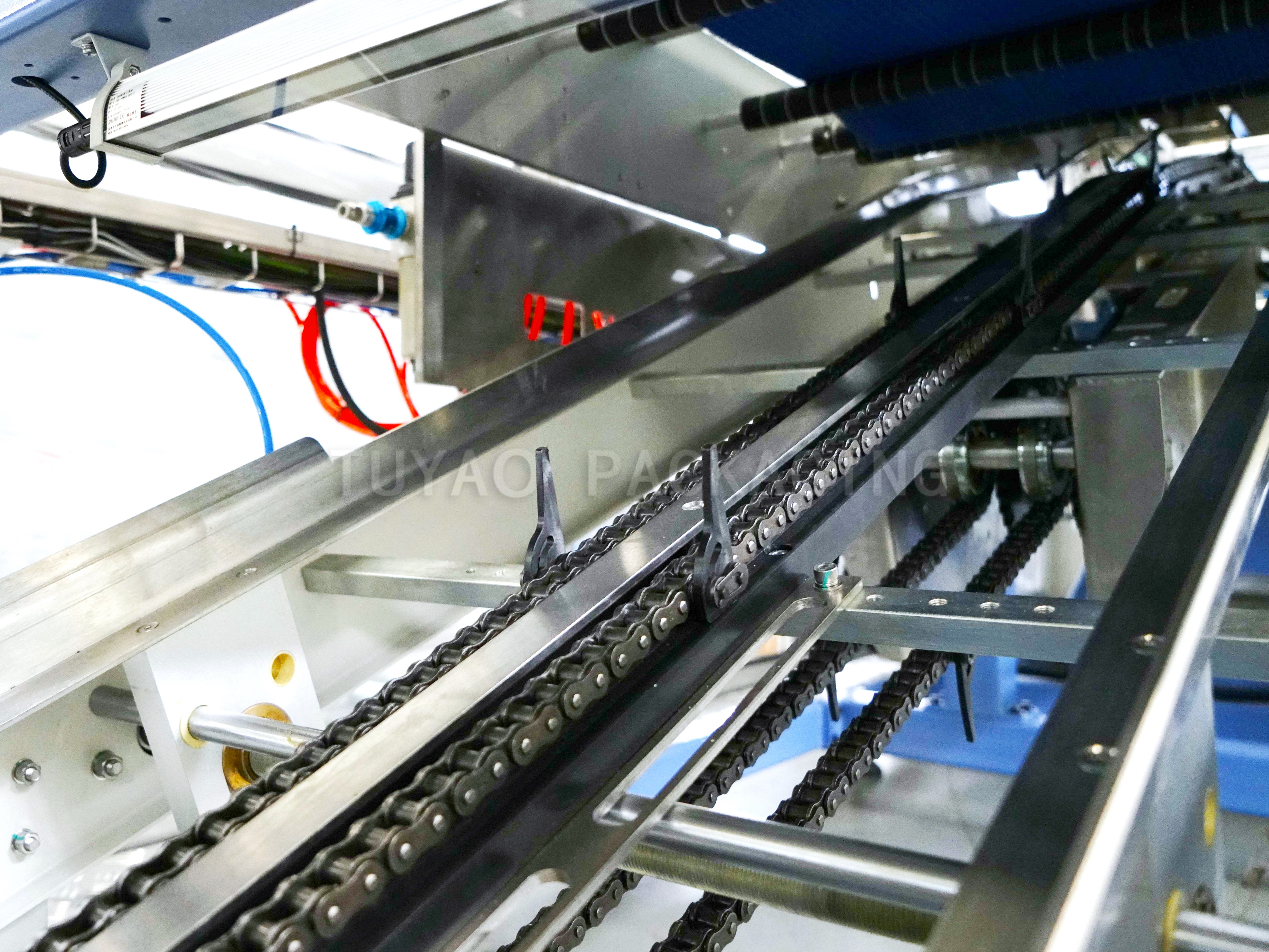

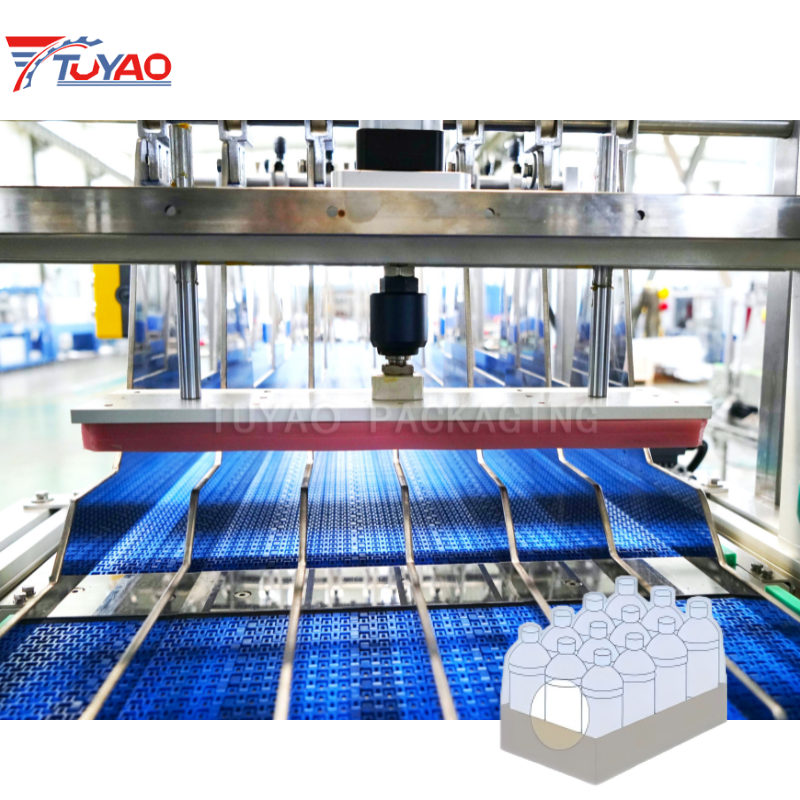

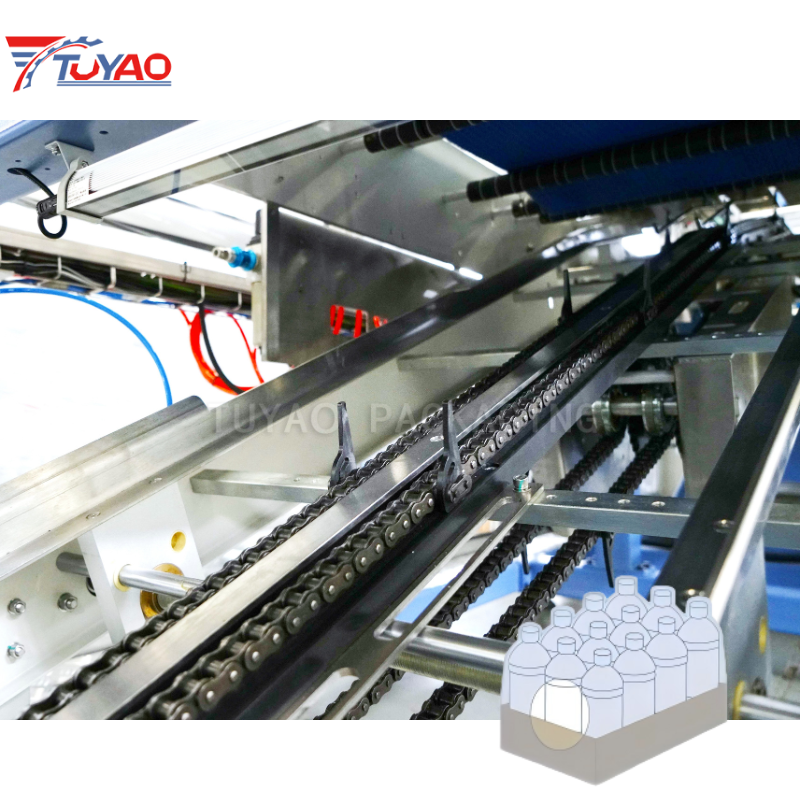

● A separation gap of over 500 mm is reserved between the independent cooling channel and heat shrink tunnel. This design achieves superior rapid cooling performance, prevents cold air backflow from disrupting internal hot air The cardboard tray folding & forming unit adopts a four-chain transmission system, shortening product format changeover time by approximately 30 minutes when switching between different bottle group combinations.
● The whole machine adopts optimized energy-saving structural design, reducing total power consumption by 30% to realize low-carbon, eco-friendly industrial operation.
● Built on modularized integrated design with excellent cost-performance ratio, it ranks among the top preferred automatic cardboard half-tray film wrapping machines for beverage and liquid food production lines.
Technical Parameters
| Item | Specification |
| Operating Power Supply | 3-phase 5-wire, 380V / 50Hz |
| Control Voltage: DC 24V | |
| Compressed Air Requirement | Pressure: 0.6 ~ 0.8 MPa (oil-free & water-free) |
| Air Consumption: 300 ~ 400 NL/min | |
| Air Pipe Connector Diameter: Φ12 mm | |
| Internal Size of Heat Shrink Tunnel (L × W × H) | 2400 × 650 × 450 mm |
| Heat Shrink Temperature Range | 130 ℃ ~ 230 ℃ |
| Packaging Film Material | Anti-dust & anti-static LDPE shrink film |
| Surface static electricity: ≤ 4000 esu | |
| Coefficient of kinetic friction (non-print side): ≥ 0.3 | |
| Elongation rate: 300 – 450% | |
| Film Roll Specifications | Max. film width: ≤ 580 mm |
| Film thickness: 0.07 ~ 0.10 mm | |
| Max. film roll outer diameter: ≤ 300 mm | |
| Cardboard Half-Tray Requirement | 3-layer corrugated paper |
| Smooth surface, thickness ≥ 3 mm | |
| Surface flatness tolerance ≤ 5 mm | |
| Operating Noise Level | ≤ 80 dB |
| Average Total Power Consumption | 34 kW |
| Total Machine Weight | 5000 kg |
Photos
FAQ
Q1: Are you a trading company or a direct manufacturer?
A: We are a dedicated manufacturer with over 22 years of industry experience in beverage filling and packaging. Based in Zhangjiagang (only 2 hours from Shanghai), our factory is equipped with advanced technology to provide high-quality equipment at factory-direct prices. We warmly welcome you to visit our facility to see our machines in action.
Q2: What products can this half-tray film shrink wrapping machine package?
A: It is specially designed for bottom half-tray supported bundling packaging of beer, assorted beverages, fruit juice, bottled water, dairy drinks and condiment bottles with various neck sizes.
Q3: Can I choose different packaging forms like printed film or cardboard half-trays?
A: Two customizable upgrade modules are available on demand: printed film wrapping function and dedicated cardboard half-tray wrapping solution. Our technical team will adjust machine structures and parameters according to your target packaging style.
Q4: Do you provide overseas installation and training?
A: Yes. We can arrange senior technicians to your factory for installation, commissioning and systematic operation & maintenance training, including bottle blowing process adjustment and common fault handling.
Q5: What is the warranty period?
A: We provide a 12-month whole machine warranty starting from the commissioning date, with lifetime technical support and long-term supply of original spare parts and wearing parts at factory price.
